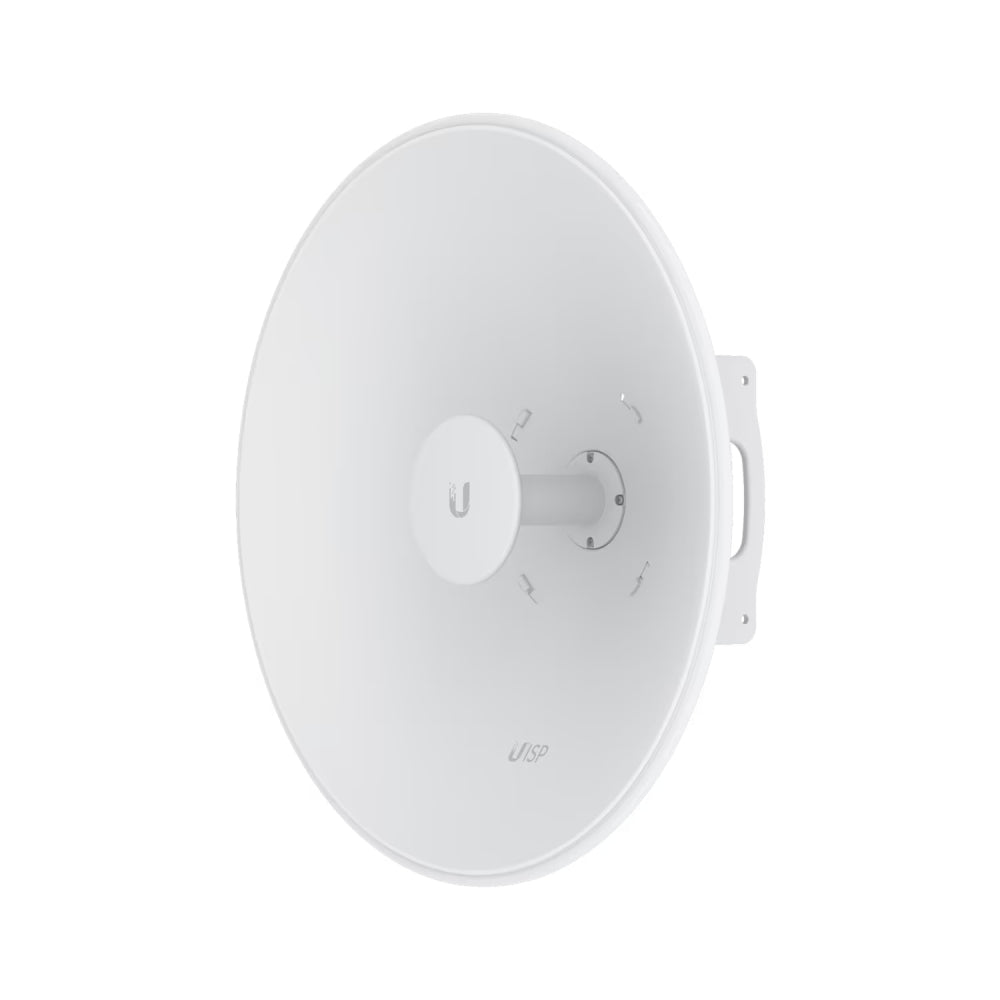

Ubiquiti UISP Dish High-Gain 5 GHz Antenna (UISP-Dish)

Description

UISP Series · NDAA COMPLIANT

Long-Range 5 GHz Point-to-Point Backhaul Performance

The Ubiquiti UISP Dish (UISP-Dish) is an NDAA compliant, high-gain 5 GHz dish antenna engineered for long-distance Point-to-Point (PtP) backhaul links and high-capacity wireless infrastructure. Delivering an impressive 30 dBi gain across the 5.15 to 5.85 GHz frequency spectrum, this dish provides exceptional beam directivity and noise immunity for Wireless Internet Service Providers (WISPs) and enterprise building-to-building bridge connections.

Antenna Gain
30 dBi High Gain
Frequency Range
5.15 - 5.85 GHz
Radio Mounting
Snap-In Direct Mount
Alignment
Precision Elevation Mount

Seamless Toolless Integration & Weatherproof Engineering

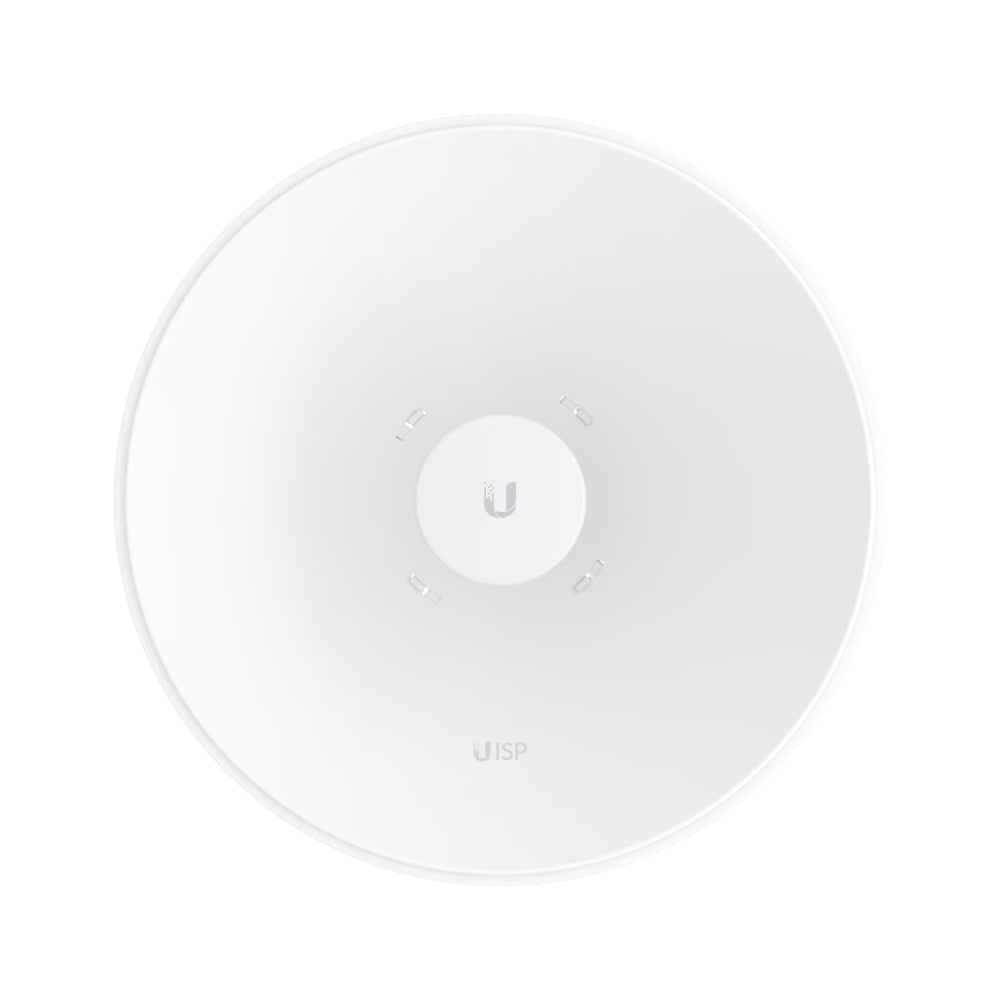

Built to withstand harsh outdoor environments, the UISP-Dish features a durable, powder-coated reflector paired with a precision mounting kit for fast elevation and azimuth adjustment. Designed specifically for the UISP ecosystem, it features an integrated radio mount that allows compatible 5 GHz radios (such as airMAX Rocket, Wave Nano, or UISP target radios) to lock directly into the feed horn without requiring extra tools or RF cables.

Superior Noise Isolation

The narrow 30 dBi beamwidth focuses RF energy tightly, suppressing side-lobe interference in congested co-location tower sites and urban environments.

Precision Alignment Mount

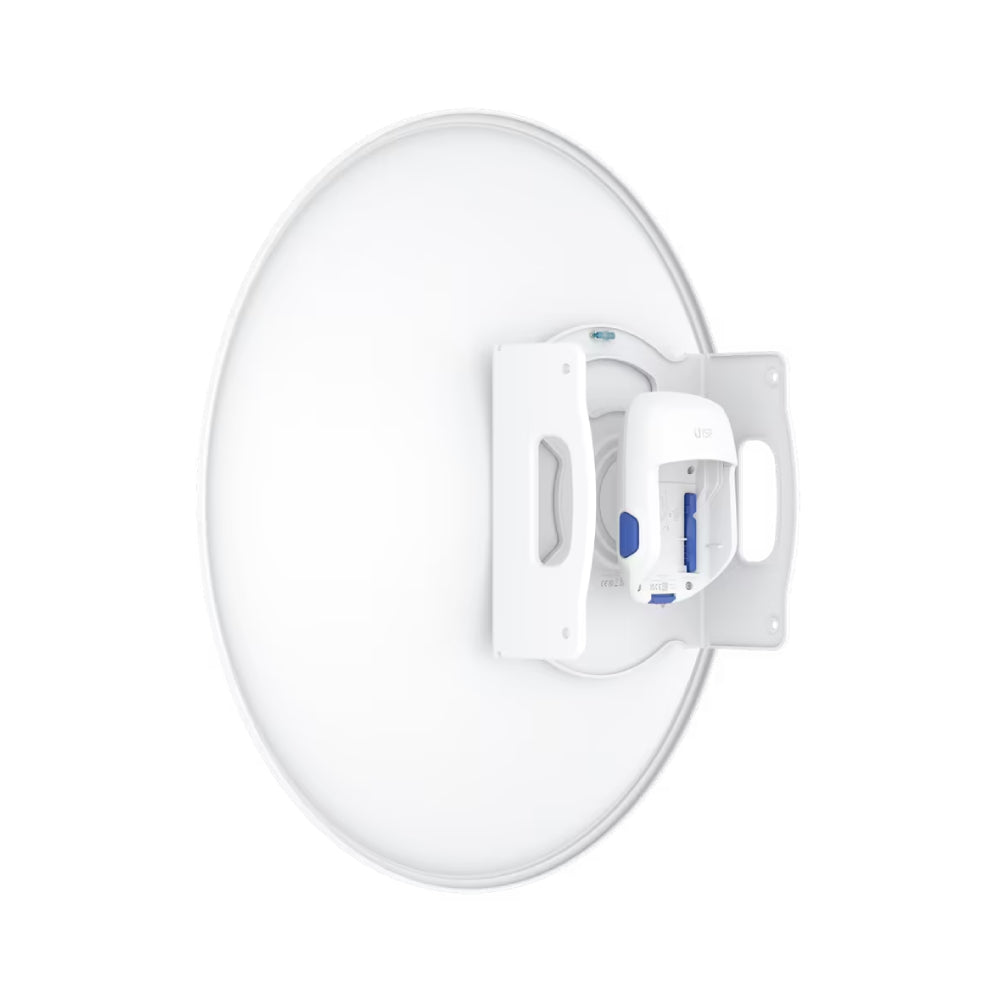

Includes an intuitive pole-mount assembly with fine elevation and azimuth adjustment controls for effortless aiming over multi-kilometer spans.

Technical Specification Matrix
Model SKU UISP-Dish
NDAA Compliance Confirmed Compliant (Yes)
Operating Frequency 5.15 to 5.85 GHz
Antenna Gain 30 dBi
Polarization Dual-Linear (Vertical / Horizontal)
Beamwidth Azimuth: 6° (3 dB) · Elevation: 6° (3 dB)
Front-to-Back Ratio 30 dB
Mounting Hardware Precision Pole Mount Included (Fits 38 to 85 mm / 1.5 to 3.3" Outer Diameter Poles)
Wind Survivability 200 km/h (125 mph)
Dimensions / Weight 650 x 650 x 386 mm (25.6 x 25.6 x 15.2") / 7.5 kg (16.5 lb)
Is the Ubiquiti UISP-Dish NDAA compliant?

Yes, the UISP-Dish is officially certified as NDAA compliant, making it eligible for federal, municipal, and defense-related networking installations.

Does the UISP-Dish include an integrated radio?

No, the UISP-Dish is a passive parabolic antenna. It features a twist-lock or snap-in bracket designed to mount compatible UISP or airMAX 5 GHz radios directly to the feed horn.

What distance can I achieve with the UISP-Dish?

When paired with high-power 5 GHz radios, the 30 dBi gain enables clear, high-throughput Point-to-Point links spanning 15 to 30+ kilometers (depending on local RF conditions and line of sight).

Is the mounting bracket resistant to high winds?

Yes, the heavy-duty pole bracket and dish assembly are engineered to withstand winds up to 200 km/h (125 mph).

Official Ubiquiti Stock
NDAA Certified
Fast Dispatch

Ubiquiti UISP Dish High-Gain 5 GHz Antenna (UISP-Dish)

Product form

SKU: UISP-Dish

$346.50 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Shipped today? Order within: Aug 02, 2026 14:00:00 +1000
    • Warranty: 12 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
