Hikvision · 1 DeepinView ANPR Plate-Capture Bullet + 4 AcuSense 4K Turrets · 8CH PoE NVR
5-Camera ANPR Kit

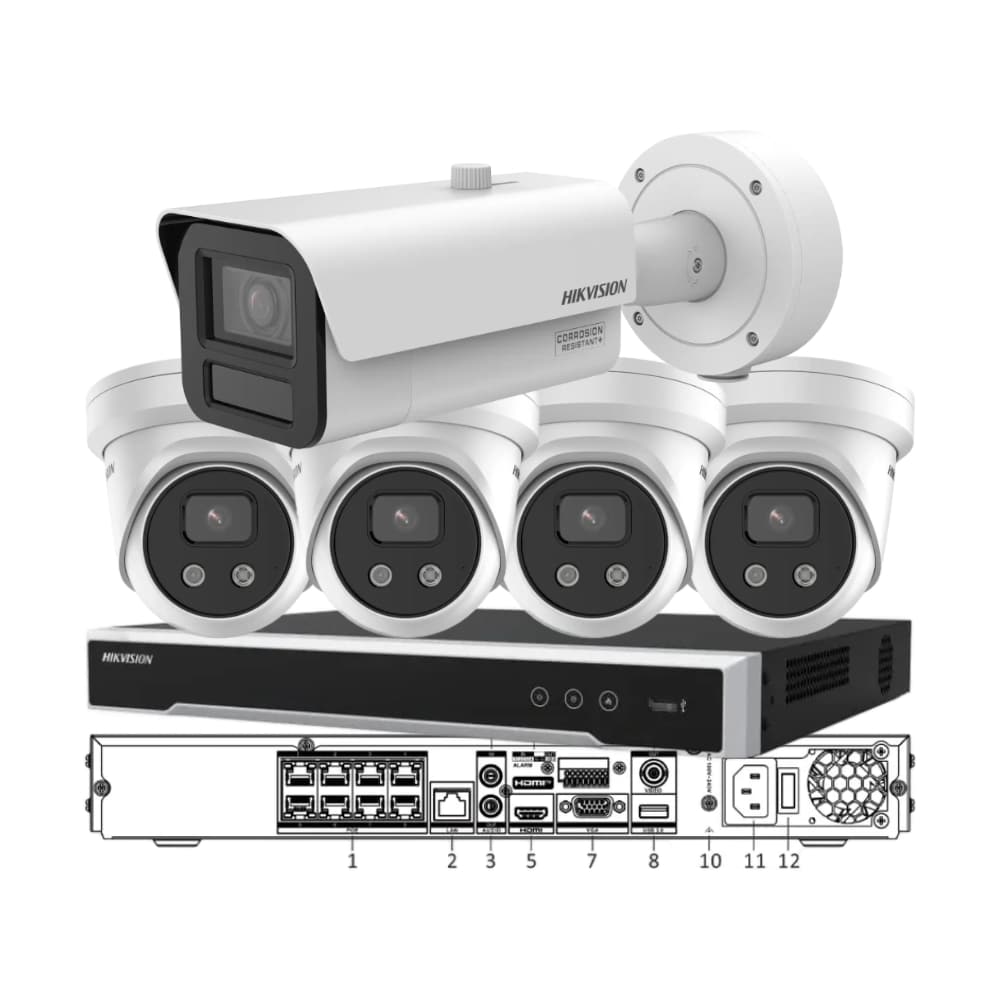

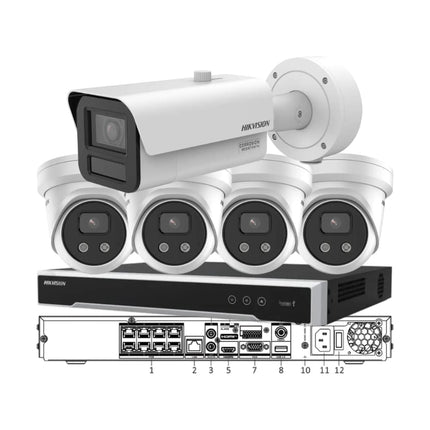

Hikvision 5-Camera ANPR Number-Plate CCTV Kit — 1 DeepinView Plate-Capture Bullet + 4 × 8MP AcuSense Turrets with 8-Channel PoE NVR
The Hikvision ANPR Number-Plate Kit is a ready-to-install bundle for Australian driveways, gated estates, car parks, dealerships and depots. It pairs one iDS-2CD7A46G2/P-IZHSY 4MP DeepinView ANPR bullet — purpose-built for on-camera licence-plate recognition day and night — with four DS-2CD2386G2-IU 8MP 4K AcuSense turrets for sharp overview and detail, plus a DS-7608NI-M2/8P 8-channel PoE NVR. Aim the ANPR bullet down your entry lane to read every plate that comes and goes, and place the AcuSense turrets for human/vehicle coverage everywhere else. All cameras run on the NVR's 8 built-in PoE ports over a single Cat6 cable per camera, with three spare channels to grow.
Cameras
5 (1 ANPR + 4 × 4K)
Plate Capture
On-Camera ANPR · ≥98%
Night Plates
DarkFighter 2.0 · 150 dB WDR
Smart AI
AcuSense Human/Vehicle
Storage
Dual SATA · up to 32 TB
Read Plates Day & Night
The DeepinView ANPR bullet runs licence-plate recognition entirely on-camera with ≥98% accuracy, while DarkFighter 2.0 and 150 dB WDR pull clean plates at 0.0005 lux and through headlight glare.
4K AI on the Rest
Four 8MP AcuSense turrets deliver detailed 4K coverage with human and vehicle classification, filtering out leaves, animals and shadows so you only get the alerts that matter.
8-Port PoE — Plug & Play
One Cat6 cable per camera carries power and video to the NVR's 8 built-in PoE ports — no separate power supplies, with three spare channels to grow.
Room to Store
The DS-7608NI-M2/8P has dual SATA bays for up to 32 TB total — add a surveillance HDD sized to your retention needs.
| 1 × Number-Plate Camera |
iDS-2CD7A46G2/P-IZHSY (2.8–12 mm) — 4MP DeepinView ANPR moto-varifocal bullet, on-camera LPR ≥98% accuracy, DarkFighter 2.0, 150 dB AWDR, built-in heater, IP67 + IK10 + NEMA 4X. |
| 4 × Overview Cameras |
DS-2CD2386G2-IU — 8MP 4K AcuSense turret, fixed 2.8 mm, 120 dB WDR, 30 m IR, built-in mic, human & vehicle classification, IP67. |
| 1 × Recorder |
DS-7608NI-M2/8P — 8-channel M-Series NVR with 8 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output, AcuSense-ready and Hik-Connect remote access. |
| Storage |
Add a surveillance-grade HDD sized to your retention. Two SATA bays support up to 32 TB total — choose a drive to suit. |
| Power |
8 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Note the ANPR bullet needs PoE+ (802.3at). Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately. |
| Mounting |
Turret brackets and templates included. The ANPR bullet ships with its standard bracket; for poles, fence posts or coastal sites add a Hikvision pole/corner or anti-corrosion (-Y) mount. |
| Warranty |
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock. |
Best For
Driveways & homes
Read every plate entering the driveway, with 4K coverage of the house and yard.
Gated estates
Log tenant and visitor plates at the gate; allowlist tenants to trigger the boomgate.
Dealerships
Capture every plate on the lot entrance, with overview cameras on stock and showroom.
Car parks
Plate-log entries and exits for dispute evidence and dwell tracking; AI coverage of bays.
Depots & yards
Track trucks and vehicles in and out of the gate; 4K cover on plant, stock and dock.
Businesses
Plate capture at the car-park entry, with AcuSense AI on entries, aisles and rear lanes.
Number-Plate Camera — iDS-2CD7A46G2/P-IZHSY
| Camera Type |
4MP DeepinView ANPR Moto Varifocal Bullet (-Y NEMA 4X) |
| Image Sensor |
1/1.8" Progressive Scan CMOS · DarkFighter 2.0 |
| Max. Resolution |
4MP · 2688 × 1520 (up to 4MP @ 60 fps) |
| Lens |
2.8–12 mm motorised varifocal · P-iris · F1.38–F2.53 |
| Min. Illumination |
Colour 0.0005 lux @ F1.2 · 0 lux with IR |
| IR Range / WDR |
Up to 60 m smart IR · 150 dB AWDR |
| ANPR / LPR |
On-camera · ≥98% accuracy · 124+ countries · blocklist/allowlist to 10,000 records |
| Vehicle Capture |
Front (checkpoint) up to 120 km/h · side up to 80 km/h · type / colour / brand / direction |
| Integration |
Wiegand & RS-485 (-Y) for boomgate / access control · ONVIF · ISAPI |
| Power / Protection |
PoE+ 802.3at / 12 VDC / 24 VAC · max 22.6 W · IP67 · IK10 · NEMA 4X |
| Camera Type |
8MP 4K AcuSense Powered-by-DarkFighter Turret |
| Image Sensor |
1/2.8" Progressive Scan CMOS |
| Max. Resolution |
8MP · 3840 × 2160 |
| Lens |
Fixed 2.8 mm · F1.6 · ~111° HFOV |
| IR Range |
Up to 30 m smart IR |
| WDR / AI |
120 dB WDR · AcuSense human & vehicle classification |
| Audio / Storage |
Built-in mic · microSD up to 256 GB |
| Power / Protection |
12 VDC / PoE (802.3af) · IP67 |
| Channels |
8 IP channels · up to 32 MP input |
| Incoming Bandwidth |
80 Mbps |
| PoE |
8 × PoE ports (IEEE 802.3 af/at) |
| Storage |
2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included |
| Video Output |
1 × HDMI (up to 8K) + 1 × VGA · simultaneous |
| AI Functions |
AcuSense human/vehicle · perimeter · receives camera-side LPR / ANPR metadata |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Remote / App |
Hik-Connect (iOS & Android) · P2P · ONVIF |
Installation Notes
-
›Mount the ANPR bullet low and shallow: aim it down the entry lane so the plate fills a good share of the frame, and keep the vertical angle under ~30° — steep top-down angles distort the plate and drop read accuracy.
-
›Set the right capture distance: the 2.8–12 mm ANPR lens reads plates best when mounted roughly 3–10 m from the plate line. For longer lanes or boomgates 10–40 m back, use the 8–32 mm variant instead.
-
›Tame headlight glare at night: let the 150 dB WDR and a faster shutter handle oncoming headlights — the camera's plate-capture / checkpoint mode raises shutter speed to freeze fast plates and cut bloom from reflective plates.
-
›Power and cabling: the ANPR bullet needs PoE+ (802.3at) for its heater and motor — the DS-7608NI-M2/8P supplies this on its ports. Run solid-copper Cat6 from each camera back to the NVR; seal outdoor RJ-45 joins even at IP67.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
NVR setup & Hik-Connect remote access
Official NVR & Camera Setup Videos
Use these official Hikvision tutorials to complete the recorder startup wizard and connect the supplied PoE cameras. Menu names may vary slightly with firmware version.
NVR 5.0 Startup Wizard — Official Hikvision Tutorial
Add a PoE Camera to NVR 5.0 — Official Hikvision Tutorial
Downloads & Resources
Will it read plates at night and at speed?
Yes. The ANPR bullet's DarkFighter 2.0 sensor pulls a clean plate at 0.0005 lux in colour and 0 lux on IR, and 150 dB WDR cuts headlight glare. Front-installation checkpoint mode captures vehicles up to 120 km/h (side up to 80 km/h) with ≥98% recognition accuracy — though for best results at highway speed, mount it as a dedicated front-facing checkpoint camera.
Does the ANPR need a separate server or licence?
No. The licence-plate recognition runs entirely on the camera. The NVR just receives and stores the plate metadata — no per-channel ANPR licence and no recurring cloud fee.
Does it recognise Australian plates?
Yes. Hikvision's G2 LPR engine covers 124+ countries including all Australian state and territory plate formats, plus custom, motorcycle and stacked-character plates.
Is a hard drive included?
No — the NVR ships without an HDD so you can size storage to your retention. The dual SATA bays take up to 32 TB total; add a surveillance-grade drive to suit.
Can I add more cameras later?
Yes. The 8-channel NVR runs 5 cameras here, leaving 3 spare channels and PoE ports for additional Hikvision cameras with no extra hardware.
