CCTV Guru offers the best prices on Dahua Network Cameras / IP Cameras. Find a better deal? We will beat it by 5% OFF on all security & surveillance products here. Guarantee!Live chat with us or call 1800 228 848.
Dahua 6MP Security Camera, Turret, IR Night Vision, 2.8mm Fixed-focal Eyeball WizSense Starlight
The Dahua DH-IPC-HDW3666EMP-S-AUS is a 6MP IR fixed-focal eyeball WizSense turret network camera from the starlight series. With a 2.8mm lens, PoE connection, and SD Card storage capacity of up to 256GB, this camera is perfect for capturing clear footage both day and night. Its advanced features, including Perimeter and SMD4.0 for motion detection, WDR for wide dynamic range, and a built-in microphone, make it a top choice for security needs. Additionally, the built-in infrared LED provides night vision coverage of up to 50 meters. The IP67 enclosure ensures high-grade water and dust resistance, making it suitable for outdoor use. With a resolution of 3072 x 2048 pixels and frame rate of 25/30 fps, this camera provides superb image clarity.
The Dahua 6MP Turret Security Camera features advanced WizSense AI technology, providing highly accurate detection of humans and vehicles. With AI Coding and Starlight technology, this camera saves storage space while delivering clear footage even in low light conditions. Its intelligent functions and easy usability make it an inclusive and reliable choice for security surveillance.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritising the highest matches.
AI SSA Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Features
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camera
Megapixels
6MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3666EMP-S-AUS Datasheet 20220713Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
The Dahua Security Camera DH-IPC-HDW3866EMP-S-AUS is an 8MP turret-style WizSense series featuring IR night vision and a fixed-focal eyeball with starlight and 2.8mm lens. This network IP camera has a PoE connection and SD Card, allowing for footage storage up to 256GB. With Perimeter, SMD Plus technology, this camera offers enhanced smart motion detection and WDR with wide dynamic range. Additionally, it comes equipped with a built-in microphone and infrared LED that covers up to 30 meters. Encased in an IP67 enclosure, this camera provides high-grade water resistance and dust protection. With 3840 x 2160 pixels 4K resolution and a frame rate of 25/30 fps, this camera ensures exceptional clarity in both day and night settings.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camears
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
3x66
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3866EMP-S-AUS Datasheet 20220718Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera nstallation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Dahua 5MP Starlight IP Turret 2.8mm lens, Built-in Mic, IVS, WDR (120dB), IR 30m, Micro SD, IP67, PoE
The Dahua 5MP Starlight IP Turret offers a low-light 2.8mm lens and built-in mic for clear imaging and audio. With high compression and advanced features like WDR and intelligent detection, this versatile camera is perfect for various monitoring environments. Experience high-quality, reliable surveillance with the Dahua DH-IPC-HDW2531EMP-AS-0280B-S2-AUS.
Features
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power supply
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
LITE SERIES
PoE
PoE
Downloads
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS DatasheetEyeball Network Camera Installation Guide_V1.0.0Dahua Active Deterrence Eyeball Network Camera_QSG_V1.0.1Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua 8MP TiOC 2.0, DH-IPC-HDW3849H-AS-PV-ANZ, Fixed IP Turret Security Camera with 2.8mm Lens, Full Colour Night Vision & Active Deterrence, Two-way Audio and Siren
The Dahua 8MP TIOC 2.0 Fixed IP Security Camera, DH-IPC-HDW3849H-AS-PV-ANZ, offers advanced capabilities like two-way audio, full-colour night vision, and audible warnings to deter intruders. This camera also has a 4K resolution and can be easily integrated with an NVR recorder through an Ethernet Network Cable, ensuring stable connections and consistent recordings with PoE port for power.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Siren and Light Active DeterrenceDahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realise the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customised voice importing.
Smart Dual IlluminatorsDahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD 4.0Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Features
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One press arming/disarming through alarm input.
Specifications
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
PoE
PoE
Downloads
DH-PC-HDW3849H-AS-PV-ANZ DatasheetDahua Eyeball Network Camera Installation Guide_V1.0.2Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Dahua Network Camera Web 5.0 Operation Manual_V1.0.5Dahua Network Camera Web 3.0 Operation Manual_V2.1.5DH-IPC-HDW3849HP-AS-PV-ANZ DimensionsDH-IPC-HDW3849HP-AS-PV-ANZ Installation MethodsDH-IPC-HDW3849HP-AS-PV-ANZ A&E 20221205123115
The Dahua Security Camera DH-IPC-HDW3866EMP-S-AUS is an 8MP black turret-style WizSense series featuring IR night vision and a fixed-focal eyeball with starlight and 2.8mm lens. This network IP camera has a PoE connection and SD Card, allowing for footage storage up to 256GB. With Perimeter, SMD Plus technology, this camera offers enhanced smart motion detection and WDR with wide dynamic range. Additionally, it comes equipped with a built-in microphone and infrared LED that covers up to 30 meters. Encased in an IP67 enclosure, this camera provides high-grade water resistance and dust protection. With 3840 x 2160 pixels 4K resolution and a frame rate of 25/30 fps, this camera ensures exceptional clarity in both day and night settings.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camera
Megapixels
8MP
Camera Style
Turret
Colour
Black
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket Black DH-PFB204W-B
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3866EMP-S-AUS-BLK DatasheetDahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Dahua 5MP Starlight IP Black Turret 2.8mm lens, Built-in Mic, IVS, WDR (120dB), IR 30m, Micro SD, IP67, PoE
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 2688x1520 (2688x1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in IR LED, max IR distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Supports max. 256 GB Micro SD card, built-in MIC
12V DC/PoE power supply
IP67 protection
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
LITE SERIES
PoE
PoE
Downloads
DH-IPC-HDW2531EMP-AS-0280B-S2-AUS DatasheetEyeball Network Camera Installation Guide_V1.0.0Dahua Active Deterrence Eyeball Network Camera_QSG_V1.0.1Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua DH-IPC-HDW3649H-AS-PV-ANZ TiOC 2.0 6MP Turret Fixed Security Camera with 2.8mm Lens, Active Deterrence, Full Colour Night Vision, Two-way Audio & Alarm
The Dahua 8MP TIOC 2.0, DH-IPC-HDW3849H-AS-PV-ANZ-BLK, Fixed IP Security Camera offers advanced capabilities like two-way audio, full-colour night vision, and audible warnings to deter intruders. This camera also has a 4K resolution and can be easily integrated with an NVR recorder through an Ethernet Network Cable, ensuring stable connections and consistent recordings with PoE port for power.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Siren and Light Active Deterrence Dahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realise the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customised voice importing.
Smart Dual Illuminators Dahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Features
6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 6 MP (3200 × 1800) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One press arming/disarming through alarm input
Specifications
Megapixels
6 megapixel
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
IPC-HDW3649H-AS-PV-ANZ DatasheetDahua Eyeball Network Camera nstallation Guide_V1.0.2Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Dahua Network Camera Web 5.0 Operation Manual_V1.0.5Dahua Network Camera Web 3.0 Operation Manual_V2.1.5DH-IPC-HDW3649HP-AS-PV-ANZ Installation MethodsDH-IPC-HDW3649HP-AS-PV-ANZ Dimensions DH-IPC-HDW3649HP-AS-PV-ANZ A&E 20221205123112

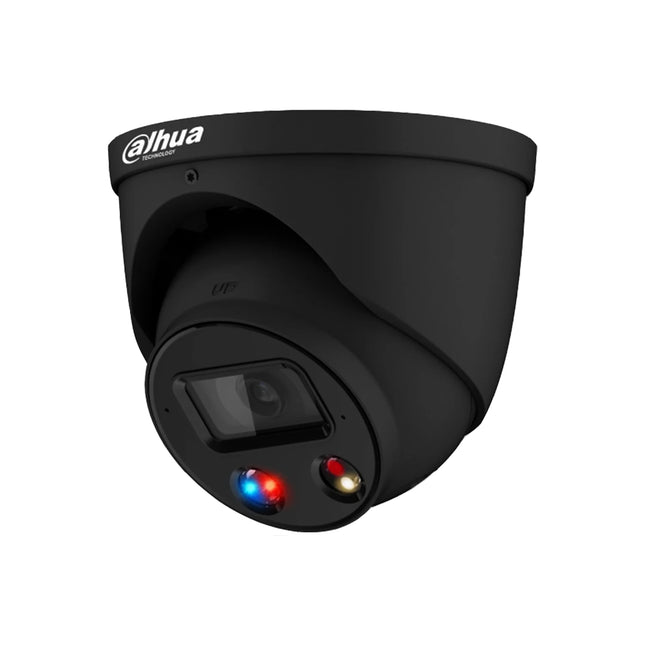

Dahua TIOC 2.0, 8MP Security Camera, Active Deterrence, Full Colour Night Vision & Two-way Audio, 2.8mm Fixed-focal Lens, Black
The Dahua 8MP TIOC 2.0 Fixed IP Black Security Camera, DH-IPC-HDW3849H-AS-PV-ANZ-BLK, offers advanced capabilities like two-way audio, full-colour night vision, and audible warnings to deter intruders. This camera also has a 4K resolution and can be easily integrated with an NVR recorder through an Ethernet Network Cable, ensuring stable connections and consistent recordings with PoE port for power.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Siren and Light Active DeterrenceDahua siren and light active deterrence network camera supports the light alarm and voice alarm when perimeter event occurs, to realise the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customised voice importing.
Smart Dual IlluminatorsDahua Smart Dual Illuminators technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD 4.0Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.
Features
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One press arming/disarming through alarm input.
Specifications
Megapixels
8MP
Camera Style
Turret
Colour
Black
Lens Type
Fixed
Technology
WizSense Series
PoE
PoE
Downloads
IPC-HDW3849H-AS-PV-ANZ DatasheetDahua Eyeball Network Camera Installation Guide_V1.0.2Dahua Eyeball Network Camera_Quick Start Guide_V1.0.4Dahua Network Camera Web 5.0_Operation Manual_V1.0.5Dahua Network Camera Web 3.0_OperationManual_V2.1.5DH-IPC-HDW3849HP-AS-PV-ANZ_DIMENSIONSDH-IPC-HDW3849HP-AS-PV-ANZ_INSTALLATION_METHOD_ENDH-IPC-HDW3849HP-AS-PV-ANZ_A&E_20221205123115DH-IPC-HDW3849HP-AS-PV-0280B-S3_INSTALLATION_METHOD_EN
Dahua 4MP WizSense Fixed Starlight Turret, 2.8mm, Perimeter, SMD, SD Card, WDR, IR50m, Built-in Mic, IP67, POE
4MP 1/3'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 4 MP (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HDW3466EMP-S-AUS DatasheetDahua Eyeball Network Camera_Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua 6MP Security Camera, Turret, Black, IR Night Vision, 2.8mm Fixed-focal Eyeball WizSense Starlight
The Dahua DH-IPC-HDW3666EMP-S-AUS-BLK is a 6MP IR fixed-focal eyeball WizSense black turret network camera from the starlight series. With a 2.8mm lens, PoE connection, and SD Card storage capacity of up to 256GB, this camera is perfect for capturing clear footage both day and night. Its advanced features, including Perimeter and SMD4.0 for motion detection, WDR for wide dynamic range, and a built-in microphone, make it a top choice for security needs. Additionally, the built-in infrared LED provides night vision coverage of up to 50 meters. The IP67 enclosure ensures high-grade water and dust resistance, making it suitable for outdoor use. With a resolution of 3072 x 2048 pixels and frame rate of 25/30 fps, this camera provides superb image clarity.
The Dahua 6MP Turret Security Camera features advanced WizSense AI technology, providing highly accurate detection of humans and vehicles. With AI Coding and Starlight technology, this camera saves storage space while delivering clear footage even in low light conditions. Its intelligent functions and easy usability make it an inclusive and reliable choice for security surveillance.
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
SMD 4.0 Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritising the highest matches.
AI SSA Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Smart H.265+ & Smart H.264+ With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
Protection (IP67, Wide Voltage) IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from comprising the device.
Features
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
Network Security Camera
Megapixels
6MP
Camera Style
Turret
Colour
Black
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Installation Accessories
Dahua Waterproof Junction Box White DH-PFA139
Dahua Waterproof Wall Mount Bracket Black DH-PFB204W-B
Dahua Waterproof Wall Mount Bracket DH-PFB204W
Dahua Pole Mount Bracket DH-PFA152-E
Dahua Ceiling Mount Adapter DH-PFA106
Dahua Ceiling Mount Bracket DH-PFB220C
Dahua Cat6 Ethernet Cables
Downloads
DH-IPC-HDW3666EMP-S-AUS Datasheet 20220713Dahua Eyeball Network Camera Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0 Operation Manual_V1.0.4Dahua Network Camera Web 3.0 Operation Manual_V2.1.4
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Turret, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, POE
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
WizSense Series
CONNECTION
PoE
Downloads
DH-IPC-HDW3866TP-ZS-AUS Datasheet 20220718Dahua Eyeball Network Camera Quick Start Guide V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera
The Three-in-One Camera (TiOC) solution combines 24/7 monitoring, active deterrence and real-time alarms with artificial intelligence into one smart, innovative solution. With horizontal and vertical rotation of TiOC PTZ camera, greatly improving the monitoring scope of key targets. For distributors and installers, it not only saves time, but also reduces cost.
Features
Panorama: Outputs 180 wide angle splicing image
Detail: 1/2.8'' 4Megapixel STARVIS CMOS
10x optical zoom
Starlight technology
Max. 25/30 fps@8M
IR distance up to 70 m
Warm light illumination distance up to 30 m
Active deterrence
Auto tracking Lite
Perimeter protection
Face detection
SMD4.0
IP66
Smart dual light
Specifications
Dahua TiOC PTZ Network Camera
Megapixels
8MP + 4MP
Camera Style
Panoramic & PTZ
Colour
White
Lens Type
Motorised
Technology
PTZ Series
Connection
PoE+
Downloads
Dahua DH-SDT3E410-8P-MB-A-PV1 DatasheetNetwork Speed Dome & PTZ Camera_Installation Manual_V1.0.3 Installation Guide (SDT4E-4K)_V1.0.0 Dahua Dual-PTZ Camera Web 5.0_User's Manual_V1.0.5
Dahua 2x4MP TiOC Duo Splicing Fixed-focal Eyeball WizSense Network Camera, DH-IPC-PDW3849-A180-AS-PV-ANZ
Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Features
Outputs 180° wide angle splicing image.
Outputs max. 8 MP (4096 × 1860)@20 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
Sound and light alarm (red and blue lights)
EPTZ: Enlarge and track the targets of intelligent alarms.
SMD 4.0.
One-tap arming/disarming through alarm input
Specifications
Dahua Network Security Camera
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
IPC-PDW3849-A180-AS-PV DatasheetEyeball Network Camera Installation Guide_V1.0.2Dahua Network Camera Web 3.0_OperationManual_V2.1.5Dahua Network Camera Web 5.0_Operation Manual_V1.0.7Dahua Eyeball Network Camera_Quick Start Guide_V1.0.2IPC-PDW3849-A180-AS-PV INSTALLATION METHOD ENIPC-PDW3849-A180-AS-PV DIMENSIONS5IPC-PDW3849-A180-AS-PV_A&E_20230922151424
Dahua 4MP 25x Starlight IR WizSense Network PTZ Camera DH-SD4A425DB-HNY
1/2.8" 4Megapixel STARVIS™ CMOS.
25x optical zoom.
Starlight technology.
Max. 25/30fps@4MP.
IR distance up to 100m.
Auto-tracking.
Perimeter protection.
Face detection.
SMD 3.0.
IP66.
Specifications
MEGAPIXELS
4MP
CAMERA STYLE
PTZ
COLOUR
White
LENS TYPE
Motorized
TECHNOLOGY
PTZ SERIES
POE
POE+
Downloads
SD4A425DB-HNY_S0 DatasheetInstallation Guide_V1.0.0_(SD4A)Network Speed Dome & PTZ Camera Installation Manual_V1.0.1Dahua Network Speed Dome and PTZ Camera Web 5.0_User's Manual_V1.0.0SD4A425DB-HNY_DIMENSIONS
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Bullet, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE
8MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866TP-ZAS-AUS DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4=Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 6MP WizSense Fixed Starlight Dome, 2.8mm, Perimeter, SMD 4.0, SD Card, WDR, IR50m, Built-in Mic, IP67, IK10, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HDBW3666EP-AS-AUS Datasheet 20220718Dahua Dome Network Camera_Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua 8MP TiOC 3.0 AcuPick Turret Camera with Deterrence Full Colour Night Vision, Built-in Mic & Speaker & Siren, Starlight IP Turret Fixed 2.8mm, SMD 4.0, 8MP, WDR, Micro SD, IP67, PoE
White SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2Black SKU: DH-IPC-HDW3849H-AS-PV-ANZ-S2-BLK
The Dahua 8MP TiOC 3.0 AcuPick Turret Camera combines advanced features such as Full Colour Night Vision, Built-in Mic & Speaker & Siren, and Starlight IP Turret Fixed Lens for superior surveillance. With a max. IR illumination distance of 30m and H.265 codec for high compression rate, this camera delivers clear and detailed images even in low light conditions. Its intelligent monitoring capabilities, including Intrusion and Tripwire detection, make it an ideal choice for diverse surveillance environments.
What is AcuPick?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
8MP 1/2.7'' CMOS image sensor, low luminance, and high definition image
Outputs max. 8 MP (3840x2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk
12 VDC/PoE power supply
IP67 protection
Sound and light alarm (red and blue lights)
SMD 4.0
Supports AI SSA and one-tap arming and disarming
SMD area can be set in warm light areas that support triggering alarms
Dahua TiOC 3.0 AcuPick Security Camera
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WIZSENSE SERIES
Connection
PoE
Downloads
DH-IPC-HDW3849H-AS-PV-ANZ-S2 DatasheetDahua Network Camera Web 3.0 Operation Manual V2.1.8Eyeball Network Camera Installation Guide_V1.0.3Dahua Eyeball Network Camera Quick Start Guide V1.0.5Dahua Network Camera Web 5.0 Operation Manual V1.2.1
Dahua 4MP 5x TiOC WizSense Network PTZ Camera, DH-SD3E405DB-GNY-A-PV1
1/2.8" 4Megapixel CMOS.
5x optical zoom.
Max. 25/30fps@4M.
IR distance up to 50 m.
Warm light illumination distance up to 30 m.
SMD 3.0.
Perimeter protection.
Face detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out.
Built-in Mic and Speaker for Two-way Talk.
12 VDC/PoE power supply.
IP66.
Sound and light alarm (red and blue lights).
Downloads
DH-SD3E405DB-GNY-A-PV1 Datasheet Installation Guide (SD3E)_V1.0.1 Network Speed Dome & PTZ Camera Installation Manual_V1.0.1 Dahua Network Speed Dome and PTZ Camera Web 5.0_User's Manual_V1.0.1 SD3E405DB-GNY-A-PV1_INSTALLATION_METHOD_EN SD3E405DB-GNY-A-PV1_DIMENSIONS SD3E405DB-GNY-A-PV1_A&E_20230403163820
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Turret, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, POE, black
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Turret
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
WizSense Series
Connection
PoE
Downloads
DH-IPC-HDW3866TP-ZS-AUS-BLK DatasheetDahua Eyeball Network Camera Quick Start Guide V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Built-in Mic, IP67, PoE
The Dahua 5MP IR Fixed focal Bullet WizSense Network Camera offers high image definition with its 5MP image sensor and outputs a maximum of 5MP at 20 fps. It features a H.265 codec for efficient compression and built-in IR LED with a max distance of 50m. Its intelligent detection and abnormality detection make it suitable for various monitoring scenarios.
Features
5MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 5MP (2592x1944) @20 fps, and supports 4MP (2688x1520) @25/30 fps
H.265 codec, high compression rate, low bit rate x Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/POE power supply
IP67 protection
SMD Plus
Specifications
NETWORK CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3541EP-SA-0280B Datasheet
Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP IR 30M, Mic, Fixed 2.8MM Turret Security Camera
Dahua's DH-IPC-HDW2541EMP-AS-ANZ 5MP IR 30M, Mic, Fixed 2.8MM Turret Security Camera is equipped with advanced deep learning algorithm, providing intelligent functions such as perimeter protection and smart motion detection. With starlight technology, this camera produces high-quality images even in low light conditions. Key Features: *Please note that the parameters and datasheets below are specific to the 2541-S2 series. This camera boasts a 5-MP 1/2.7" CMOS image sensor, ensuring low luminance and high definition images. It outputs a maximum of 5 MP (2960 × 1668) @20 fps and supports 2688 × 1520 (2688 × 1520) @25/30 fps. Utilizes H.265 codec, offering a high compression rate and ultra-low bit rate. Equipped with built-in IR LED, providing a maximum illumination distance
Features
*The parameters and datasheets below can only be applied to 2541-S2 series.
5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card; built in MIC.
12 VDC/PoE power supply.
IP67 protection.
SMD Plus
Downloads
DH-IPC-HDW2541EMP-AS-ANZ Datasheet
Dahua Eyeball Quick Start Guide
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Bullet, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, POE
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WizSense
POE
POE
Downloads
DH-IPC-HFW3866EP-AS-AUS Datasheet 20220415Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Dome, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, IK10, POE
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HDBW3866EP-AS-AUS Datasheet 20220718Dahua Dome Network_ Camera Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Bullet, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, POE, Black
The Dahua Security Camera 8MP (4K) IR Fixed-focal Bullet WizSense Network Camera offers excellent low luminance performance and high definition images with its 8MP 1/2.8'' CMOS sensor. With its built-in IR LED, it can capture images up to 30m even in low light conditions. Its advanced features, such as intelligent detection and flexible coding, make it versatile for various monitoring scenarios. Experience reliable and high-quality surveillance with Dahua.
Features
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866EP-AS-AUS-BLK DatasheetDahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera, DH-IPC-HDBW3466EP-AS-AUS, 4MP WizSense Fixed Starlight Dome, 2.8mm, Perimeter, SMD, SD Card, WDR, IR50m, Built-in Mic, IP67, IK10, POE
4MP 1/3'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 4 MP (2688 x 1520) @25/30 fps
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Supports the AFSA (Anti-flicker Self-adaption) function, which
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection
SMD 3.0
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
PoE
PoE
Downloads
DH-IPC-HDBW3466EP-AS-AUS DatasheetDahua Dome Network_ Camera_Quick Start Guide_V1.0.1=Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua 4MP Starlight IP PTZ 4X 2.8mm~12mm VF lens, ICR, WDR, IR 15m, IP66, PoE
1/2.8'' 4Megapixel STARVIS CMOS
Starlight technology
Max. 25/30fps@4MP
4x optical zoom
Face Detection, People Counting, Perimeter Protection
IR distance up to 15m
SMD Plus
PoE
IP66, IK08
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
PTZ
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
PTZ SERIES
POE
POE
Downloads
DH-SD1A404XB-GNR Datasheet 20200605Dahua Network Speed Dome & PTZ Camera Web 3.0 User's Manual_V2.0.2Installation Guide_V1.0.0Network Speed Dome & PTZ Camera Installation Manual_V1.0.0
Dahua DH-IPC-HDW3867EM-S-IL-ANZ 8MP (4K) WizSense Fixed Starlight Turret, 2.8mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR 30m, Warm light 30m, Built-in Mic, IP67, POE, Support AcuPick
Upgrade to the Dahua 8MP (4K) Fixed Turret Camera for advanced deep learning algorithm and intelligent functions like perimeter protection and smart motion detection. With WizSense 3 Series, Starlight technology, a better image effect even in low light conditions. With built-in mic, IP67, and PoE support, AcuPick compatible.
What is AcuPick?
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
Notes: This AcuPick feature only works with Dahua 5-Series NVRs. Click here to shop.
Features
8MP 1/2.7'' CMOS image sensor, low luminance, and highdefinition image
Outputs max. 8 MP (3840 x 2160)@25/30 fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent monitoring: Intrusion, tripwire (the two function supportthe classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scenechanging, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltagedetection
Max. 512 G Micro SD card; built-in Mic
12 VDC/PoE power supply
IP67 protection
SMD 4.0
Supports AI SSA
SMD area can be set in warm light areas that support triggering alarms
Specifications
Dahua Security Cameras
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Type
Fixed
Technology
WizSense Series
Connection
PoE
Downloads
DH-IPC-HDW3867EM-S-IL-ANZ Datasheet Eyeball Network Camera Installation Guide_V1.0.0 Dahua Eyeball Network Camera_Quick Start Guide_V1.0.2 Dahua Network Camera Web 3.0_OperationManual_V2.1.4 Dahua Network Camera Web 5.0_Operation Manual_V1.0.4
Dahua 5MP Starlight Pro HDCVI Turret Fixed Camera, WDR, ICR, 2.8mm lens, IR 50m, DC12V, IP67
The parameters and datasheets below can only be applied to 2501-S2 series.
In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Quick-to-install eyeball saves installation time
2.8 mm fixed lens
Built-in mic
Max. IR length 60 m, Smart IR
IP67, DC12V
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HAC-HDW2501TMQ-A Datasheet 20201123HDCVI Camera_User's Manual_V1.0.0-EngDAHUA_HDCVI CAMERA_OPEN SOURCE SOFTWARE NOTICE _VERSION A_V1.0.0-EngHDCVI Eyeball Camera_Installation Guide_V1.0.4-Eng
Dahua 5MP Starlight Pro HDCVI IR Eyeball, WDR, ICR, Motorised 2.7~13.5mm, IR 60m, DC12V, IP67, DH-HAC-HDW2501TP-Z-A-DP-27135-S2
Features
* The parameters and data sheet below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm~13.5 mm motorised lens
Max. IR length 60 m, Smart IR
IP67, 24V AC/12V DC
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorized
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
DH-HAC-HDW2501T-Z-A-DP Datasheet 20201127HDCVI Camera_User's Manual_V1.0.0-EngHDCVI Eyeball Camera_Installation Guide_V1.0.4-EngDAHUA_HDCVI CAMERA_OPEN SOURCE SOFTWARE NOTICE _VERSION A_V1.0.1-Eng
Dahua 2MP Starlight IP PTZ 3X 2.7mm~8.1mm VF lens, ICR, WDR, IR 15m, IP66, PoE
As an expert in surveillance technology, the Dahua 2MP 3x Starlight IR PTZ Network Camera DH-SD1A203T-GN-S2 offers superior features for optimal performance. With 2MP Starlight IP PTZ and 3x optical zoom capabilities, this camera provides clear and detailed footage even in low-light conditions. Its advanced features such as WDR and IR distance up to 15m make it an excellent choice for reliable surveillance. IP66 and PoE support add convenience and flexibility to this top-of-the-line camera.
Features
1/2.8'' 2Megapixel STARVIS CMOS
Powerful 3x optical zoom
Starlight, WDR
Max. 25/30fps@1080P
IVS
Support PoE
IR distance up to 15m
IP66
Specifications
Network Security Camera
Megapixels
2MP
Camera Style
PTZ
Colour
White
Lens Type
Motorised
Technology
PTZ Series
Connection
PoE
Downloads
DH-SD1A203T-GN DatasheetInstallation Manual of DH-SD1A203T-GNOperation Manual of DH-SD1A203T-GN
Dahua 4MP AI Starlight + IP Bullet Fixed 2.8mm, Mic, ICR+White Light, WDR (120dB), Micro SD, IP67, POE, SMD Plus
4MP, 1/2.7'' CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688x1520) @ 30 fps
H.265 codec, high compression rate, low bit rate
Built-in Warm LED, max. LED distance: 30 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power support
IP67 protection
SMD Plus
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3449EP-AS-LED-0360B DatasheetQuick Start Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Guide of DH-IPC-HFW3449EP-AS-LED-0360BInstallation Example of DH-IPC-HFW3449EP-AS-LED-0360BLeaflet_Dahua-Full-Color-Camera_V1.0_EN_202002-(6P)
Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera
The Dahua 8MP Smart Dual Light Active Deterrence Vari-focal Eyeball WizSense Network Camera offers high-quality, low luminance images with its 8-MP 1/2.8" CMOS image sensor. It supports up to 8 MP resolution @25/30 fps and utilizes the H.265 codec for high compression and ultra-low bit rates. With built-in warm light and IR LED, it offers a maximum IR illumination distance of 50 m and warm light distance of 40 m. Intelligent monitoring features such as intrusion and tripwire detection make it perfect for various monitoring scenarios.
Features
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160 )@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
Supports AI SSA and one-tap arming and disarming.
SMD area can be set in warm light areas that support triggering alarms.
Dahua Security Camera
Megapixels
8MP
Camera Style
Turret
Colour
White
Lens Tye
Motorised
Technology
WizSense Series
Connection
PoE
Downloads
IPC-HDW3849H-ZAS-PV-ANZ-S2 Datasheet Eyeball Network Camera Installation Guide_V1.0.0 Dahua Network Camera Web 3.0_Operation Manual_V2.1.8 Dahua Eyeball Network Camera_Quick Start Guide_V1.0.0 Dahua Network Camera Web 5.0_Operation Manual_V1.2.1
This Dahua 8MP TiOC Bullet Security Cameras, Active Deterrence, Fixed 2.8mm, Two-way Audio, Full Colour Night Vision features SMD 4.0, Built-in Speaker, WDR, Micro SD, IP67, PoE DH-IPC-HFW3849T1-AS-PV-ANZ
Get peace of mind with Dahua 8MP TiOC Bullet Security Cameras! With Active Deterrence, Fixed 2.8mm lens, and Two-way Audio, these cameras are perfect for keeping your property safe. Plus, the Full Colour Night Vision feature allows for clear footage even in low light. Enjoy advanced features like SMD 4.0 and WDR for ultimate surveillance.
Features
8MP 1/2.8'' CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 x 2160)@25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One-click arming/disarming through alarm input.
Specifications
Megapixels
8MP
Camera Style
Bullet
Colour
White
Lens Type
Fixed
Technology
WizSense Series
POE
PoE
Downloads
IPC-HFW3849T1-AS-PV Datasheet_20220826Bullet Network Camera Installation Guide_V1.0.0Dahua Bullet Network Camera_Quick Start Guide_V1.0.2Dahua Network Camera Web 5.0_Operation Manual_V1.0.5Dahua Network Camera Web 3.0_OperationManual_V2.1.5
Dahua 8MP Smart Dual Illumination Active Deterrence Vari-focal Bullet WizSense Network Camera DH-IPC-HFW3849T1-ZAS-PV
8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
Outputs max. 8 MP (3840 × 2160) @25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual MICs; 1-ch speaker; support two-way talk.
12 VDC/PoE power supply.
IP67 protection.
Sound and light alarm (red and blue lights).
SMD 4.0.
One-click arming/disarming through alarm input.
Specifications
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
WIZSENSE SERIES
PoE
PoE
Downloads
DH-IPC-HFW3849T1-ZAS-PV DatasheetDahua Eyeball Network Camera_QSG_V1.0.2Dahua Network Camera Web 3.0 Operation Manual_V2.1.1DH-IPC-HDW3849HP-AS-PV-0280B-S3_DIMENSIONSDH-IPC-HDW3849HP-AS-PV-0280B-S3_INSTALLATION_METHOD_EN
Dahua Security Camera 4MP WizSense Motorised Starlight Dome, 2.7–13.5 mm, Perimeter, SMD, SD Card, WDR, IR40m, Built-in Mic, IP67, IK10, POEPOE
4MP 1/3'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 4 MP (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HDBW3466RP-ZAS-AUS DatasheetDahua Dome Network_ Camera_Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 8MP (4K) WizSense Fixed Starlight Dome, 2.8mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, IK10, POE, black
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec allows high compression ratio and ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
Black
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
CONNECTION
PoE
Downloads
DH-IPC-HDBW3866EP-AS-AUS-BLK DatasheetDahua Dome Network_ Camera_Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 4MP WizSense Fixed Starlight Dome, 2.8mm, Perimeter, SMD, SD Card, WDR, IR30m, Built-in Mic, IP67, IK10, POE
4MP 1/3'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 4 MP (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and vaccurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Dome
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HDBW3466FP-AS-AUS Datasheet_20220426Dahua Dome Network_ Camera Quick Start Guide_V1.0.1Dahua Dome Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 6MP WizSense Motorised Starlight Bullet, 2.7–13.5 mm, Perimeter, SMD4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3666TP-ZAS-AUS Datasheet 20220718Bullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, 3.6mm, IR 80m, DC12V, IP67
Starlight, 120dB true WDR, 3DNR
Max. 20fps@5MP
HD/SD output switchable
Audio in interface, built-in mic
3.6mm fixed lens
Max. IR length 80m, Smart IR
IP67, DC12Vx30%
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
HDCVI
POWER
DC 12V
Downloads
HFW2501TP-I8 DatasjeetUser Manual of HFW2501TP-I8
Dahua 6MP IP Turret Fixed 2.8mm, Built-in Mic, ICR, WDR, IVS, IP67, PoE
The Dahua 6MP IP Turret Fixed Camera boasts a superior 6MP resolution, low light capabilities, and a maximum IR distance of 50m. With advanced features such as built-in mic, WDR, and intelligent detection, it ensures high image definition and efficient storage. Ideal for various monitoring scenarios, this camera is a top choice for professionals.
Features
6MP, 1/2.7'' progressive scan CMOS, low illuminance, high image definition
Outputs max. 6MP (3072x1728) @20 fps, and supports 4MP(2688x1520)@30fps
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Tripwire, intrusion
Abnormality detection: Motion detection, video tampering, defocus detection; scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Supports max. 256 G Micro SD card, built-in Mic
12V DC/PoE power supply
IP67 protection
SMD Plus
Specifications
Dahua PoE Camera
MEGAPIXELS
6MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
Datasheet of DH-IPC-HDW3641TMP-AS-0280B-AUS
Eyeball Network Camera Installation Guide_V1.0.0
Dahua Eyeball Network Camera_QSG_V1.0.1
Dahua Network Camera Web 3.0 Operation Manual_V2.1.1
Dahua 5MP Starlight Pro HDCVI IR Bullet, WDR, ICR, Motorised 2.7~13.5mm, IR 80m, DC12V, IP67, Built-in Mic* The parameters and datasheets below can only be applied to 2501-S2 series.* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Max. 25 fps@5MP (16:9 video output)
Starlight, 120 dB true WDR, 3D NR
CVI/CVBS/AHD/TVI switchable
Built-in mic
2.7 mm~13.5 mm motorized lens
Max. IR length 80 m, Smart IR
IP67, 24V AC/12V DC
Specifications
HD-CAMERA
MEGAPIXELS
5MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
HDCVI
POWER
AC 24V/ DC 12V
Downloads
HAC-HFW2501TU-Z-A-DP Datasheet 20201127HDCVI Bullet Camera Installation Guide_V1.0.2-EngHDCVI Camera User's Manual V1.0.0-Eng
Dahua 8MP (4K) WizSense Fixed Starlight Bullet, 3.6mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR30m, Built-in Mic, IP67, PoE DH-IPC-HFW3866EP-AS-AUS-36
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WizSense Series
POE
PoE
Downloads
DH-IPC-HFW3866EP-AS-AUS Datasheet 0220415Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Dome, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD4.0, SD Card, WDR, IR40m, Built-in Mic, IP67, IK10, POE, black
8MP 1/2.8'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8MP (3840 x 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card; built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67, IK10 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Dome
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
WizSense Series
PoE
PoE
Downloads
DH-IPC-HDBW3866RP-ZAS-AUS-BLK DatasheetDahua Dome Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 4MP WizSense Motorised Starlight Turret, 2.7–13.5 mm, Perimeter, SMD, SD Card, WDR, IR40m, Built-in Mic, IP67, POE
4MP 1/3'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 4 MP (2688 x 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 40 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion , tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
4MP
CAMERA STYLE
Turret
COLOUR
White
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HDW3466TP-ZS-AUS DatasheetDahua Eyeball Network Camera_Quick Start Guide_V1.0.4Eyeball Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4
Dahua Security Camera 8MP (4K) WizSense Motorised Starlight Bullet, 2.7-13.5mm, 4K@25/30fps, Perimeter, SMD 4.0, SD Card, WDR, IR60m, Built-in Mic, IP67, POE, black
8MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 60 m.
ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
8MP
CAMERA STYLE
Bullet
COLOUR
Black
LENS TYPE
Motorised
TECHNOLOGY
3X66
POE
POE
Downloads
DH-IPC-HFW3866TP-ZAS-AUS-BLK DatasheetBullet Network Camera Installation Guide_V1.0.0Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
Dahua Security Camera 6MP WizSense Fixed Starlight Bullet, 2.8mm, Perimeter, SMD4.0, SD Card, WDR, IR50m, Built-in Mic, IP67, POE
6MP 1/2.7'' CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 6 MP (3072 x 2048) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 50 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD 4.0, AI SSA.
Specifications
NETWORK CAMERA
MEGAPIXELS
6MP
CAMERA STYLE
Bullet
COLOUR
White
LENS TYPE
Fixed
TECHNOLOGY
WIZSENSE SERIES
POE
POE
Downloads
DH-IPC-HFW3666EP-AS-AUS Datasheet 20220718Dahua HD IR Bullet Network Camera_QSG_V1.0.1Dahua Network Camera Web 5.0_Operation Manual_V1.0.4Dahua Network Camera Web 3.0_OperationManual_V2.1.4Dahua Bullet Network Camera_Quick Start Guide_V1.0.3
