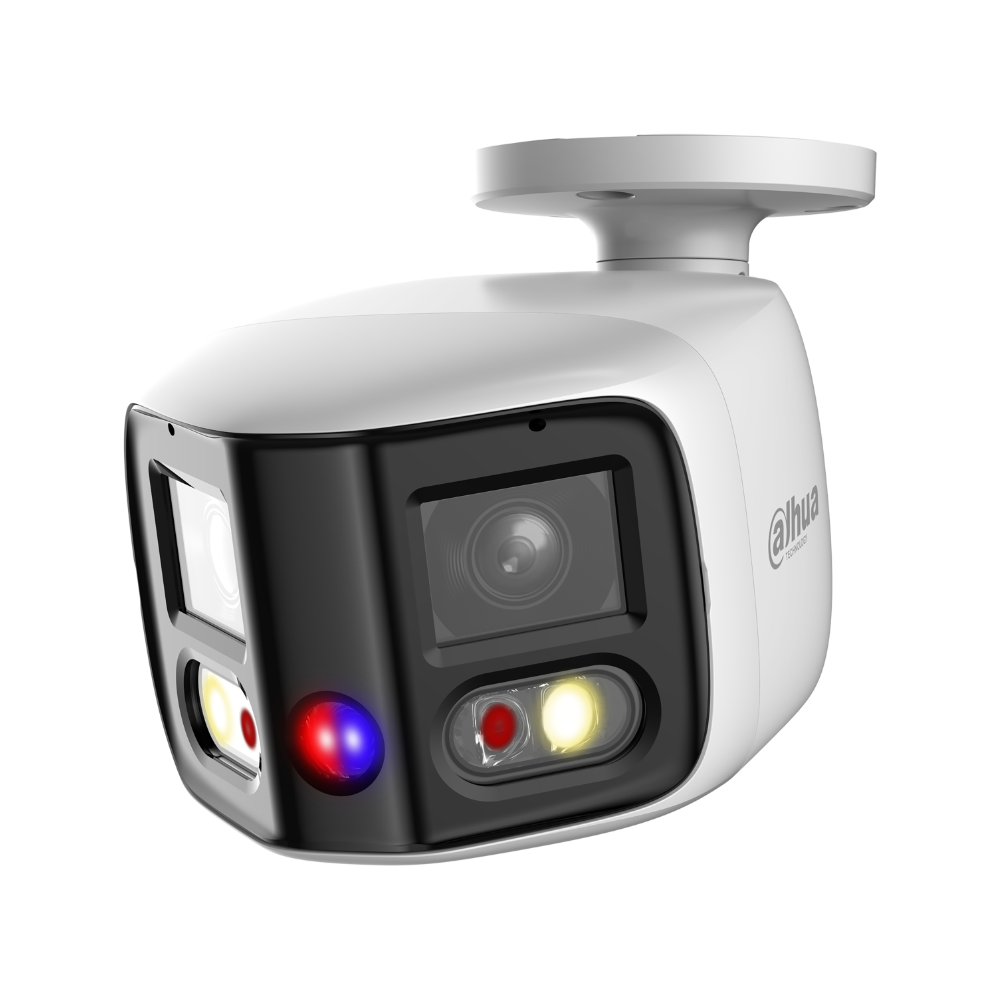

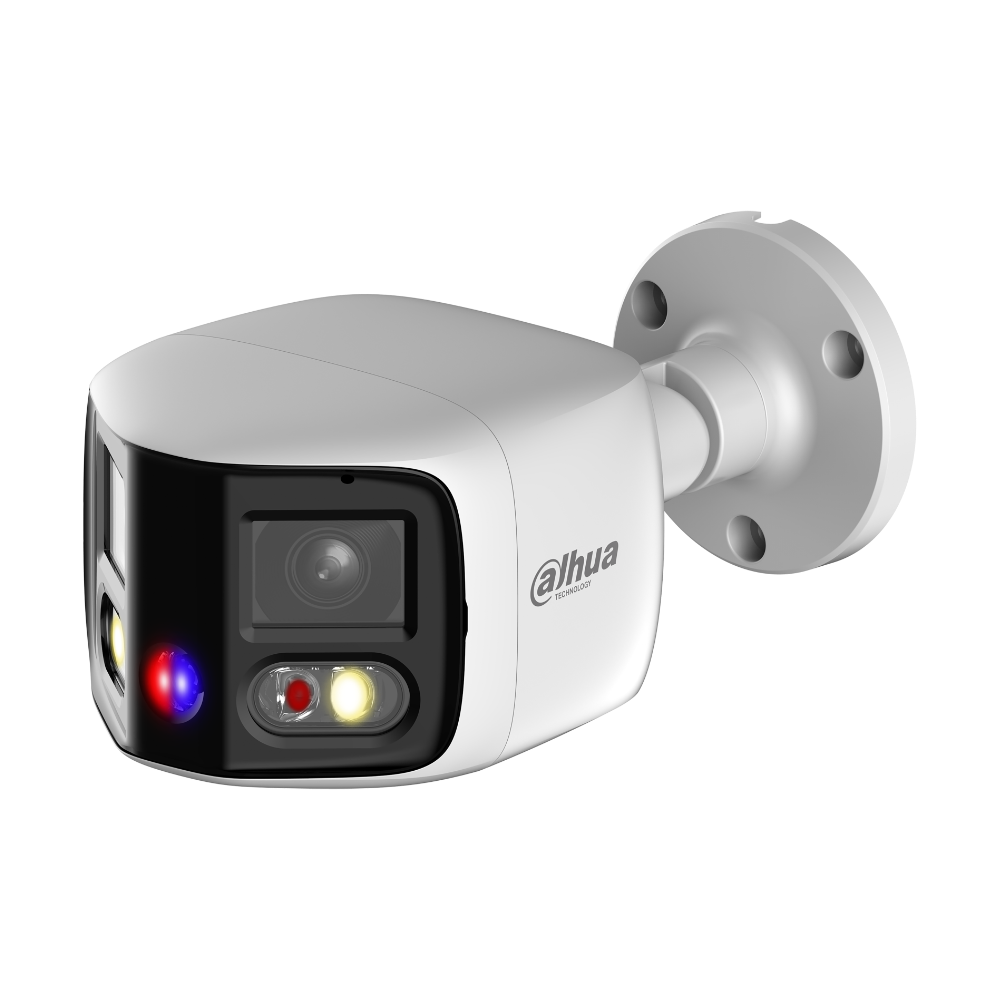

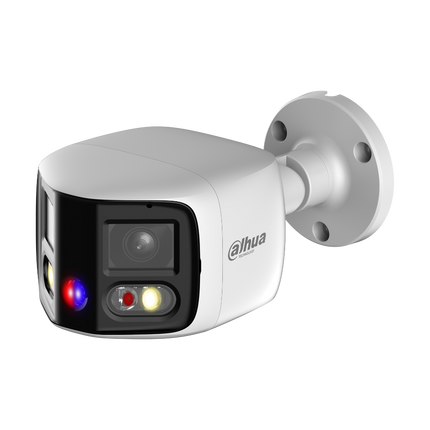

Dahua DH-IPC-PFW3849S-A180-AS-PV 8MP Panoramic WizSense TiOC Camera
The DH-IPC-PFW3849S-A180-AS-PV is a state-of-the-art 8-Megapixel panoramic network camera that utilizes dual-sensor splicing technology to provide a seamless 180° field of view. As a TiOC (Three-in-One Camera) 2.0 device, it integrates 24/7 full-color monitoring, AI-driven WizSense analytics, and active deterrence features, including a built-in siren and red/blue flashing lights.
Key Features
-
180° Seamless Splicing: Combines dual 4MP sensors to create a single 4K panoramic image, eliminating blind spots and reducing the need for multiple cameras.
-

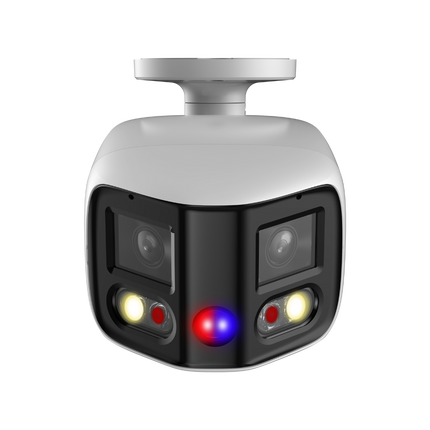

TiOC 2.0 Active Deterrence: Features a high-decibel siren and integrated red/blue warning lights that trigger upon detection of unauthorized human or vehicle activity.
-

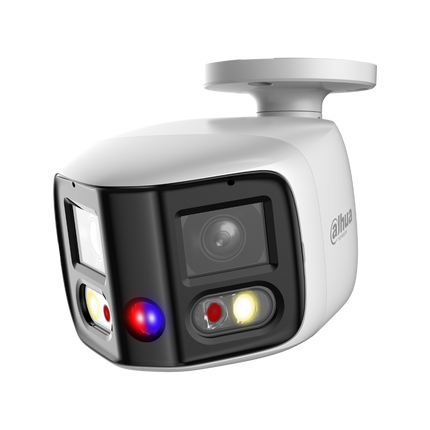

Full-Color Night Vision: Equipped with warm LED illuminators to provide vivid, color imagery even in total darkness, ensuring superior identification.
-
AI WizSense Technology: Advanced algorithms for Perimeter Protection (Tripwire & Intrusion) that accurately distinguish between people/vehicles and irrelevant moving objects.
-
Two-Way Audio: Built-in dual microphones and a high-power speaker allow for clear remote communication and custom voice alerts.
-
Smart Dual Light: Intelligently switches between IR and warm light modes to minimize light pollution while maintaining full-color capture during events.
Technical Specifications
| Image Sensor |
Dual 1/2.7" 4MP CMOS (8MP Total Output) |
| Max. Resolution |
4096 × 1800 |
| Field of View |
Horizontal: 180°; Vertical: 44° |
| Illumination |
IR (up to 25m) & Warm Light (up to 20m) |
| Audio/Alarm |
Built-in Mic & Speaker; 1 In/1 Out Alarm |
| Storage |
MicroSD Slot (up to 256GB) |
| Ingress Protection |
IP67 Weatherproof |
More Information
Download the official Dahua documentation for the DH-IPC-PFW3849S-A180-AS-PV:
Note: This panoramic camera requires an NVR that supports splicing or high-resolution panoramic display for optimal performance.
