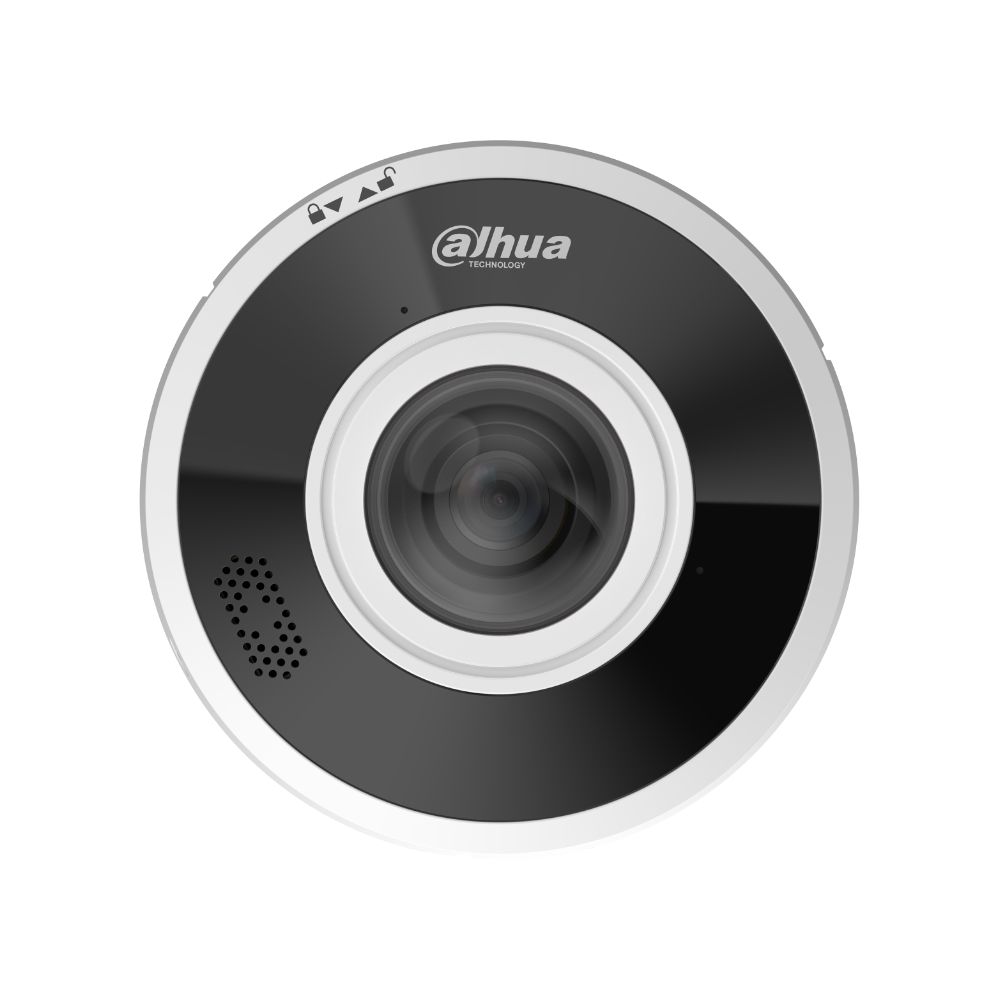

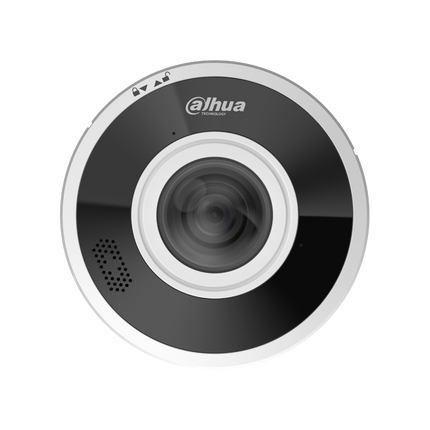

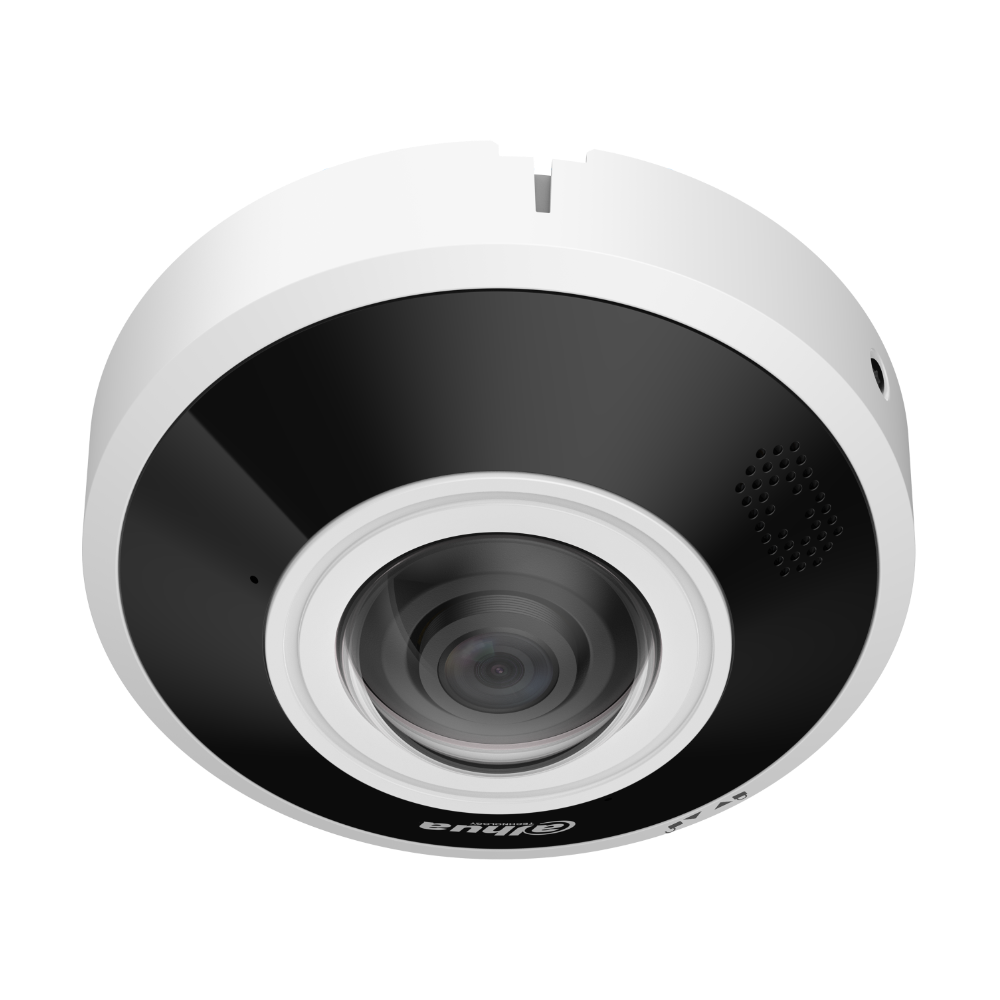

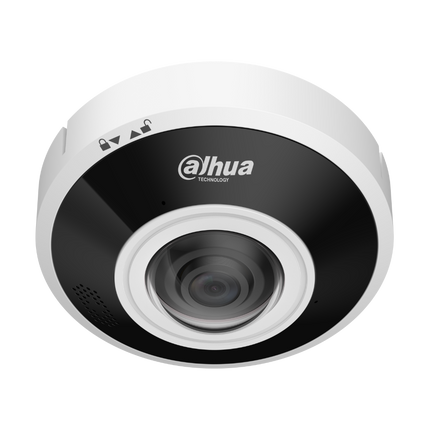

Dahua IPC-EBW5641-AS 6MP WizMind Fisheye Network Camera
The IPC-EBW5641-AS is a professional-grade 6MP fisheye network camera designed for comprehensive situational awareness. As part of the Dahua WizMind series, it combines high-resolution imaging with powerful artificial intelligence to provide both security and business intelligence data from a single ceiling or wall-mounted device.
Advanced Hardware Capabilities
-
6MP Ultra-High Definition: Equipped with a 1/1.8" Progressive Scan CMOS sensor delivering a maximum resolution of 3072 × 2048 at 25/30 fps.
-
Full 360° Surround View: The 1.4mm fisheye lens provides a zero-blind-spot coverage area, ideal for replacing multiple fixed cameras in lobbies, warehouses, and retail floors.
-
Enhanced Night Vision: Three integrated IR LEDs provide effective illumination up to 10 meters (33 ft) while maintaining image balance in low-light environments.
-
Professional Audio Integration: Features a built-in microphone for immediate audio recording, plus dedicated ports for external audio and alarm I/O integration.
-
Extreme Environment Protection: Housed in an IK10 vandal-proof and IP67 weather-proof enclosure, engineered to withstand physical impact and harsh outdoor conditions.
WizMind AI & Business Intelligence
-
Intelligent People Counting: Automatically counts entries, exits, and pass-through numbers. Supports regional counting and loitering filtered by human detection.
-
Advanced Heat Mapping: Generates visual data to identify "hot zones" with the highest traffic density, perfect for optimizing retail layouts.
-
Smart Motion Detection (SMD): Reduces false alarms by focusing specifically on human and vehicle shapes within the panoramic field of view.
Technical Specifications
| Sensor Size |
1/1.8" 6-Megapixel CMOS |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG |
| Wide Dynamic Range |
Digital WDR |
| Power |
12V DC / PoE (802.3af) | Max 12W |
| On-Board Storage |
MicroSD Slot (Supports up to 256GB) |
| Operating Temp |
-30°C to +50°C (-22°F to +122°F) |
More Information
To view the full technical datasheet and installation instructions, please use the link below:
Dahua FishEye DH-IPC-EBW5641-AS Datasheet
Dahua FishEye Camera Quick Start Guide
Dahua FishEye Camera Installation Guide
Note: For full AI analytics functionality, use with a Dahua WizMind NVR is recommended.
