Ubiquiti UniFi 5G Max · NDAA & TAA COMPLIANT

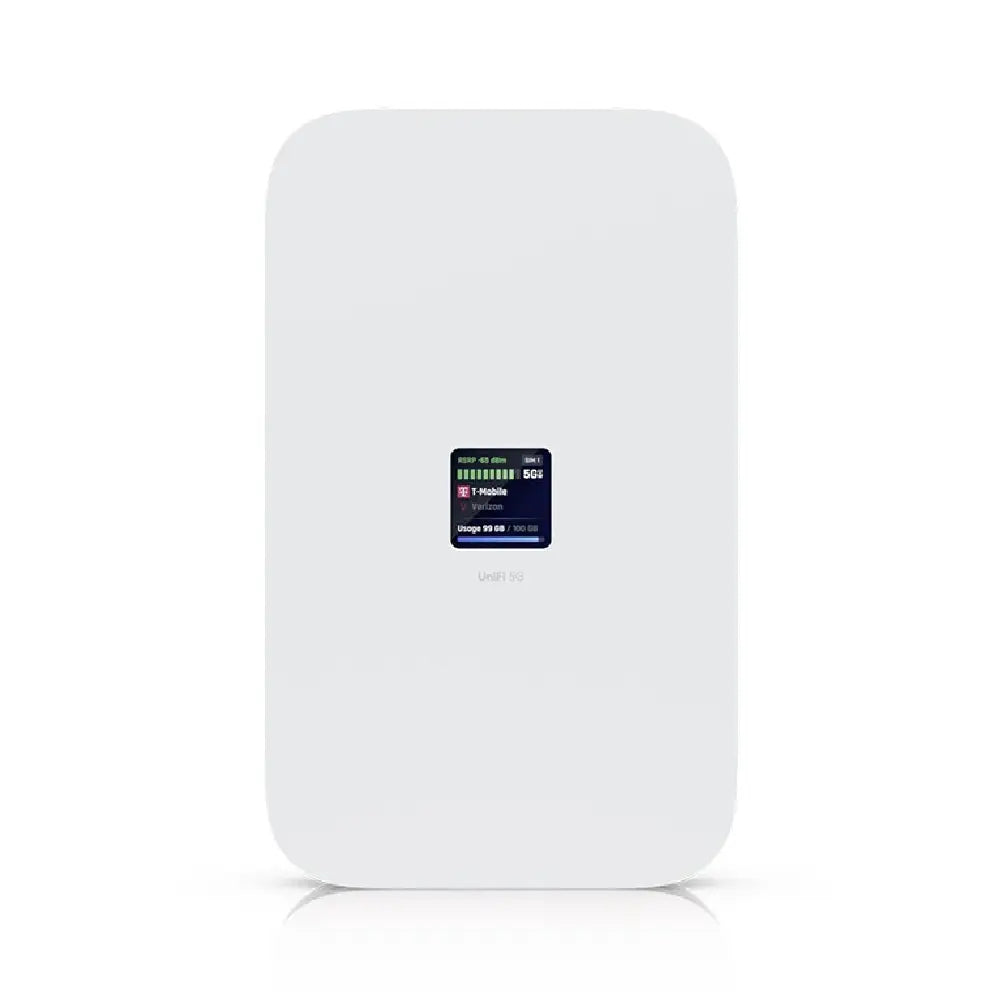

Engineered for High-Density Failover: Ubiquiti U5G-Max 5G Gateway
The Ubiquiti U5G-Max introduces carrier-grade cellular capabilities directly into your professional network ecosystem. Delivering blistering downlink speeds up to 3.4 Gbps, this advanced 5G modem acts as a high-performance primary connection or a fail-safe backup for enterprise environments, remote offices, and mission-critical commercial deployments. Designed for instant plug-and-play adoption through any UniFi PoE port, it combines dual SIM and eSIM redundancy with centralized management inside the UniFi Network architecture.
Peak Speed
3.4 Gbps Downlink
Connectivity
Dual SIM & eSIM
Interface
2.5 GbE RJ45 Port
Enclosure
IK04 Rated Build
Seamless Integration & Advanced Management
Optimized for deep integration within the UniFi Controller interface, the U5G-Max eliminates the administrative friction of managing standalone, isolated cellular routers. Administrators can instantly provision, track data usage, and monitor signal integrity through the intuitive dashboard or the device's built-in 1.3-inch touchscreen display. Discover full deployment options on our UniFi 5G Max product page, featuring complete technical parameters and multi-carrier band optimization tools.
Enterprise-Grade Failover Architecture
Ensure business continuity with automated carrier switching. The dual SIM and eSIM configuration allows your network to instantly pivot to cellular data during primary fiber or cable outages, protecting revenue streams and critical infrastructure.
Streamlined PoE & Multi-Mount Flexibility
Powered entirely through standard Power over Ethernet (PoE), the modem simplifies cabling complexities. It includes versatile mounting hardware for desktop, wall, or window placement, ensuring optimal line-of-sight signal reception.
Technical Specification Matrix
| Model |
U5G-Max |
| Networking Interface |
(1) 2.5 GbE RJ45 Port |
| Peak 5G NSA Speed |
Downlink: 3.4 Gbps / Uplink: 560 Mbps |
| SIM Architecture |
(1) Nano SIM, (1) Nano-SIM or eSIM slot |
| Power Method / Max Consumption |
PoE / 14.5W |
| Display Panel |
1.3" Touchscreen |
| Enclosure Material |
Polycarbonate, Aluminum Alloy |
| Dimensions & Weight |
180 x 109 x 33.8 mm · 410 g |
Is the Ubiquiti U5G-Max compatible with all major carriers?
The U5G-Max is officially certified for major network providers including AT&T and T-Mobile (using standard data-only plans; T-Mobile Home Internet SIMs are not supported). Direct Verizon support is expected in future updates.
How is the device powered during deployment?
The unit operates via standard Power over Ethernet (PoE input), transmitting both data connectivity and electrical power through a single Ethernet cable connected to any UniFi PoE switch or gateway.
Can this modem be used as a primary internet source?
Yes. While widely deployed as an automatic high-speed failover backup, its exceptional 3.4 Gbps downlink performance makes it entirely viable as a primary WAN connection for remote or mobile sites.
What mounting hardware is included in the box?
Each unit ships complete with a flexible desktop stand, a wall mount bracket, and a specialized window mount to help achieve optimum cellular signal propagation.
