Uniarch NVR SERIES
Next-Generation 4-Channel Plug & Play PoE Video Recording

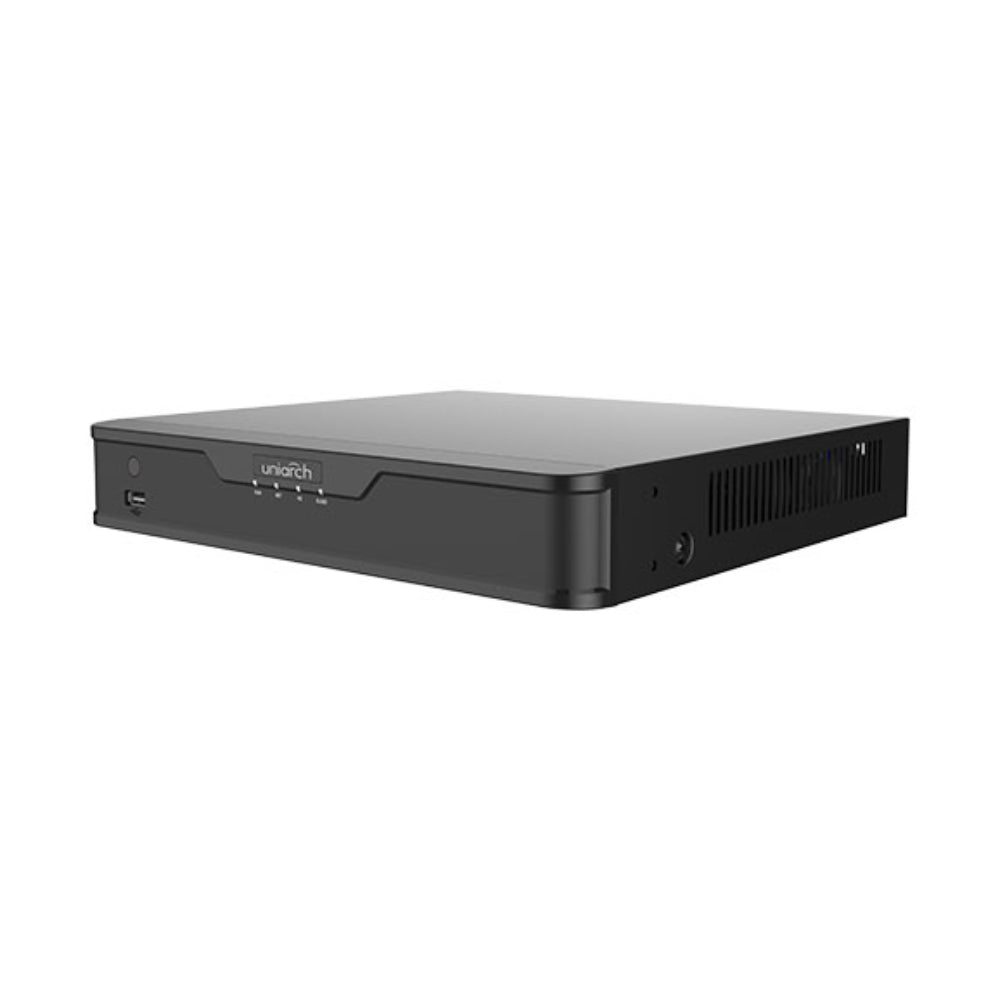

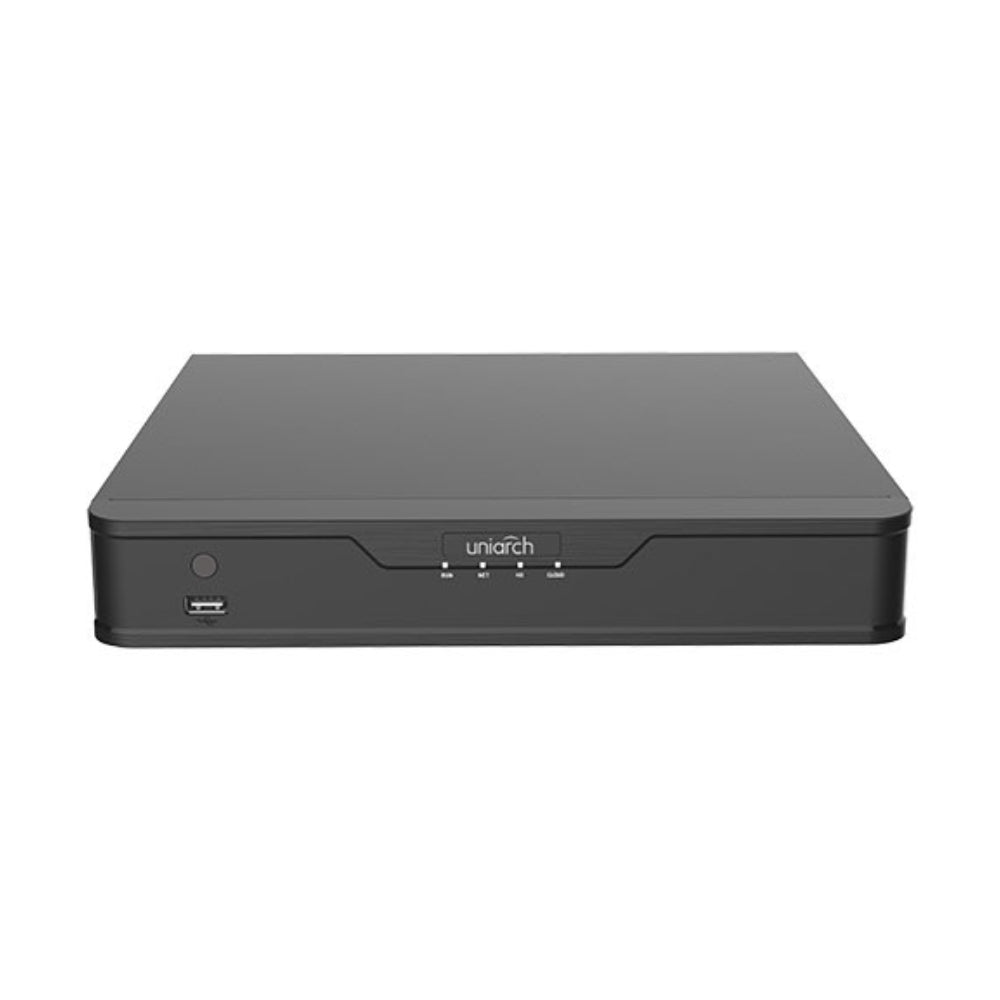

The Uniarch NVR-104B-P4 is a compact, high-capacity 4-channel Network Video Recorder engineered for seamless commercial and residential IP surveillance setups. Designed with 4 independent Power over Ethernet (PoE) interfaces, this NVR delivers power and ultra-high-definition video data over a single network cable per camera. Built to handle modern security demands, the system supports decoding up to 4K high-resolution input, providing crisp detail and dependable 24/7 video retention for small businesses, retail environments, and residential properties.
Video Decoding
Up to 4K / 6MP UHD
PoE Connectivity
4 Independent Ports
Storage Capacity
1 SATA (Up to 6TB)
Compression
Ultra 265 / H.265
Advanced Bandwidth Efficiency & Flexible Output
Powered by Uniarch's advanced Ultra 265 compression technology, the Uniarch NVR-104B-P4 significantly reduces storage requirements and network bandwidth overhead by up to 75% without compromising visual fidelity. The unit features simultaneous HDMI and VGA display outputs, making it ideal for real-time local monitoring setups. With ONVIF profile conformance and standard network protocols, this recorder enables smooth integration with both Uniarch cameras and third-party IP cameras.
True Plug-and-Play Setup
Integrated 4-port PoE switch automatically discovers and configures connected Uniarch IP cameras, eliminating complex network configurations and reducing installation time.
Ultra 265 Smart Compression
Combines standard H.265 compression with advanced scene-adaptive encoding to minimize storage consumption and extend record retention days on a single SATA HDD.
Technical Specification Matrix
| Camera Model |
NVR-104B-P4 |
| IP Video Input |
4 Channels |
| Incoming / Outgoing Bandwidth |
40 Mbps / 40 Mbps |
| HDMI/VGA Output |
HDMI: 1080p (1920x1080)/60Hz; VGA: 1080p (1920x1080)/60Hz |
| Video Compression Format |
Ultra 265, H.265, H.264 |
| Decoding Capability |
1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30 |
| SATA Interface |
1 SATA Interface (Up to 6TB capacity per HDD) |
| PoE Ports & Standard |
4 Independent 100Mbps PoE Ports (IEEE 802.3at / IEEE 802.3af) |
Do I need a separate power adapter for my IP cameras?
No. The NVR-104B-P4 features 4 built-in Power over Ethernet (PoE) ports that deliver power and network transmission over standard Cat5e/Cat6 network cables directly to PoE-enabled cameras.
How much hard drive capacity does this NVR support?
The unit features 1 internal SATA interface supporting a surveillance-grade 3.5-inch hard drive with up to 6TB storage capacity.
Can I view my security cameras remotely?
Yes. You can access live streams and recorded footage remotely via the official Uniarch Mobile App (iOS/Android) or PC client software.
Are non-Uniarch IP cameras compatible with this system?
Yes. The NVR supports ONVIF protocol compliance, allowing integration with supported third-party IP security cameras.
