Ubiquiti UISP · NDAA & TAA COMPLIANT
Engineered for Extreme Environments: Ubiquiti UISP Box Plus
The Ubiquiti UISP Box Plus is a heavy-duty, weather-resistant outdoor enclosure precision-built to house and safeguard the UISP Switch Plus in demanding deployment scenarios. Designed for WISP infrastructures, enterprise extensions, and remote surveillance node routing, it delivers rugged structural defense and streamlined cable management against the harshest elements.
Enclosure Rating
IPX6 Weatherproof
Wind Endurance
Up to 200 km/h
Core Compatibility
UISP Switch Plus
Material Build
UV-Stabilized Poly
Advanced Hardware Protection & Fiber Management

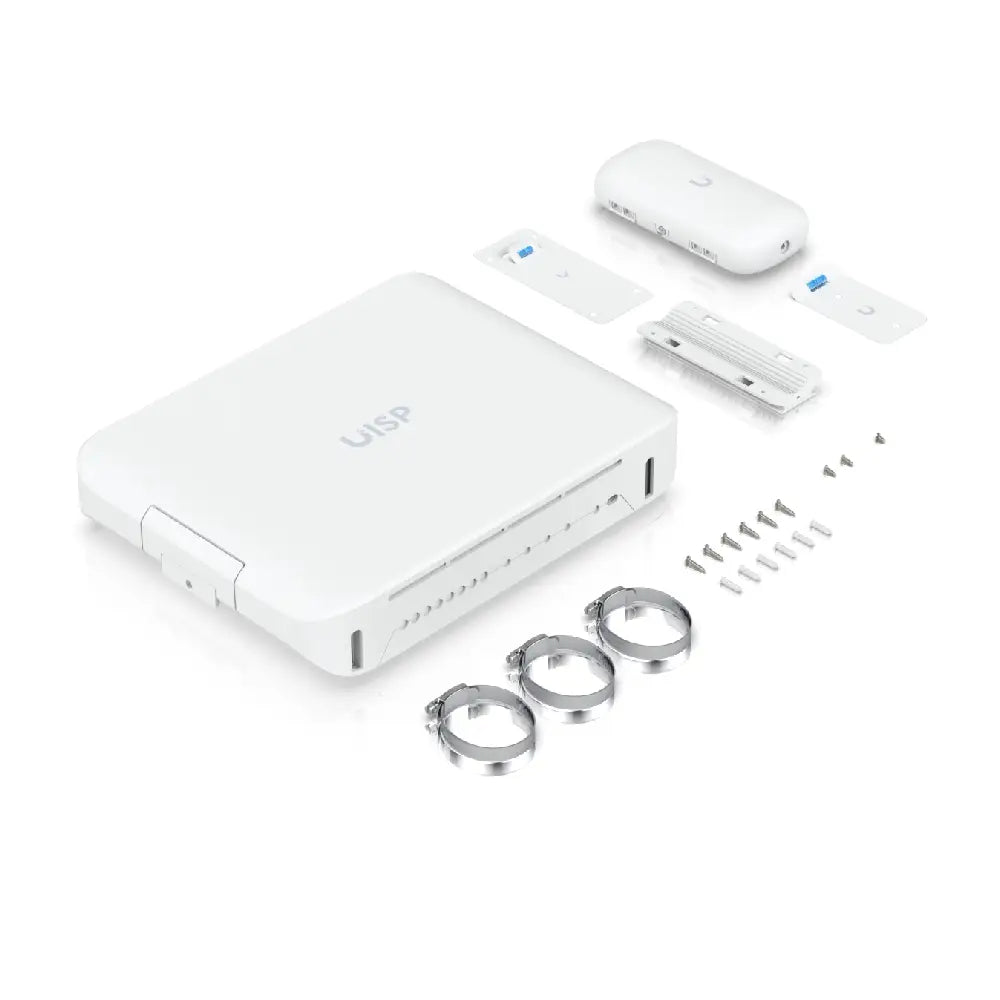

Constructed from high-grade UV-stabilized polycarbonate, the Ubiquiti UISP Box Plus resists thermal degradation and solar wear over years of continuous exposure. The chassis integrates a specialized Fiber Strain Relief Kit, eliminating tension on incoming fiber lines and systematically routing excess slack to maintain clean signal integrity. Explore compatible network architectures directly through the Ubiquiti UISP Ecosystem Hub.
Rugged Environmental Build
Tested to withstand gale-force winds up to 200 km/h (124 mph) and extreme operating temperatures ranging from -10 to 60°C, guaranteeing uninterrupted core routing performance in open-air setups.
Flexible Mounting Architecture

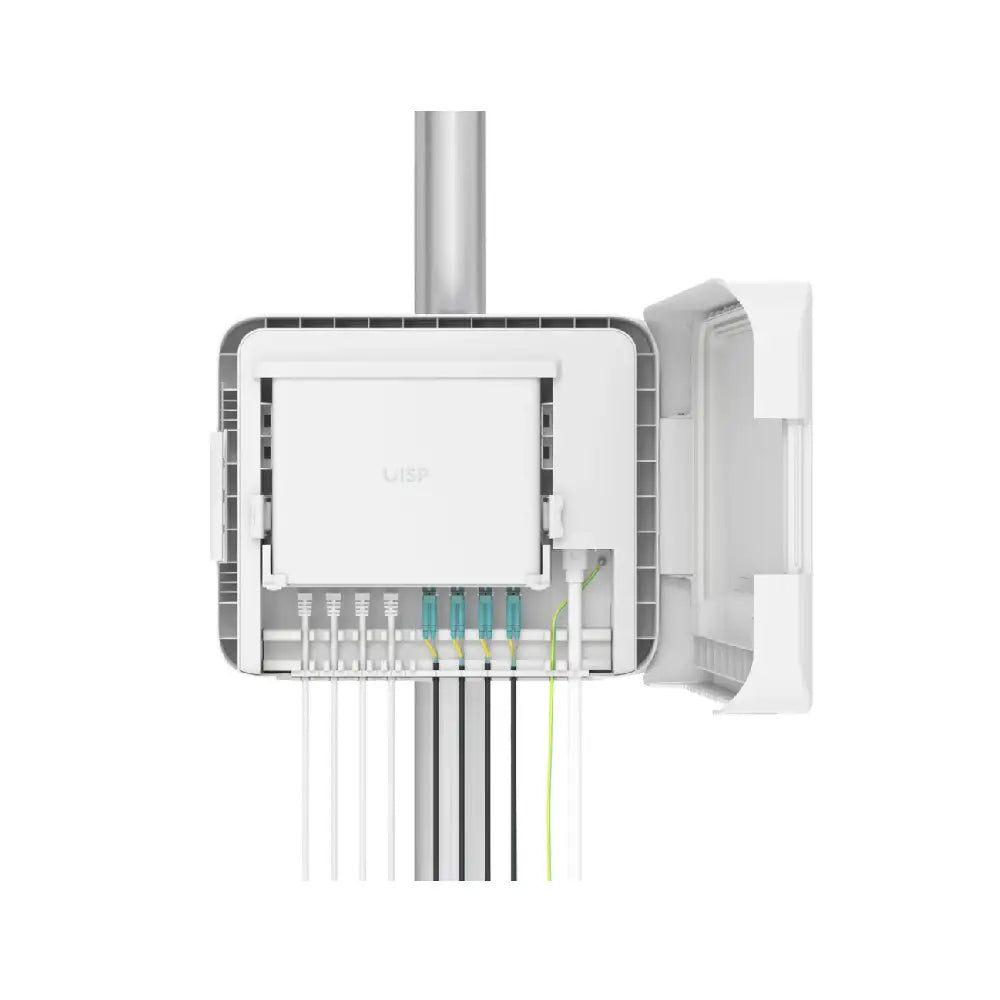

Engineered for versatile deployment flexibility, supporting both secure wall installations and pole-mounting configurations (35 to 60 mm diameter) for fast field deployment by network technicians.
Technical Specification Matrix
| Model |
UISP-Box-Plus |
| Enclosure Material |
UV-stabilized polycarbonate |
| Weatherproofing Rating |
IPX6 |
| Wind Endurance |
Up to 200 km/hr (124.27 mph) |
| Dimensions |
380 x 293 x 76.4 mm (15 x 11.5 x 3") |
| Weight |
1.9 kg (4.2 lb) |
| Pole Mount Diameter |
35 to 60 mm (1.38 to 2.36") |
| Operating Temperature |
-10 to 60° C (14 to 140° F) |
Which switch models are compatible with the UISP Box Plus?
This enclosure is purpose-built to safely accommodate the Ubiquiti UISP Switch Plus (UISP-S-Plus) model, ensuring ideal alignment of mounting screws and internal cabling conduits.
Is the Fiber Strain Relief Kit included in the package?
Yes, the box ships complete with an integrated fiber strain relief kit to organize and safeguard delicate fiber cable runs from physical pull stress.
What pole diameters are supported by the mounting assembly?
The included versatile mounting hardware supports standard infrastructure poles ranging from 35 mm to 60 mm (1.38 to 2.36 inches) in outer diameter.
Does this enclosure handle heavy rainfall and direct jets of water?
Yes, the unit features an IPX6 water resistance rating, designed to protect internal networking hardware against heavy seas, powerful water jets, and driving rain storms.
