Ubiquiti UniFi · NDAA & TAA COMPLIANT
Transform commercial spaces with the Ubiquiti UC-Cast-Pro 4K Media Player
Engineered for high-density commercial deployments, corporate communications, and retail environments, the Ubiquiti UC-Cast-Pro delivers flawless 4K multimedia playback and web content over standard HDMI displays. Centralized management through UniFi Connect allows administrators to effortlessly schedule playlists, monitor endpoints, and manage dynamic visual layouts across enterprise facilities.
Display Output
4K Ultra HD (60 FPS)
Processing Core
Octa-Core ARM & GPU
Connectivity
Wi-Fi 6 & Gigabit PoE
Storage & Build
32GB Storage / Compact
Advanced hardware architecture meets seamless UniFi Connect integration
Driven by an efficient octa-core processor (Cortex-A78 and Cortex-A55 blend) paired with an integrated Mali-G57 GPU and 8GB of RAM, the UC-Cast-Pro effortlessly renders demanding web layouts, high-frame-rate video feeds, and custom digital signage loops. Onboard 32GB solid-state storage guarantees reliable offline content execution during network dropouts, while flexible power options via Gigabit PoE or USB-C streamline physical installation behind modern flat-panel screens.
Centralized Enterprise Management
Manage playlists, trigger location-based content schedules, and push real-time emergency notifications across hundreds of screens using the scalable UniFi Connect ecosystem software.
Flexible Mounting & Peripherals

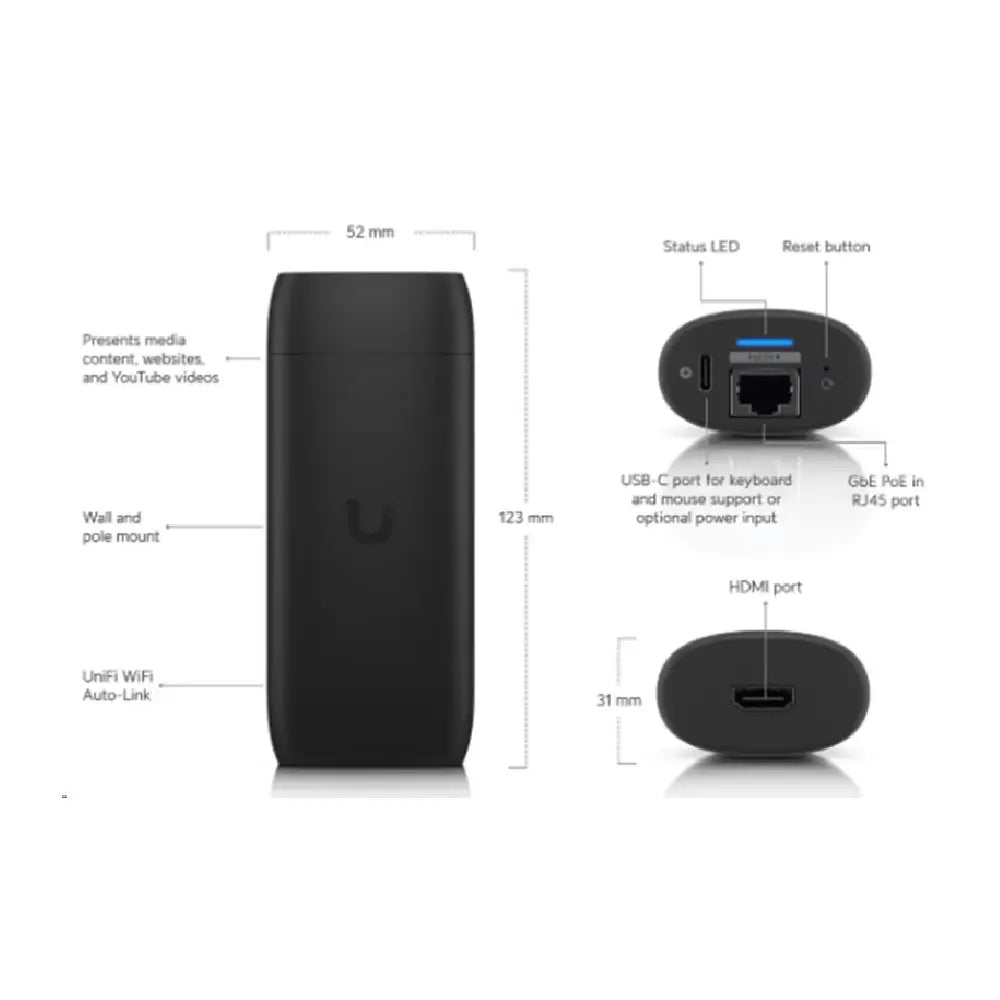

Features an ultra-compact form factor with included VESA/pole-mounting hardware (supporting 25-50mm diameters) alongside USB-C port support for external interactive touch or input peripherals.
Technical Specification Matrix
| Model |
UC-Cast-Pro |
| Processor |
Octa-core CPU (2x Cortex-A78 & 6x Cortex-A55) |
| System Memory & Storage |
8 GB RAM, 32 GB Internal Storage |
| Video Output |
(1) HDMI Port (Supports up to 4K @ 60 FPS) |
| Networking & Wi-Fi |
GbE RJ45 Port & Wi-Fi 6 (802.11a/b/g/n/ac/ax) |
| Power Method |
PoE (48V DC, 0.35A) or USB Type-C (5V DC, 3A) |
| Operating Temperature |
0 to 40° C (32 to 104° F) |
| Compliance & Certifications |
NDAA Compliant, CE, FCC, IC, UL 62368-1 |
How is the UC-Cast-Pro powered during deployment?
The device can be powered conveniently via a single Gigabit Ethernet cable utilizing 48V Power over Ethernet (PoE) or alternatively through an independent USB Type-C (5V DC, 3A) power adapter.
What software application is required for content management?
Content creation, playlist scheduling, and device monitoring are handled natively through the web and mobile versions of the UniFi Connect application suite.
Does the player support offline media playback?
Yes. Thanks to its 32GB of onboard local storage, the UC-Cast-Pro seamlessly caches assigned playlists to guarantee uninterrupted playback even if network connectivity is temporarily lost.
Is the hardware compliant with government procurement regulations?
Yes, the UC-Cast-Pro model is fully NDAA compliant, satisfying strict federal and commercial supply chain security guidelines.
