UISP Series · NDAA COMPLIANT
Centralized WISP Management & High-Performance Routing

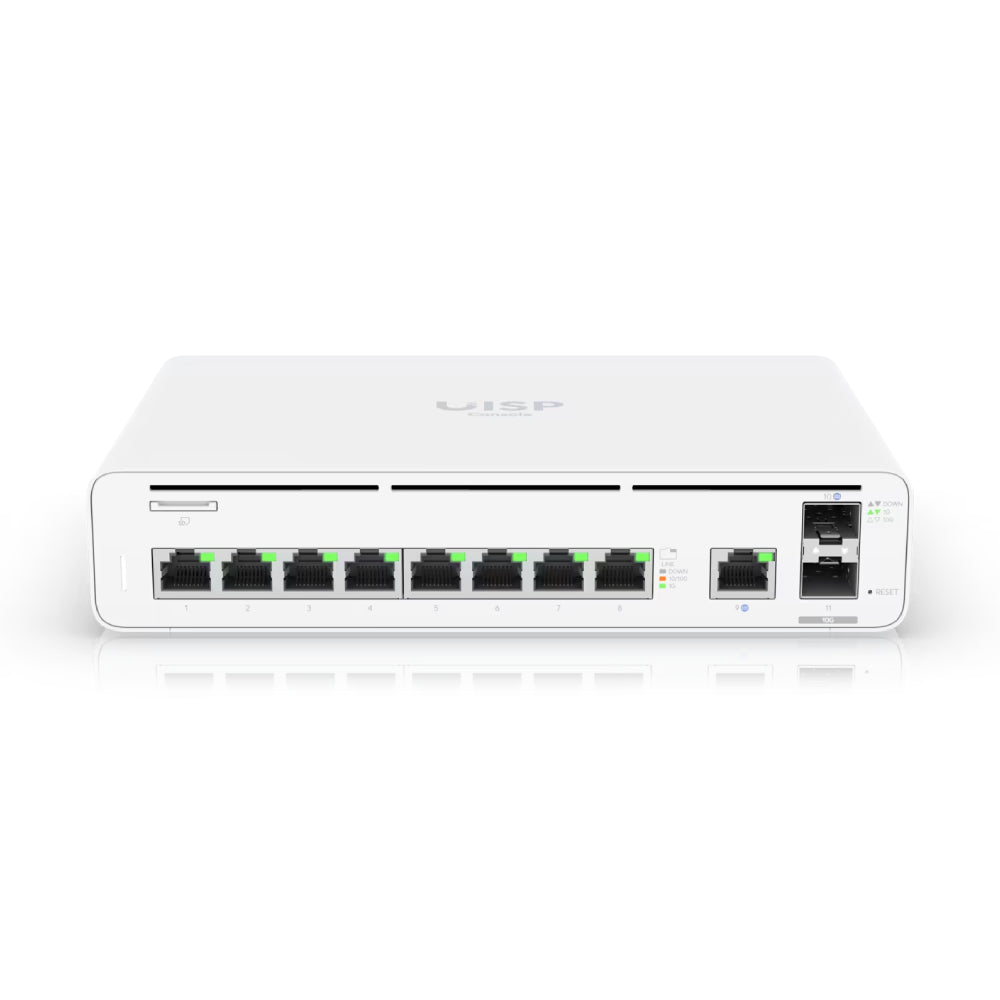

The Ubiquiti UISP Console (UISP-Console) is an NDAA compliant multi-gigabit router and integrated network application server designed specifically for Wireless Internet Service Providers (WISPs) and enterprise deployments. Featuring a pre-installed UISP management suite, this compact, high-capacity console centralizes client management, billing, network monitoring, and device configuration without requiring external server infrastructure or cloud subscriptions.
LAN Connectivity
(8) GbE RJ45 Ports
High-Speed Uplinks
(2) 10G SFP+ Ports
Management
Hosted UISP Application
Routing Speed
Line-Rate Performance
Scalable Infrastructure Core for Micro-POP Deployments

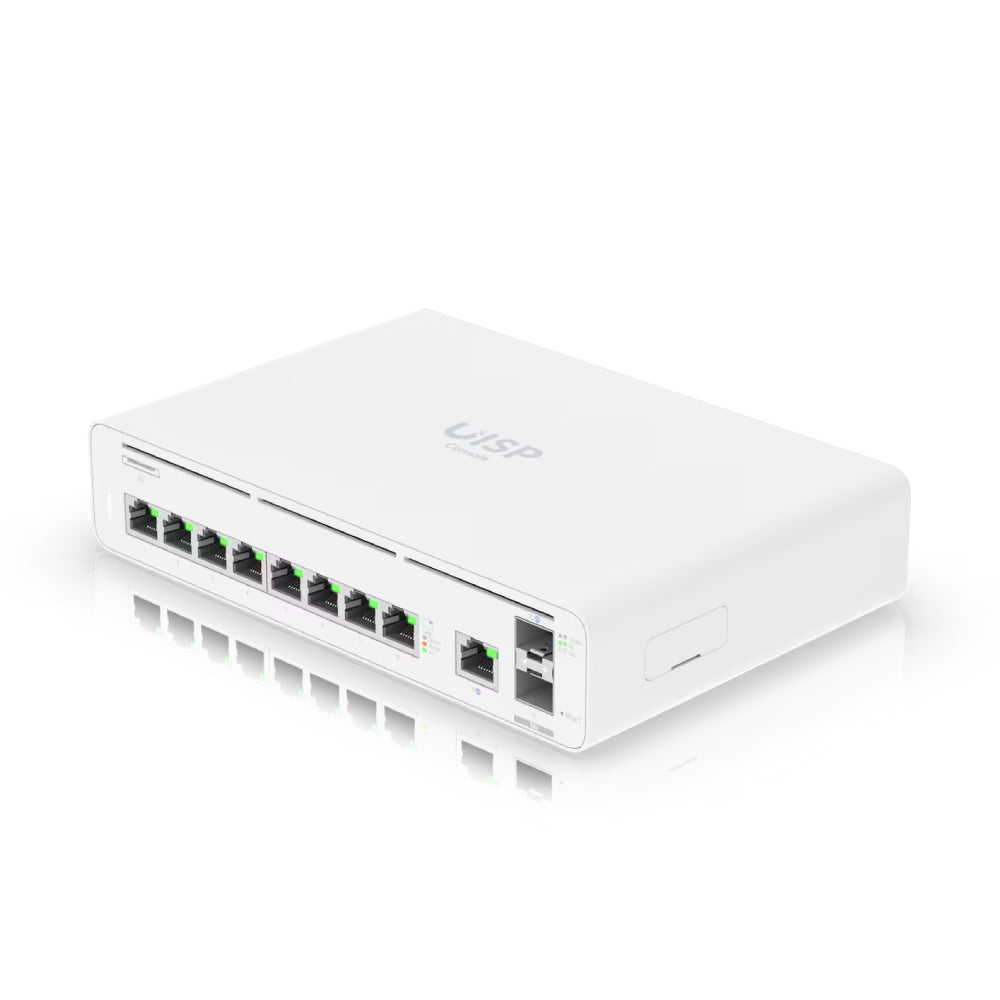

Equipped with eight Gigabit Ethernet ports and dual 10G SFP+ ports for high-bandwidth backhaul connectivity, the UISP-Console functions as a powerful gateway for Micro-POP tower sites and regional distribution nodes. Its integrated quad-core processor easily hosts up to 12+ UISP devices or 128+ network clients, giving operators real-time topology mapping, automated suspension services, and localized network traffic control.
Integrated Application Host
Runs the full UISP software stack natively, removing the need to manage external cloud servers or separate self-hosted Linux controllers.
Dual 10G SFP+ Backhaul
Delivers high-capacity fiber uplinks to prevent bottlenecks between core switches, point-to-point radios, and distribution equipment.
Technical Specification Matrix
| Model SKU |
UISP-Console |
| NDAA Compliance |
Confirmed Compliant (Yes) |
| Networking Interfaces |
(8) 10/100/1000 Mbps RJ45 Ports
(2) 1/10 Gbps SFP+ Ports |
| Processor |
Quad-Core ARM® Cortex®-A53 |
| Memory & Storage |
3 GB DDR4 RAM, 16 GB eMMC Integrated Flash |

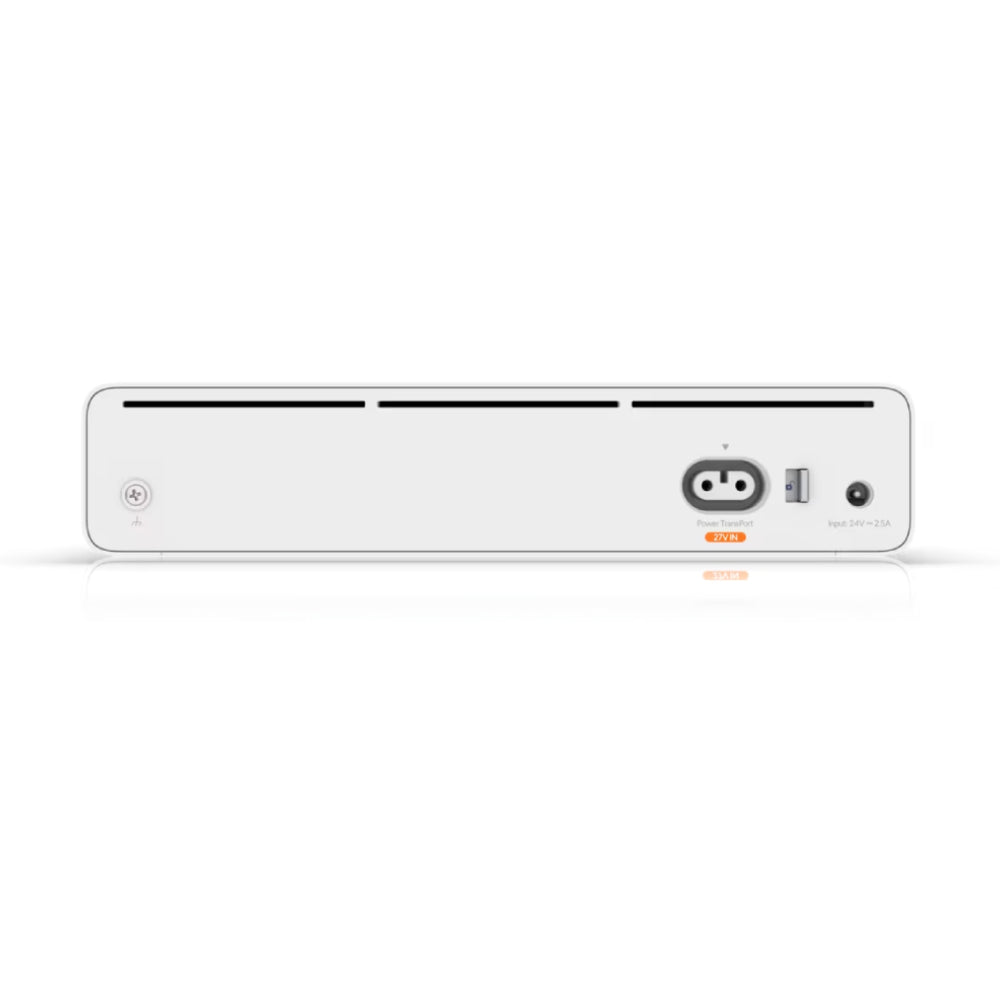

| Power Method |
External AC/DC Power Adapter (24V DC Included) |
| Max. Power Consumption |
30W (Excluding Accessories) |
| Enclosure Material |
Polycarbonate, Metal Chassis |
| Mounting Options |
Desktop, Wall Mount (Kit Included), Optional Rack Mount |
| Managed Devices Capacity |
Supports up to 12+ UISP devices / 128+ clients |
Is the Ubiquiti UISP-Console NDAA compliant?
Yes, the UISP-Console-U is officially NDAA compliant, rendering it fully approved for integration in security-conscious corporate and government networks.
What is the main function of the UISP Console?
The UISP Console functions as both a high-speed router and an on-site hardware controller that runs the UISP application to manage airMAX, airFiber, and Wave wireless gear.
Does the UISP Console support Power over Ethernet (PoE) output?
The standard UISP Console (UISP-Console) focuses on routing and application hosting. For deployments requiring integrated 24V/27V PoE output on all ports, consider the UISP Router or UISP Switch models.
Can I use this with standard UniFi access points?
The UISP Console is designed specifically for the UISP ecosystem (airMAX, LTU, Wave, airFiber). UniFi gear requires a UniFi Cloud Gateway or UniFi Network Controller.
