IDIS PREMIUM SERIES · NDAA & TAA COMPLIANT

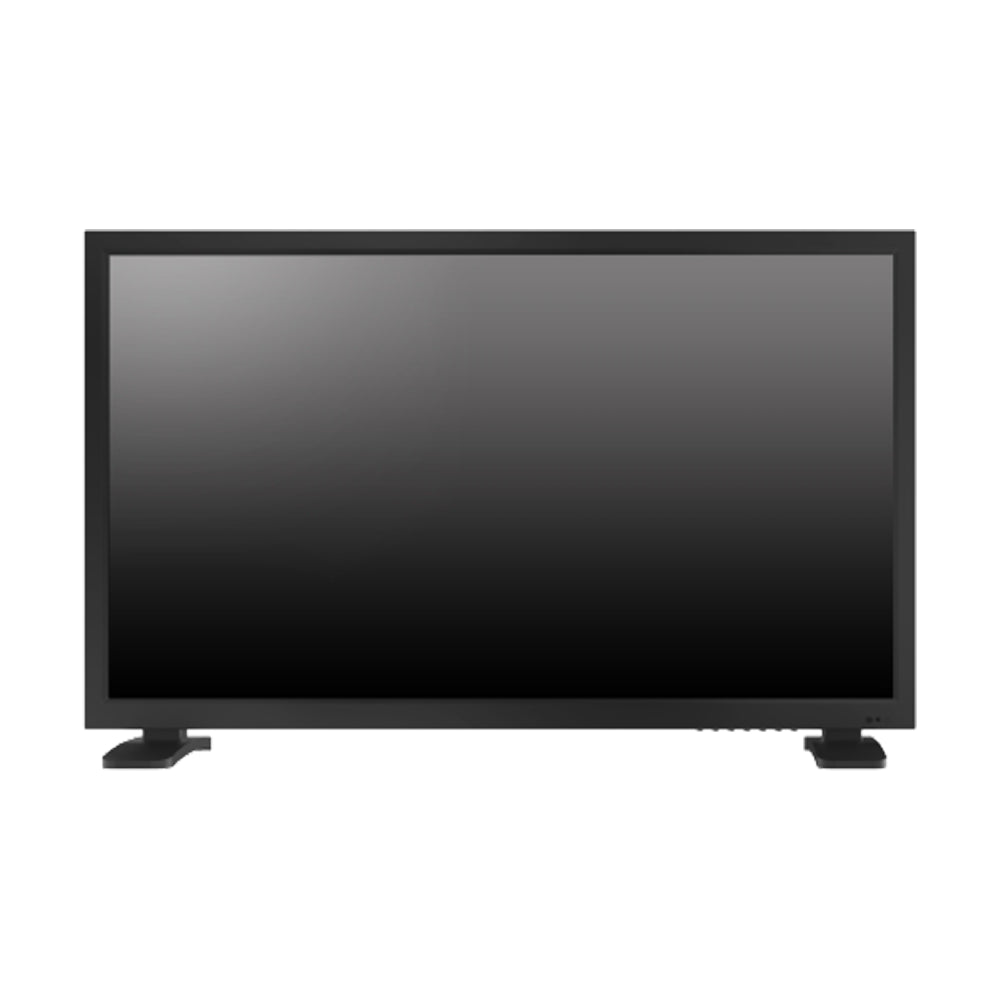

High-Density 32" Commercial Surveillance Command Display
The IDIS SM-F322 is an industrial-grade 32-inch Full HD monitoring solution engineered explicitly for central security hubs, high-density video wall matrix arrays, and critical enterprise operations. Built around an advanced anti-glare IPS display panel with a rugged, heat-dissipating metal chassis, this workstation display guarantees pristine color accuracy and expansive wide-angle visibility. Designed to endure the grueling strains of 24/7/365 uninterrupted security environments, it completely eliminates the screen degradation and ghosting issues typical of consumer monitors.
Resolution
FHD 1080p @ 60Hz
Optics / Panel
32" Anti-Glare IPS
Viewing Angle
Ultra-Wide 178°
Interface
Hybrid BNC, HDMI, VGA
Hybrid Signal Flexibility & Command Center Integration
Equipped with an advanced internal multi-signal decoder, the IDIS SM-F322 natively supports traditional digital systems alongside direct analog integration. Its signature feature is a hybrid BNC video interface that interprets high-definition composite inputs—including AHD, TVI, CVI, and legacy CVBS—allowing direct connection to diversified backend security arrays without requiring external converters. Integrated with specialized contrast restoration engines and anti-burn-in features, this system dynamically prevents static screen memory accumulation when permanently rendering multi-window camera layouts.
In-Plane Switching (IPS) True Visibility
Traditional command centers suffer from compromised view visibility when personnel view monitors from side angles. The SM-F322 implements a premium IPS screen matrix, ensuring a complete 178-degree horizontal and vertical viewing arc with no color distortion, contrast loss, or panel fading during split-second security tracking interventions.
Heavy-Duty Metal Frame Chassis
Unlike standard monitors wrapped in brittle plastic, this professional terminal features a ruggedized metal frame design. This reinforced industrial casing shields fragile inside components from mechanical shock while simultaneously functioning as a passive cooling structure, stabilizing operating temperatures down to -10°C.
Technical Specification Matrix
Camera Model
SM-F322
Screen Size & Panel Type
32 Inch LED Backlit / IPS (In-Plane Switching) Technology
Max. Resolution / Aspect
1920 x 1080 @ 60Hz (Full HD) / 16:9 Aspect Ratio
Brightness & Contrast Ratio
250cd/m² / 1200:1 Static Contrast Ratio
Viewing Angles (H/V)
178° Horizontal / 178° Vertical (Full Viewing Arc)
Response Time & MTBF
<6.5ms (Gray to Gray) / 50,000 Hours Panel Lifetime (24/7/365)
Hybrid Signal Support
AHD, TVI, CVI, and CVBS Composite Input/Output Formats
Input/Output Interfaces
1x HDMI In, 1x VGA In, 1x Hybrid BNC In, 1x Hybrid BNC Out, 1x USB (Firmware), 1x Audio In/Out
Audio Power & Controls
Dual 5W Integrated Speakers (5Wx2) & Built-In Front IR Sensor
Power Management
AC 100V–240V (50/60Hz) / 50W Typical Consumption / <0.5W Standby Saving
Mounting & Dimensions
VESA 200mm x 200mm (M6 x 10 Screws) / 741.2mm x 472.9mm x 180.0mm
What specific analog HD formats does the hybrid input layer support?
The specialized input decoding array embedded within the SM-F322 natively accepts and loops AHD, TVI, and CVI high-definition security standards along with standard legacy baseband CVBS (analog composite) surveillance equipment.
How does the built-in anti-burn feature protect the monitor display?
The display panel uses internal pixel micro-shifting routines that periodically move static elements on a microscopic layer invisible to human operators. This prevents localized phosphor/liquid crystal exhaustion caused by stagnant on-screen time/date stamps or grid borders.
Is this display robust enough for industrial or unregulated environments?
Yes. Due to its rigid metal perimeter framing and premium ventilation architecture, the SM-F322 handles an extensive operational temperature range from -10°C up to 50°C, making it resilient in harsh server environments or non-climate-controlled backrooms.
Does this model meet strict government procurement criteria?
Yes, the SM-F322 is thoroughly certified as NDAA and TAA compliant. This guarantees that its source hardware component trail satisfies federal defense regulations, making it approved for public utility networks and federal facilities.
