Hilook AX PRO Series
Precision Perimeter Defense with Advanced Wireless Curtain Detection

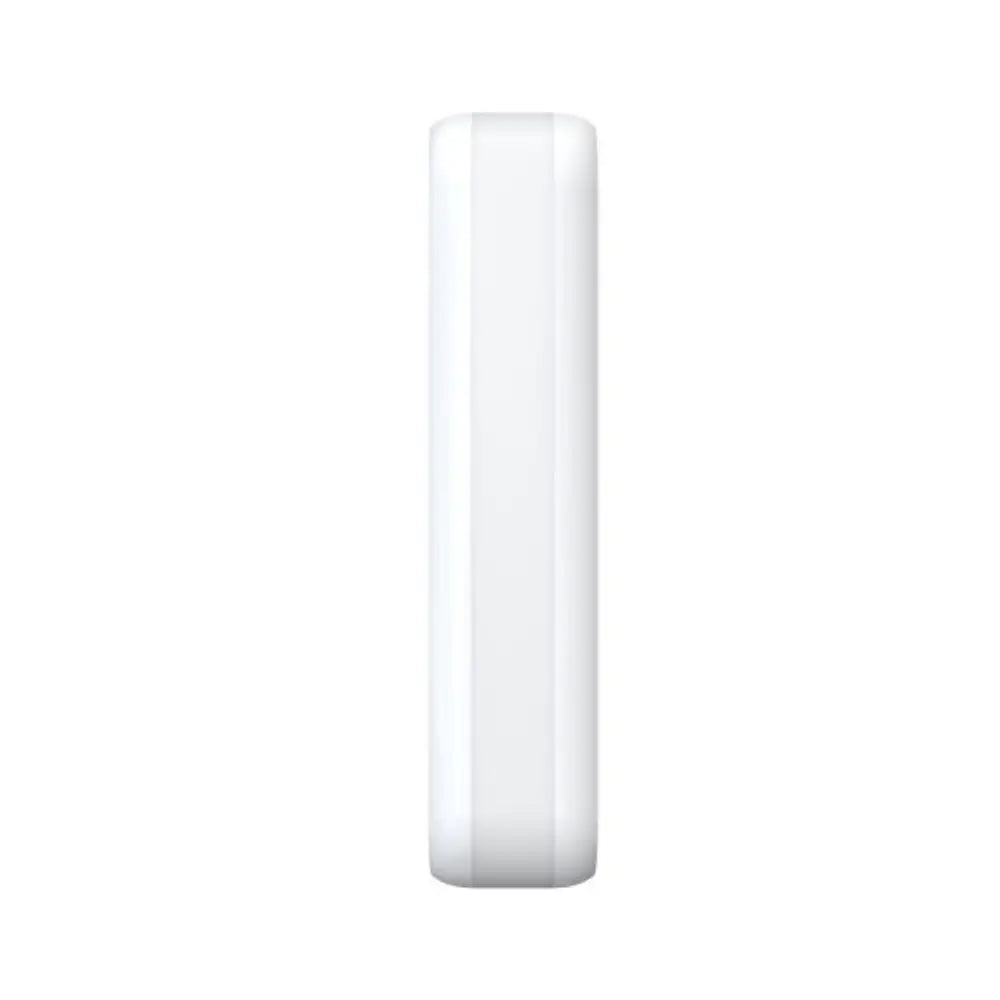

Protect vulnerable entry points and commercial perimeters with the HiLook DS-PDC10DM-EG2-WB, a high-performance wireless curtain PIR detector engineered for the AX PRO intrusion system. Designed specifically for tight spaces, windows, and entry corridors, this device delivers reliable 10-meter coverage while incorporating advanced anti-masking technology to prevent tampering and ensure continuous security integrity in demanding commercial environments.
Detection Range
10m Curtain Coverage
Tamper Protection
Active Anti-Masking
Wireless Protocol
Tri-X / Two-Way RF
Power Supply
Long-Life Battery Pack
Seamless Integration and Encrypted Wireless Protection
The DS-PDC10DM-EG2-WB integrates effortlessly into your broader security network utilizing secure, high-frequency two-way wireless protocols. By minimizing false alarms through advanced digital signal processing and providing robust immunity to environmental shifts, it ensures maximum stability for retail spaces, office perimeters, and industrial access points.
Targeted Curtain Optics
Narrow-angle optical lens design projects a protective barrier across windows, patio doors, and specific corridors without triggering from adjacent room activities.
Advanced Anti-Masking
Proactively detects attempts to block, spray, or cover the detector lens, instantly triggering safety alerts to thwart sophisticated intrusion tactics.
Technical Specification Matrix
| Camera Model |
DS-PDC10DM-EG2-WB |
| Detection Range |
10m |
| Detection Angle |
5° |
| Anti-Masking |
Supported (IR) |
| Transmission Technology |
Tri-X Wireless |
| RF Frequency |
868 MHz |
| Battery Type |
CR123A x 2 |
| Operating Temperature |
-10 °C to +55 °C |
What is the primary application for a curtain detector?
Curtain detectors project a narrow, wall-like beam designed to safeguard specific perimeters such as linear glass facades, narrow corridors, doorways, and windows without covering the entire room.
How does the anti-masking feature work?
The built-in active infrared anti-masking mechanism identifies if someone attempts to obstruct, paint, or tape over the detector's lens, immediately reporting a tamper event to the central hub.
Is the wireless signal secure against interference?
Yes, it utilizes secure two-way wireless communication technology with robust data encryption to prevent signal jamming, sniffing, and unauthorized code grabbing.
What kind of batteries are required, and how long do they last?
The unit typically operates on standard commercial lithium batteries (such as CR123A cells) optimized for multi-year longevity depending on usage frequency and environmental conditions.
