Dahua · ASI6214J-MFW · Face Terminal · 6000 FacesFace TerminalDahua DHI-ASI6214J-MFW FACT Face Recognition Access Control Terminal

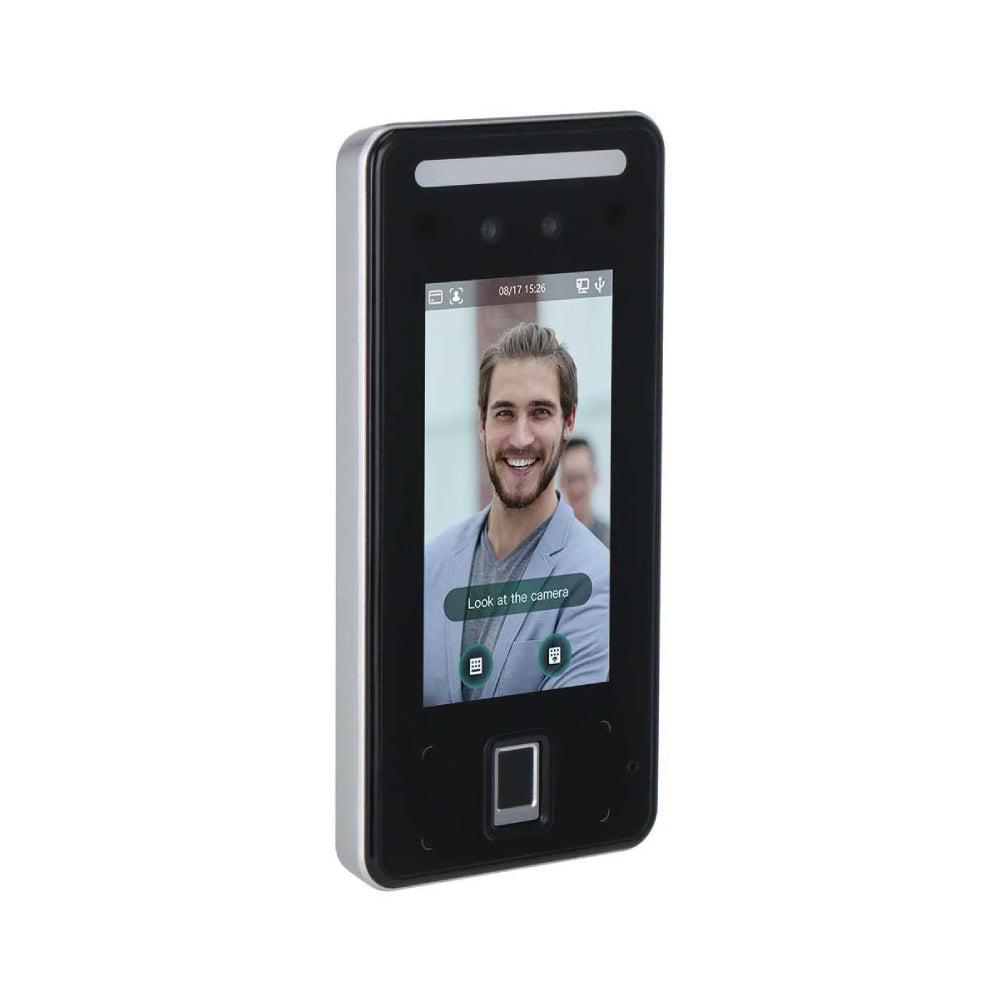

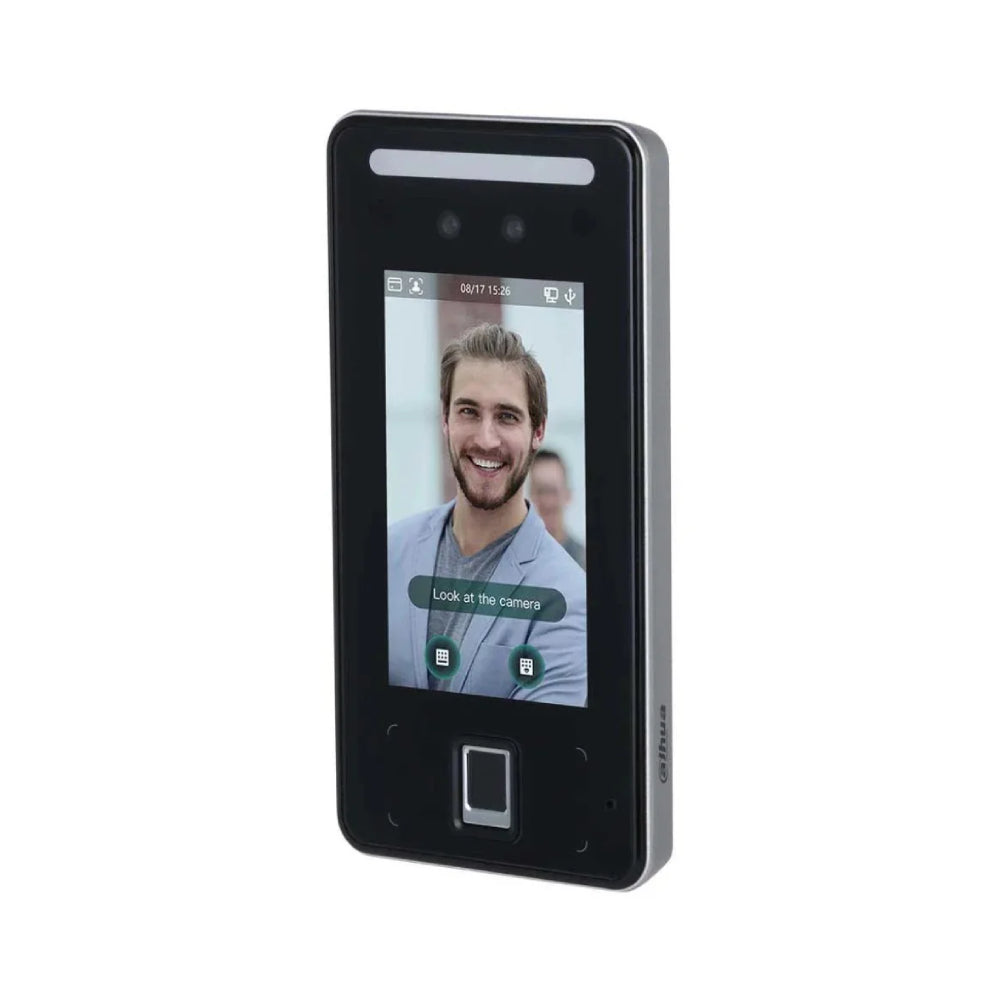

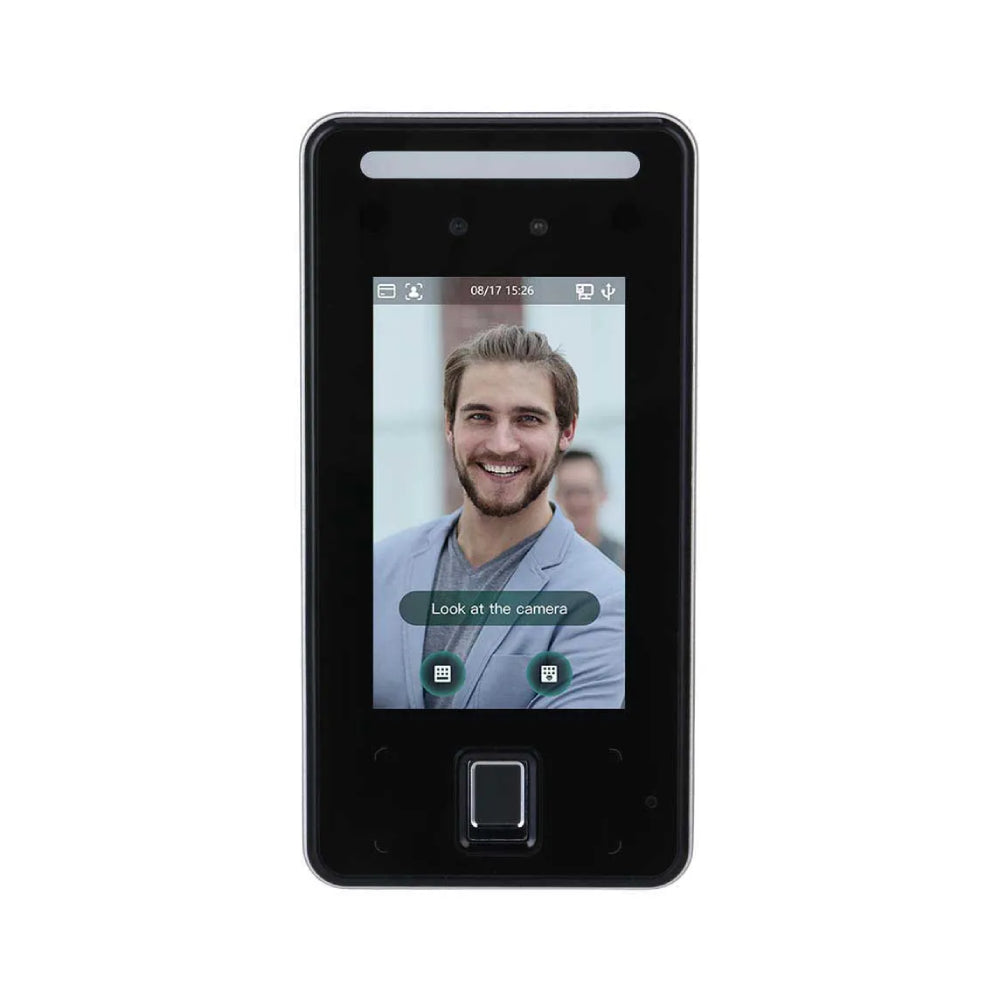

The Dahua DHI-ASI6214J-MFW is a compact FACT-series face recognition access control terminal built for offices, server rooms and secure entries. A 4.3-inch touch screen and 2MP wide-angle dual-lens camera deliver fast, accurate face verification, while support for face, card, password and fingerprint unlock (plus combinations) gives you flexible, multi-factor entry control. With on-board storage for up to 6000 face images it keeps working even without a network connection.
Fast, Accurate Face Recognition
The 2MP wide-angle dual-lens camera with DWDR and white-light plus IR fill light verifies a face in about 0.3 seconds at 99.5% accuracy, with a low false-recognition rate and a working distance of 0.3 m to 1.5 m.
Multi-Factor Unlocking
Grant access by face, card, password or fingerprint, or require a combination of methods for higher-security doors. Period-based unlocking lets you set when each credential is valid.
Works Without a Network
User data is stored on the terminal itself, holding up to 6000 face images. The unit keeps controlling the door even if the network goes down, ideal for single-door deployments.
Liveness Detection
Built-in liveness detection helps reject photos and video spoofing, so only a real, present person can trigger an unlock at the door.
Specifications — ASI6214J-MFW
| Model |
DHI-ASI6214J-MFW |
| Type |
FACT face recognition access control terminal |
| Display |
4.3-inch LCD touch screen, 480 × 272 |
| Camera |
2MP wide-angle dual lens; DWDR; white-light & IR fill light |
| Unlock Methods |
Face, card, password, fingerprint and combinations; unlock by period |
| Face Capacity |
6000 face images (stored on device) |
| Face Accuracy |
99.5%; comparison speed 0.3s per person; liveness detection |
| Face Distance |
0.3 m – 1.5 m |
| Network |
Operates offline; on-board user data storage |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
How many faces can the ASI6214J-MFW store?
Up to 6000 face images are stored locally on the terminal, so it keeps working even without a network connection.
What unlock methods does it support?
Face, card, password and fingerprint, plus combinations of these. You can also restrict each method to set time periods.
Does it prevent photo spoofing?
Yes. Built-in liveness detection helps reject photos and video, so only a real person present at the door can unlock it.
Is this NDAA compliant?
No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant equipment for US federal or critical-infrastructure projects, contact our team about Uniview, Hanwha or Axis options.
