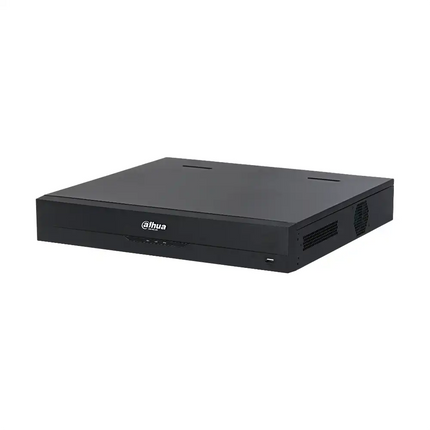

WizSense + AcuPick · 5-Series · 64-Channel · 4-HDD · 1.5U

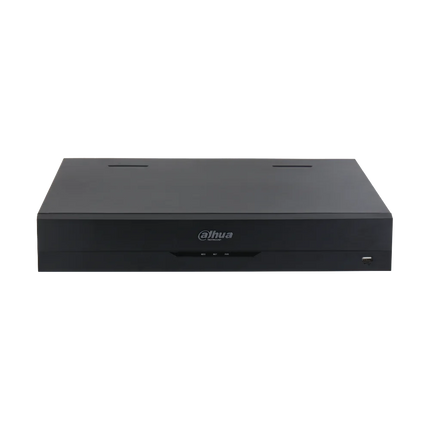

The Dahua DHI-NVR5464-AI/ANZ is a 64-channel 5-Series WizSense AI NVR with AcuPick, four SATA bays, dual Gigabit NICs, dual HDMI + dual VGA outputs, and a 1.5U rack chassis built for enterprise-scale installs. Record up to 32 MP per channel, run AcuPick across up to 32 channels, drive a 64-channel split on the main monitor, and scale storage to roughly 64 TB across the four 16 TB drives.
This is the official Australia / NZ-market SKU (the AI/ANZ suffix). It's a headend NVR with no built-in PoE — cameras connect through an external PoE switch or your existing managed network. Internal 100–240 VAC universal PSU, AS/NZS-compliant kettle cord, and a local 3-year warranty backed by CCTV Guru in Sydney. Designed for multi-site retail chains, transport hubs, large carparks, hospitals and any campus running 30–60+ cameras through a structured network. AcuPick, N+M cluster and iSCSI are enabled by Dahua's V5 firmware (current factory ship as of 2025).
AcuPick on up to 32 channels — enterprise-scale search
AcuPick Channels
Up to 32 ch · 1 event / channel / sec
Search Method
Image + attribute · front + back AI
Search by reference image
Click any person or vehicle in recorded video, hit AcuPick, and the NVR scans the active 32 channels for matches across hours or days — clothing colour, body shape, vehicle make / model / colour / direction included.
Front- + back-end intelligence
Camera-side AI extracts target attributes during recording; NVR-side AI runs the comparison. Higher accuracy than recorder-only search and orders of magnitude faster than human review.
Investigations finish in minutes
Find a suspect across the AcuPick-active channels and weeks of footage in a single search. Particularly valuable for police investigations, insurance disputes, and post-incident review.
ANPR + SMD Plus on all 64
While AcuPick covers up to 32 channels, ANPR by camera, SMD Plus by camera and perimeter protection by camera all scale across every connected camera up to 64 — site-wide intelligence with no channel left behind.
5-Series WizSense AI — depth at scale
Industrial AI Chip
Same chip as the flagship 32-ch siblings
Face Database
20 databases · 20,000 images
Face Recognition (16-ch image stream)
16 channels of camera-side face detection feeding NVR-side recognition at 16 face snapshots/sec — ideal for entry / exit and high-footfall installs. Twenty face databases, 20,000 images, full attribute filtering.
Perimeter Protection (4 ch by NVR)
4 NVR-side channels of tripwire and intrusion analytics (10 IVS rules each), plus all-channel perimeter via camera-side processing — every camera benefits from human/vehicle classification.
SMD Plus (8 ch by NVR)
8 NVR-side SMD Plus channels plus all-channel camera-side SMD — deep-learning second-pass classification on every camera, cutting false alarms across the entire site.
ANPR by camera (all channels)
Pair with Dahua ANPR cameras for full 64-channel licence-plate recognition feeding a 20,000-plate database with blocklist / allowlist control. Carpark, fleet yard, gate management, even multi-site ANPR.
Video Metadata search
8 channels of camera-side metadata extraction — top colour, bottom colour, hat, bag, umbrella, gender, age, vehicle make / model / colour / plate, helmet wear and more.
N+M cluster failover
Pair multiple 5-Series NVRs in an N+M cluster — backup recorders automatically take over if a primary fails, ensuring zero footage loss for sites where downtime isn't an option.
See AcuPick in action
Dahua AcuPick — Video search technology demonstration
AcuPick — how to configure and search on a Dahua NVR
64-channel recording · dual HDMI · 64 TB on-board storage
Up to 32 MP per channel
True 8K-class input — supports Dahua's highest-resolution cameras, plus 24 MP, 16 MP, 12 MP, 8 MP (4K), 5 MP and 4 MP IP cameras from any ONVIF brand. All 64 channels share the 384 Mbps recording bandwidth.
2× HDMI + 2× VGA outputs
Two independent HDMI heads (each up to 4K) with two mirrored VGAs — drive a multi-monitor control room with independent layouts on each screen. Heterogeneous video routing on HDMI1/HDMI2.
64-channel split on main screen
Main monitor supports 1 / 4 / 8 / 9 / 16 / 25 / 36 / 64-split layouts (sub monitor up to 16). Watch the entire site at a glance — every camera on one screen.
4 SATA bays · up to 64 TB
Four surveillance-grade HDDs (WD Purple, Seagate SkyHawk) up to 16 TB each — weeks of 64-channel recording without touching network storage.
eSATA + iSCSI expansion
External SATA archive port plus iSCSI network-storage support — scale beyond 64 TB without rebuilding the recorder. Disk-group protection across the four on-board drives.
Smart H.265+ for half the storage
AI-tuned H.265+ encoding cuts bitrate on static background pixels while preserving detail on moving targets — roughly half the storage and bandwidth of standard H.264. Critical at 64-channel scale.

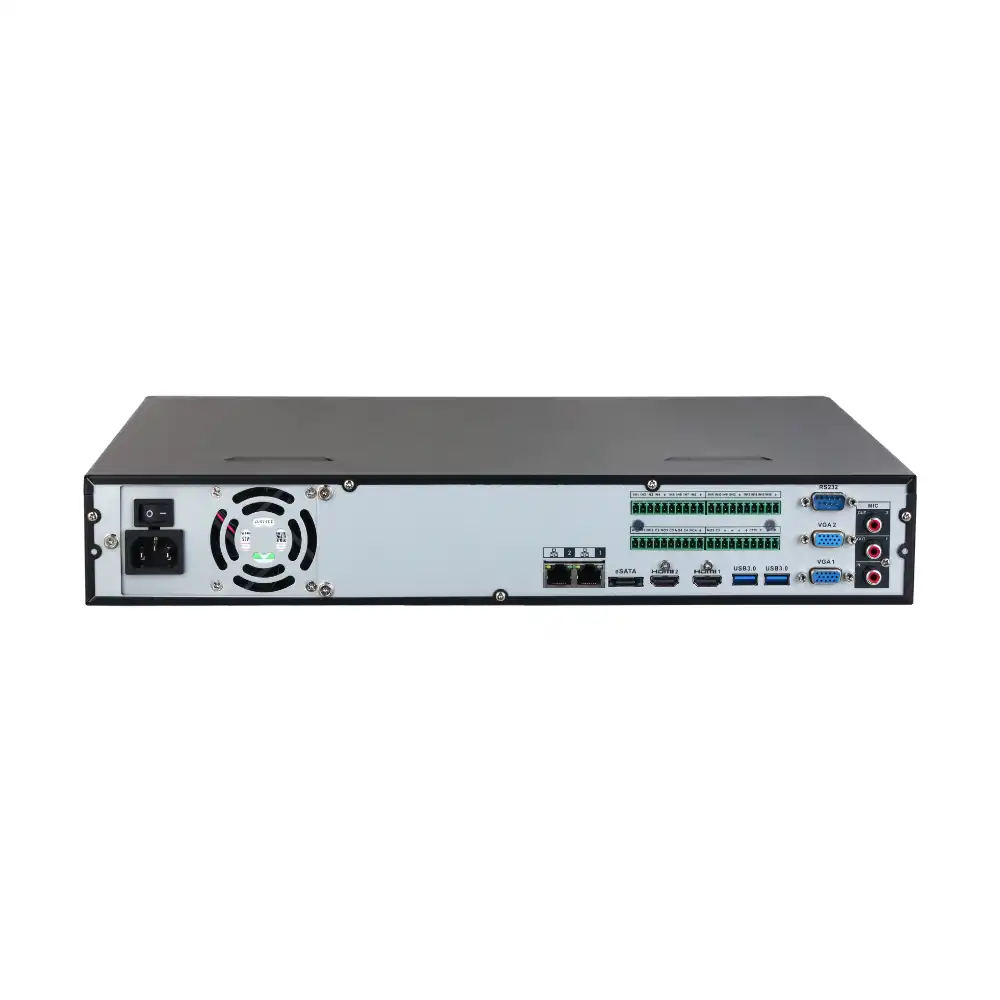

Enterprise I/O — dual NIC, 16 alarm-in, 12V output
Dual Gigabit NICs
Two independent RJ-45 Gigabit ports with multi-address, load-balance and fault-tolerance bonding modes — segregate camera VLAN from management VLAN, or run an active-passive failover link.
16 alarm-in / 6 alarm-out
Physical terminal block for 16 alarm inputs and 6 alarm outputs — one of the outputs is a 12 V 1 A direct power feed for sirens, strobes or gate solenoids.
RS-232 + RS-485
Both serial standards present — integrate with POS systems, gate controllers, access control panels, PTZ joysticks or third-party VMS that need legacy serial. RS-485 is half-duplex.
3 × USB (1 × 2.0 + 2 × 3.0)
One front USB 2.0 plus two rear USB 3.0 ports — plug in backup drives, USB mice, keyboards or service tools without juggling cables behind the rack.
ONVIF 23.12 (T / S / G)
Latest ONVIF profile support on V5 firmware — drops into any current VMS, plus native integration for Panasonic, Sony, Axis, Pelco, Arecont, Canon and Hanwha as well as Dahua.
DMSS + DSS Pro VMS
Free DMSS mobile app for live view, playback and push notifications. For multi-site enterprise deployments, integrate with Dahua DSS Pro for centralised control of multiple 5464 NVRs across sites.
NVR5464 vs the family — how it compares
The 5464 (this model) sits at the top of the 5-Series AI/ANZ NVR range — twice the IP channel count of the 5432, with the same chassis, AI horsepower and storage capacity. Choose this when you have between 32 and 64 cameras connected via a structured PoE switch network. For 16–32 cameras on the same chassis, step down to the 5432; if you want built-in PoE for the first 16 cameras, choose the 5432-16P.
5-Series Top-Tier Comparison
| Specification |
NVR5464-AI/ANZ (this model) |
NVR5432-AI/ANZ |
NVR5432-16P-AI/ANZ |
| IP channels (licence) |
64 |
32 |
32 |
| AcuPick channels |
Up to 32 |
Up to 32 |
Up to 32 |
| Main-screen split |
Up to 64 |
Up to 36 |
Up to 36 |
| Max camera resolution |
32 MP |
32 MP |
32 MP |
| Bandwidth (AI off / on) |
384 / 200 Mbps |
384 / 200 Mbps |
384 / 200 Mbps |
| Built-in PoE |
None (external switch) |
None (external switch) |
16 × ports · 150 W · 1-8 ePoE |
| HDD bays |
4 SATA · up to 64 TB |
4 SATA · up to 64 TB |
4 SATA · up to 64 TB |
| eSATA · iSCSI |
Yes / Yes |
Yes / Yes |
Yes / Yes |
| Network ports |
2 × Gigabit (bondable) |
2 × Gigabit (bondable) |
2 × Gigabit (bondable) |
| Video outputs |
2 × HDMI + 2 × VGA |
2 × HDMI + 2 × VGA |
2 × HDMI + 2 × VGA |
| Alarm I/O |
16 in / 6 out (incl. 12 V) |
16 in / 6 out (incl. 12 V) |
16 in / 6 out (incl. 12 V) |
| USB ports |
1 × 2.0 + 2 × 3.0 |
1 × 2.0 + 2 × 3.0 |
1 × 2.0 + 2 × 3.0 |
| Form factor |
1.5U |
1.5U |
1.5U |
| ONVIF (V5 firmware) |
23.12 (T / S / G) |
23.12 (T / S / G) |
23.12 (T / S / G) |
| N+M cluster · Warranty |
Yes / 3 years |
Yes / 3 years |
Yes / 3 years |
Full Specifications
| Model |
DHI-NVR5464-AI/ANZ |
| Series |
WizSense · NVR5000-AI/ANZ (Australia / NZ market) |
| Form factor |
1.5U · 4-HDD · rack or desktop · NO built-in PoE |
| IP channels |
64 · up to 32 MP per channel |
| Supported resolutions |
32 MP · 24 MP · 16 MP · 12 MP · 8 MP · 5 MP · 4 MP · 1080p · 720p · D1 · CIF · QCIF |
| Bandwidth (AI off) |
384 Mbps incoming / 384 Mbps record / 384 Mbps outgoing |
| Bandwidth (AI on) |
200 Mbps incoming / 200 Mbps record / 200 Mbps outgoing |
| Decoding (AI off) |
2 × 32 MP @ 20 fps · 2 × 24 MP @ 20 fps · 4 × 16 MP @ 30 fps · 5 × 12 MP @ 30 fps · 8 × 8 MP @ 30 fps · 12 × 5 MP @ 30 fps · 16 × 4 MP @ 30 fps · 32 × 1080p @ 30 fps |
| Decoding (AI on) |
1 × 32 MP @ 20 fps · 1 × 24 MP @ 20 fps · 2 × 16 MP @ 30 fps · 4 × 12 MP @ 30 fps · 4 × 8 MP @ 30 fps · 8 × 5 MP @ 30 fps · 12 × 4 MP @ 30 fps · 24 × 1080p @ 30 fps |
| Video compression |
Smart H.265+ · H.265 · Smart H.264+ · H.264 · MJPEG |
| Audio compression |
G.711a · G.711u · PCM · G.726 |
| AI engine |
WizSense (industrial AI chip, deep-learning) · AcuPick supported |
| AcuPick |
Up to 32 channels · 1 combined event per channel/sec (V5 firmware) |
| Face Detection (NVR) |
2 channels · up to 12 face snapshots/sec each |
| Face Recognition (NVR) |
16 ch (FD by camera + FR by recorder, 16 fps) · or 2 ch (FD+FR by recorder, 12 fps) |
| Face Database |
20 databases · 20,000 images · 2.5 GB · gender / age / glasses / expression / mask / beard attributes |
| Perimeter Protection |
4 channels by NVR · all channels by camera · 10 IVS rules per channel |
| SMD Plus |
8 channels by NVR · all channels by camera |
| Video Metadata |
8 channels (camera-side) · human / motor / non-motor vehicle attributes |
| ANPR (by camera) |
All channels · 20,000-plate database · blocklist / allowlist |
| AI by Camera (passthrough) |
Face detection · Face recognition · Video metadata · Perimeter protection · SMD Plus · Stereo analysis · Crowd distribution · People counting · ANPR · Vehicle density · Heat map |
| N+M cluster · iSCSI · eSATA |
Yes / Yes / Yes |
| HDD bays |
4 × SATA · up to 16 TB per drive (~64 TB max) |
| Video output |
2 × HDMI (4K · 3840×2160) + 2 × VGA (1080p) · heterogeneous HDMI1/HDMI2 · simultaneous VGA1+HDMI1 / VGA2+HDMI2 |
| Multi-screen display |
Main screen: 1 / 4 / 8 / 9 / 16 / 25 / 36 / 64 · Sub screen: 1 / 4 / 8 / 9 / 16 |
| Audio I/O |
1 × RCA in · 2 × RCA out |
| Alarm I/O |
16 × alarm in · 6 × alarm out (1 × 12 V 1 A power output) |
| USB |
3 ports: 1 × front USB 2.0 + 2 × rear USB 3.0 |
| Network ports |
2 × RJ-45 Gigabit Ethernet (10 / 100 / 1000 Mbps) · multi-address / load-balance / fault-tolerance bonding |
| PoE |
None (use external PoE switch) |
| RS-232 / RS-485 |
1 / 1 (RS-485 half-duplex) |
| eSATA |
1 port (external archive) |
| Network protocols |
HTTP / HTTPS · TCP/IP · IPv4/IPv6 · UDP · NTP · DHCP · DNS · SMTP · UPnP · DDNS · Alarm Server · Multicast · P2P · Auto Registration · iSCSI |
| ONVIF |
23.12 on V5 firmware (Profile T / S / G) · CGI · SDK |
| Third-party camera support |
ONVIF · Panasonic · Sony · Axis · Arecont · Pelco · Canon · Samsung · Hanwha |
| Mobile app |
DMSS (iOS / Android) |
| Record modes |
General · motion detection · intelligent · alarm · POS |
| Backup |
USB device · network |
| Power supply |
100 – 240 VAC · 50 – 60 Hz (internal universal-voltage PSU) |
| Power consumption |
≤ 13 W NVR-side (without HDD) |
| Operating temperature |
−10 °C to +55 °C |
| Operating humidity |
10% – 93% RH |
| Dimensions |
440 × 415.1 × 70 mm (1.5U) |
| Net weight |
4.74 kg |
| Installation |
Rack or desktop |
| Recommended firmware |
DH_NVR5XXX-EI_MultiLang V5.001.0000000.0.R.251220 (or later) — required for AcuPick, N+M cluster, iSCSI and ONVIF 23.12 |
| Certifications |
FCC Part 15 Subpart B Class A · CE-EMC · CE-LVD · Security Baseline 2.3 |
| Warranty |
3 years (CCTV Guru Australia) |
Downloads & documentation
Download official Dahua documents for setup, specifications, and recorder details.
Frequently asked questions
Does this NVR really support AcuPick?
Yes. Dahua's V5 firmware (binary DH_NVR5XXX-EI_MultiLang_V5.001.0000000.0.R.251220 or later) enables AcuPick on the AI/ANZ unit alongside N+M cluster, iSCSI and ONVIF 23.12. The firmware is published on Dahua AU's official product page for this model and ships from CCTV Guru with V5 installed. Older 2023-vintage datasheets predate this firmware, which is why some online documentation doesn't mention AcuPick.
Why is AcuPick capped at 32 channels when the NVR supports 64?
AcuPick is heavy on AI-chip resources — running attribute extraction and image-search against 64 channels simultaneously isn't possible on the current 5-Series silicon. You choose which 32 of the 64 channels run AcuPick (the rest still record, and still get ANPR / SMD Plus / perimeter via camera-side AI). For 64-channel AcuPick, look at Dahua's NVR6 series.
Why doesn't it have built-in PoE?
The 5464 is a headend NVR for sites with managed PoE switches. Sixty-four cameras through fixed PoE ports would mean a 3–4U chassis and a power supply that doesn't fit the 1.5U form factor. Most 64-camera installs already have a switching layer, and dedicated PoE switches give you better cable layout, VLANs and redundancy than fixed-port PoE.
What is AcuPick and what do I need for it?
AcuPick is Dahua's next-generation attribute-and-image search — it extracts rich target attributes (clothing, body shape, vehicle make/model/colour/plate, direction) at the camera AND the NVR, then lets you search by reference image or combined attributes. You need Dahua's AcuPick-ready cameras (typically TiOC PV and 5-Series WizSense Plus IPC families). Standard WizSense cameras still record and recognise faces but the full AcuPick depth requires paired AcuPick IPCs.
How big a PoE switch do I need for 64 cameras?
Allow about 7–15 W per camera for Dahua WizSense bullets/turrets, more for active-deterrence units and PTZs. Two 48-port PoE+ switches with ~370–500 W each will run 64 typical cameras comfortably, with spare ports for VoIP and APs. CCTV Guru can quote a complete switch + NVR bundle.
How much storage do I need for 64 cameras?
For 64 × 4 MP cameras at H.265+ on motion-record, allow ~50–70 TB for 30 days of retention. Four 16 TB surveillance-grade drives (WD Purple Pro, Seagate SkyHawk AI) gives you ~64 TB on-board with disk-group protection. If on-board capacity isn't enough, iSCSI lets you expand onto network-attached storage or eSATA onto external archive arrays.
Is the DHI-NVR5464-AI/ANZ NDAA Section 889 compliant?
No. Dahua products are not currently NDAA Section 889 compliant. If NDAA compliance is required (federal, government or defence installs), choose a Uniview, Hanwha, Axis, Bosch or IDIS NVR instead — CCTV Guru can recommend an equivalent.
Can it be rack-mounted?
Yes — 1.5U / 440 mm wide fits a standard 19-inch rack with ears (rack ears sold separately). It can also sit on a desk or shelf if you've allocated cabinet space. Plan for about 7–8 kg fully loaded with four drives.
