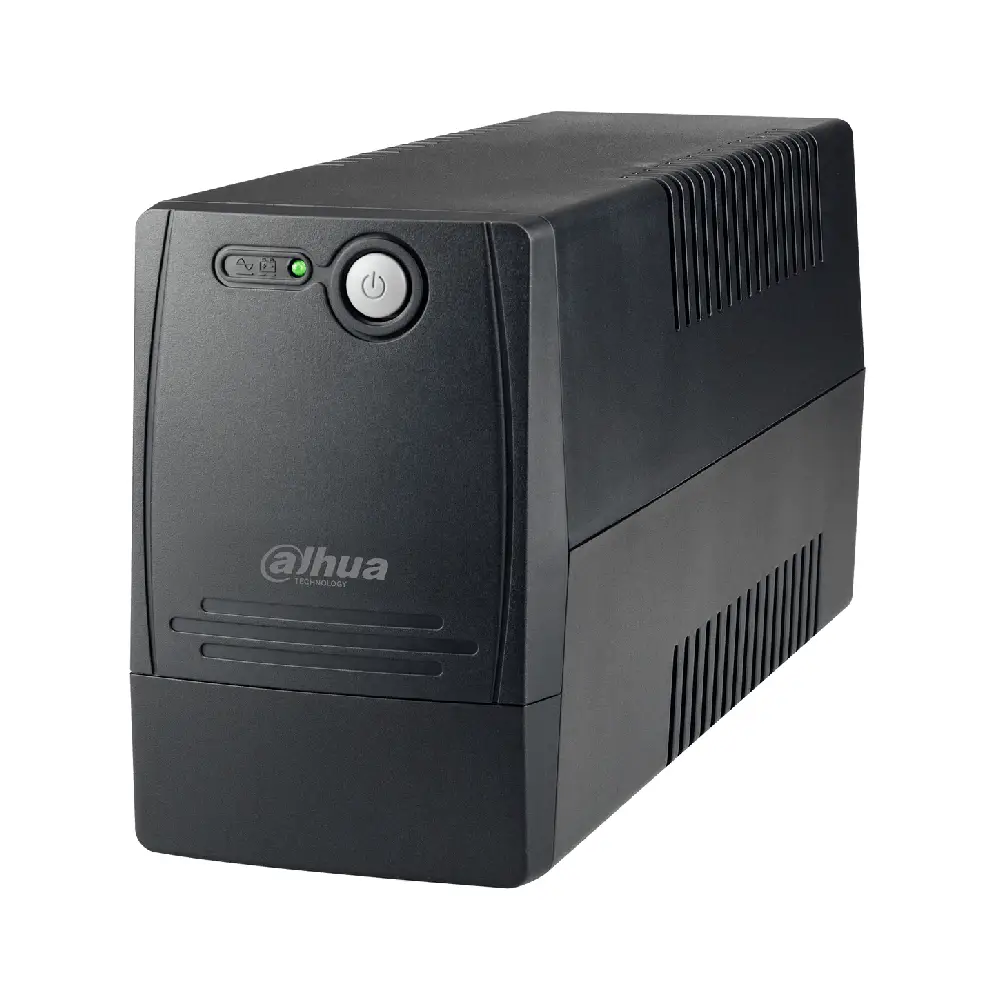

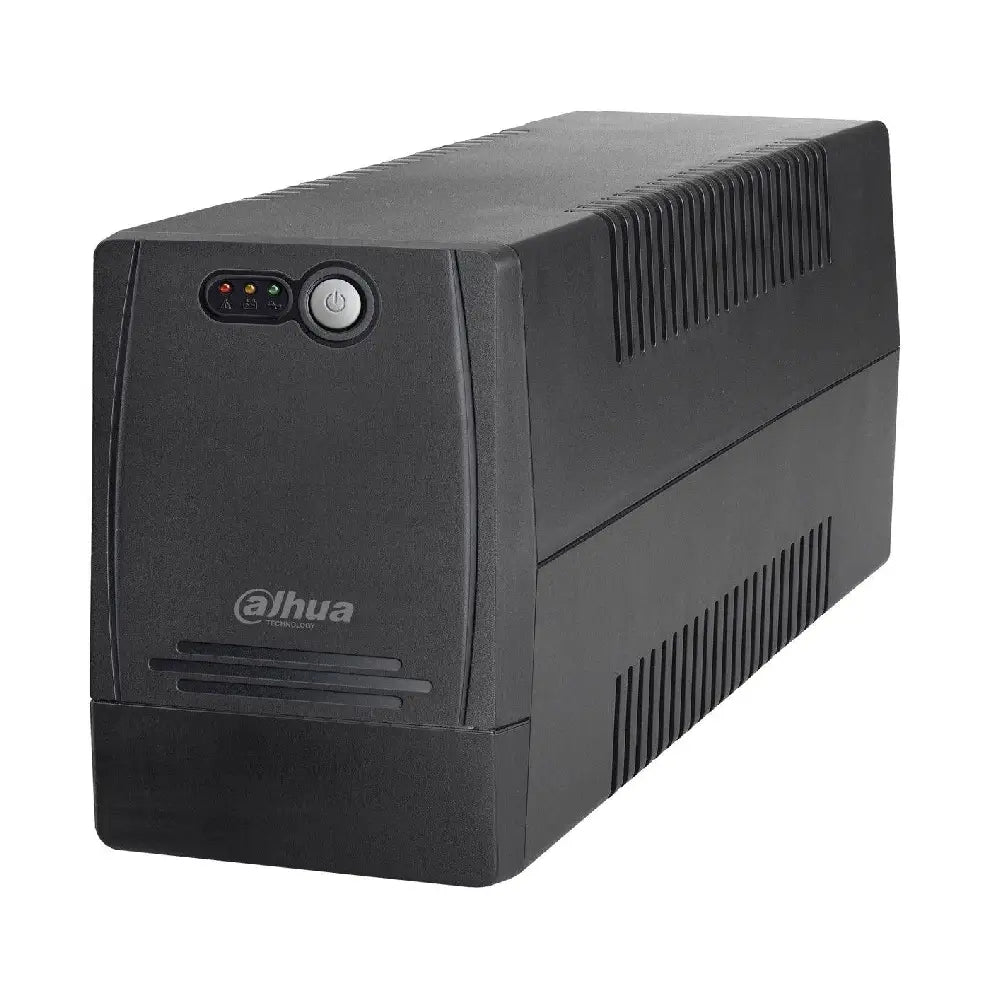

Dahua 1500VA/900W Line-interactive UPS DH-PFM350-900

Description

Dahua 1500VA/900W Line-interactive UPS

  • Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network fluctuation.
  • Boost and buck AVR for voltage stabilization.
  • Off-mode charging, cold start function and full protection.
  • Continuous power supply for preventing data loss.
  • Compact size.

Specifications

Model
DH-PFM350-900
Plug type
Australian
Capacity
1500VA/900W
Input
Rated voltage
220Vac~240Vac
110Vac~120Vac
Voltage range
140Vac~290Vac
81Vac~145Vac
Rated frequency range
50Hz or 60Hz
Power factor
0.6
Output
Voltage
220/230/240 VAC
110/120 VAC
AC Voltage Regulation (Batt. Mode)
±10%
Frequency Range (Batt. Mode)
50Hz or60Hz±1Hz
Transfer Time
2-6ms
Waveform (Batt. Mode)
Simulated sinewave
Battery
Battery type & number
12 V/9 Ah x 2
Typical recharge time
4 hours recover to 90% capacity
Charging voltage
27.4V±1%
Indicators
Battery mode
Green lighting
AC mode
Green lighting
Alarm
Battery mode
Sounding every 10 seconds
Low battery
Sounding every second
Overload
Sounding every 0.5 second
Fault
Continuously sounding
Protection
Full protection
Overload, discharge and overcharge protection
Environmental
Operating temperature
0°C ~ +40°C (+32°F ~ +104°F)
Operating humidity
0~90% RH(non-condensing)
Altitude range
<1000m(3280.84ft)
Construction
Color
Black
Noise level
<40dB
Dimensions
320mmx130mmx182mm(15.6"x5.12"x7.17")
Weight
10.4kg(22.93lb)

Downloads

Datasheet of DH-PFM350-900

Dahua 1500VA/900W Line-interactive UPS DH-PFM350-900

Product form

SKU: DH-PFM350-900

Dahua 1500VA/900W Line-interactive UPS Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network... Read more

$234.00 Incl. GST

  • Dispatch today? Order within: Jun 19, 2024 14:00:00 +1000
  • Warranty: 36 months
  • 30 day money back guarantee
  • Australian Stocks & Express Delivery
  • Back-to-base Warranty & Tech Support
    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • Zip
    • Klarna
    • Afterpay

    Description

    Dahua 1500VA/900W Line-interactive UPS

    • Wide input voltage range: AC81~145V or AC140~290V, meet the requirements in different parts for electric network fluctuation.
    • Boost and buck AVR for voltage stabilization.
    • Off-mode charging, cold start function and full protection.
    • Continuous power supply for preventing data loss.
    • Compact size.

    Specifications

    Model
    DH-PFM350-900
    Plug type
    Australian
    Capacity
    1500VA/900W
    Input
    Rated voltage
    220Vac~240Vac
    110Vac~120Vac
    Voltage range
    140Vac~290Vac
    81Vac~145Vac
    Rated frequency range
    50Hz or 60Hz
    Power factor
    0.6
    Output
    Voltage
    220/230/240 VAC
    110/120 VAC
    AC Voltage Regulation (Batt. Mode)
    ±10%
    Frequency Range (Batt. Mode)
    50Hz or60Hz±1Hz
    Transfer Time
    2-6ms
    Waveform (Batt. Mode)
    Simulated sinewave
    Battery
    Battery type & number
    12 V/9 Ah x 2
    Typical recharge time
    4 hours recover to 90% capacity
    Charging voltage
    27.4V±1%
    Indicators
    Battery mode
    Green lighting
    AC mode
    Green lighting
    Alarm
    Battery mode
    Sounding every 10 seconds
    Low battery
    Sounding every second
    Overload
    Sounding every 0.5 second
    Fault
    Continuously sounding
    Protection
    Full protection
    Overload, discharge and overcharge protection
    Environmental
    Operating temperature
    0°C ~ +40°C (+32°F ~ +104°F)
    Operating humidity
    0~90% RH(non-condensing)
    Altitude range
    <1000m(3280.84ft)
    Construction
    Color
    Black
    Noise level
    <40dB
    Dimensions
    320mmx130mmx182mm(15.6"x5.12"x7.17")
    Weight
    10.4kg(22.93lb)

    Downloads

    Datasheet of DH-PFM350-900
