Face Recognition (2 ch by NVR)
2 channels of full face detection + recognition by the recorder (12 face snapshots/sec each), or up to 8 channels using camera-side detection feeding NVR-side recognition (16 face snapshots/sec). Twenty face databases.
Perimeter Protection (4 ch)
4 NVR-side channels of tripwire and intrusion analytics with 10 IVS rules each — double the 4-Series. Human/vehicle classification cuts false alarms from animals, weather and lighting.
SMD Plus on 8 channels
Smart Motion Detection Plus runs deep-learning second-pass classification across all 8 channels — every camera benefits, no channels left out.
ANPR by camera (8 channels)
Pair with Dahua ANPR cameras for full 8-channel licence-plate recognition feeding a 20,000-plate database with blocklist / allowlist control. Ideal for site gates, carparks and fleet yards.
Video Metadata search
Search recorded video by structured attributes — top colour, bottom colour, hat, bag, umbrella, gender, age, vehicle make / model / colour / plate, helmet wear and more.
N+M cluster failover
Pair multiple 5-Series NVRs in an N+M cluster — backup recorders automatically take over if a primary fails, ensuring zero footage loss for critical sites.
Up to 32 MP per channel
True 8K-class input — supports Dahua's highest-resolution cameras, plus 24 MP, 16 MP, 12 MP, 8 MP (4K), 5 MP and 4 MP IP cameras from any ONVIF brand.
384 Mbps bandwidth
384 Mbps incoming / record / outgoing with AI off, 200 Mbps with AI active — enough for 8 cameras at 8 MP each, or a mix of 32 MP / 8 MP feeds.
4K HDMI + 1080p VGA
Heterogeneous output — drive a 4K spot monitor on HDMI and a 1080p control PC on VGA, each running independent layouts. 9-split available on both screens.
2 SATA bays · ~32 TB max
Two surveillance-grade HDD bays (WD Purple, Seagate SkyHawk) up to 16 TB per drive. iSCSI adds external network storage when on-board capacity isn't enough.
32-channel 1080p decoding
Far more horsepower than the channel count suggests — happily decodes a sub-stream wall of 32 1080p tiles for control-room monitor walls.
Smart H.265+ for half the storage
AI-tuned H.265+ encoding cuts bitrate on static background pixels while preserving detail on moving targets — roughly half the storage and bandwidth of standard H.264.
ePoE on all 8 ports
Every PoE port supports Dahua ePoE — extended-distance PoE up to 800 m on Cat6 (and 300 m at full 100 Mbps). Eliminates intermediate switches on long perimeter runs.
4 alarm-in / 2 alarm-out

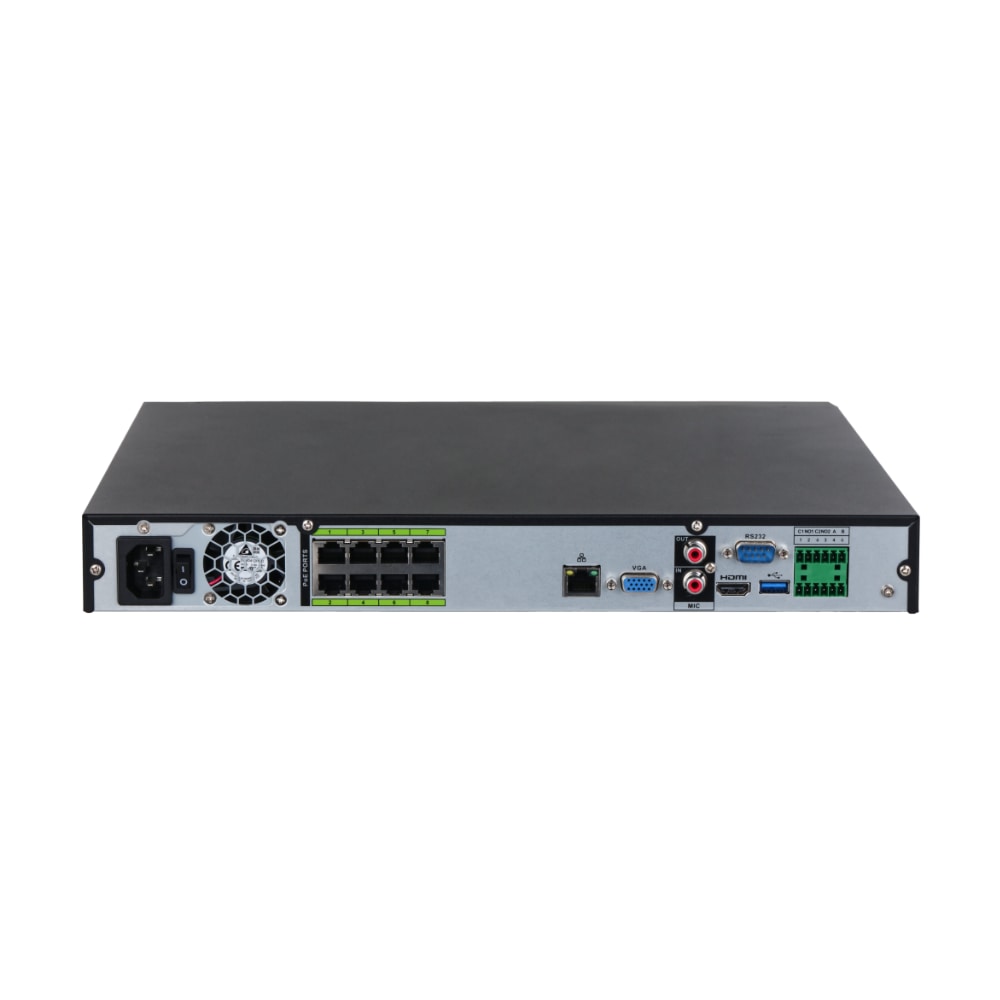

Physical terminal block on the rear panel — wire in PIRs, door sensors, glass-break detectors, panic buttons, sirens or gate triggers for hardware-level event linkage.
RS-232 + RS-485
Both serial standards present — integrate with POS systems, gate controllers, access control panels, intercoms or third-party VMS that need legacy serial.
ONVIF 22.06 (T / S / G)
Modern ONVIF profile support — drops into any current VMS, and accepts cameras from Panasonic, Sony, Samsung, Axis, Pelco, Arecont and Canon as well as Dahua.
DMSS mobile + iSCSI storage
Free iOS / Android DMSS viewer with live view, playback, push notifications and P2P remote access. iSCSI lets you expand storage onto any compatible network appliance.
3-Year Australian warranty
Backed locally by CCTV Guru in Sydney with replacement stock on hand. No overseas RMA, no shipping back to the manufacturer — a real Australian warranty.

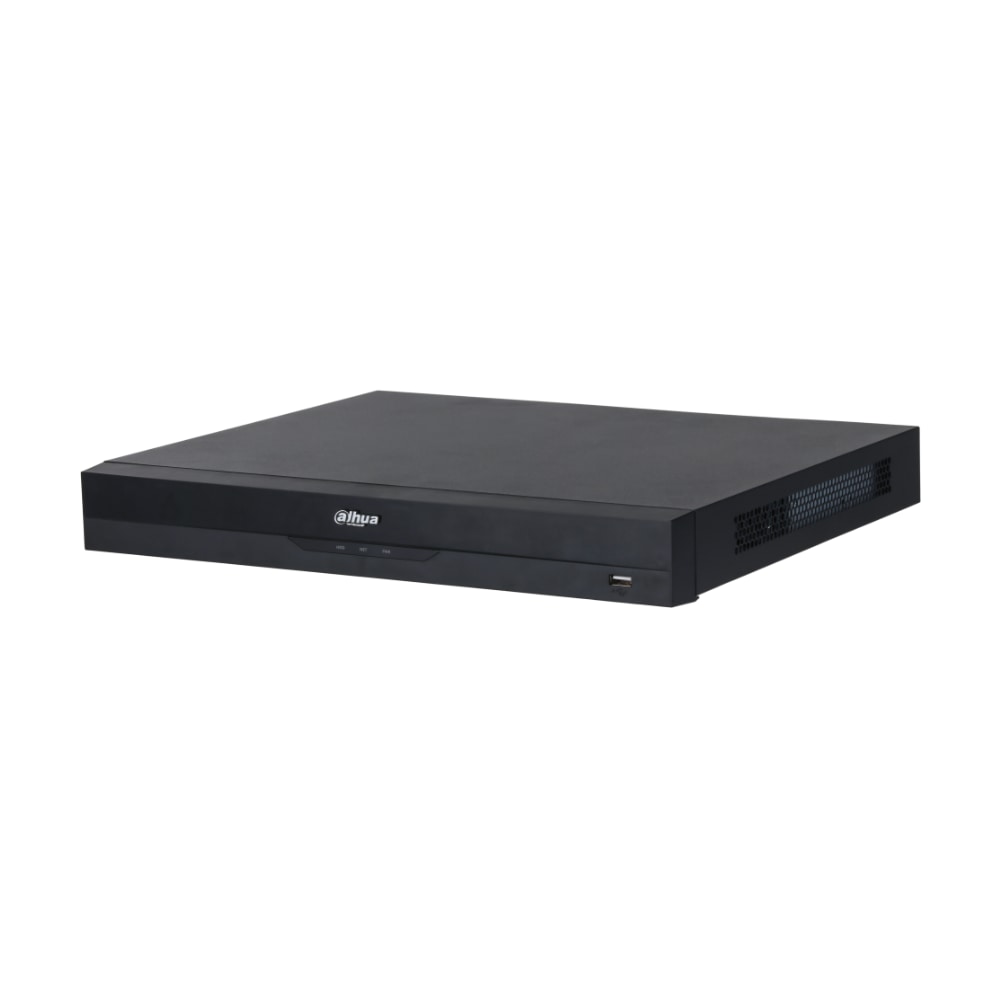

Three Dahua NVRs share a similar shape — all full-1U, 2-HDD, with alarm I/O. The 5208-8P (this model) and 5216-16P are both 5-Series with AcuPick and 32 MP capability; the 4208-8P is the 4-Series cost-effective alternative. Pick by channel count and AI depth.
Download official Dahua documents for setup, specifications, and recorder details.
What is AcuPick and how is it different to Quick Pick?
AcuPick is Dahua's next-generation video search technology — it uses BOTH camera-side and NVR-side AI to extract rich attributes (clothing, body shape, vehicle make/model/colour/plate, direction, action) from every frame as it records, then lets you search by a reference image OR by combined attributes. Quick Pick (on the 4-Series) does single-attribute colour/clothing search only. AcuPick is faster, more accurate, and supports both people and vehicles natively.
Do I need special cameras for AcuPick?
Yes — AcuPick relies on camera-side intelligence to extract attributes during recording. You need Dahua's AcuPick-ready cameras (typically the TiOC PV and 5-Series WizSense Plus IPC families). Standard WizSense cameras still record and recognise faces, but the full AcuPick search depth needs paired AcuPick IPCs.
What does ePoE on all 8 ports give me?
Extended PoE on every port — long-distance Cat6 runs at reduced speed. Each port supports 100 Mbps up to 300 m or 10 Mbps up to 800 m (most IP cameras work fine at 10 Mbps for sub-stream + main-stream H.265+). Eliminates intermediate switches on long perimeter, carpark or warehouse runs. A real advantage over the 4-Series, which doesn't have ePoE on any port.
Should I get the 5208 or the 16-channel 5216?
If you need more than 8 cameras now or expect to scale within the warranty period, choose the 5216-16P — it's the same hardware platform but doubles the PoE port count and AcuPick channels. If 8 channels covers your site and you'd rather save the budget for better cameras or longer storage, the 5208 (this model) is the sweet spot — same chassis, same AI features, same warranty.
Should I get the 5208 or the cheaper 4208-8P?
Same 8 channels, same alarm I/O and 2-HDD chassis — but the 5208 (this model) adds AcuPick, 32 MP support, 384 Mbps bandwidth, ePoE on all 8 ports, RS-485 serial, USB 3.0, video metadata search, N+M cluster failover and iSCSI. Choose the 5208 if AcuPick or 32 MP cameras are on the roadmap; choose the 4208 if you're certain you'll stay on 16 MP or lower and don't need ePoE.
Is the DHI-NVR5208-8P-AI/ANZ NDAA Section 889 compliant?
No. Dahua products are not currently NDAA Section 889 compliant. If NDAA compliance is required (federal, government or defence installs), choose a Uniview, Hanwha, Axis, Bosch or IDIS NVR instead — CCTV Guru can recommend an equivalent.
Will it work with my non-Dahua IP cameras?
Yes. The NVR5208-8P-AI/ANZ supports ONVIF Profile T/S/G (version 22.06) and has native integration for Panasonic, Sony, Samsung, Axis, Pelco, Arecont and Canon. Standard recording works with any ONVIF camera; AcuPick and the deeper AI search features require Dahua WizSense / AcuPick IPCs.
How much storage do I need for 8 cameras?
For 8 × 8 MP cameras at H.265+ on motion-record, allow ~10-12 TB for 30 days of retention. A pair of 8 TB or 10 TB surveillance-grade drives (WD Purple, Seagate SkyHawk) covers most use cases. If on-board capacity isn't enough, iSCSI lets you expand onto network-attached storage.
