AXIS Q-SERIES · NDAA & TAA COMPLIANT
Institutional Grade Security with Total Room Coverage

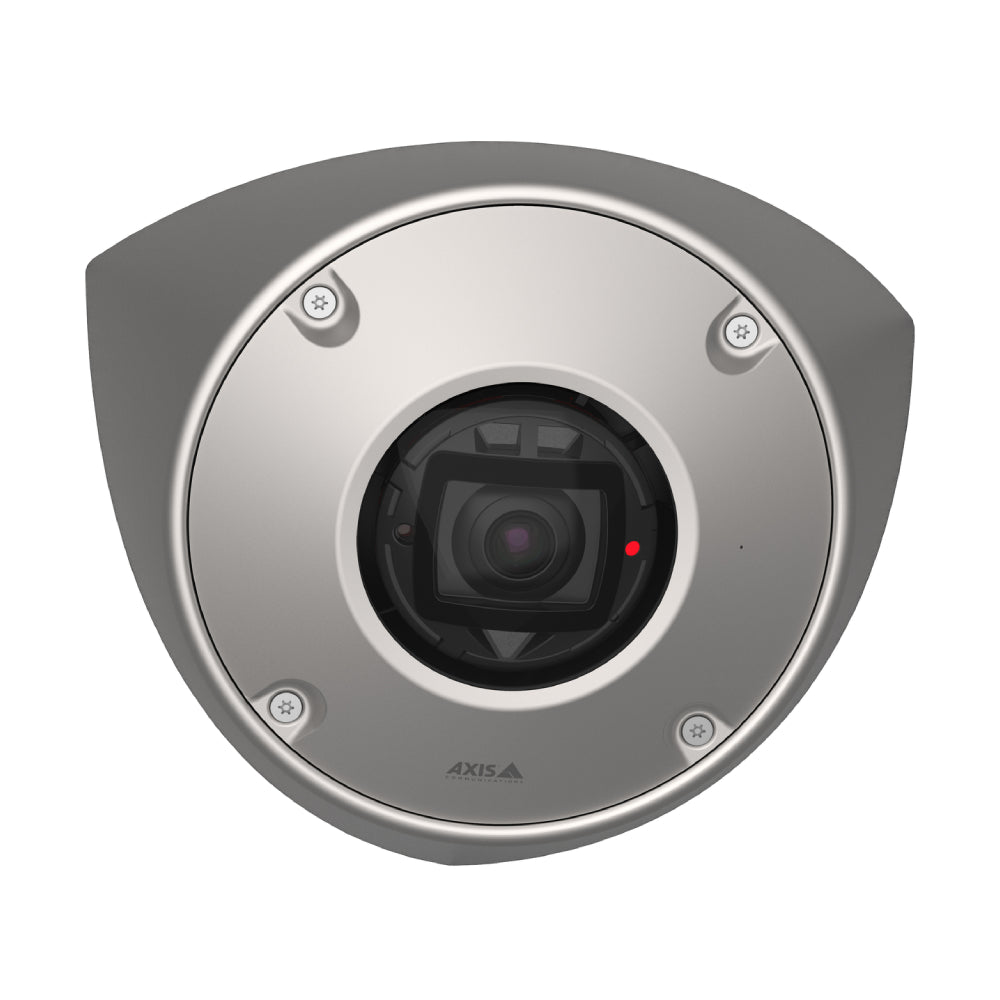

The AXIS Q9216-SLV establishes a new benchmark for high-security, high-density, and behavioral health environmental monitoring. Specifically engineered for correctional facilities, psychiatric wards, and medical holding spaces, this ultra-robust corner-mount network camera delivers uncompromising 4MP video clarity with zero blind spots. Its specialized anti-ligature chassis is built to eradicate self-harm risks while providing comprehensive spatial awareness across complex commercial and institutional floorplans.
Resolution
4MP (2304x1728)
Night Vision
Invisible 940nm IR
Protection
IK11 & IP66/IP6K9K
Advanced Edge Intelligence & Hardened Protection
Deploying advanced technical frameworks, the AXIS Q9216-SLV incorporates high-efficiency Zipstream compression working in tandem with H.265/H.264 protocols to compress bandwidth by up to fifty percent without losing critical facial data. Integrated hardware security features include a built-in Trusted Platform Module (TPM 2.0, FIPS 140-2 Level 2 certified) that safely encapsulates all encryption keys. Backed by full-duplex two-way audio streams and direct HDMI local output capabilities, this specialized camera offers responsive surveillance management in high-liability zones.
Anti-Ligature & Grip-Resistant Engineering
The seamless stainless steel housing features flush-fit corner edges that prevent points of attachment. This critical safety baseline prevents patient self-harm while rendering the device completely pull-proof in correctional and high-security medical contexts.

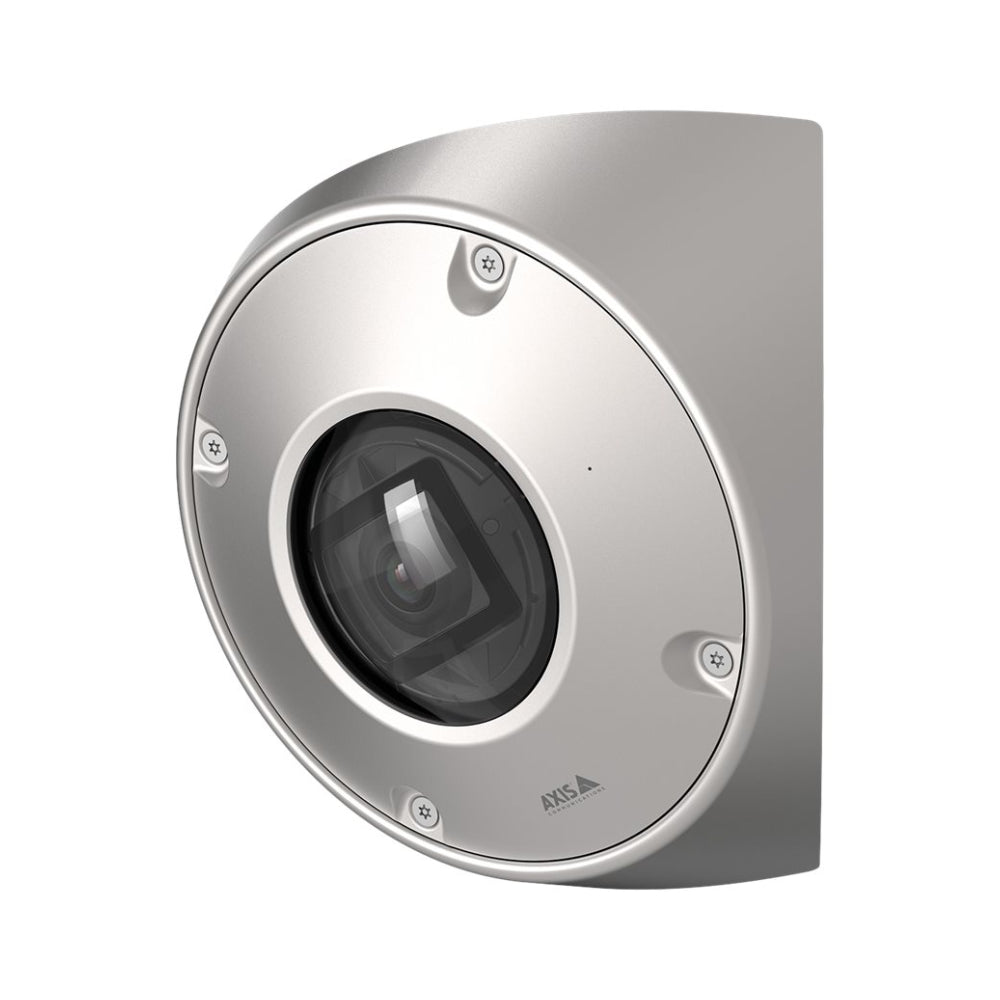

Invisible 940nm Covert IR Night Vision
Unlike traditional 850nm infrared indicators that cast a visible red glow, this unit utilizes an invisible 940nm wavelength. It maintains flawless surveillance down to zero lux without agitating occupants or disturbing sleep cycles.
Technical Specification Matrix
| Camera Model |
AXIS Q9216-SLV |
| Image Sensor |
1/2.5" Progressive Scan RGB CMOS |
| Field of View |
Horizontal: 125°, Vertical: 95° |
| Video Compression |
H.265 (Main), H.264 (Main/High), Motion JPEG |
| Max Resolution & FPS |
4MP 2304x1728 at up to 30 frames per second |
| Minimum Illumination |
Color: 0.23 lux, B/W: 0.05 lux, 0 lux with IR active |
| Vandal & Environmental Protection |
IK11 Impact Rating (50 Joules), IP66 / IP6K9K Washdown Certified |
| Power Input |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, Max 10.8W |
| Local Hardware Encryption |
TPM 2.0 Module (FIPS 140-2 Level 2 Certified) |
What does the IK11 impact classification guarantee?
An IK11 physical rating guarantees that the camera housing can absorb a direct physical impact energy of up to 50 Joules. This level of protection is double the standard IK10 benchmark, offering robust resistance against heavy kinetic force or intentional destruction tools.
How does the IP6K9K rating benefit facility deep cleaning?
The IP6K9K structural rating indicates absolute protection against close-range, high-pressure, and high-temperature water jet spray-downs. Institutional facilities can sanitize cell blocks or rooms with industrial pressure cleaners without removing or damaging the camera.
Why is 940nm invisible IR critical for institutional spaces?
Standard 850nm security IR arrays emit a faint red illumination pattern that easily signals camera operation. The 940nm spectrum is completely invisible to the human eye, permitting uninterrupted night-time oversight while minimizing behavioral disruption to the occupants.
Is the audio surveillance system adjustable or removable?
Yes. The camera possesses a high-fidelity built-in physical microphone that can be fully uninstalled if legal compliance or privacy regulations dictate an absolute text-only or image-only surveillance deployment.
