AXIS I-SERIES · NDAA & TAA COMPLIANT
High-Definition Visitor Access & Borderless Communication

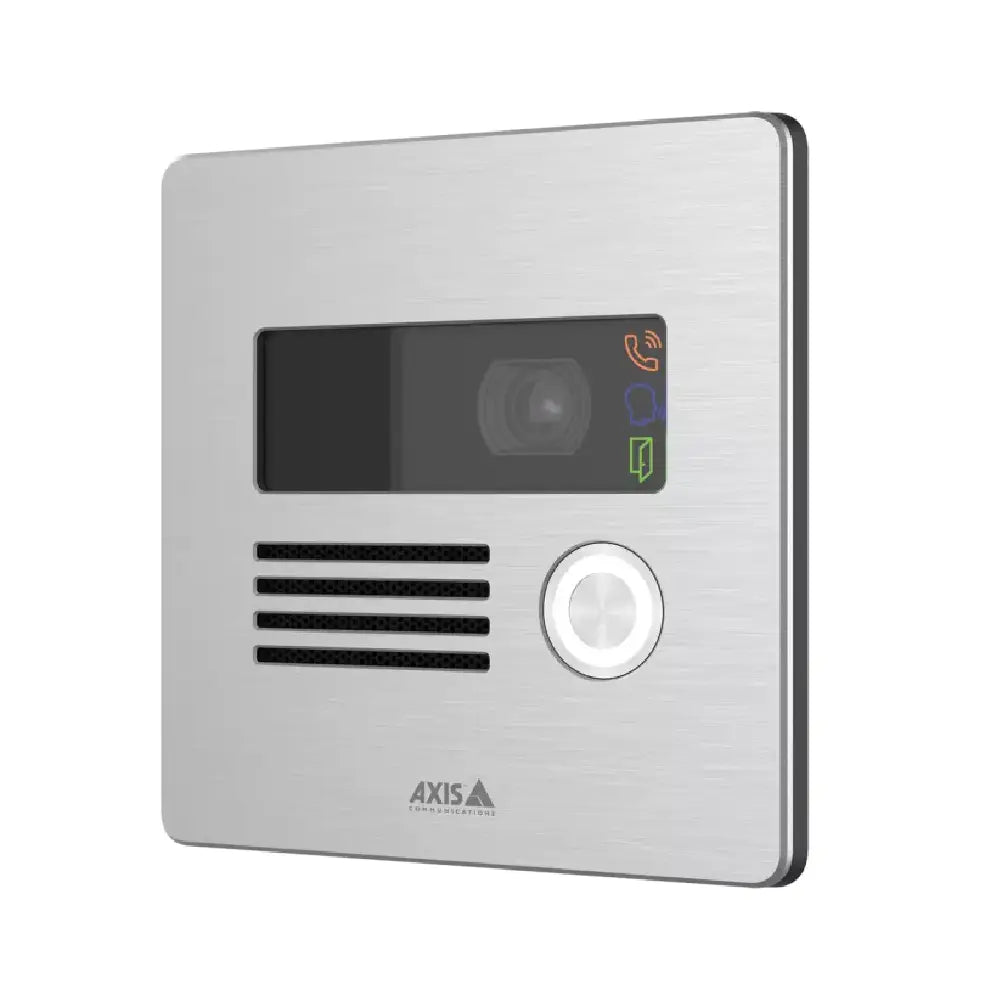

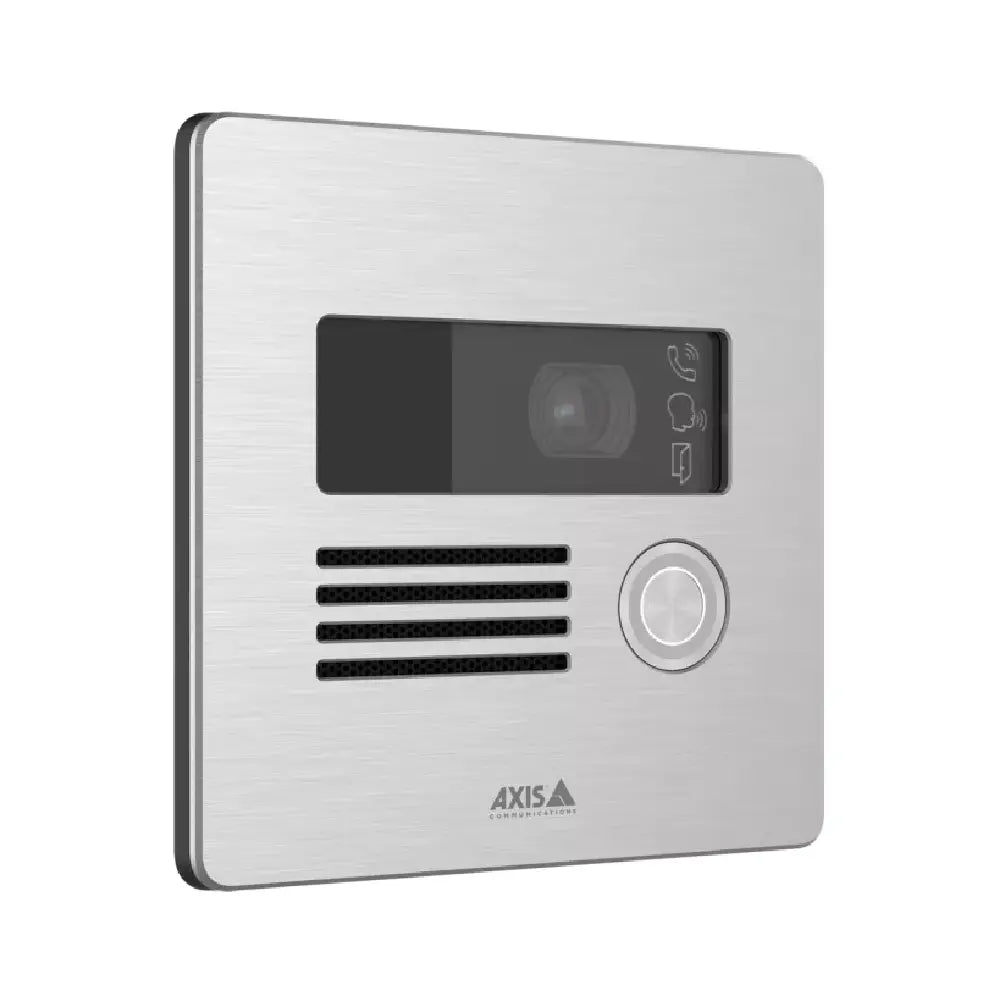

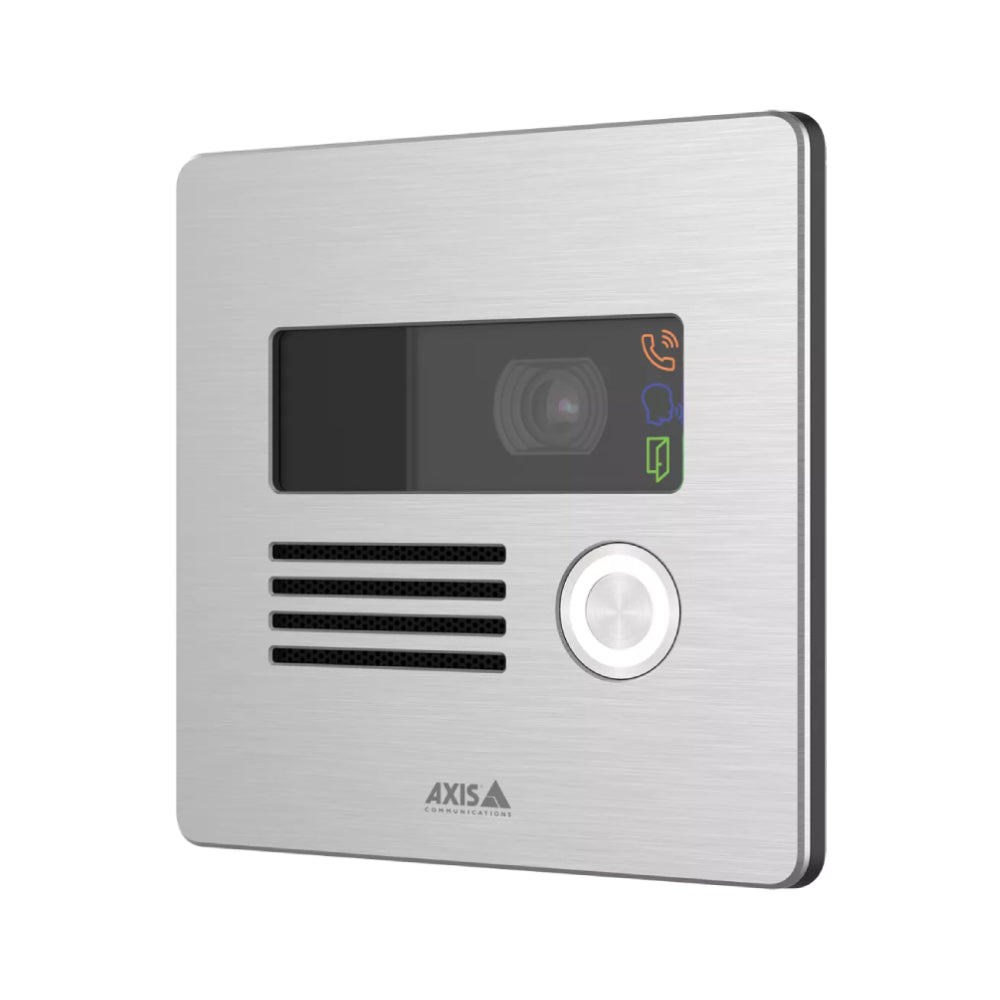

The AXIS I8016-LVE is a compact, highly robust network video intercom designed for 24/7 two-way communication, video identification, and remote access control. Perfectly optimized for commercial facilities, logistics centers, healthcare spaces, and residential complexes, this high-density device combines reliable surveillance with intelligent door entry management. Even in challenging installations or tight entryways, its low-profile design fits seamlessly into architectural aesthetics while offering formidable physical resistance against tampering.
Resolution
5MP HD Clarity
Optics
140° Ultrawide FOV
Night Vision
Integrated IR
Protection
IP66 & IK10 Rated
Intelligent Integration & Exceptional Acoustic Performance
Engineered with open protocols like SIP, VAPIX, and ONVIF, the AXIS I8016-LVE easily interfaces with leading Video Management Systems (VMS) and VoIP environments. The intercom provides crystal-clear audio processing features including echo cancellation, noise reduction, and double-talk prevention, ensuring conversations remain fully audible regardless of background city traffic or industrial noise. Combined with built-in cybersecurity mechanisms such as Axis Edge Vault, your access control endpoint remains as safe from digital intrusion as it is from physical environmental extremes.
Visible Security Day and Night

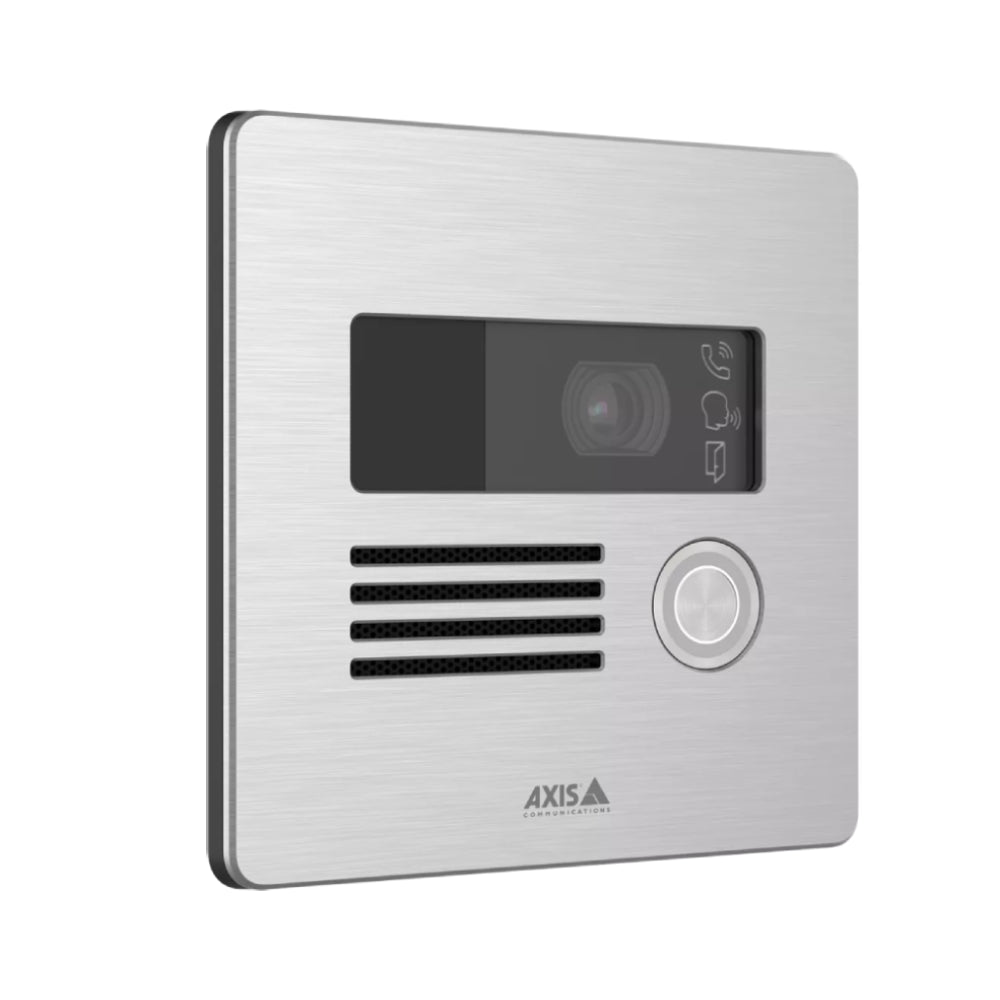

Equipped with a 5 megapixel camera and invisible IR illumination, this video intercom delivers detailed identification capabilities even in complete darkness or challenging backlighting. The extra-wide 140-degree field of view ensures individuals are fully visible, even if they stand off-center or are at lower heights.
Edge-to-Edge Open Standards
By standardizing on open IP protocols, this unit connects natively with your existing IP telephony networks (PBX) using SIP. This simplifies provisioning, allowing security operators to answer calls, speak to visitors, and release doors directly from their internal communication consoles or mobile applications.
Technical Specification Matrix
| Camera Model |
AXIS I8016-LVE |
| Video Resolution |
5 MP (2592 x 1944 pixels) |
| Field of View (FOV) |
140° Horizontal, 105° Vertical |
| Audio Features |
Two-way full duplex, Echo cancellation, Noise reduction |
| Protocols Supported |
SIP, VoIP, IPv4/v6, HTTP, MQTT, ONVIF Profile S/G/T/M |
| Casing Protection |
IP66 weather-proof, NEMA 4X, IK10 impact resistant |
| Power Delivery |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Security Hardware |
Axis Edge Vault, Secure Boot, Signed Firmware |
Is the AXIS I8016-LVE fully NDAA and TAA compliant?
Yes. This product meets all requirements of the National Defense Authorization Act (NDAA) and Trade Agreements Act (TAA), making it fully eligible for US federal government facilities, defense applications, and highly regulated public sectors.
Can this intercom operate standalone without a separate controller?
Absolutely. Because of its open VAPIX and SIP capabilities, it can send direct commands to IP relays or network door controllers, acting as an all-in-one edge device for video, communication, and basic access lock activation.
How does it perform in loud, noisy outdoor environments?
The device leverages advanced digital signal processing algorithms including full-duplex acoustic echo cancellation and background noise suppression, allowing operators to easily comprehend visitors near traffic or industrial zones.
What type of mount styles are supported out of the box?
The AXIS I8016-LVE features a surface-mountable form factor designed for quick deployment. Optional mounting accessories can be ordered separately for recessed flush mounting depending on facility requirements.
