Hikvision AcuSense · 16 × 8MP 4K · 32CH NVR · Expandable to 32 Cameras
16 × 8MP · 32CH Enterprise Kit

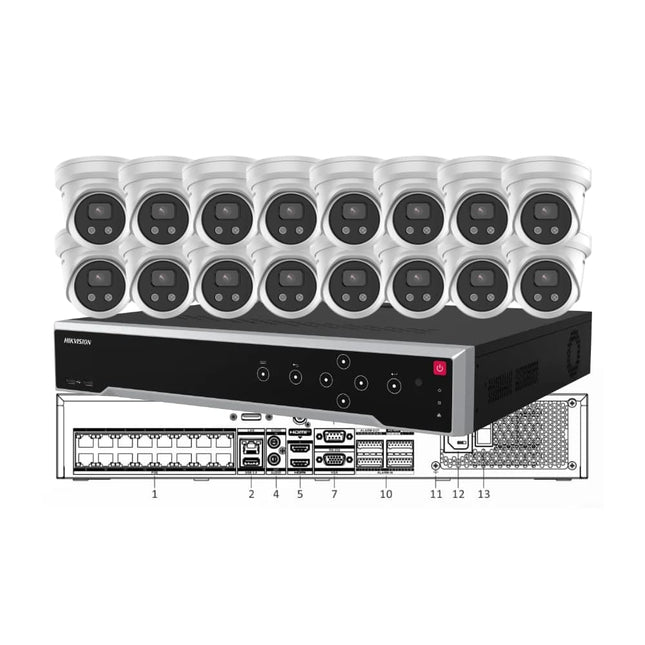

Hikvision 16 × 8MP 4K AcuSense Enterprise CCTV Kit with 32-Channel NVR
The Hikvision 16-Camera 8MP Enterprise Kit is a large-site surveillance system built for multi-building Australian projects — warehouses, factories, distribution centres, campuses, council facilities and industrial estates. It pairs sixteen DS-2CD2386G2-IU 8MP 4K AcuSense turret cameras with a DS-7732NI-M4/16P 32-channel 8K NVR. Sixteen built-in PoE ports power the supplied cameras directly, while a further 16 channels stay free — so you can double the camera count to 32 as the site grows. AcuSense deep-learning AI classifies people and vehicles to cut false alarms across every channel.
Cameras
16 × 8MP 4K
Recorder
32CH 8K NVR · 16 PoE
Smart AI
AcuSense Human/Vehicle
Night Vision
Smart IR up to 30 m
Audio
Built-in Mic
Storage
4 × SATA · Up to 64 TB
True 4K (8MP) Detail
A 1/1.8" sensor captures 3840 × 2160 detail with the headroom to digitally zoom into recorded footage and still identify a face or number plate.
AcuSense AI — Fewer False Alarms
Deep-learning classification separates people and vehicles from animals, foliage and shadows across all 32 channels, so only real events trigger alerts and recording.
32 Channels — Room to Double Up
Ships with 16 cameras on the NVR's built-in PoE ports, and 16 channels stay free — add ANPR, ColorVu, fisheye or third-party ONVIF cameras to scale to 32 without changing the recorder.
Quad-SATA, Up to 64 TB
Four internal SATA bays accept surveillance HDDs up to 16 TB each, delivering month-long retention even with all channels running at full 4K. RAID 0/1/5/6/10 supported.
What's Included
16 × Cameras
DS-2CD2386G2-IU — 8MP 4K AcuSense turret, 2.8 mm (~111° FOV), Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder
DS-7732NI-M4/16P — 32-channel 8K M-Series NVR with 16 built-in PoE ports, 4 × SATA bays (up to 64 TB), up to 32 MP per channel, 8K HDMI output, RAID support and Hik-Connect remote access. Expandable to 32 IP cameras.
Storage
No HDD included — the NVR ships as a chassis with 4 free SATA bays. Add surveillance-grade drives (Seagate SkyHawk or WD Purple) up to 16 TB each, for a maximum of 64 TB total.
Power
The NVR has 16 × built-in PoE ports (IEEE 802.3 af/at, 200 W budget) — one Cat6 cable per camera carries power and data to the supplied 16 cameras, no separate power supplies. To run more than 16 cameras (up to the 32-channel limit), add an external PoE switch for the extra cameras. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting
Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty
3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Large warehouses
Loading docks, racking aisles, perimeters and offices with 4K plate and face detail.
Factories & production
Production lines, plant rooms, dispatch and yards with IP67 weatherproof cameras.
Campuses & schools
Entries, hallways, ovals and car parks across multiple blocks on one recorder.
Multi-building sites
Separate structures, gates, driveways and yards consolidated to a single 32CH NVR.
Councils & facilities
Depots, community centres, car parks and public buildings with privacy masking.
Industrial estates
Wide perimeter coverage with headroom to add ANPR and panoramic cameras later.
Camera Specifications — DS-2CD2386G2-IU
Camera Type
8MP 4K AcuSense Fixed Turret
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
8MP · 3840 × 2160
Min. Illumination
Colour 0.003 lux @ F1.6 · 0 lux with IR
Lens
Fixed 2.8 mm · ~111° horizontal FOV
Night Vision
Smart IR up to 30 m
WDR
120 dB True WDR
AI Functions
AcuSense · human & vehicle classification · perimeter protection
Audio
Built-in microphone
On-Board Storage
microSD / SDHC / SDXC up to 256 GB
Compression
H.265+ / H.265 / H.264+ / H.264
Power
12 VDC / PoE (IEEE 802.3af) · max 8 W
Ingress Protection
IP67
Warranty (Australia)
3 years · CCTV Guru Australia
Recorder Specifications — DS-7732NI-M4/16P
Channels
32 IP channels · up to 32 MP input
Incoming Bandwidth
320 Mbps
PoE
16 × PoE ports (IEEE 802.3 af/at) · 200 W budget · add a PoE switch for cameras 17–32
Storage
4 × SATA (up to 16 TB per bay, 64 TB total) · RAID 0/1/5/6/10 · no HDD included
Video Output
1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions
AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression
H.265+ / H.265 / H.264+ / H.264
Form Factor
1.5U desktop / rack-mount compatible
Remote / App
Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
›Cabling: run solid-copper Cat6 from each camera back to the NVR for stable power and video over long distances — typical across multi-building sites.
›PoE switch for expansion: the NVR powers 16 cameras on its built-in PoE ports. To use channels 17–32, connect the extra cameras through an external PoE switch on the same network — no NVR upgrade needed.
›Storage sizing: 16–32 channels of 4K use significant bandwidth — for 30+ days of continuous retention, fit multiple drives across the 4 SATA bays for up to 64 TB total.
Setup & Demo Videos — Hikvision
AcuSense — human & vehicle detection
AcuSense NVR — smart false-alarm filtering
Downloads & Resources
DS-2CD2386G2-IU Datasheet
DS-7732NI-M4/16P Datasheet
Hikvision Camera Quick Start Guide
Can I expand this kit to 32 cameras?Yes — the DS-7732NI-M4/16P is a 32-channel NVR. It powers the 16 supplied cameras on its built-in PoE ports, and you can add up to 16 more IP cameras (AcuSense, ColorVu, ANPR, fisheye or ONVIF) through an external PoE switch — no recorder upgrade required.
Does the NVR include hard drives?No — it ships as a chassis with 4 free SATA bays. Add surveillance-grade drives up to 16 TB each, for up to 64 TB total, sized to your retention and channel count.
How does AcuSense reduce false alarms?Deep-learning AI classifies motion as human, vehicle or other across all 32 channels, so leaves, animals and shadows don't trigger alerts — only real events reach your phone.
How are the cameras powered?The 16 supplied cameras each run on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies. For cameras 17–32, use an external PoE switch. Cat6 cabling is run on site and not included.
Can I mix in other Hikvision cameras?Yes — the NVR works with AcuSense, ColorVu, ANPR, PanoVu and other Hikvision IP cameras, plus third-party ONVIF cameras. Talk to us to build a custom variant.
Is this kit NDAA compliant?No. Hikvision is not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about alternative brands.
