Hikvision 6MP CCTV Kit — ColorVu Live-Guard + AcuSense Turrets with 4-Channel 8K NVR (Build Your Config)

Description

Hikvision · ColorVu Live-Guard + AcuSense DarkFighter · 4CH 8K NVR · Build Your Config 6MP Hikvision 4CH Kit

Hikvision 6MP CCTV Kit — ColorVu Live-Guard + AcuSense DarkFighter Turrets with 4-Channel 8K NVR

The Hikvision 6MP 4-Channel Kit is a configurable, ready-to-install bundle for Australian homes, retail, offices, cafés and small commercial sites. It pairs DS-2CD2367G2H-LISU/SL ColorVu Smart Hybrid Light Live-Guard turrets with DS-2CD2366G2-IU AcuSense powered-by-DarkFighter turrets, all running on a DS-7604NI-M1/4P 4-channel 8K M-Series NVR with 4 built-in PoE ports. Choose your camera mix from the variant dropdown — from 1 to 4 ColorVu Live-Guard deterrence cameras combined with 1 to 4 AcuSense detail cameras — so you build exactly the configuration your site needs. Put the Live-Guard cameras on your highest-risk approaches (strobe, siren and two-way audio on detection) and the AcuSense turrets everywhere else for sharp 6MP coverage.

Cameras
6MP · You Choose Mix
Active Deterrence
Live-Guard Strobe+Siren
Recorder
4CH 8K NVR · 4 PoE
Colour Night
ColorVu · Smart Hybrid Light
Smart AI
AcuSense Human/Vehicle
Storage
1 × SATA · Up to 16 TB

Build Your Own Config

Pick the exact camera mix from the variant dropdown — 1–4 ColorVu Live-Guard deterrence turrets plus 1–4 AcuSense detail turrets — so the kit matches your site instead of forcing a fixed bundle.

Two-Tier Coverage

Live-Guard ColorVu cameras actively deter intruders on the approaches that matter; AcuSense DarkFighter turrets deliver detailed 6MP everywhere else — prevention and evidence in one kit.

4-Port PoE — Plug & Play

One Cat6 cable per camera carries power and video to the NVR's 4 built-in PoE ports — no separate power supplies and no extra network switch for up to four cameras.

True 24/7 Colour

The ColorVu turrets hold full-colour night vision via Smart Hybrid Light, while AcuSense DarkFighter turrets stay bright in very low light — clothing and plate colour, not grey IR.

What's Included
Deterrence Cameras DS-2CD2367G2H-LISU/SL — 6MP ColorVu Smart Hybrid Light Live-Guard turret, white strobe + audible warning + two-way audio, 130 dB WDR, AcuSense human/vehicle, IP67. Choose 1–4 of these in the variant dropdown.
Detail Cameras DS-2CD2366G2-IU — 6MP AcuSense powered-by-DarkFighter turret, 120 dB WDR, built-in mic, 30 m IR, IP67. Choose 1–4 of these in the variant dropdown.

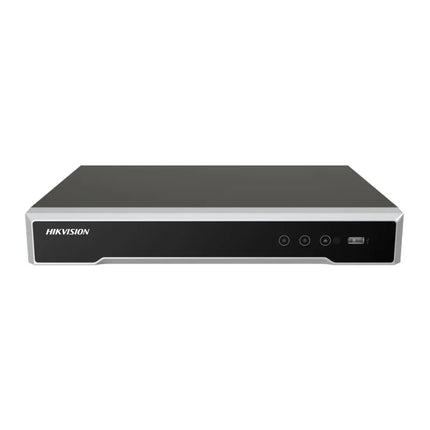

1 × Recorder DS-7604NI-M1/4P — 4-channel 8K M-Series NVR with 4 built-in PoE ports, single SATA bay, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Configuration The variant you select sets how many of each camera ship in the box — for example "2 × ColorVu / 2 × AcuSense". All combinations use the same 4-channel NVR (the kit holds up to four cameras in total).
Storage The NVR has one free SATA bay (up to 16 TB). A surveillance HDD is not included — add a surveillance drive to record and retain footage.
Power 4 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty 3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Family homes & units
Deterrence on the driveway and back gate, detailed 6MP coverage everywhere else.
Retail & convenience
Entrance, POS and aisles in 6MP, with Live-Guard at the rear door after hours.
Cafés & restaurants
Dining floor, register, kitchen pass and rear lane with built-in audio.
Small offices
Entry, reception and external doors, with deterrence guarding the main approach.
Tradie yards & workshops
Protect plant, tools and stock with strobe-and-siren deterrence plus 6MP detail.
Medical & professional
Reception, corridors and external entries with privacy masking and HTTPS access.
Deterrence Camera — DS-2CD2367G2H-LISU/SL
Camera Type 6MP ColorVu Smart Hybrid Light AcuSense Live-Guard Turret
Image Sensor 1/2.8" Progressive Scan CMOS · ColorVu
Max. Resolution 6MP · 3200 × 1800
Supplement Light Smart Hybrid Light (IR + warm white) · auto switching
Lens Fixed 2.8 mm · wide-angle FOV
Active Deterrence White-light strobe · audible alarm · built-in two-way audio
WDR / AI 130 dB · AcuSense human & vehicle classification
Storage / Power microSD up to 512 GB · 12 VDC / PoE (IEEE 802.3af)
Protection IP67
Detail Camera — DS-2CD2366G2-IU
Camera Type 6MP AcuSense Powered-by-DarkFighter Fixed Turret
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 6MP · 3072 × 2048
Night Vision Up to 30 m IR with Smart IR
Lens Fixed 2.8 mm wide-angle
WDR / AI 120 dB true WDR · AcuSense human & vehicle
Audio / Compression Built-in mic (1-way) · H.265+ / H.264+
Power / Protection 12 VDC / PoE (802.3af) · IP67
Recorder Specifications — DS-7604NI-M1/4P
Channels 4 IP channels · up to 32 MP input
Incoming Bandwidth 40 Mbps
PoE 4 × PoE ports (IEEE 802.3 af/at) · 60 W total
Decoding 4-ch @ 8 MP (30 fps)
Storage 1 × SATA (up to 16 TB) · HDD sold separately
Video Output 1 × HDMI (up to 8K · 7680 × 4320) + 1 × VGA · simultaneous
AI Functions AcuSense human/vehicle · perimeter · false-alarm filtering (with compatible cameras)
Compression H.265+ / H.265 / H.264+ / H.264
Remote / App Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
  • ›Camera placement: put the ColorVu Live-Guard turrets on the highest-risk approaches (driveway, rear gate) and the AcuSense turrets on general coverage zones.
  • ›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
  • ›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.

Setup & Demo Videos — Hikvision

Smart Hybrid Light + ColorVu — 24/7 colour imaging
AcuSense — human & vehicle detection

Downloads & Resources

DS-2CD2367G2H-LISU/SL Datasheet DS-2CD2366G2-IU Datasheet DS-7604NI-M1/4P Datasheet Hikvision Camera Quick Start Guide
How do I choose how many of each camera I get?
Use the variant dropdown — each option sets the mix of ColorVu Live-Guard and AcuSense cameras (for example "2 × ColorVu / 2 × AcuSense"). All variants ship with the same 4-channel NVR.
What's the difference between the two camera models?
The DS-2CD2367G2H-LISU/SL adds Live-Guard strobe + audible warning and two-way audio for high-risk approaches; the DS-2CD2366G2-IU is a detail-focused AcuSense DarkFighter camera for general 6MP coverage.
What is Live-Guard active deterrence?
On AcuSense detection the ColorVu cameras flash a white strobe, sound an audible warning and let you talk down via Hik-Connect — turning intruders away rather than just recording them.
Does the kit include a hard drive?
No — the NVR ships with a free SATA bay (up to 16 TB) but no drive. Add a surveillance-grade HDD to record and retain footage.
How are the cameras powered?
Each camera runs on a single Cat6 cable to one of the NVR's 4 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Is this kit NDAA compliant?
No. Hikvision is not NDAA Section 889 compliant. If you need NDAA-compliant cameras for US federal or critical-infrastructure projects, contact our team about alternative brands.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Hikvision 6MP CCTV Kit — ColorVu Live-Guard + AcuSense Turrets with 4-Channel 8K NVR (Build Your Config)

Product form

SKU: GR-DS-6M4C-11

Hikvision · ColorVu Live-Guard + AcuSense DarkFighter · 4CH 8K NVR · Build Your Config 6MP Hikvision 4CH Kit Hikvision... Read more

$1,199.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Dispatch today? Order within: Jun 24, 2026 14:00:00 +1000
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
