Prime-I Series | LightHunter

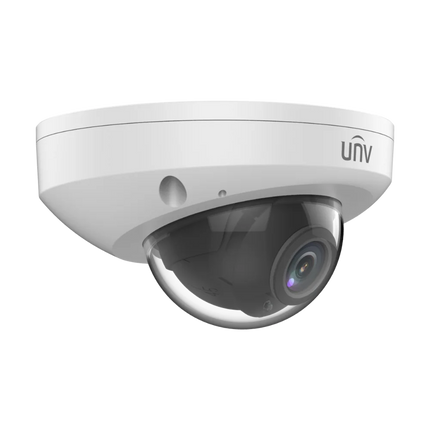

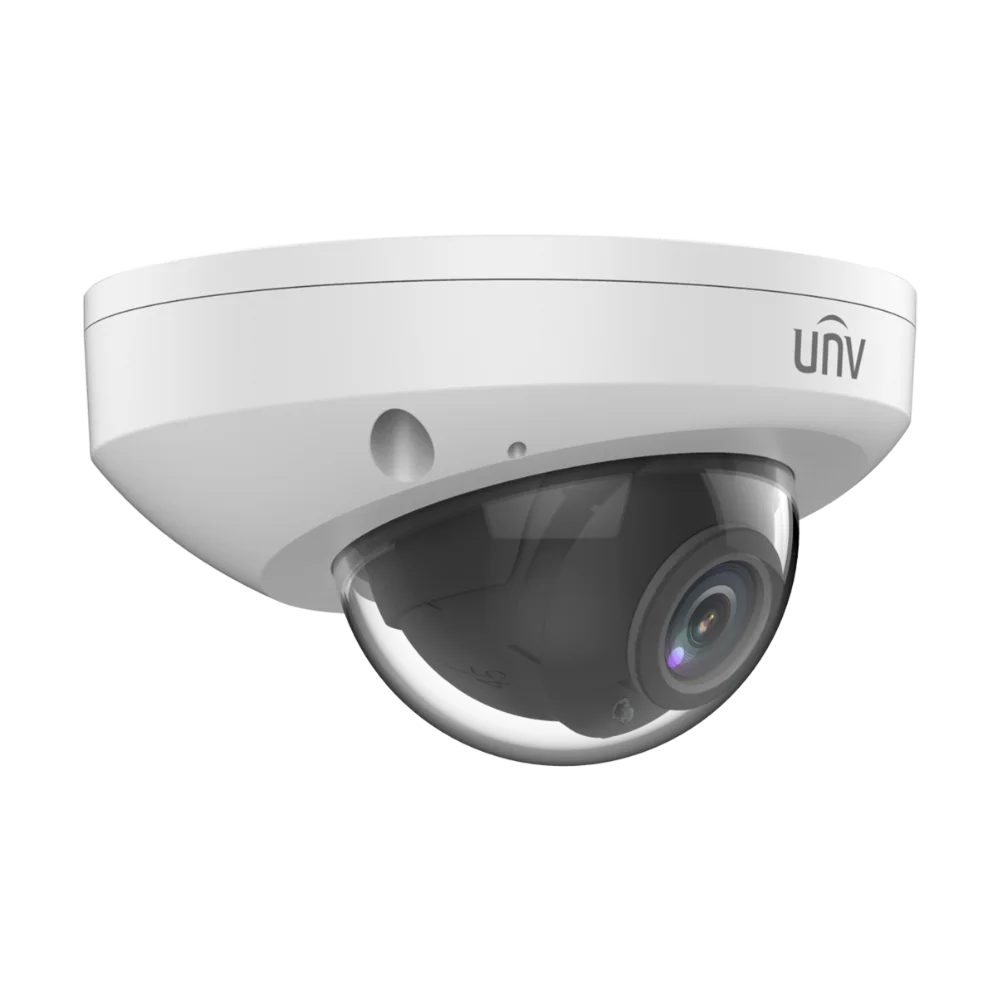

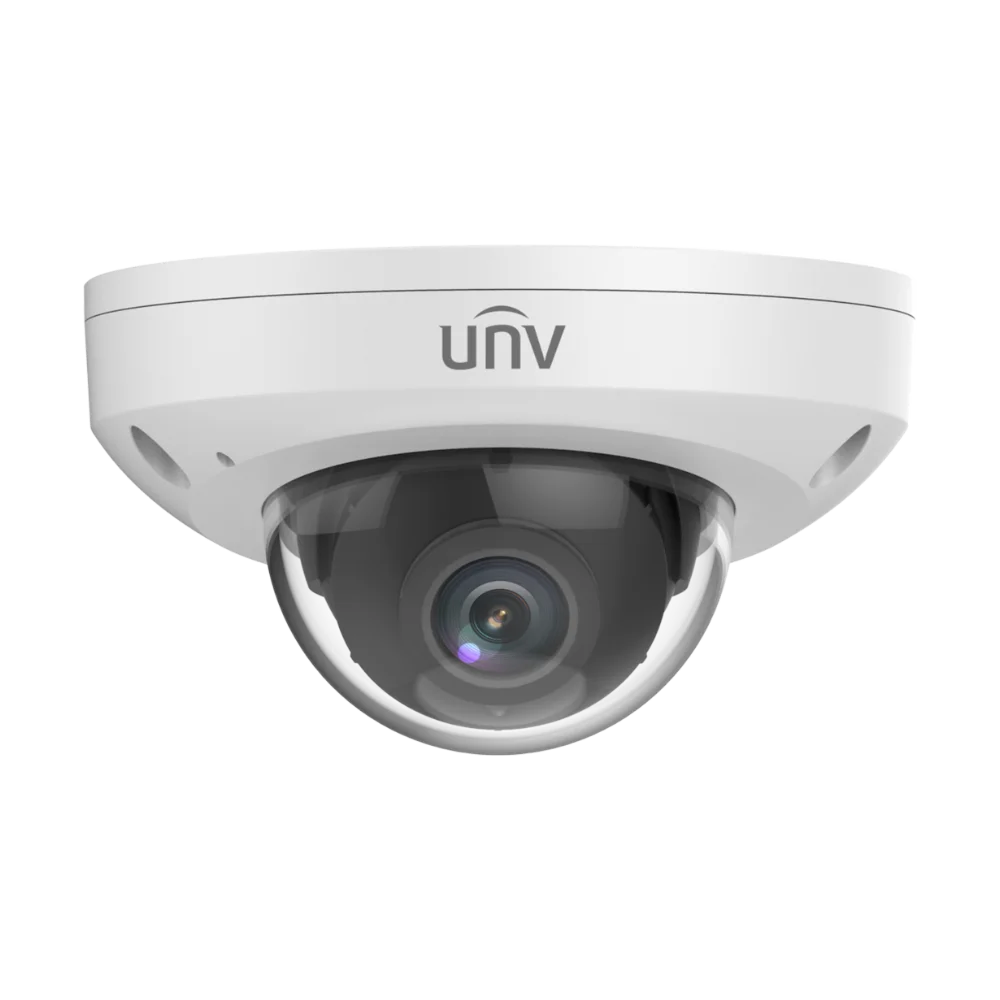

UNV 4MP Intelligent LightHunter IR Fixed Dome Camera
The UNV IPC314SB-ADF28K-I0 is a versatile and robust 4MP dome camera designed for high-clarity surveillance in a compact form factor. Featuring LightHunter technology, it delivers exceptional color imaging in ultra-low light conditions. With an IK10 vandal-resistant rating and Smart Intrusion Prevention, it provides reliable security for both residential and commercial environments.
Resolution
4MP HD @ 30fps
Durability
IK10 Vandal-Proof
Intelligent Monitoring & Clarity
LightHunter Technology
This camera utilizes a specialized sensor and large aperture to maintain vivid color images at 0.003 Lux, ensuring critical details aren't lost in the shadows.
Smart Intrusion Prevention (SIP)
The built-in AI reduces false alarms by focusing specifically on human and vehicle detection, allowing you to react only to real security threats.
Frequently Asked Questions
Can this camera withstand impacts?
Yes. It is IK10-rated, which means it is protected against 20 joules of impact (roughly equivalent to a 5kg weight dropped from 40cm), making it ideal for low-ceiling areas.
Does it have built-in audio?
Yes, this model features a built-in microphone, allowing for clear audio capture to accompany your high-definition video recordings.
How far does the night vision reach?
The Smart IR technology provides a night vision range of up to 30 meters (98 feet), automatically adjusting intensity to prevent overexposure of nearby objects.
Is it suitable for outdoor use?
Absolutely. With an IP67 weatherproof rating, the camera is fully protected against dust and can withstand powerful jets of water or heavy rain.
DORI Distance Guide
| Performance Detail |
2.8mm Lens (101.1°) |
4.0mm Lens (83.7°) |
| Detect (25px/m) |
63.0m (206.7ft) |
90.0m (295.3ft) |
| Observe (63px/m) |
25.2m (82.7ft) |
36.0m (118.1ft) |
| Recognize (125px/m) |
12.6m (41.3ft) |
18.0m (59.1ft) |
| Identify (250px/m) |
6.3m (20.7ft) |
9.0m (29.5ft) |
Full Technical Specifications
| Sensor & Resolution |
1/3" 4MP CMOS (2688 x 1520) @ 30fps |
| Min. Illumination |
Color: 0.003 Lux (F1.6, AGC ON) |
| Dynamic Range |
120dB True WDR |
| Night Vision |
30m Smart IR | LightHunter Tech |
| Analytics |
Human/Vehicle Classification, Intrusion, Cross Line |
| Audio |
Built-in Mic |
| Protection |
IP67 Weatherproof | IK10 Vandal-Resistant |
| Storage |
MicroSD Slot (up to 256GB) |
