Uniview IPC318SB-ADF28KMC-DL-I1 8MP Dual-Light Mini Dome Network Camera

Description

UNIVIEW · IPC318SB-ADF28KMC-DL-I1

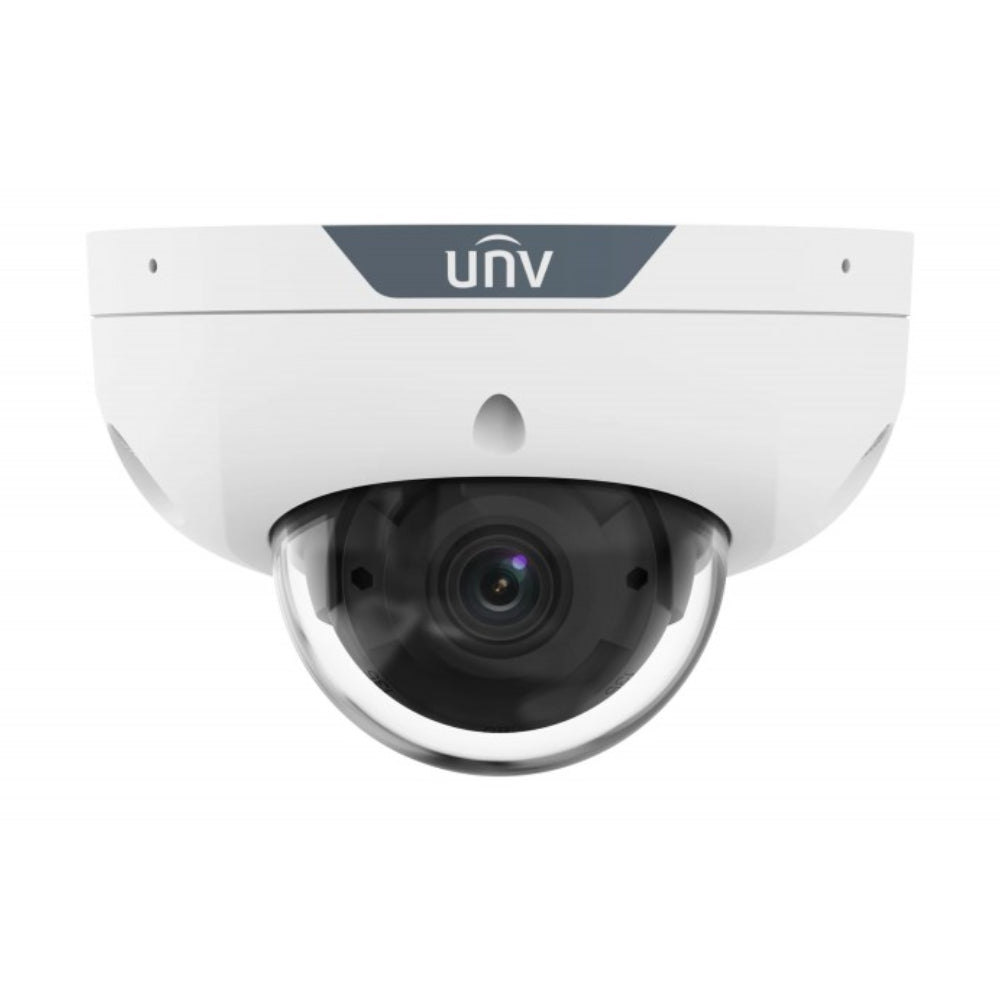

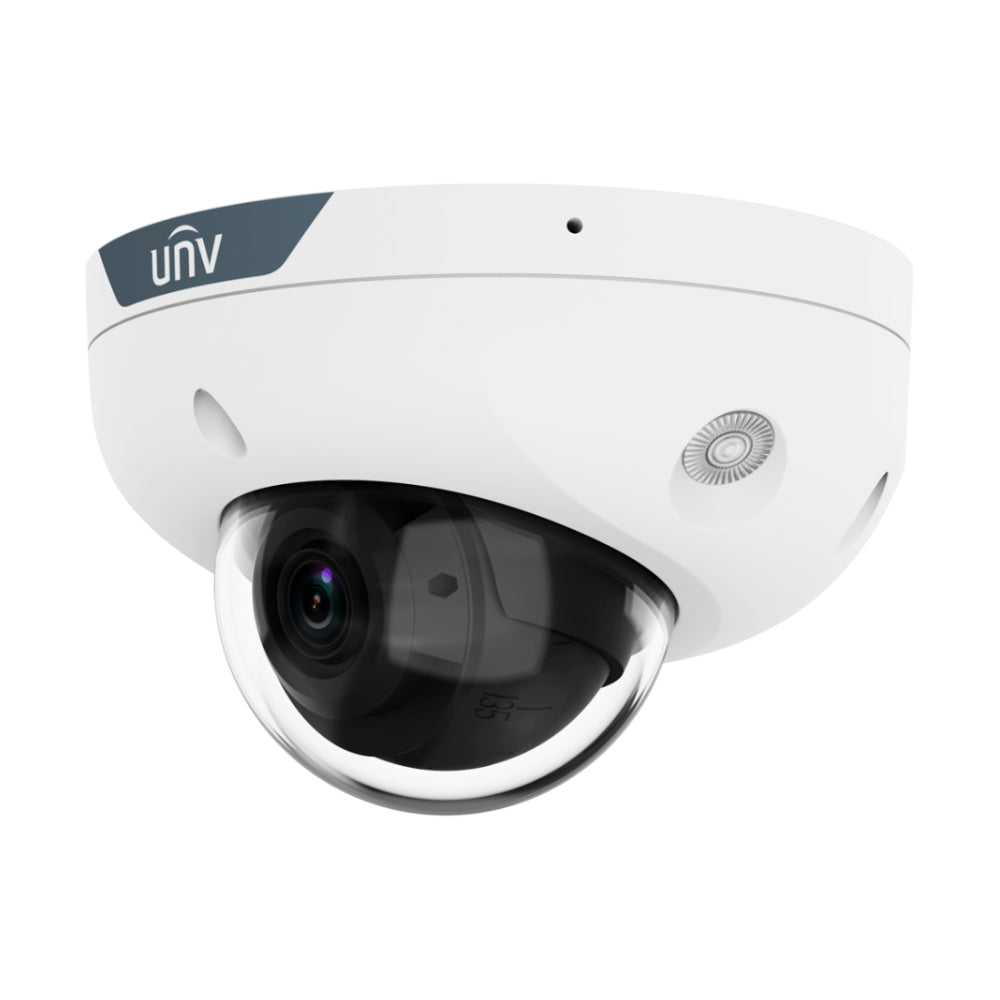

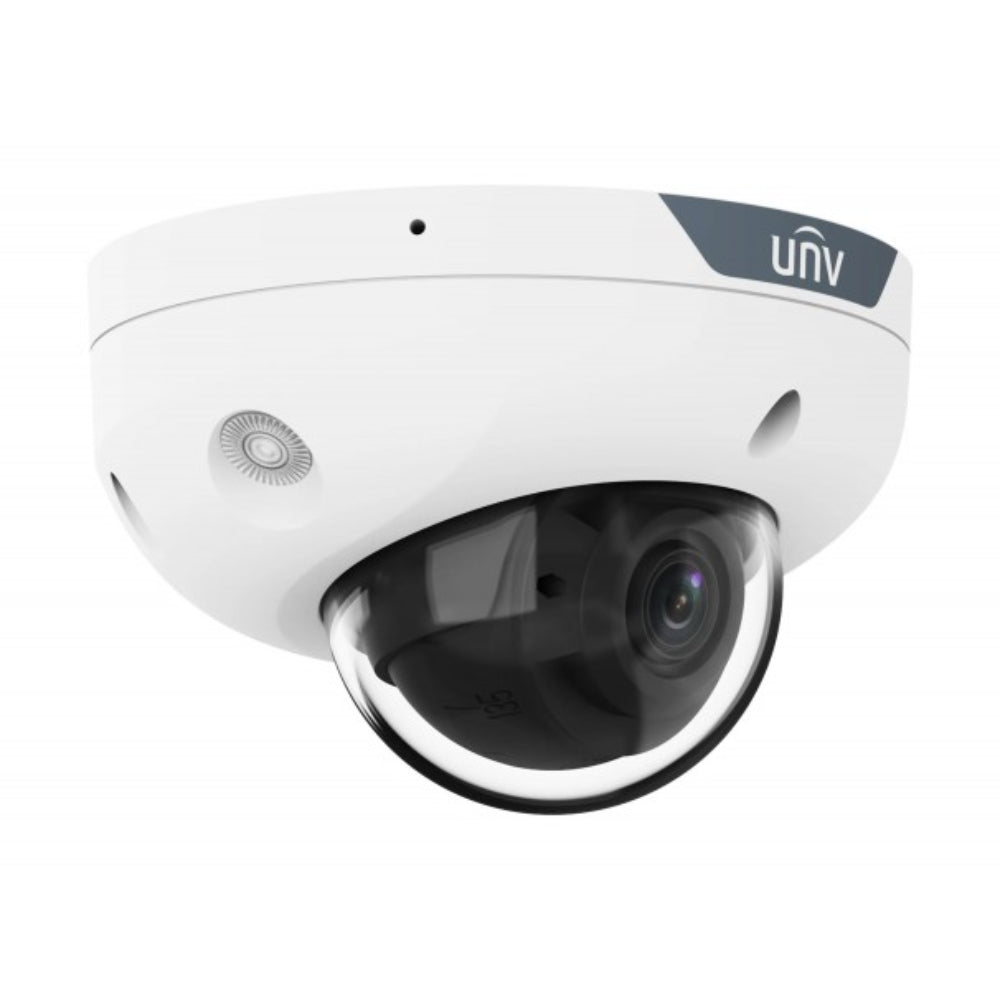

Uniview IPC318SB-ADF28KMC-DL-I1 8MP Dual-Light Mini Dome Network Camera

The Uniview IPC318SB-ADF28KMC-DL-I1 is a 8MP dome network camera with a 2.8 mm lens and 130 dB WDR. It records 8MP (3840 × 2160), up to 30 fps, supports local microSD storage up to 512 GB, and uses ir: 30 m (98.4 ft); warm light: 30 m (98.4 ft) illumination. Built-in microphone; built-in speaker and two-way audio. Protection: IP67 (IEC 60529) IK10 (IEC 62262).

Specifications
Model IPC318SB-ADF28KMC-DL-I1
Design Dome
Image Sensor 1/2.7" CMOS
Resolution / Frame Rate 8MP (3840 × 2160), up to 30 fps
Lens 2.8 mm, F1.6
Horizontal View 104°
WDR 130 dB
Illumination IR: 30 m (98.4 ft); warm light: 30 m (98.4 ft)
Audio Built-in microphone; built-in speaker and two-way audio
Audio I/O 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O 1/1
Local Storage MicroSD up to 512 GB
Power DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 8.5 W
Protection IP67 (IEC 60529) IK10 (IEC 62262)
Dimensions Ø111.2 mm × 72.6 mm (Ø4.4" × 2.9") (Ø × H)
Weight 0.47 kg (1.04 lb)
Compression Ultra 265, H.265, H.264, MJPEG
Network RJ45 10/100 Mbps

Frequently Asked Questions

What lens and resolution does it have?

2.8 mm, F1.6. 8MP (3840 × 2160), up to 30 fps.

How does it work at night?

IR: 30 m (98.4 ft); warm light: 30 m (98.4 ft). Actual image detail depends on the scene and installation.

Does it have two-way audio?

Built-in microphone; built-in speaker and two-way audio.

Can it record without an NVR?

It supports local recording with a microSD card up to 512 GB. A card is required for local storage.

How is it powered?

DC 12 V±25%, PoE (IEEE 802.3af); Max. 8.5 W.

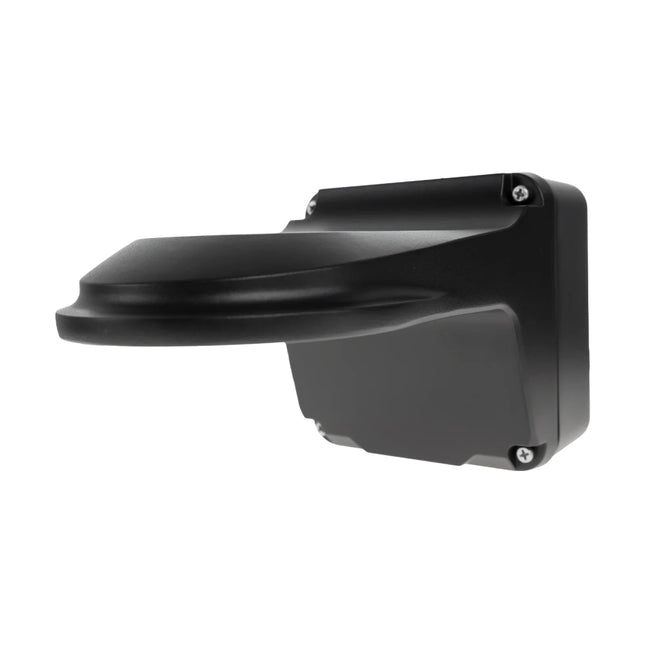

Which mounts are compatible?

Use the exact camera model in the Uniview accessory list. The linked mounting products are compatible choices; mounting assemblies may require an adapter or pendant.
