Complete Single-Door Control
Secure one access-controlled door end to end — drive an electric strike or magnetic lock via the onboard relay, monitor door position, and accept exit requests, all from one compact unit.
PoE++ Powered With PoE+ Outputs
A single PoE++ input powers the hub, while two PoE+ output ports (30W each, 45W aggregate) let you power your UniFi Access reader and lock straight from the device — no extra power supplies.
Up to 3,000 Users
Scales well beyond a typical small site, storing up to 3,000 user credentials for a single managed door.
Dry & Wet Relay Options
A switchable relay supports both dry (30V DC, 1A) and wet (12V DC, 1A) output, giving you flexibility to wire a wide range of electric strikes and magnetic locks.

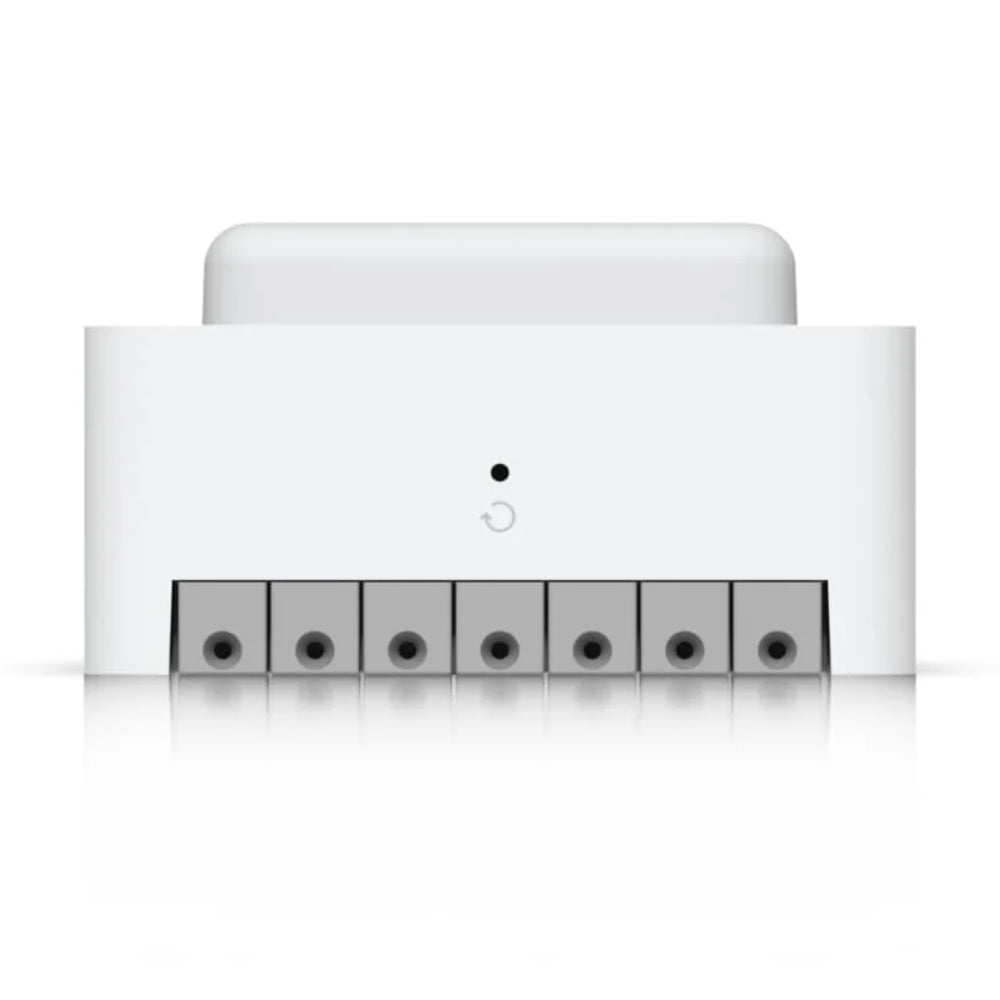

Simple DIN-Rail Installation

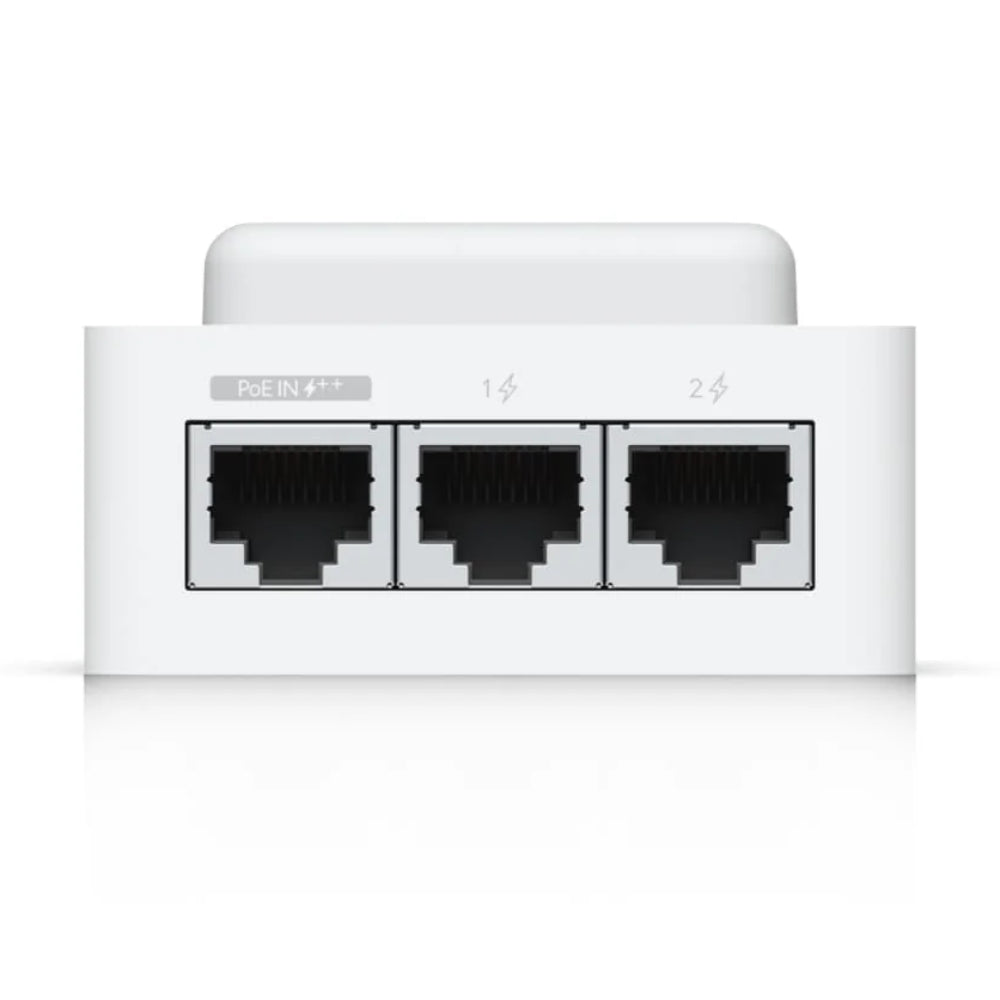

Mounts cleanly to a DIN rail (included) inside a comms cabinet or enclosure, with three GbE RJ45 ports for network and PoE distribution.
UniFi Access — No Licence Fees
Manage doors, users, schedules, and logs through the UniFi Access app and web console — fully local, with no monthly subscription or per-door licensing.
UL 294 Certified
Independently certified to UL 294 (Level I) and CAN/ULC-60839-11-1 (Grade I) for access control system reliability.
NDAA Compliant
Fully NDAA Section 889 compliant for government, defence, and security-sensitive installations where supply-chain integrity is required.

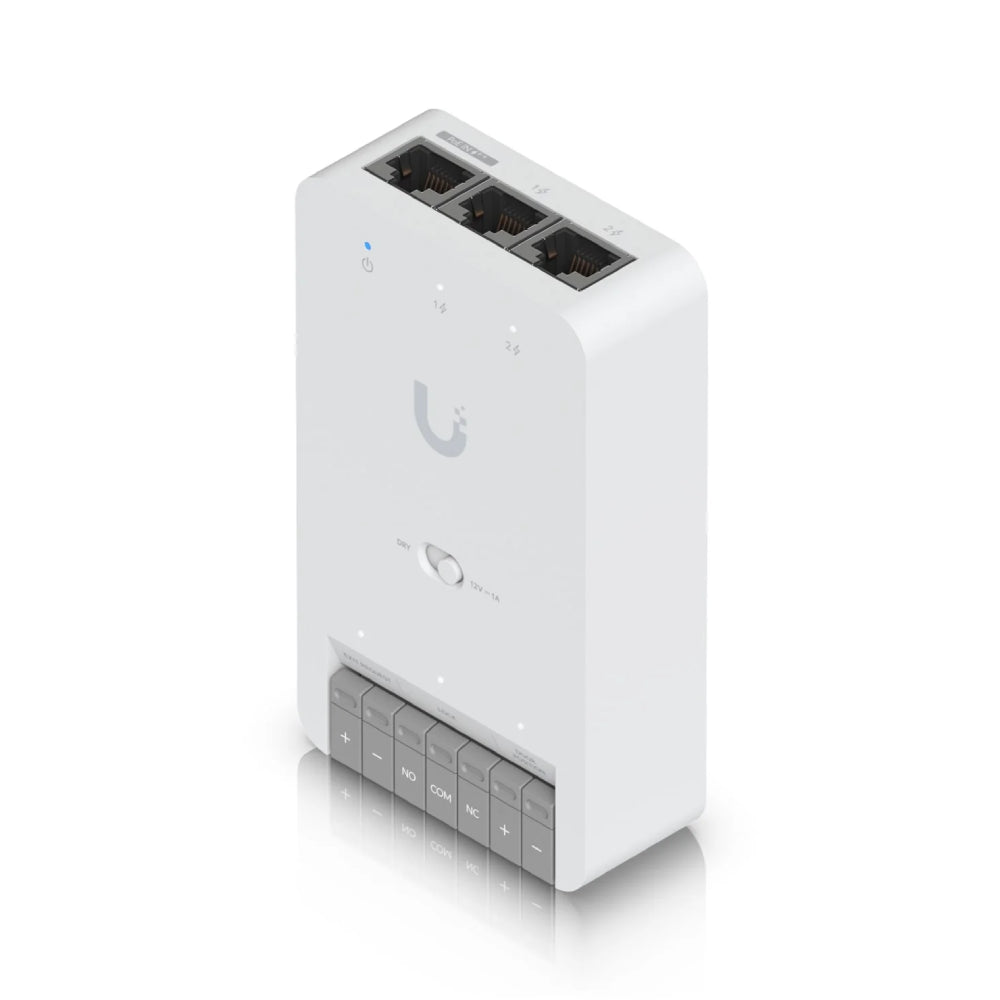

UniFi Access Door Hub Mini
UA-Hub-Door-Mini single-door access controller.

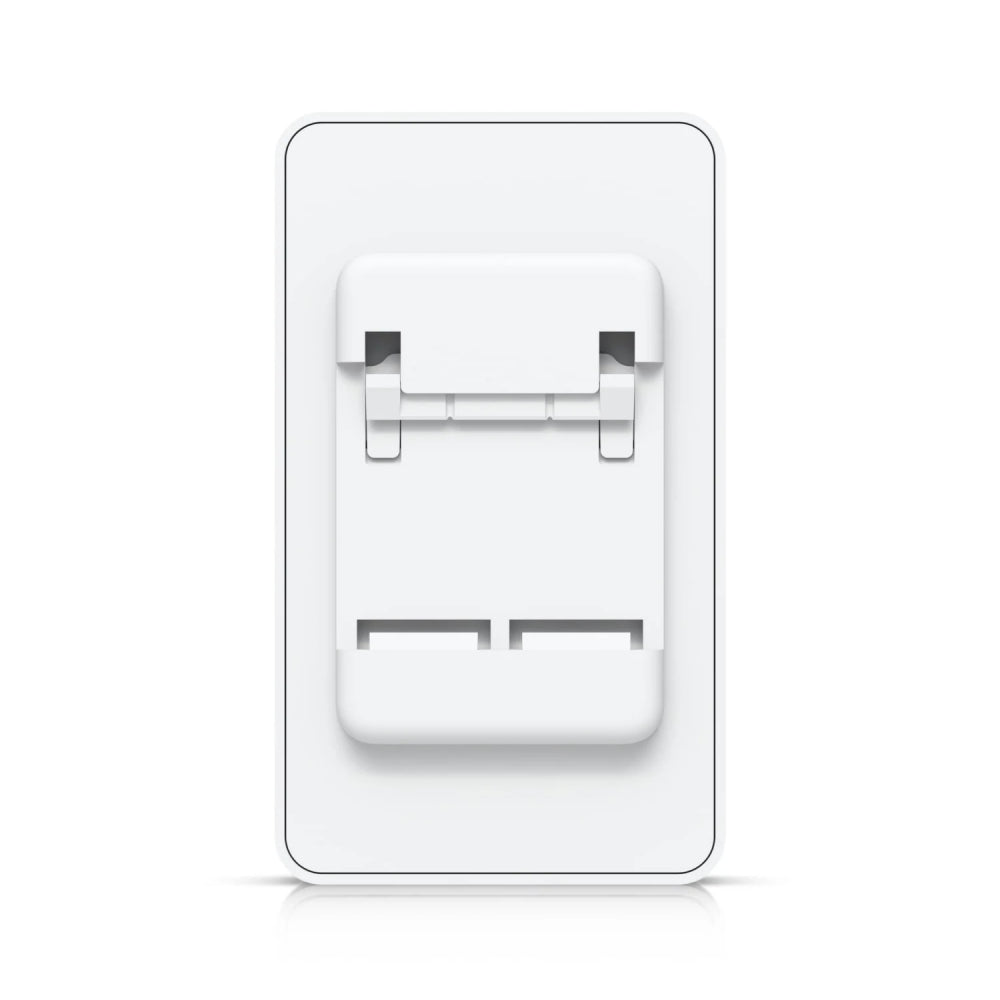

DIN-Rail Mount
DIN-rail mounting hardware for clean cabinet installation.
Documentation
Quick-start installation guide.
Not Included
Door lock hardware, UniFi Access reader, credentials, and PoE source are sold separately.
What is the UA-Hub-Door-Mini used for?
It's a compact controller that manages a single access-controlled door using UniFi Access readers and locks, supporting up to 3,000 users.
How is it powered?
By a single PoE++ input. It also provides two PoE+ output ports (30W each) to power your UniFi Access reader and lock directly.
Does it require a subscription?
No. UniFi Access is licence-free — there are no monthly fees or per-door charges.
Can it control mag locks and electric strikes?
Yes. The switchable relay supports dry (30V DC, 1A) and wet (12V DC, 1A) output for magnetic locks and electric strikes.
Can it be installed outdoors?
No. The Door Hub Mini is rated for indoor use only and mounts to a DIN rail inside a cabinet or enclosure.
Is it NDAA compliant?
Yes. Ubiquiti is a US-based manufacturer and the UA-Hub-Door-Mini is NDAA Section 889 compliant and UL 294 certified.
