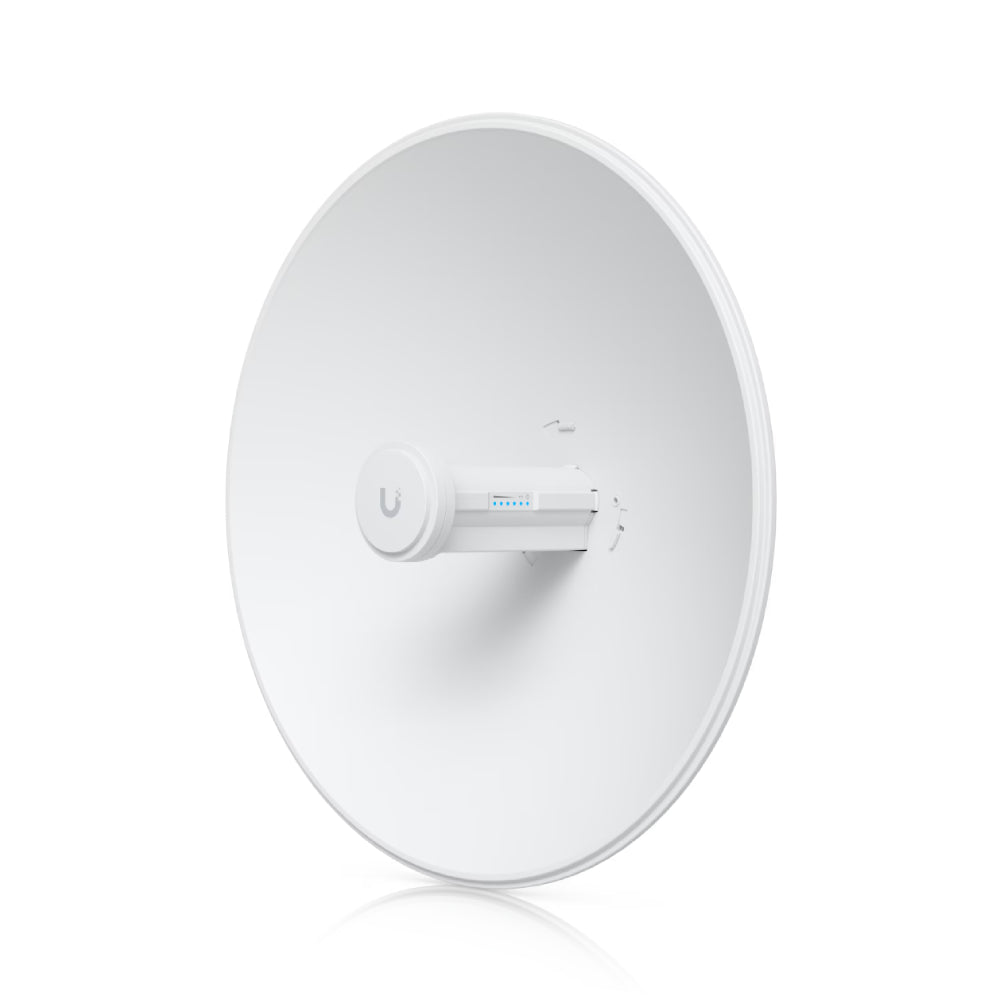

Ubiquiti PowerBeam 5AC Gen2 (PBE-5AC-GEN2) — 25dBi 5GHz airMAX ac Bridge

Description

airMAX ac — NDAA Compliant

Ubiquiti PowerBeam 5AC Gen2 — 25dBi 5GHz airMAX ac Bridge (PBE-5AC-GEN2)

The Ubiquiti PowerBeam 5AC Gen2 (PBE-5AC-GEN2) is a high-performance 5GHz point-to-point bridge that uses airMAX® ac technology to deliver up to 450+ Mbps of real TCP/IP throughput. Its 25dBi InnerFeed® antenna integrates the radio directly into the feedhorn — eliminating cable losses — while a dedicated management Wi-Fi radio makes setup fast from your mobile device. Tool-free assembly, a robust pole mount, and enhanced ESD surge protection make it ideal for long-range links across Australia. Genuine Ubiquiti stock with fast Australia-wide shipping.

450+ Mbps airMAX ac

Real TCP/IP throughput of up to 450+ Mbps over 5GHz for fast, reliable point-to-point links.

25dBi InnerFeed Antenna

The radio is integrated into the feedhorn, removing cable losses and boosting overall link performance.

Easy Mobile Setup

A separate management Wi-Fi radio lets you configure and align the link directly from your phone.

Tool-Free, Surge-Protected

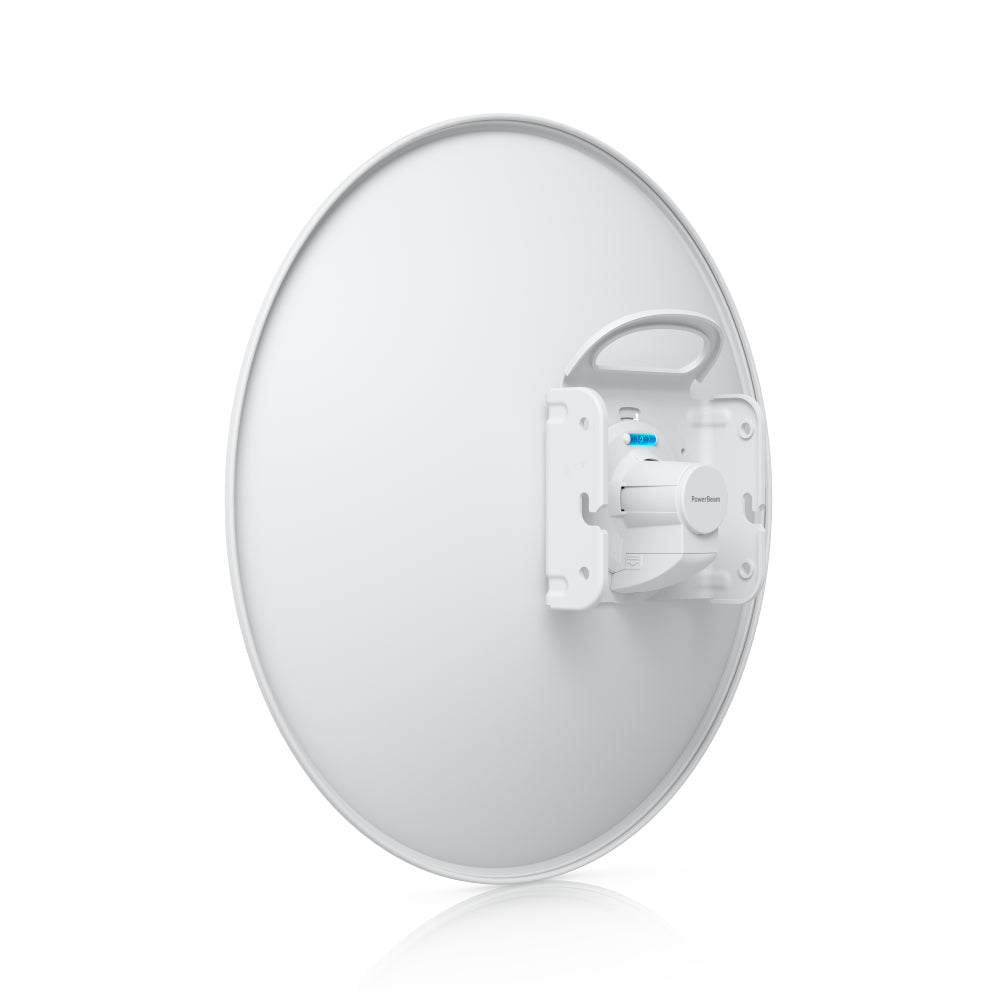

No tools needed for assembly — just one wrench to pole-mount. Enhanced ESD protection and a robust mount with lifting loop.

Technical Specifications

Model PBE-5AC-GEN2
Processor MIPS 74Kc
Memory 64 MB
Wireless Throughput Up to 450+ Mbps
Operating Frequency 5150–5875 MHz
Antenna Gain 25 dBi
Wi-Fi Range 15+ km
Network Interface (1) 10/100/1000 Ethernet Port
Max. Power Consumption 8.5 W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Mounting Pole Mounting Kit Included
Dimensions 420 × 420 × 230 mm
Weight 2.22 kg
Operating Temperature −40 to 70°C
Operating Humidity 5 to 95% non-condensing
Compliance NDAA compliant

Downloads & Resources

PBE-5AC-GEN2 Datasheet
Fast AU Shipping
Genuine Ubiquiti Stock
Expert AU Support
