Description

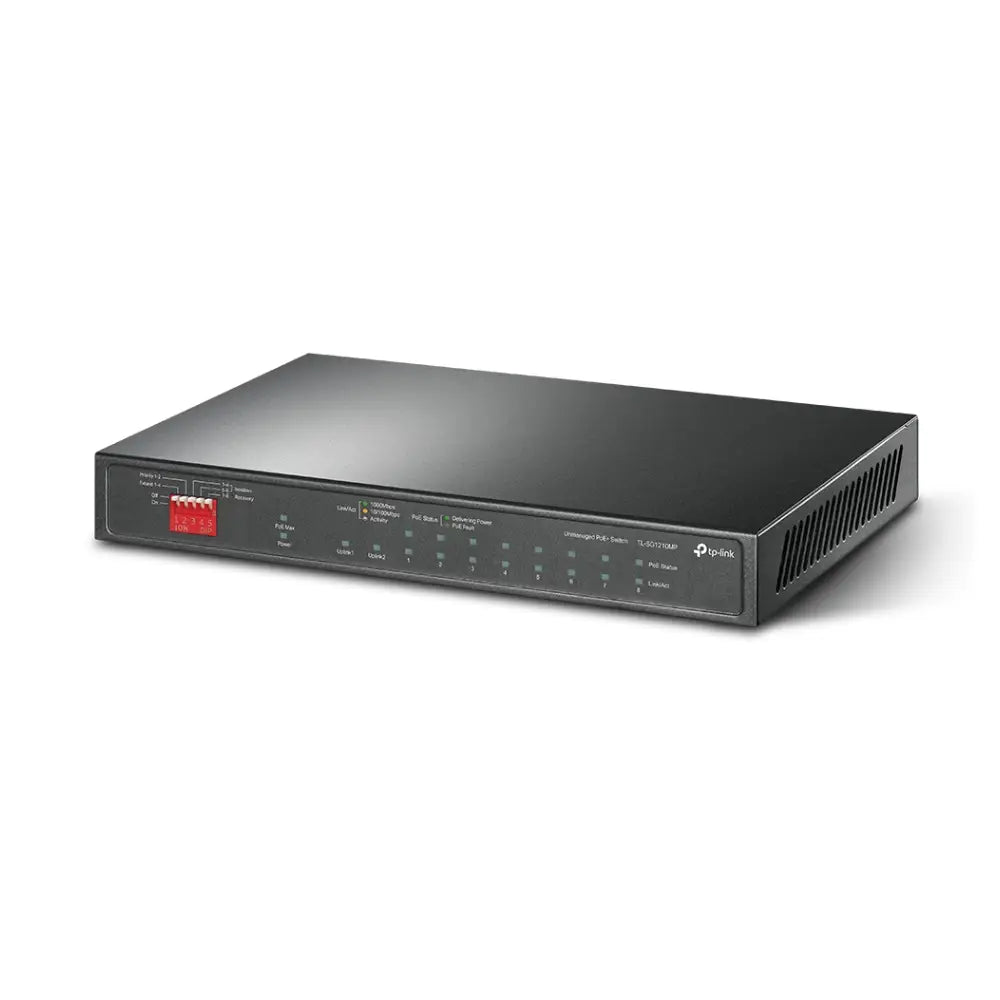

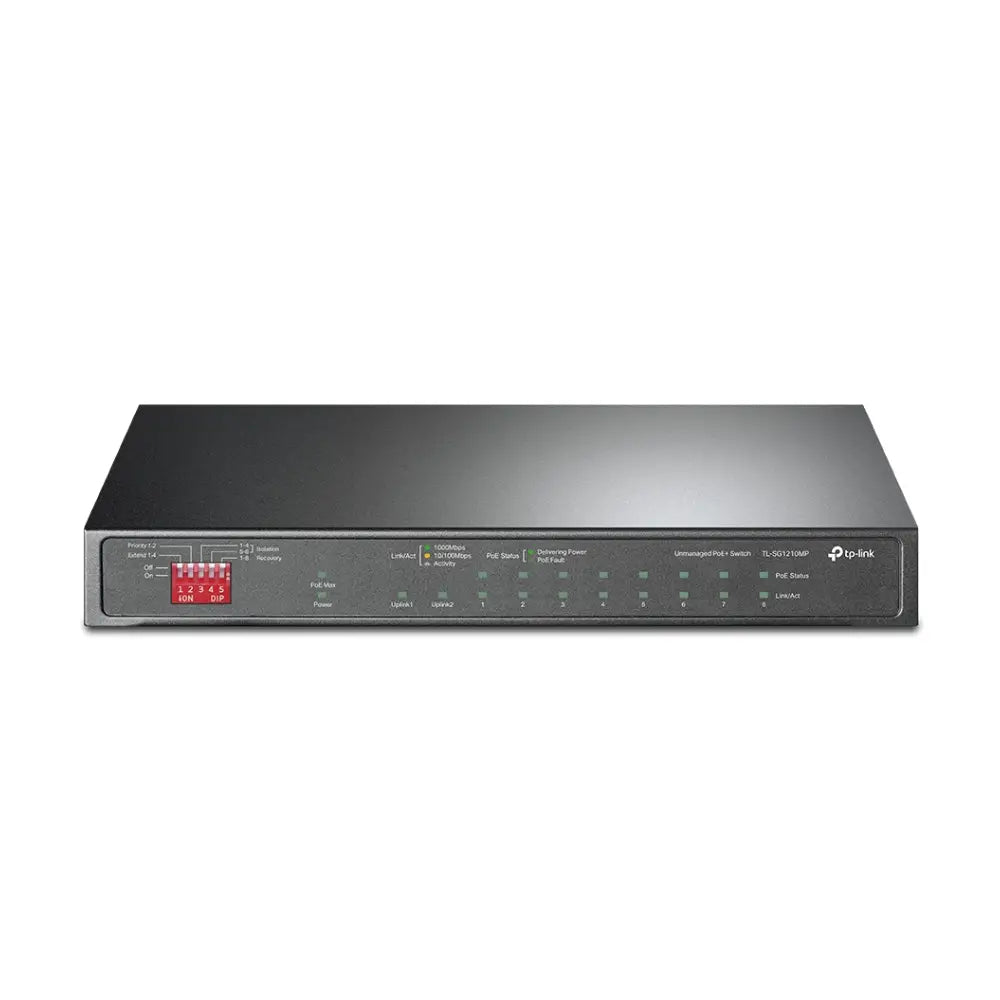

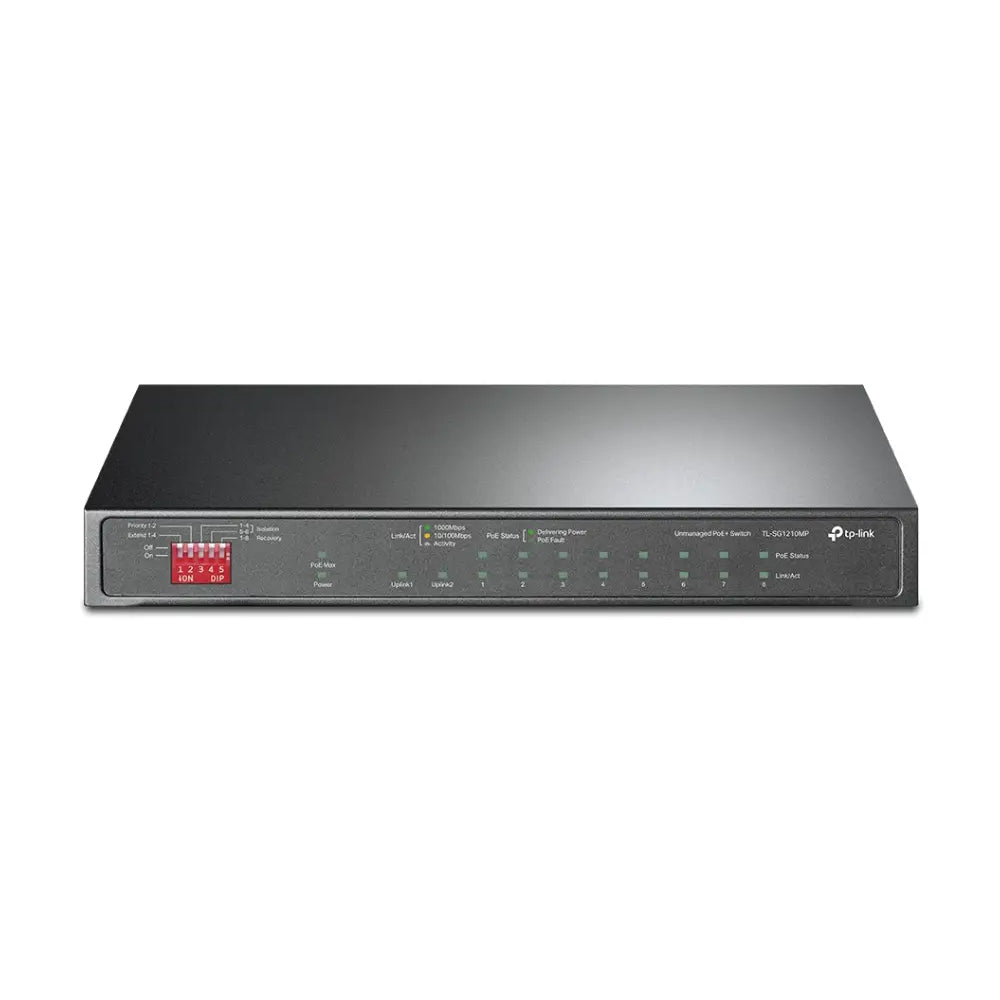

8-Port PoE+ Gigabit Switch with Smart Recovery and Extended Range
The TP-Link TL-SG1210MP is a feature-rich unmanaged Gigabit desktop switch with eight PoE+ ports, a 123W total power budget, and a suite of intelligent modes that go well beyond a basic plug-and-play switch. With PoE Auto Recovery, Extend Mode for 250m cable runs, Isolation Mode for client traffic separation, and a combo SFP/RJ45 uplink port, it's purpose-built for professional CCTV installations, multi-AP Wi-Fi deployments, and small business networks across Australia.
Key Features
-
8× PoE+ Ports (802.3af/at): Power IP cameras, access points, VoIP phones, and other PoE/PoE+ devices at up to 30W per port via a single Ethernet cable.
-
123W Total PoE Budget: Generous shared power budget supports a full deployment of 8 standard PoE cameras or a mixed load of PoE+ devices.
-
PoE Auto Recovery: Automatically detects and reboots unresponsive PoE-powered devices — ideal for IP cameras and access points that occasionally freeze or drop offline.
-
Extend Mode (up to 250m): Extends data and PoE power delivery up to 250m at 10Mbps on ports 1–4 — essential for cameras positioned far from the switch in large properties.
-
Priority Mode (Ports 1–2): Prioritises traffic on ports 1 and 2 to guarantee consistent performance for latency-sensitive devices such as NVRs and IP cameras.
-
Isolation Mode: One-click client traffic separation prevents devices on different ports from communicating with each other — improving security and network performance in shared environments.
-
1× Combo SFP/RJ45 Uplink Port: Connect to a fibre backbone or upstream Gigabit switch via SFP module or standard RJ45 — flexible uplink options for professional installations.
-
20 Gbps Switching Capacity: Non-blocking switching fabric handles simultaneous high-bandwidth video streams from all 8 cameras without bottlenecks.
-
Fanless & Silent: Completely silent operation — suitable for offices, reception areas, and home installations where noise is a concern.
-
Physical Security Lock: Kensington-style lock slot for securing the unit in shared or public spaces.
Common Use Cases
- 8-camera IP CCTV systems for small businesses, retail stores, and warehouses
- Multi-access-point Wi-Fi deployments in offices, schools, and hospitality venues
- Long cable run installations using Extend Mode (up to 250m) for perimeter cameras
- Shared network environments requiring client isolation (e.g. guest Wi-Fi, retail kiosks)
- Fibre uplink to a core switch in multi-floor or multi-building installations
- Replacing multiple PoE injectors with a single, clean multi-port solution
Technical Specifications
| Model |
TL-SG1210MP |
| RJ45 Ports |
9× 10/100/1000Mbps (Ports 1–8 are PoE+) |
| Combo SFP/RJ45 Port |
1× 1000Mbps (Port 10, uplink) |
| PoE Standard |
IEEE 802.3af (PoE) / 802.3at (PoE+) |
| PoE Ports |
8× (Ports 1–8) |
| Max PoE Per Port |
30W (802.3at) |
| Total PoE Budget |
123W |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| MAC Address Table |
4K |
| Jumbo Frame |
16KB |
| Transmission Method |
Store-and-Forward |
| Extend Mode Range |
Up to 250m at 10Mbps (Ports 1–4) |
| Priority Mode |
Ports 1–2 (high priority) |
| Isolation Mode |
Yes (one-click client separation) |
| PoE Auto Recovery |
Yes |
| Fan |
Fanless (silent) |
| Physical Security Lock |
Yes |
| Power Supply |
External adapter — 53.5V DC / 2.43A |
| Max Power Consumption |
7.93W (no PD) / 141.40W (full PoE load) |
| Dimensions (W × D × H) |
209 × 126 × 26mm |
| Operating Temperature |
0°C to 40°C |
Frequently Asked Questions
Is the TL-SG1210MP managed or unmanaged?
It is an unmanaged switch. There is no web interface or software — modes (Extend, Priority, Isolation) are toggled via physical buttons on the unit. This makes it fast to deploy with no configuration required.
What is PoE Auto Recovery and why does it matter?
PoE Auto Recovery periodically checks whether connected PoE devices (such as IP cameras) are still responding. If a device becomes unresponsive, the switch automatically cuts and restores power to reboot it — eliminating the need to manually power-cycle cameras or access points on site.
How does Extend Mode work?
Pressing the Extend Mode button reduces port speed to 10Mbps on ports 1–4 and extends the maximum cable distance from 100m to 250m. This is particularly useful for IP cameras installed at the perimeter of a large property or car park where running power is impractical.
What is Isolation Mode used for?
Isolation Mode prevents devices connected to different ports from communicating directly with each other, while still allowing all devices to access the uplink (internet/NVR). It's useful in shared environments — such as retail stores, hotels, or apartment buildings — where you want to keep client devices separated for security.
Can I use the SFP port with a fibre module?
Yes. Port 10 is a combo SFP/RJ45 port that accepts a standard Gigabit SFP fibre module (single-mode or multi-mode, sold separately). This allows you to connect the switch to a fibre backbone or upstream switch over long distances where copper Ethernet is impractical.
How does the TL-SG1210MP compare to the TL-SF1005P?
The TL-SG1210MP offers significantly more: Gigabit speeds (vs 100Mbps), 8 PoE+ ports (vs 4 PoE ports), a higher 123W budget (vs 58W), PoE Auto Recovery, Isolation Mode, Extend Mode, and an SFP uplink port. It's the better choice for professional CCTV and business network installations.
