Description
4-Port PoE with Smart Management in a Compact Gigabit Desktop Switch

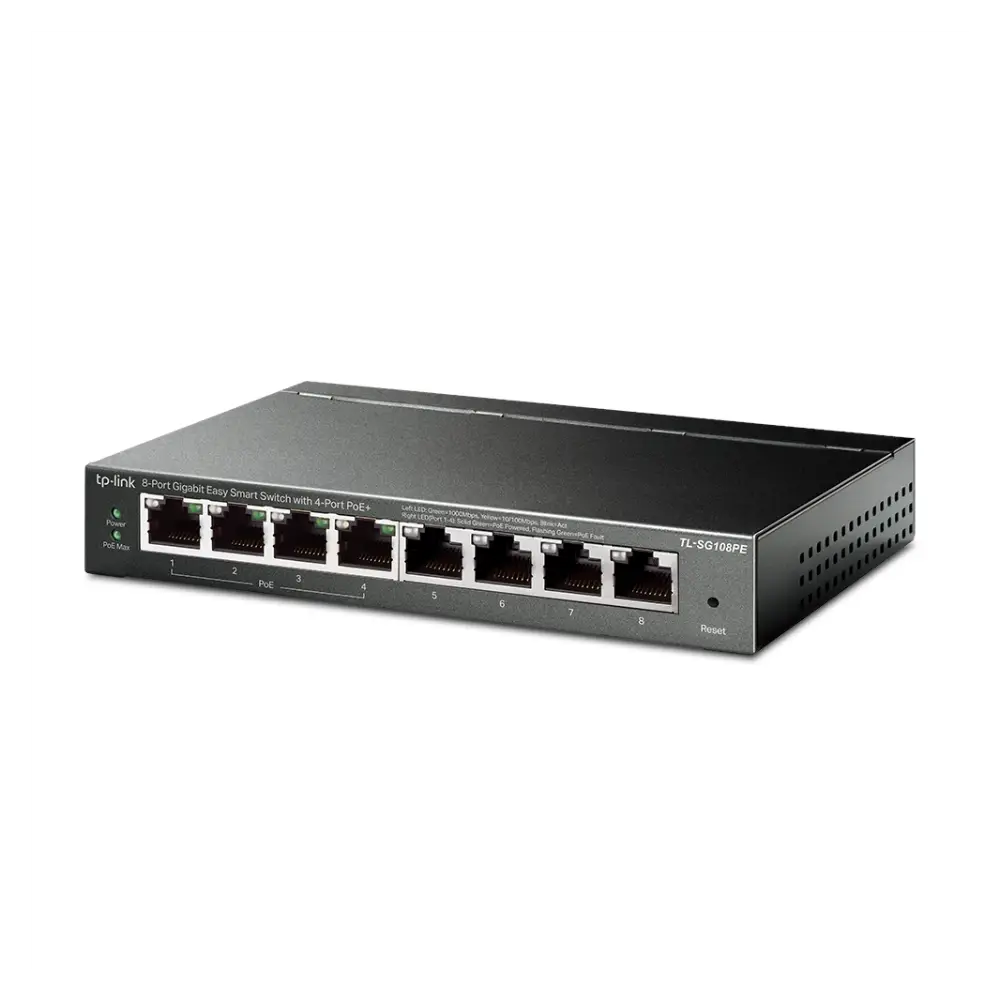

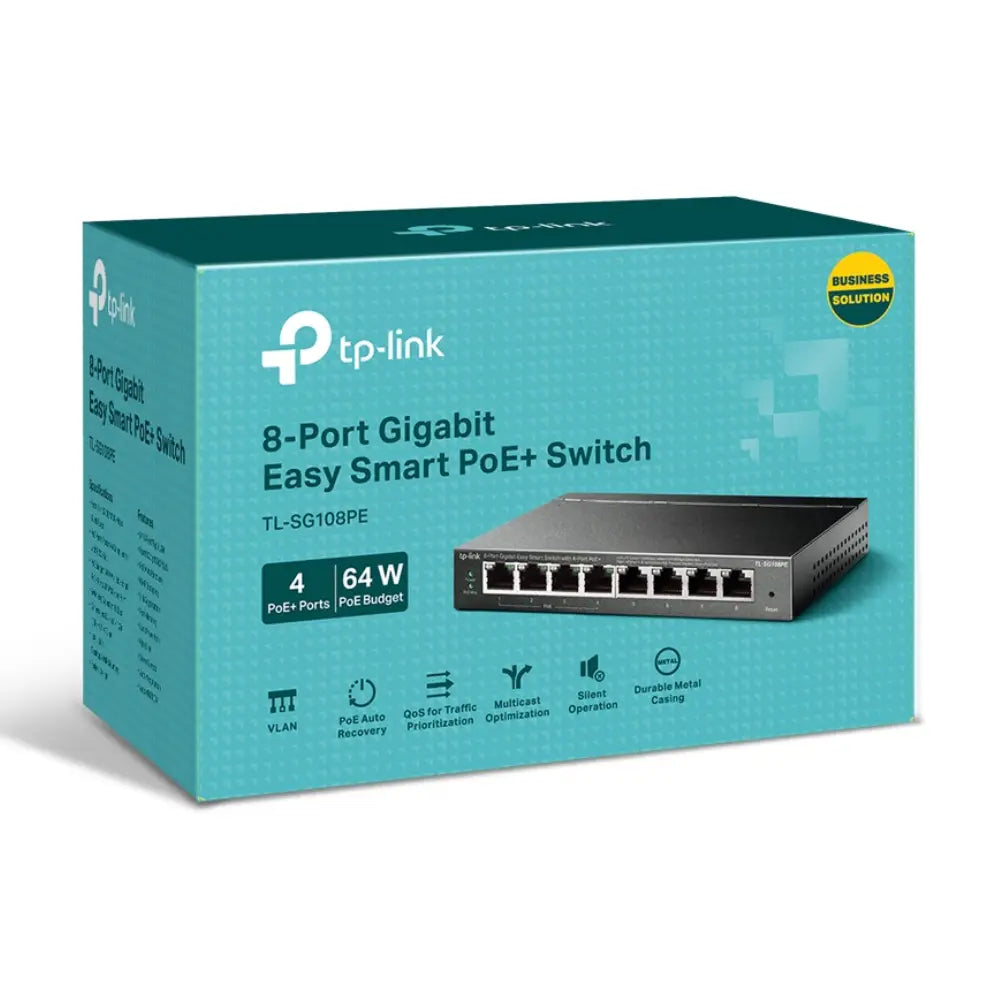

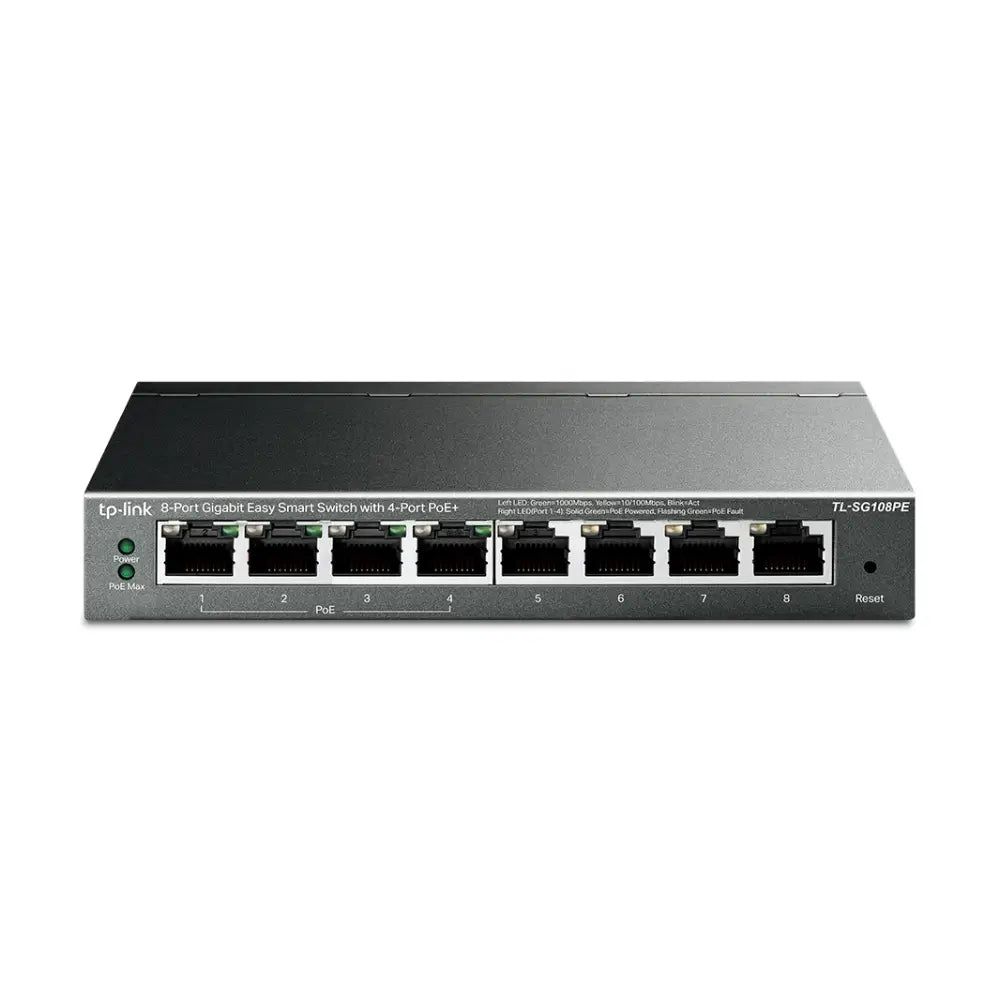

The TP-Link TL-SG108PE is an 8-port Gigabit Easy Smart switch that combines PoE power delivery with essential Layer 2 management features — VLAN, QoS, IGMP Snooping, and Port Mirroring — in a compact, fanless desktop form factor. With four 802.3af PoE ports and a 55W total budget, it powers IP cameras, access points, and VoIP phones while giving you the traffic control needed for a secure, well-organised small business or surveillance network. Managed via a web browser or the Easy Smart Configuration Utility, no advanced networking expertise is required.
Key Features
-
4× PoE Ports (802.3af, Ports 1–4): Power IP cameras, wireless access points, VoIP phones, and other 802.3af-compliant devices at up to 15.4W per port via a single Ethernet cable.
-
55W Total PoE Budget: Supports up to four simultaneously powered PoE devices — sufficient for most small CCTV and Wi-Fi deployments.
-
8× Gigabit RJ45 Ports: Full 10/100/1000Mbps auto-negotiation on all ports for fast wired connectivity across all connected devices.
-
VLAN Support (Port-based, 802.1Q, MTU): Segment camera traffic, staff devices, and guest networks onto separate logical networks for improved security and performance.
-
QoS (Port-based & 802.1p): Prioritises latency-sensitive traffic such as IP camera streams and VoIP calls to ensure consistent performance under load.
-
IGMP Snooping: Optimises multicast traffic for IP camera streams and IPTV, reducing unnecessary bandwidth consumption across the network.
-
Port Mirroring: Mirror traffic from one port to another for network monitoring, diagnostics, and troubleshooting without disrupting live traffic.
-
Web-Based Management: Configure and monitor via a web browser or the Easy Smart Configuration Utility — no CLI or advanced networking knowledge required.
-
Fanless & Silent: Completely silent operation — suitable for offices, reception areas, and home installations.
-
Plug & Play: Works out of the box for basic switching without any configuration — smart features are available when needed.
Common Use Cases
- Powering and managing up to 4 IP cameras in small CCTV installations with VLAN isolation
- Connecting and powering Wi-Fi access points via PoE with guest VLAN separation
- Small business networks requiring both PoE and basic traffic management in one device
- VoIP phone deployments needing PoE power and QoS prioritisation for call quality
- Upgrading from an unmanaged PoE switch to gain VLAN and QoS control
Technical Specifications
| Model |
TL-SG108PE |
| Total Ports |
8× 10/100/1000Mbps RJ45 |
| PoE Ports |
4× (Ports 1–4), IEEE 802.3af |
| Max PoE Per Port |
15.4W (802.3af) |
| Total PoE Budget |
55W |
| Switching Capacity |
16 Gbps |
| Packet Forwarding Rate |
11.9 Mpps |
| MAC Address Table |
4K |
| Packet Buffer Memory |
1.5 Mbit |
| VLAN |
Port-based, 802.1Q Tag VLAN, MTU VLAN |
| QoS |
Port-based & 802.1p tag-based |
| IGMP Snooping |
Yes |
| Port Mirroring |
Yes |
| Flow Control |
IEEE 802.3x |
| Management |
Web UI, Easy Smart Configuration Utility |
| Fan |
Fanless (silent) |
| Power Supply |
External adapter — 48V DC / 1.25A |
| Max Power Consumption |
5.2W (no PD) / 65.2W (full PoE load) |
| Form Factor |
Desktop |
| Weight |
840g |
Frequently Asked Questions
What is the difference between the TL-SG108PE and the TL-SG1008P?
Both are 8-port Gigabit switches with 4 PoE ports. The TL-SG1008P is fully unmanaged — plug-and-play with no configuration options. The TL-SG108PE adds web-based management with VLAN, QoS, IGMP Snooping, and Port Mirroring, making it significantly more capable for business and surveillance networks that require traffic control and segmentation.
Does the TL-SG108PE support PoE+ (802.3at)?
No. The TL-SG108PE supports IEEE 802.3af (PoE) only, providing up to 15.4W per port. It does not support 802.3at (PoE+). Ensure your powered devices are 802.3af-compliant before purchasing. For PoE+ devices requiring up to 30W, consider the TL-SG1210MP or TL-SF1009P.
How many PoE devices can I connect?
Up to 4 PoE devices can be connected via ports 1–4. The total shared PoE budget is 55W. For example, four cameras drawing 12W each would use 48W — within the 55W budget. Ports 5–8 are standard Gigabit ports with no PoE capability.
Is it suitable for IP camera and CCTV networks?
Yes. The TL-SG108PE powers up to four 802.3af IP cameras directly via PoE, and VLAN support lets you isolate camera traffic from your main network for improved security. IGMP Snooping also helps manage multicast video streams efficiently.
What is an Easy Smart switch?
Easy Smart is TP-Link's simplified management tier — it provides a web-based interface for configuring VLANs, QoS, IGMP Snooping, and Port Mirroring without the complexity of a fully managed switch. It's ideal for small business owners and installers who need more control than an unmanaged switch but don't require enterprise-level CLI management.
Can I use it without any configuration?
Yes. The TL-SG108PE works as a standard plug-and-play switch out of the box — all devices connected will communicate normally without any setup. Smart features such as VLAN and QoS are only applied when you choose to configure them via the web interface.
