Description

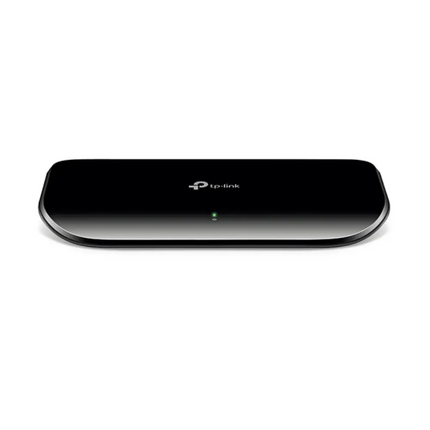

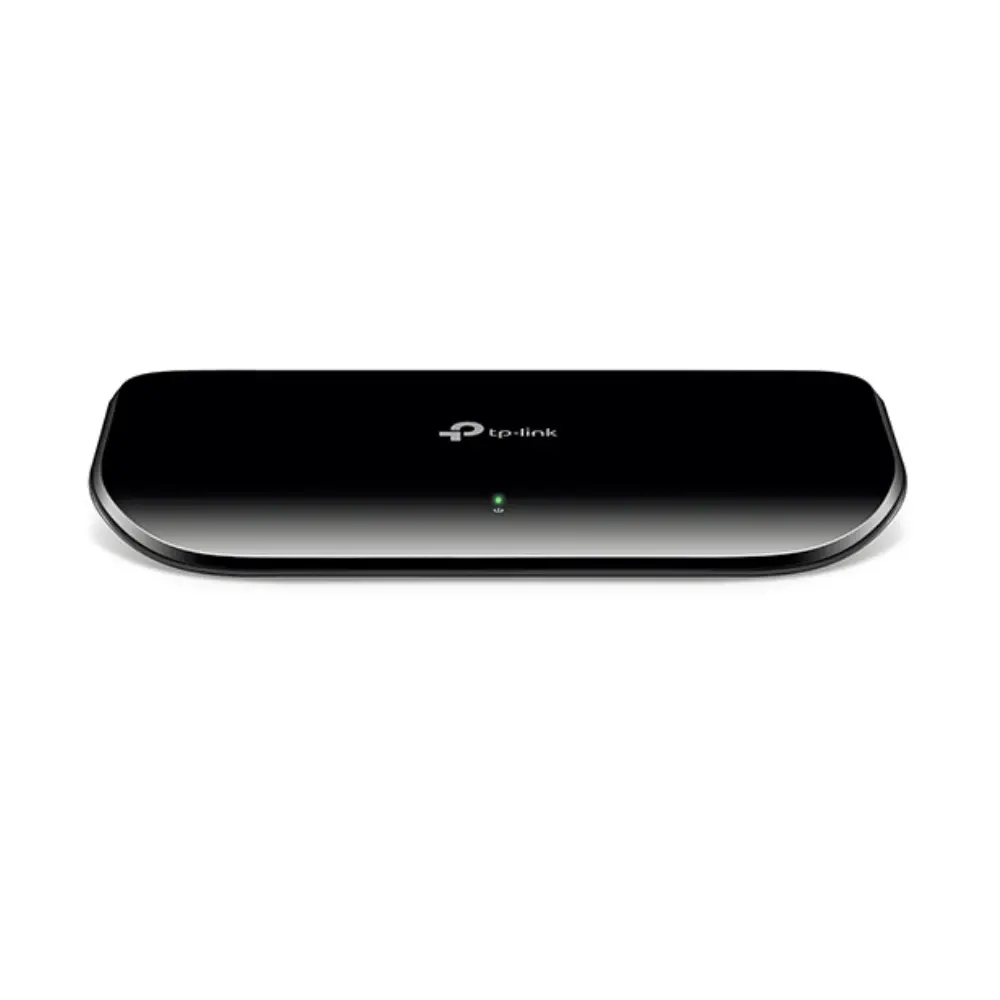

TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Desktop Switch
The TP-Link TL-SG1008D is a compact, fanless 8-port Gigabit switch built for small offices, home networks, and security system installations. Plug it in and it works — no configuration, no software, no noise. Green Ethernet technology cuts power consumption by up to 80%, making it an energy-efficient choice for always-on deployments.
Key Features
- 8 x 10/100/1000Mbps Auto-Negotiation RJ45 ports with Auto MDI/MDIX
- 16Gbps non-blocking switching capacity
- Fanless design — completely silent, no moving parts
- Plug-and-play — no configuration or software required
- Green Ethernet — saves up to 80% power vs standard switches
- Desktop or wall-mount installation flexibility
- IEEE 802.3x flow control and Back Pressure support
- 802.1p / DSCP QoS support (V7 and later)
- 4K MAC address table
- Jumbo frame support up to 15KB
- Store-and-Forward transfer method
- FCC, CE, and RoHS certified
Use Cases
-
IP camera and NVR networks — expand port capacity and connect multiple cameras on a dedicated network segment
-
Small office / home office — share internet and network resources across multiple devices without any setup overhead
-
Access control systems — provide stable LAN connectivity for door controllers, intercoms, and card readers
-
AV and digital signage — stream high-bandwidth video content reliably across a local network
Specifications
| Specification |
Detail |
| Model |
TL-SG1008D |
| Ports |
8 x 10/100/1000Mbps RJ45 |
| Switching Capacity |
16Gbps |
| MAC Address Table |
4K |
| Jumbo Frame |
Up to 15KB |
| Transfer Method |
Store and Forward |
| Flow Control |
IEEE 802.3x / Back Pressure |
| QoS |
802.1p / DSCP (V7 and later) |
| Standards |
IEEE 802.3i / 802.3u / 802.3ab / 802.3x |
| Fan |
Fanless |
| Power Supply |
External adapter — 9VDC / 0.6A |
| Max. Power Consumption |
4.63W (220V / 50Hz) |
| Dimensions (W × D × H) |
180 × 90 × 25.5mm |
| Weight |
320g |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-40–70°C |
| Operating Humidity |
10–90% RH, Non-Condensing |
| Certifications |
FCC, CE, RoHS |
| Warranty |
3-Year Limited |
| SKU / Barcode |
TL-SG1008D / 1210002616645 |
What's in the Box
- TL-SG1008D 8-Port Gigabit Desktop Switch
- External power adapter
- Installation guide
Frequently Asked Questions
Does the TL-SG1008D require any configuration?
No. It is a fully unmanaged switch — plug in your devices and it works immediately. There is no software, web interface, or login required.
Can I wall-mount this switch?
Yes. The TL-SG1008D supports both desktop and wall-mount installation. Wall-mount hardware is included in the box.
Is it suitable for connecting IP cameras to an NVR?
Yes. Eight gigabit ports make it well-suited for connecting multiple IP cameras and an NVR on the same network segment. Note: this switch does not supply PoE — cameras will need a separate power source or a PoE switch.
Does it support PoE?
No. The TL-SG1008D does not support Power over Ethernet. If you need to power IP cameras directly from the switch, consider a TP-Link PoE switch from the CCTV Guru range.
Is the power adapter compatible with Australian power outlets?
Yes. The included adapter is rated for 220V / 50Hz, which is compatible with the Australian 230V / 50Hz standard.
Does it ship Australia-wide?
Yes. CCTV Guru ships the TL-SG1008D Australia-wide from local stock.
