Description

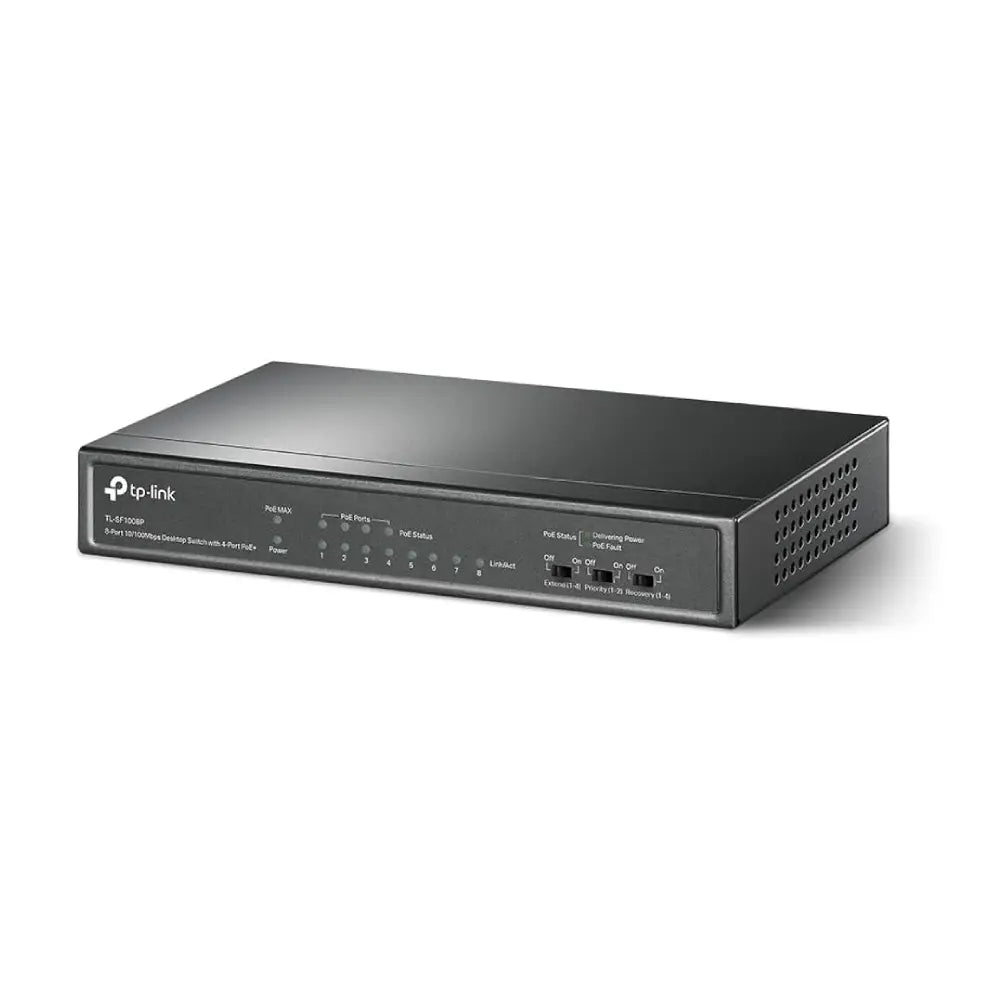

TP-Link TL-SF1008P 8-Port Fast Ethernet Unmanaged PoE Switch
Power and connect your IP cameras, access points, and VoIP phones over a single cable. The TP-Link TL-SF1008P is a compact, fanless 8-port 10/100Mbps unmanaged switch with 4 IEEE 802.3af PoE ports and a 57W total power budget. No configuration required — simply plug in your devices and the switch automatically detects and supplies power to any 802.3af-compliant powered device (PD). Ideal for small surveillance systems, home offices, and anywhere a tidy single-cable installation is preferred.
Key Features

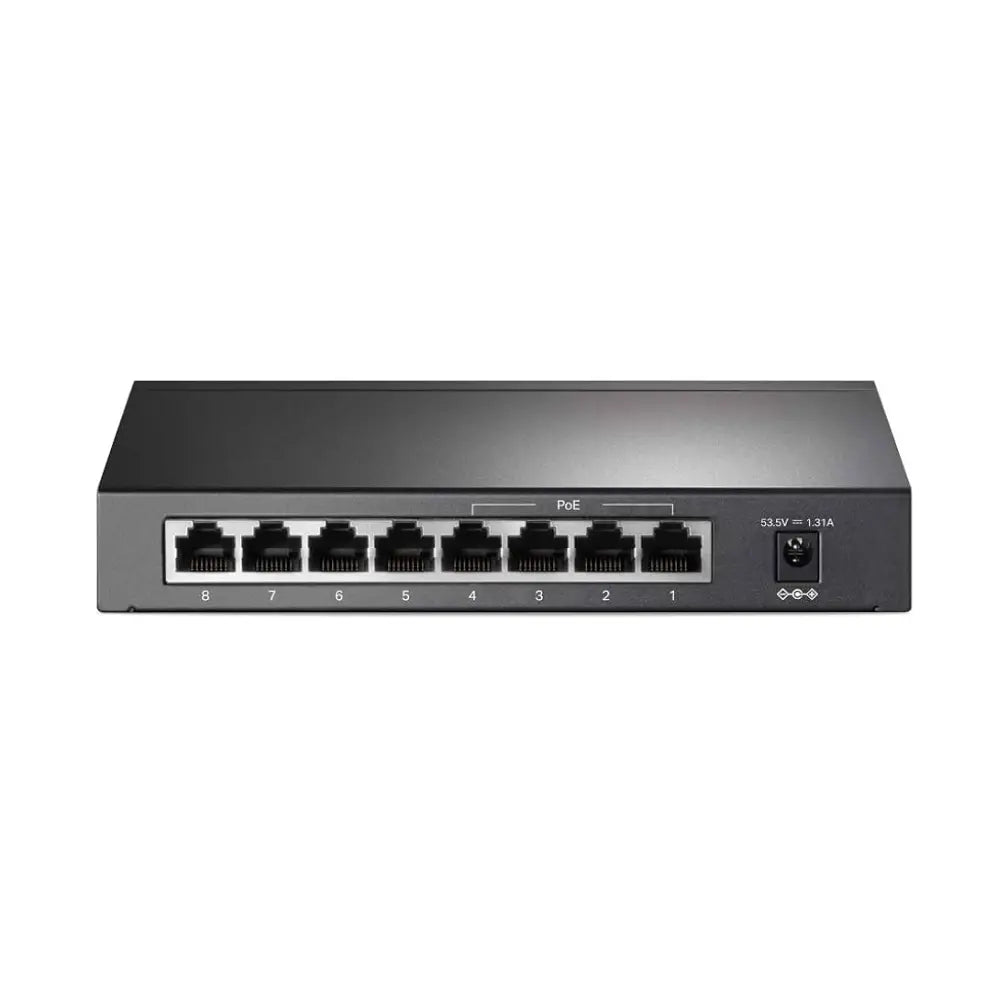

- 8 × 10/100Mbps RJ45 ports with Auto-Negotiation and Auto MDI/MDIX
- 4 × IEEE 802.3af PoE ports (ports 1–4) — up to 15.4W per port, 57W total PoE budget
- Automatically detects and powers 802.3af-compliant devices — no manual configuration
- 1.6Gbps backplane bandwidth for non-blocking switching performance
- 2K MAC address table with auto-learning
- Fanless design — completely silent operation, ideal for office and home environments
- External 48V DC power adapter — compact and lightweight chassis
- Supports Cat3/4/5 cable up to 100m (10BASE-T) and Cat5/5e up to 100m (100BASE-TX)
- Plug and play — no software, no login, no configuration required
Use Cases
- Powering and connecting IP cameras in small CCTV and surveillance installations
- Connecting wireless access points via PoE in home or small office environments
- Powering VoIP desk phones without separate power adapters
- Small business reception areas, retail counters, or meeting rooms needing tidy single-cable runs
- Expanding a home or office network with PoE capability for smart devices
Specifications
| Specification |
Detail |
| Model |
TL-SF1008P |
| Total Ports |
8 × 10/100Mbps RJ45 |
| PoE Ports |
4 (ports 1–4) |
| PoE Standard |
IEEE 802.3af |
| PoE Power Per Port |
Up to 15.4W |
| Total PoE Budget |
57W |
| Backplane Bandwidth |
1.6 Gbps |
| MAC Address Table |
2K (auto-learning) |
| Auto-Negotiation / MDI/MDIX |
Yes (all ports) |
| Fan |
Fanless (silent) |
| Power Supply |
External adapter — 48V DC / 1.25A |
| Max Power Consumption (PoE on) |
60.2W (220V/50Hz) |
| Max Power Consumption (PoE off) |
3.2W (220V/50Hz) |
| Dimensions (W × D × H) |
171 × 98 × 27 mm |
| Form Factor |
Desktop |
| Weight |
1.04 kg |
| SKU |
TL-SF1008P |
| Vendor |
TP-Link |
Recommended Accessories
- TP-Link TL-SG1008P 8-Port Gigabit PoE Switch — upgrade option with Gigabit speeds on all ports
- TP-Link TL-POE10R Gigabit PoE Splitter — add PoE power to non-PoE devices on the same network
- Cat5e Ethernet patch cables — for reliable 100Mbps and PoE connections up to 100m
- IP cameras compatible with IEEE 802.3af — power and connect over a single cable
Frequently Asked Questions
What is the difference between the TL-SF1008P and the TL-SG1008P?
The TL-SF1008P is a Fast Ethernet switch with 10/100Mbps ports and a 57W PoE budget. The TL-SG1008P is a Gigabit switch with 10/100/1000Mbps ports and a 53W PoE budget. If your IP cameras or devices support Gigabit, the TL-SG1008P offers faster data throughput. Both support IEEE 802.3af PoE.
How many PoE devices can I connect to the TL-SF1008P?
The TL-SF1008P has 4 PoE-capable ports (ports 1–4), each delivering up to 15.4W. The total PoE budget is 57W. For example, four cameras drawing 12W each would use 48W of the 57W budget, leaving headroom for the remaining power draw.
Which PoE standard does the TL-SF1008P support?
It supports IEEE 802.3af (PoE), providing up to 15.4W per port. It does not support 802.3at (PoE+) or 802.3bt (PoE++). Ensure your powered devices are 802.3af-compliant before purchasing.
Does the TL-SF1008P require any configuration?
No. It is a fully unmanaged, plug-and-play switch. It automatically detects and powers 802.3af-compliant devices — no software, login, or setup required.
