Description

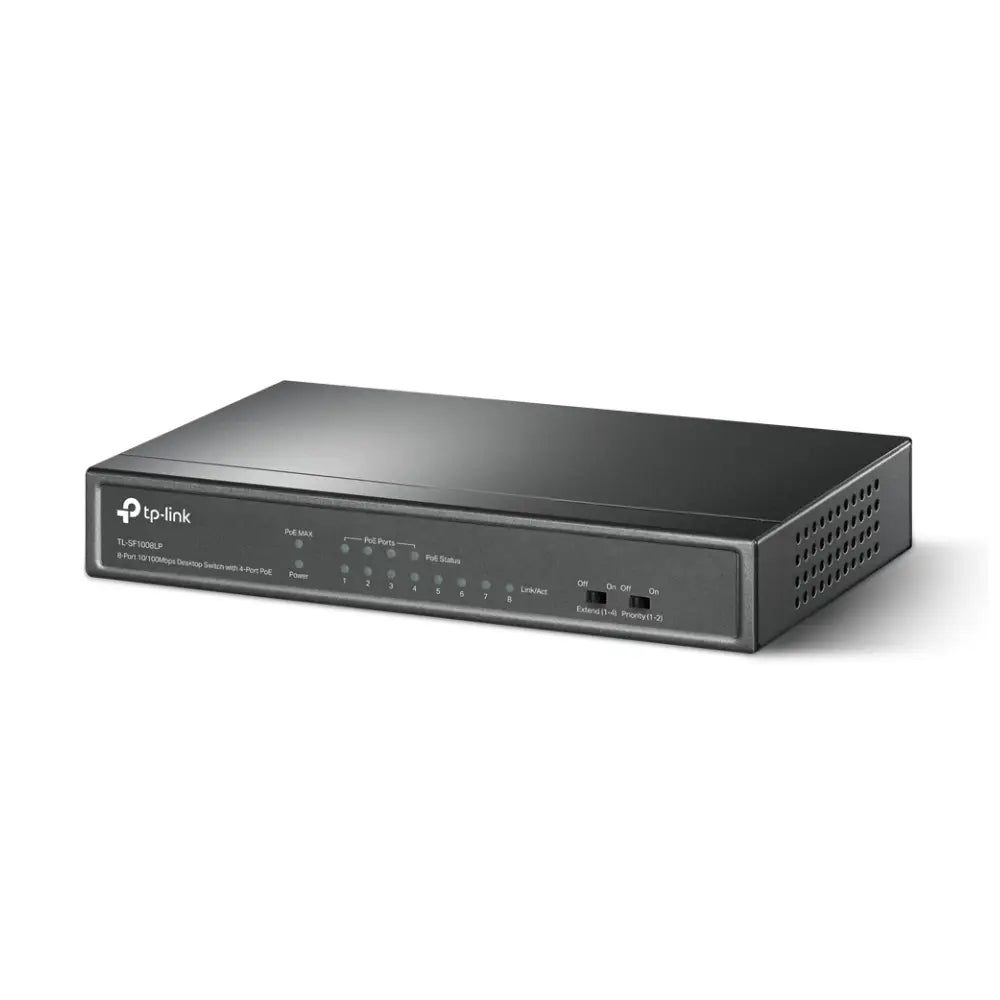

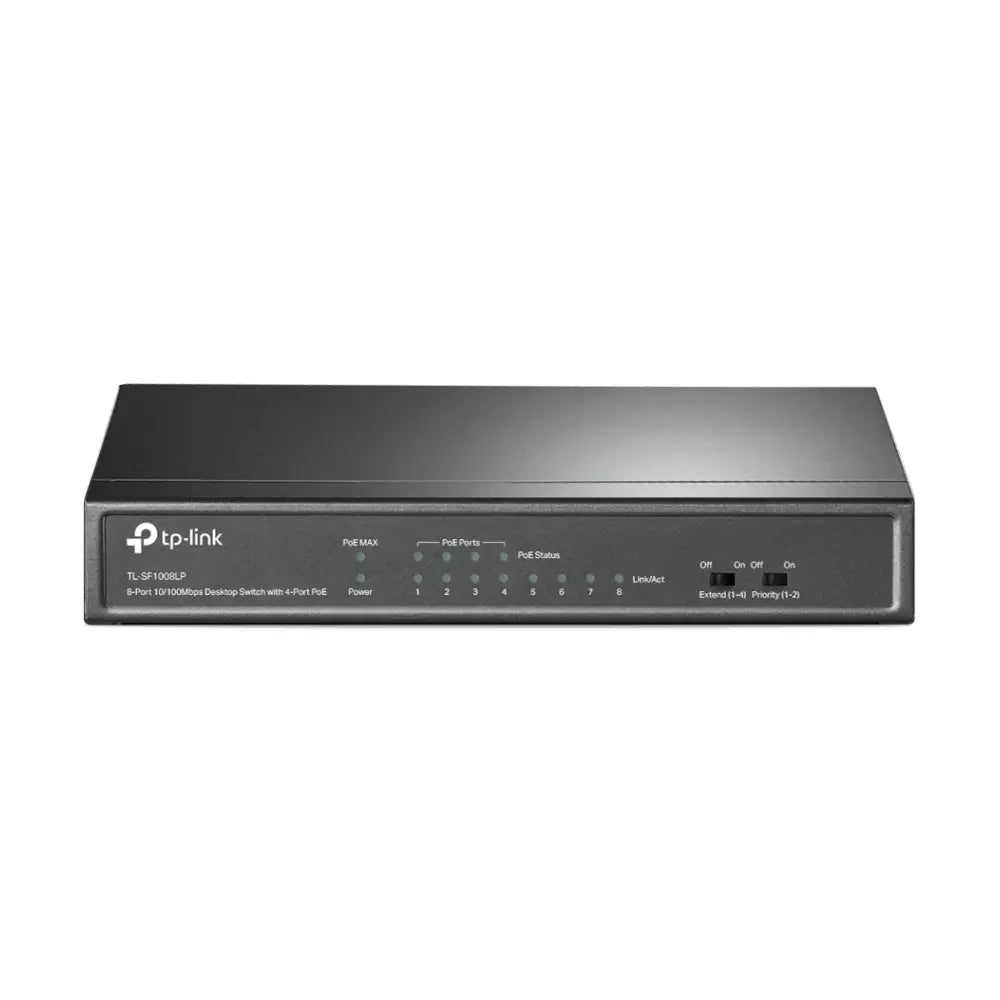

8-Port Desktop Switch with 4 PoE Ports, Extend Mode and Priority Control
The TP-Link TL-SF1008LP is a compact, plug-and-play unmanaged desktop switch with four 802.3af PoE ports, a 41W total power budget, and Extend Mode for cable runs up to 250m. With Priority Mode for latency-sensitive devices and a completely fanless design, it's a practical, low-cost solution for small CCTV installations, IP phone deployments, and wireless access point setups in homes, small offices, and retail environments across Australia.
Key Features
-

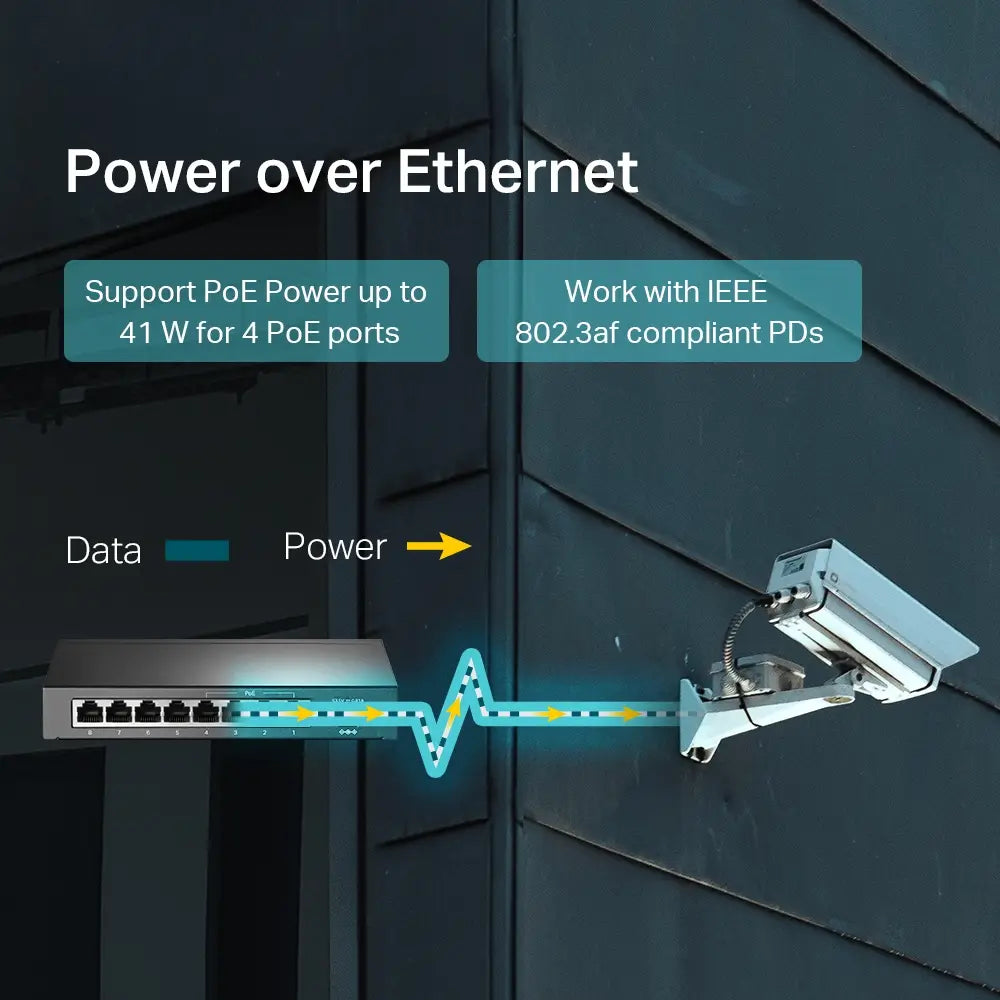

4× PoE Ports (802.3af, Ports 1–4): Power IP cameras, access points, VoIP phones, and other 802.3af-compliant devices without separate power adapters — data and power over a single Ethernet cable.
-
41W Total PoE Budget: Shared across all four PoE ports — sufficient for most small deployments with standard 802.3af devices.
-
8× 10/100Mbps RJ45 Ports: Four PoE-enabled ports (1–4) plus four standard ports (5–8) for connecting non-PoE devices such as PCs, NVRs, and routers.
-
Extend Mode (up to 250m): Pressing the Extend Mode button reduces port speed to 10Mbps and extends the maximum cable distance from 100m to 250m on ports 1–4 — ideal for cameras positioned far from the switch.
-
Priority Mode (Ports 1–2): Prioritises traffic on ports 1 and 2 to guarantee consistent performance for latency-sensitive devices such as IP cameras and VoIP phones.
-
Plug & Play: No configuration, software, or management interface required — Extend Mode and Priority Mode are toggled via physical buttons on the unit.
-
Fanless & Silent: Completely silent operation — suitable for offices, reception areas, and home installations.
-
Physical Security Lock: Kensington-style lock slot for securing the unit in shared or public spaces.
-
Compact Form Factor: Small desktop footprint (171 × 98 × 27mm) fits easily on a desk, shelf, or inside a cabinet.
Common Use Cases
- Powering 1–4 IP security cameras in small CCTV systems
- Connecting and powering wireless access points in small offices or retail stores
- VoIP phone deployments in reception areas or small teams
- Extending camera cable runs beyond the standard 100m Ethernet limit using Extend Mode
- Home network expansion with PoE device support
- Replacing multiple PoE injectors with a single, clean 4-port solution
Technical Specifications
| Model |
TL-SF1008LP |
| Total Ports |
8× 10/100Mbps RJ45 |
| PoE Ports |
4× (Ports 1–4), IEEE 802.3af |
| Total PoE Budget |
41W |
| Switching Capacity |
1.6 Gbps |
| MAC Address Table |
2K |
| Transmission Method |
Store-and-Forward |
| Extend Mode Range |
Up to 250m at 10Mbps (Ports 1–4) |
| Priority Mode |
Ports 1–2 (high priority) |
| Fan |
Fanless (silent) |
| Physical Security Lock |
Yes |
| Power Supply |
External adapter — 53.5V DC / 0.81A |
| Max Power Consumption |
2.2W (no PD) / 47.1W (full PoE load) |
| Dimensions (W × D × H) |
171 × 98 × 27mm |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10–90% RH (non-condensing) |
| Certifications |
FCC, CE, RoHS |
| In the Box |
TL-SF1008LP, Power Adapter, Installation Guide |
Frequently Asked Questions
What is the difference between the TL-SF1008LP and the TL-SF1005LP?
The TL-SF1008LP has 8 total ports (4 PoE + 4 standard) compared to the TL-SF1005LP's 5 total ports (4 PoE + 1 standard). Both share the same 41W PoE budget, Extend Mode, and Priority Mode features. Choose the TL-SF1008LP if you need more non-PoE ports for connecting additional devices such as a PC, NVR, or router alongside your PoE cameras.
Is the TL-SF1008LP managed or unmanaged?
It is an unmanaged switch. There is no web interface, app, or software required — it operates automatically with no configuration needed. Extend Mode and Priority Mode are toggled via physical buttons on the unit.
What is the maximum PoE power per port?
Each PoE port supports up to 15.4W (IEEE 802.3af standard). The total shared PoE budget across all four ports is 41W, so plan your device load accordingly. For example, four cameras drawing 10W each would use 40W — just within the 41W budget.
Can I use it with 802.3at (PoE+) devices?
The TL-SF1008LP supports 802.3af only (up to 15.4W per port). It is not compatible with 802.3at PoE+ devices that require more than 15.4W. For PoE+ devices, consider the TL-SF1009P (65W, 8 PoE+ ports) or TL-SG1210MP (123W, 8 PoE+ Gigabit ports).
How does Extend Mode work?
Pressing the Extend Mode button reduces port speed to 10Mbps on ports 1–4 and extends the maximum cable distance from 100m to 250m. This is particularly useful for IP cameras installed at the perimeter of a large property where running a new cable closer to the switch is impractical.
What is the difference between the TL-SF1008LP and the TL-SF1009P?
The TL-SF1009P has 9 ports with 8 PoE+ ports (802.3at, up to 30W per port) and a 65W total budget, plus Isolation Mode for client traffic separation. The TL-SF1008LP has 8 ports with 4 PoE ports (802.3af, up to 15.4W per port) and a 41W budget. Choose the TL-SF1009P if you need more PoE ports, higher per-port power, or client isolation; choose the TL-SF1008LP for a simpler, lower-cost 4-port PoE solution.
