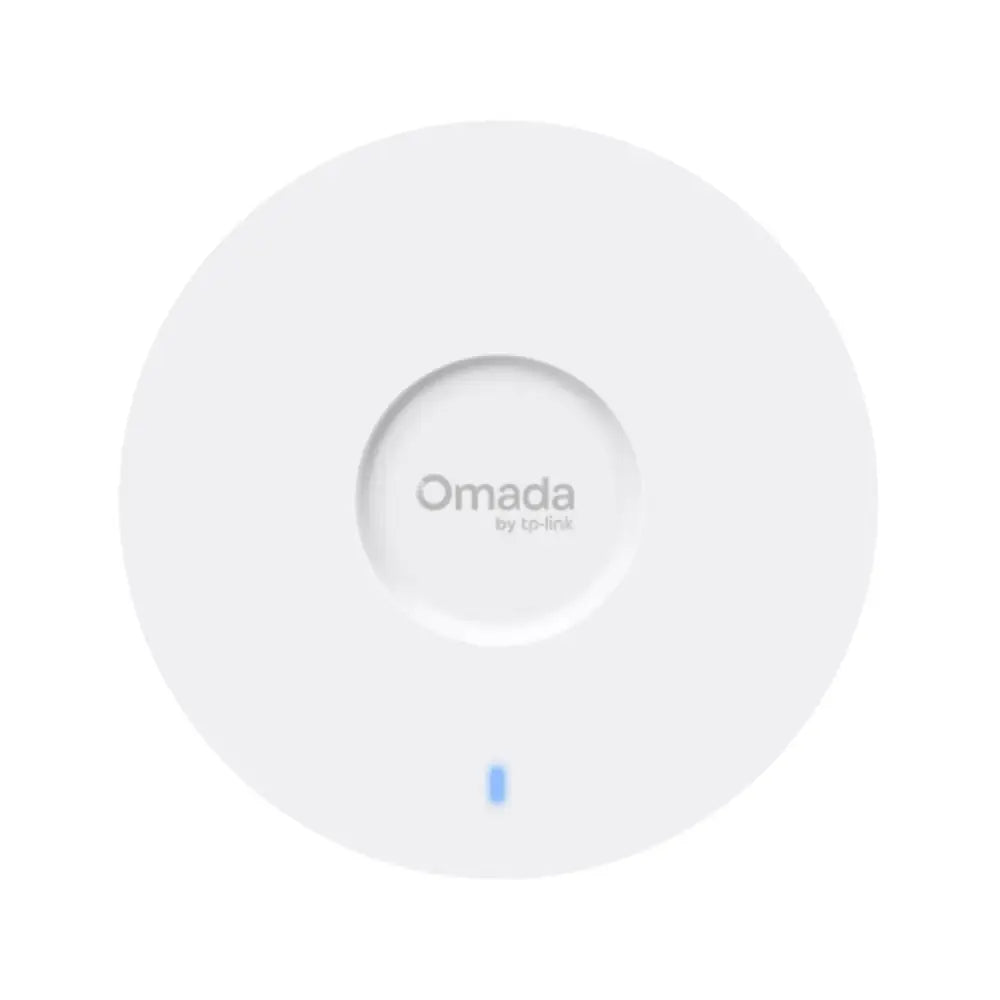

TP-Link Omada EAP653 AX3000 Ceiling Mount Wi-Fi 6 Access Point
Overview
The TP-Link Omada EAP653 delivers enterprise-grade Wi-Fi 6 (802.11ax) performance in a sleek ceiling-mount form factor. Designed for high-density commercial and business environments across Australia, it provides fast, reliable wireless connectivity for offices, hotels, schools, and retail spaces — managed seamlessly through the Omada SDN platform.
Description
Built on the latest Wi-Fi 6 standard, the EAP653 offers combined speeds of up to 3000 Mbps across dual bands — 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. With support for OFDMA, MU-MIMO, and BSS Colouring, it handles more simultaneous connections with less interference, making it the ideal choice for busy wireless environments. The EAP653 integrates into the Omada Software Defined Networking (SDN) ecosystem, enabling centralised cloud or on-premises management of your entire network from a single dashboard.
Key Features
- Wi-Fi 6 (802.11ax) dual-band — up to 3000 Mbps aggregate throughput
- 2.4 GHz: 574 Mbps | 5 GHz: 2402 Mbps
- 4× internal antennas with 2×2 MU-MIMO on both bands
- OFDMA for improved efficiency in high-density deployments
- BSS Colouring to reduce co-channel interference
- Seamless roaming with 802.11r/k/v for uninterrupted connectivity
- Omada SDN — cloud, on-premises, or standalone management
- Powered via 802.3at PoE+ (no power adapter required)
- 1× Gigabit PoE+ uplink port
- Band steering, airtime fairness, and beamforming
- WPA3 encryption for enhanced wireless security
- Supports up to 64 SSIDs (16 per band)

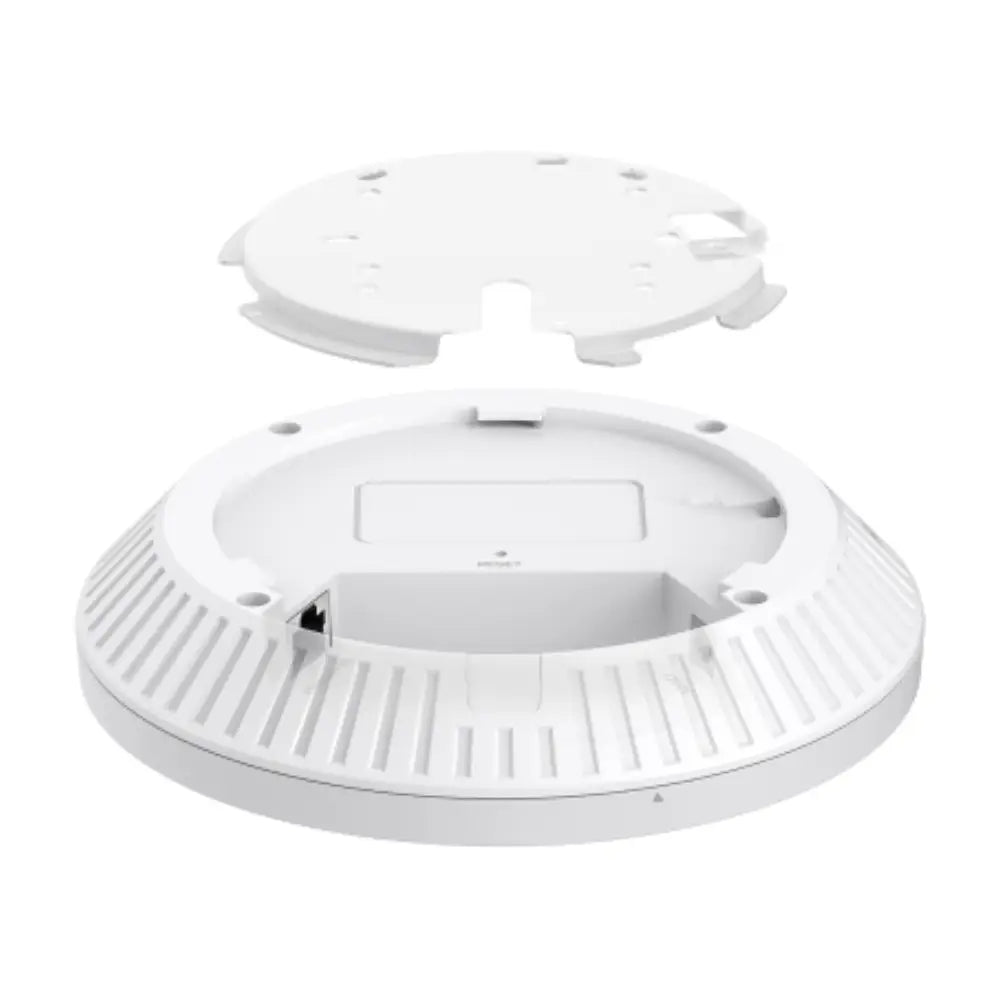

- Ceiling-mount design with included mounting kit
Use Cases
-
Commercial offices: Deliver fast, stable Wi-Fi across open-plan workspaces and meeting rooms
-
Hotels & hospitality: Provide reliable guest Wi-Fi with VLAN segmentation and bandwidth control
-
Schools & universities: Support high-density student device environments with OFDMA efficiency
-
Retail & showrooms: Enable seamless roaming across large floor areas
-
Healthcare facilities: Maintain secure, uninterrupted connectivity for staff and patient devices
-
Warehouses & logistics: Extend reliable coverage in large open spaces
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Frequency Bands |
2.4 GHz & 5 GHz (Dual-Band) |
| Max Speed |
574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz) = 3000 Mbps |
| Antennas |
4× internal omnidirectional antennas |
| MIMO |
2×2 MU-MIMO (2.4 GHz & 5 GHz) |
| Ethernet Port |
1× Gigabit PoE+ (802.3at) uplink |
| Power Supply |
802.3at PoE+ (30W) — PoE injector not included |
| Max Power Consumption |
15.4 W |
| SSIDs |
Up to 64 (16 per band) |
| Security |
WPA3/WPA2/WPA/WEP, 802.1X |
| Management |
Omada Cloud, Omada Software Controller, Standalone |
| Mounting |
Ceiling mount (kit included) |
| Dimensions |
Ø197.6 × 36.4 mm |
| Weight |
395 g |
| Operating Temperature |
0°C to 40°C |
| Certifications |
CE, FCC, RoHS |
Official Videos
Watch the official TP-Link Omada EAP653 overview and setup guide:
View TP-Link Omada EAP653 Videos on YouTube
Recommended Accessories
-
TP-Link TL-SG2210P — 8-Port Gigabit Smart Switch with 8-Port PoE+ (powers the EAP653)
-
TP-Link Omada OC200 — Hardware Controller for on-premises Omada SDN management
-
TP-Link Omada OC300 — Advanced hardware controller for larger deployments
-
TP-Link TL-POE160S — PoE+ Injector (if a PoE switch is not available)
-
TP-Link Omada ER7206 — Multi-WAN VPN Router for full Omada SDN stack
Downloads
Frequently Asked Questions
Does the EAP653 require a controller to operate?
No. The EAP653 can operate in standalone mode without a controller. However, for centralised management of multiple access points, the Omada Software Controller (free), OC200, or OC300 hardware controller is recommended.
What PoE standard does the EAP653 require?
The EAP653 requires 802.3at PoE+ (up to 30W). A PoE+ capable switch or injector is needed — a standard 802.3af PoE switch may not provide sufficient power.
How many devices can the EAP653 support simultaneously?
The EAP653 supports up to 574 client associations. In practice, optimal performance is achieved with 50–80 active concurrent clients depending on application type and bandwidth requirements.
Is the EAP653 compatible with other Omada access points?
Yes. The EAP653 integrates fully with the Omada SDN ecosystem and can be managed alongside other Omada APs, switches, and routers from a single controller interface.
Does the EAP653 support seamless roaming?
Yes. It supports 802.11r (Fast BSS Transition), 802.11k (Neighbour Reports), and 802.11v (BSS Transition Management) for seamless roaming between access points — ideal for VoIP and video applications.
Is the EAP653 suitable for outdoor use?
No. The EAP653 is designed for indoor ceiling-mount installation only. For outdoor coverage, consider the TP-Link Omada EAP620 HD Outdoor or similar weatherproof models.
