Description
Seamless Wi-Fi 6 Connectivity with Built-In GPON — All in One Desktop Unit

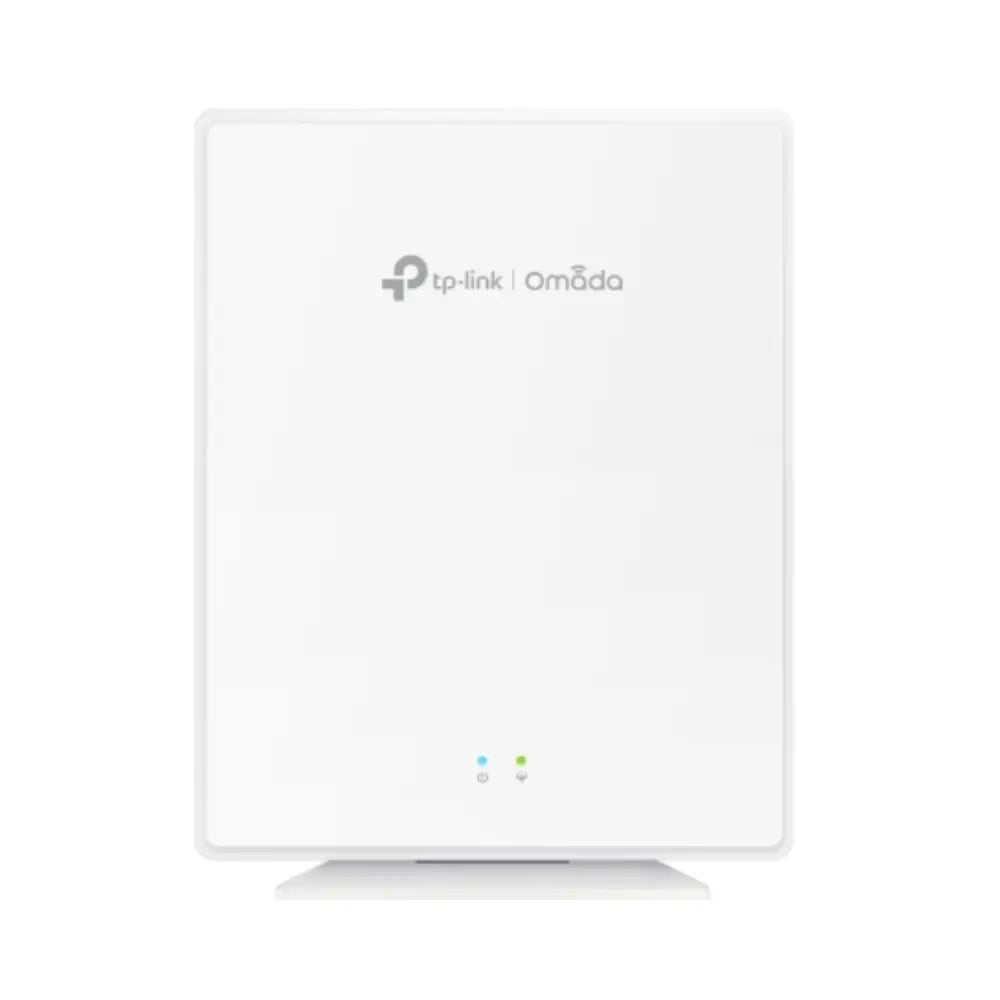

The TP-Link Omada EAP610GP is a desktop Wi-Fi 6 (802.11ax) access point with an integrated GPON ONU, purpose-built for small-to-medium businesses, multi-dwelling units (MDUs), hotels, and service providers looking to simplify their network infrastructure. By combining fibre termination and wireless access into a single compact device, the EAP610GP eliminates the need for a separate ONT — reducing rack space, cabling, and deployment costs.
Key Features
-
Wi-Fi 6 AX1800 — Dual-band wireless with up to 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz for faster, more efficient connectivity
-
Built-in GPON ONU — Integrated fibre termination removes the need for a separate ONT device, simplifying fibre-to-the-room deployments
-
OFDMA & MU-MIMO — Serves multiple clients simultaneously with reduced latency, ideal for high-density environments
-
BSS Colouring — Minimises co-channel interference in dense wireless deployments
-
PoE In (802.3at) — Powered via PoE for flexible, cable-efficient installation
-
Omada SDN Compatible — Centrally managed via Omada Hardware Controller, Software Controller, or Omada Cloud
-
Up to 4 SSIDs — Segment traffic for staff, guests, and IoT devices with ease
-
WPA3 Security — Latest wireless encryption standard for enhanced network protection
-
Compact Desktop Form Factor — Discreet, low-profile design suitable for desks, reception areas, and hotel rooms
Ideal Use Cases
-
Hotels & Hospitality — Deploy per-room Wi-Fi 6 with fibre termination in a single unit, reducing in-room hardware clutter
-
Multi-Dwelling Units (MDUs) — Simplify per-apartment fibre and Wi-Fi rollouts for residential developers and ISPs
-
Small Offices & Retail — Provide fast, reliable wireless without a separate modem or ONT
-
Service Providers — Streamline CPE deployments with an all-in-one GPON + Wi-Fi 6 solution managed via Omada SDN
Technical Specifications
| Specification |
Detail |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6) |
| Wireless Speed |
AX1800 — 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) |
| GPON Interface |
SC/APC optical connector, ITU-T G.984 compliant |
| Ethernet Ports |
1× Gigabit WAN/LAN, 1× Gigabit LAN (PoE In) |
| PoE Input |
802.3at (PoE+), up to 30W |
| Antennas |
2× internal antennas (2.4 GHz: 3 dBi, 5 GHz: 3 dBi) |
| Max SSIDs |
Up to 4 SSIDs |
| Security |
WPA3/WPA2/WPA, 802.1X, VLAN |
| Management |
Omada App, Omada Software Controller, Hardware Controller, Cloud |
| Mounting |
Desktop (stand included) |
| Dimensions |
158 × 158 × 36.8 mm |
| Operating Temperature |
0°C to 40°C |
| Certifications |
CE, RoHS |
Frequently Asked Questions
Does the EAP610GP require a separate ONT or modem?
No. The EAP610GP has a built-in GPON ONU, so it connects directly to your fibre network via an SC/APC optical connector — no separate ONT required.
Can the EAP610GP be managed remotely?
Yes. It is fully compatible with the Omada SDN platform, which supports centralised management via the Omada Hardware Controller, Software Controller, or Omada Cloud — accessible from anywhere.
Is the EAP610GP suitable for hotel room deployments?
Absolutely. Its compact desktop form factor and combined GPON + Wi-Fi 6 functionality make it an excellent choice for per-room hotel deployments, reducing the number of devices and cabling required in each room.
What PoE standard does it support?
The EAP610GP supports 802.3at (PoE+) input, requiring a compatible PoE+ switch or injector to power the device.
How many wireless clients can it support?
Thanks to Wi-Fi 6 technologies including OFDMA and MU-MIMO, the EAP610GP can efficiently handle a high number of concurrent clients — making it well-suited for dense environments like hotel floors or open-plan offices.
Does it support guest Wi-Fi?
Yes. With support for up to 4 SSIDs and VLAN segmentation, you can easily create separate networks for staff, guests, and IoT devices.
