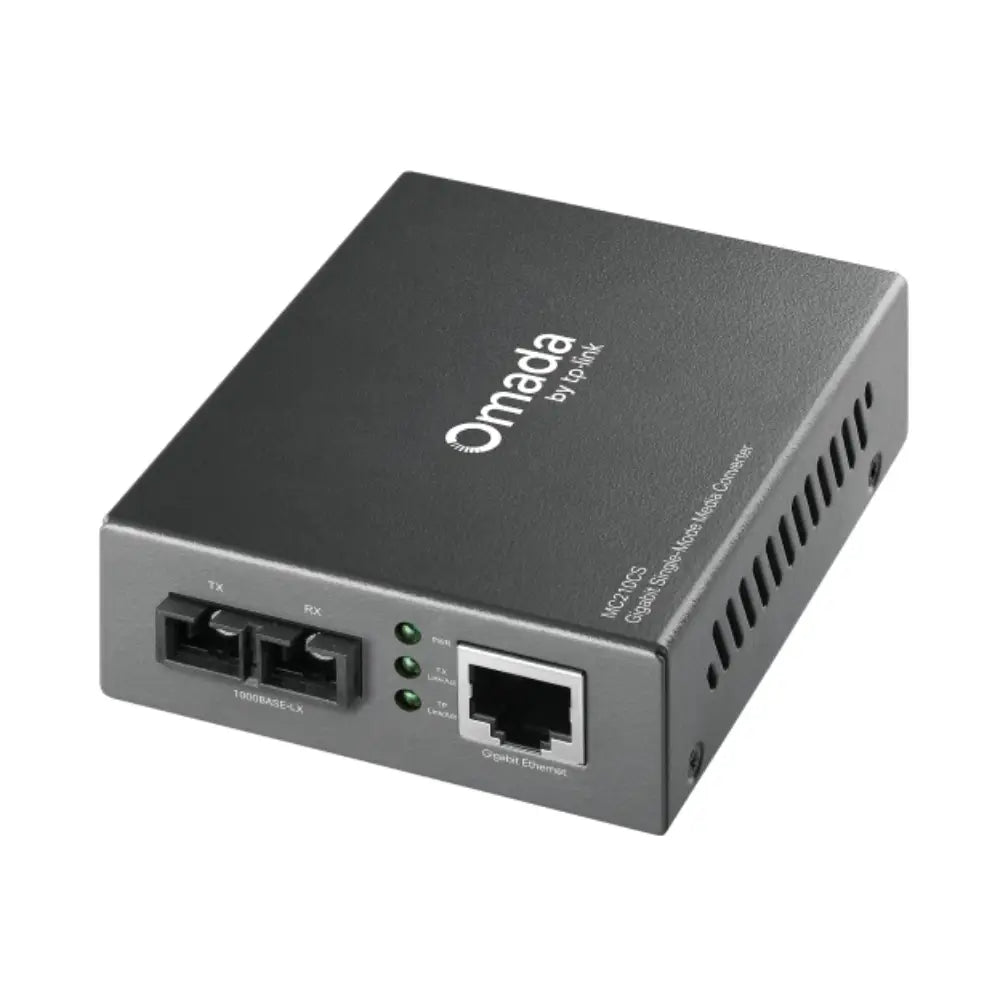

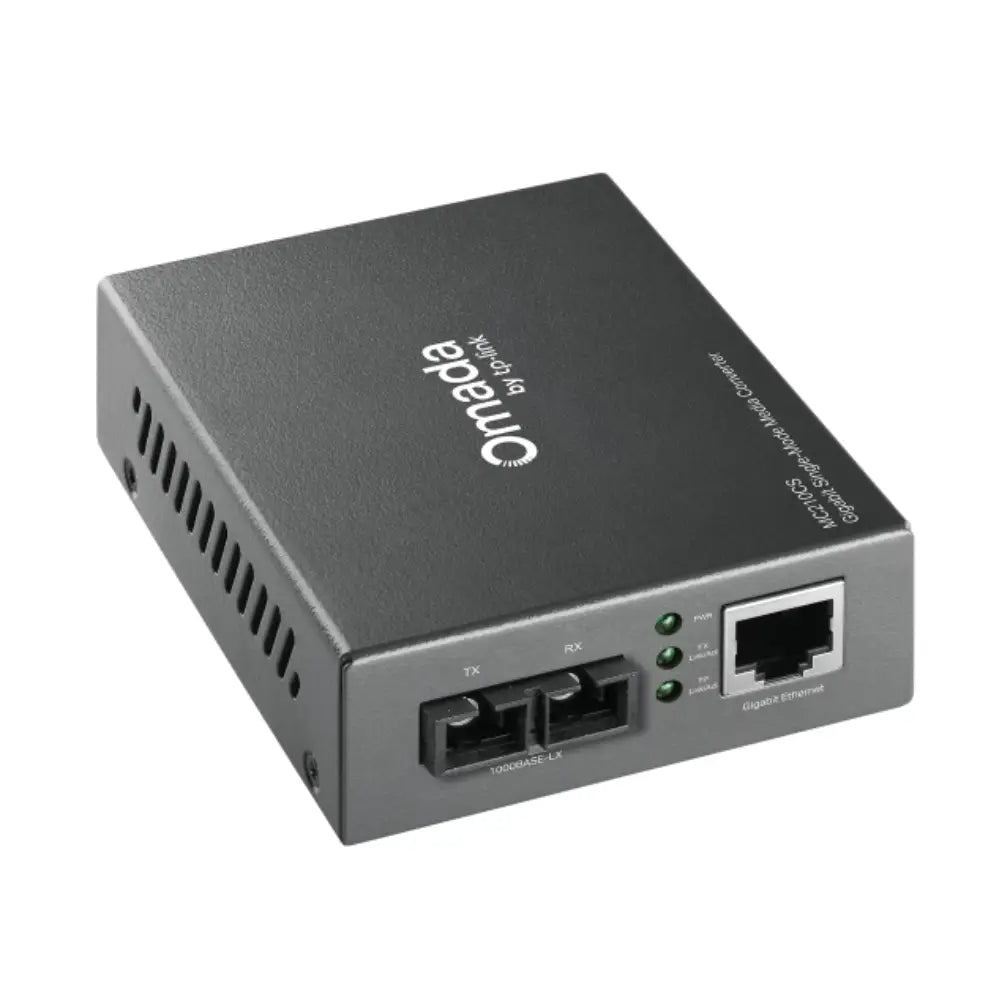

TP-Link MC210CS Gigabit Single-Mode Media Converter
The TP-Link MC210CS converts Gigabit Ethernet copper (RJ45) to 1000BASE-LX single-mode fibre (SC connector) — and back again — extending your network up to 15km over a single-mode fibre run. It operates at full wire speed in full-duplex mode and works as a standalone desktop unit or slots into TP-Link’s 19-inch media converter chassis for rack-based deployments.
Key Features
- Converts 1000BASE-T copper (RJ45) to 1000BASE-LX/LH single-mode fibre (SC/UPC) and vice versa
- Extends fibre distance up to 15km over 9/125μm single-mode fibre
- 1000Mbps full-duplex operation on both TX (copper) and FX (fibre) ports
- 1310nm wavelength on both transmit and receive
- Auto MDI/MDIX on RJ45 port — no crossover cables required
- Force/Auto transfer mode switch for the FX fibre port
- Standalone desktop use or compatible with TP-Link 19-inch chassis (no chassis required)
- Front-panel LED indicators: PWR, LINK, RX for at-a-glance status monitoring
- IEEE 802.3ab, 802.3z, and 802.3x compliant
- FCC, CE, and RoHS certified
Use Cases
-
Building-to-building links — bridge copper LAN infrastructure between separate structures over existing single-mode fibre runs up to 15km
-
Security and surveillance networks — extend Gigabit connectivity from a central NVR or switch to remote camera clusters across a campus or industrial site
-
ISP and telco last-mile — convert fibre feeds to copper for customer-premises equipment where fibre termination is not available
-
Rack deployments — slot into a TP-Link chassis for high-density, managed media conversion in a comms room or data centre
Specifications
| Specification |
Detail |
| Model |
MC210CS |
| Standards |
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Copper Port |
1 x 1000M RJ45 (Auto MDI/MDIX) |
| Fibre Port |
1 x 1000M SC/UPC |
| Wavelength |
1310nm (TX and RX) |
| Fibre Type |
1000BASE-FX Single-Mode Fibre (SMF) |
| Max. Fibre Distance |
15km |
| Max. Copper Distance |
100m (Cat5/5e UTP or 100Ω STP) |
| Transfer Mode |
Full Duplex, Flow Control (IEEE 802.3x) |
| LED Indicators |
PWR, LINK, RX |
| Power Supply |
External power adapter |
| Max. Power Consumption |
5.5W |
| Dimensions (W × D × H) |
94.5 × 73.0 × 27.0mm |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-40–70°C |
| Operating Humidity |
10–90% RH, Non-Condensing |
| Certifications |
FCC, CE, RoHS |
| SKU / Barcode |
MC210CS / 1210002611053 |
| Weight |
0.36kg |
Frequently Asked Questions
What type of fibre cable does the MC210CS require?
The MC210CS requires 9/125μm single-mode fibre (SMF) with SC/UPC connectors. It is not compatible with multi-mode fibre or LC-terminated cables without an adapter.
Does it need a chassis, or can it run standalone?
It runs perfectly as a standalone desktop unit using the included external power adapter. It can also be installed into a TP-Link 19-inch media converter chassis for rack-based deployments — no chassis is required for standalone use.
What is the maximum copper cable length?
The RJ45 copper port supports up to 100m using Cat5, Cat5e UTP, or 100Ω STP cabling — standard for Gigabit Ethernet copper runs.
Can I use the MC210CS with any Gigabit switch?
Yes. The RJ45 port is standard 1000BASE-T and connects to any Gigabit Ethernet switch or NIC. Auto MDI/MDIX means straight-through or crossover cables both work.
What does the Force/Auto switch on the FX port do?
The FX port has a physical switch to set the fibre link to Auto-negotiation or Force mode. Force mode is useful when connecting to devices that do not support auto-negotiation on the fibre side, ensuring a stable link is established.
Does it ship Australia-wide?
Yes. CCTV Guru ships the MC210CS Australia-wide from local stock.
