Description

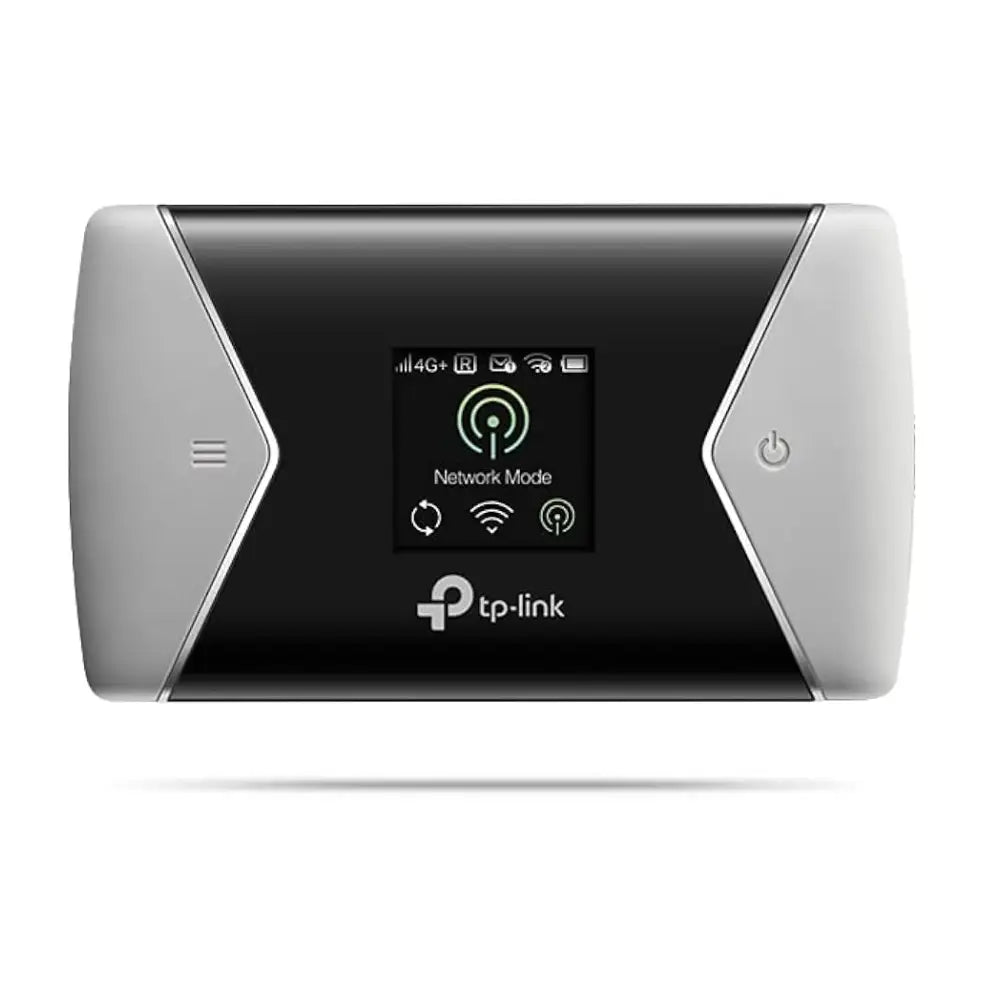

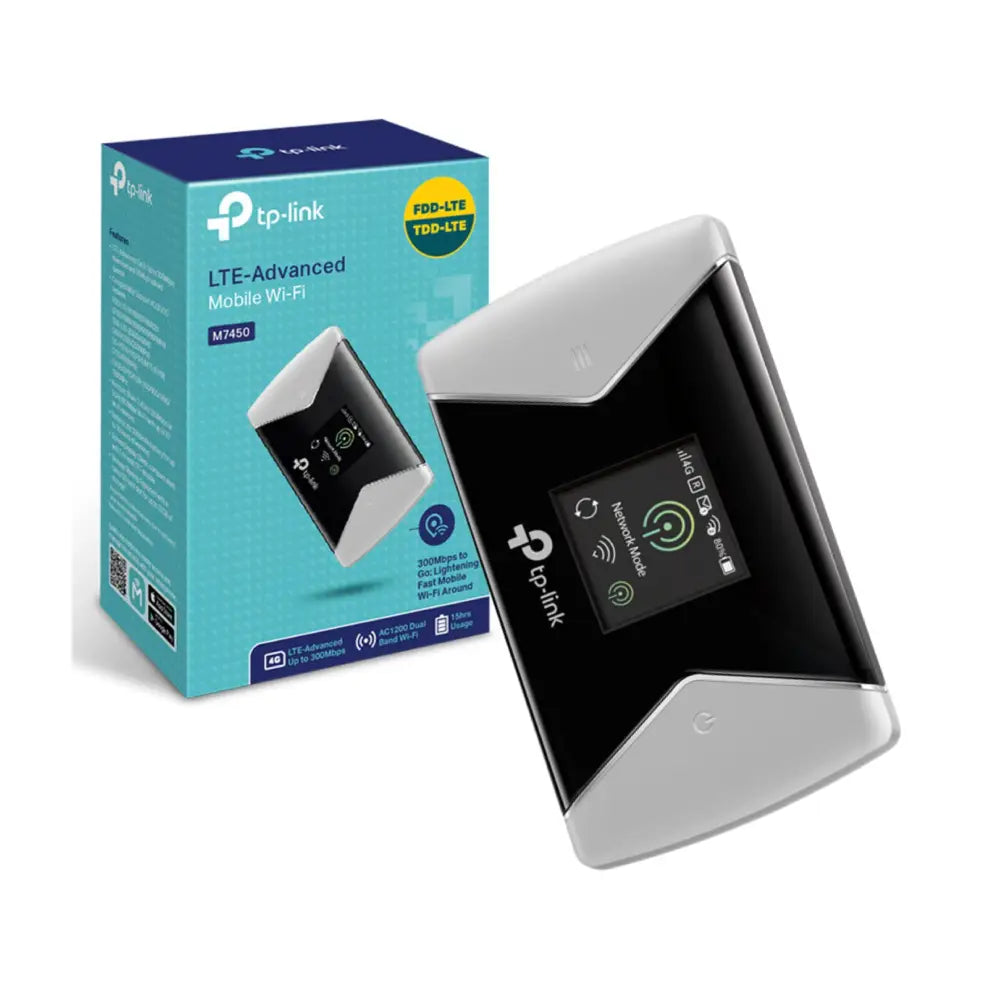

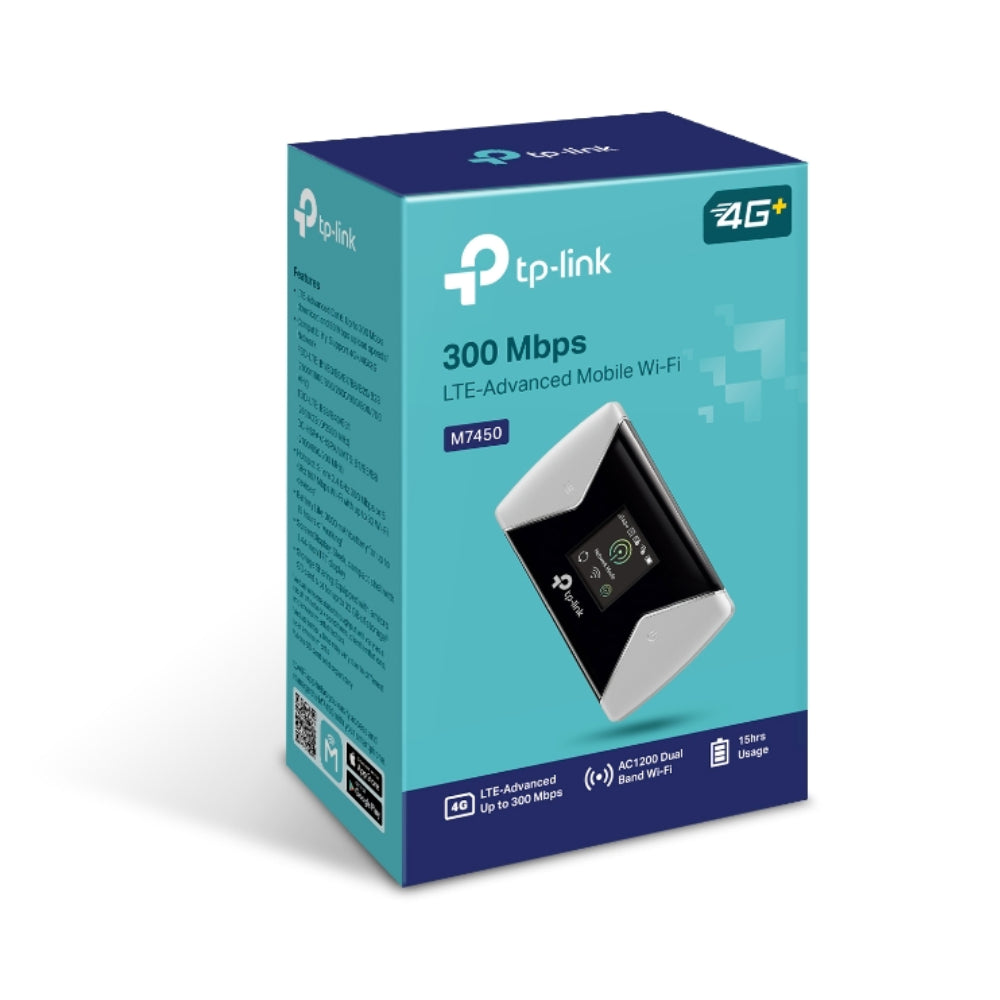

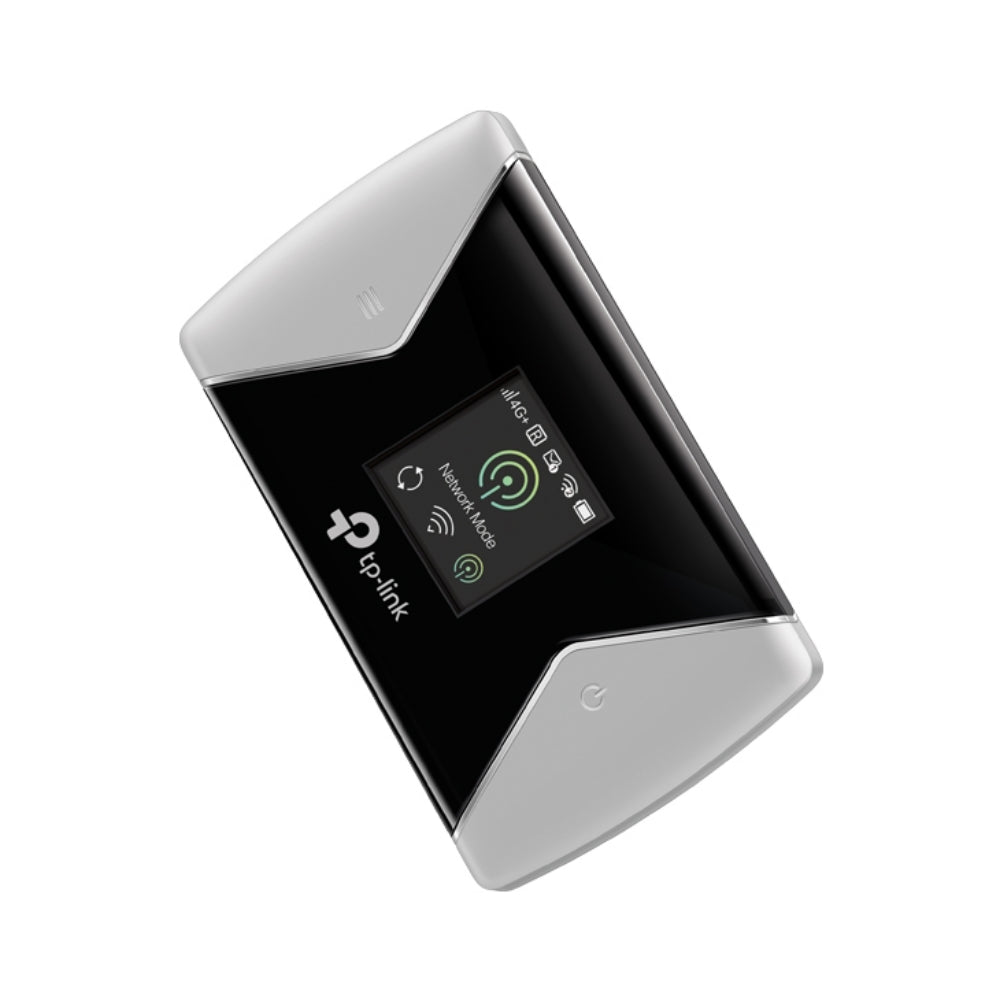

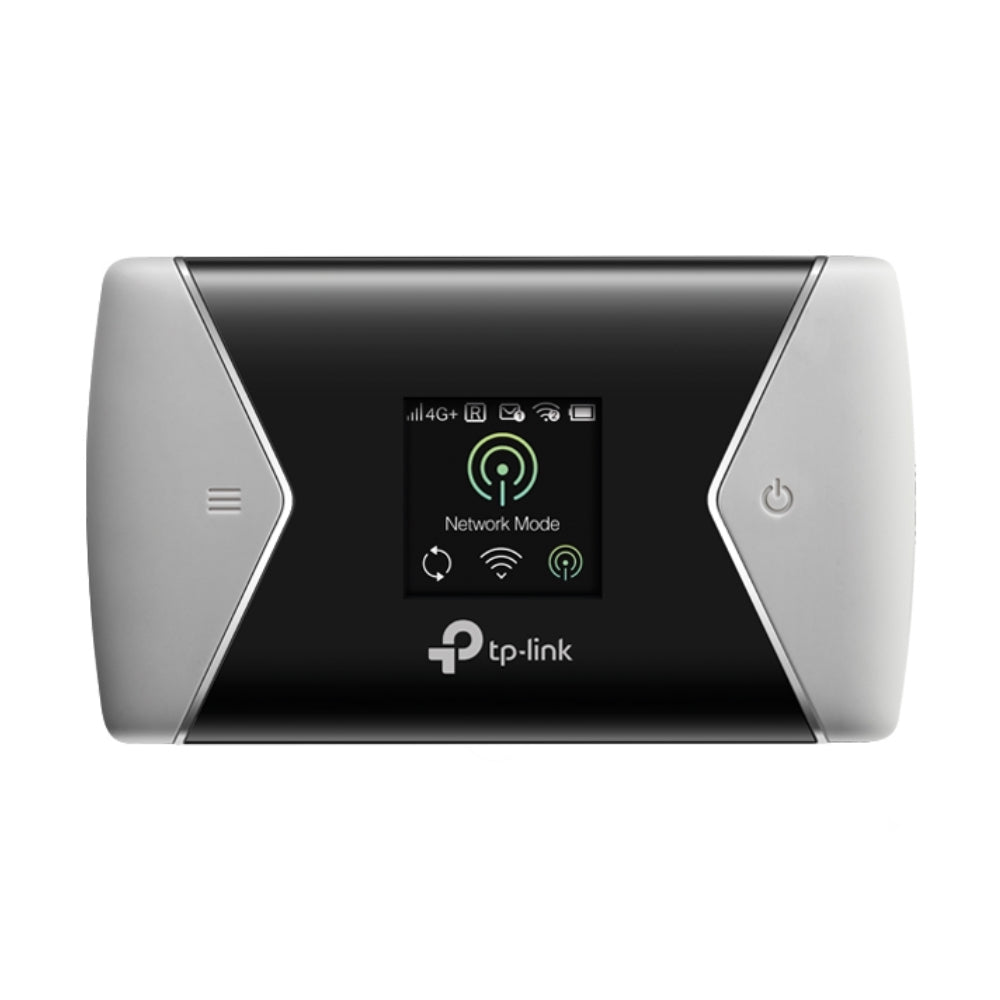

TP-Link M7450 – LTE-Advanced 4G Mobile Wi-Fi Hotspot AC1200 Dual Band
The TP-Link M7450 is a pocket-sized LTE-Advanced Category 6 mobile Wi-Fi hotspot that delivers fast 4G internet to up to 32 devices simultaneously — wherever there’s mobile coverage. With AC1200 dual band Wi-Fi, a 3000mAh battery rated for 15+ hours of use, a microSD card slot for shared storage, and a 1.44-inch display for at-a-glance status, it’s a capable mobile connectivity solution for travellers, field technicians, remote workers, and temporary site deployments across Australia.
Key Features
-
LTE-Advanced Cat6: Download speeds up to 300Mbps and upload speeds up to 50Mbps on compatible 4G networks — significantly faster than standard 4G.
-
AC1200 Dual Band Wi-Fi: 300Mbps on 2.4GHz or 867Mbps on 5GHz (IEEE 802.11a/b/g/n/ac) for flexible device connectivity.
-
Connects Up to 32 Devices: Share your 4G connection with smartphones, tablets, laptops, and IoT devices simultaneously.
-
3000mAh Battery — 15+ Hours: All-day battery life for extended use in the field, on site, or while travelling.
-
MicroSD Card Slot: Supports up to 32GB microSD cards for shared file storage accessible to all connected devices over Wi-Fi.
-
1.44-Inch TFT Display: Shows signal strength, battery level, connected devices, and data usage at a glance — no app required for basic status monitoring.
-
tpMiFi App: Manage settings, monitor data usage, and configure the hotspot from iOS or Android via the free tpMiFi app.
-
Broad Network Band Support: Compatible with FDD-LTE, TDD-LTE, DC-HSPA+, HSPA, UMTS, EDGE, GPRS, and GSM across multiple frequency bands for wide Australian carrier compatibility.
-
Micro SIM Slot: Insert any compatible Australian SIM card (Telstra, Optus, Vodafone, or MVNOs) — nano-to-micro SIM adapter included.
-
Compact & Lightweight: 112.5 × 66.5 × 16mm and just 0.24kg — fits in a shirt pocket or tool bag.
Ideal Use Cases
- Providing internet access for field technicians and security installers on job sites without fixed broadband.
- Temporary site connectivity for construction sites, events, and remote monitoring deployments.
- Travel and remote work requiring reliable 4G internet across multiple devices.
- Backup internet connectivity when fixed broadband is unavailable or fails.
- Sharing files via microSD across a team of devices on a local Wi-Fi network without internet dependency.
- Connecting IP cameras or NVRs to a mobile network for temporary or remote surveillance deployments.
Technical Specifications
| Specification |
Detail |
| Model |
M7450 |
| LTE Category |
Cat6 (LTE-Advanced) |
| Download Speed |
Up to 300Mbps |
| Upload Speed |
Up to 50Mbps |
| FDD-LTE Bands |
B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz) |
| TDD-LTE Bands |
B38/B40/B41 (2600/2300/2500MHz) |
| 3G (UMTS/HSPA) |
DC-HSPA+/HSPA/UMTS: B1/B8 (2100/900MHz) |
| 2G (GSM) |
EDGE/GPRS/GSM: 850/900/1800/1900MHz |
| Wi-Fi Standard |
IEEE 802.11a/b/g/n/ac (dual band) |
| Wi-Fi Speed (2.4GHz) |
Up to 300Mbps |
| Wi-Fi Speed (5GHz) |
Up to 867Mbps |
| Max Connected Devices |
32 |
| SIM Slot |
1 × Micro SIM (nano-to-micro adapter included) |
| MicroSD Slot |
Up to 32GB |
| Battery |
3000mAh rechargeable (15+ hours) |
| Display |
1.44-inch TFT |
| Power / Charging |
Micro USB |
| Wireless Security |
WPA-PSK / WPA2-PSK, MAC filtering |
| Management App |
tpMiFi (iOS & Android) |
| Transmit Power |
<20dBm (2.4GHz) / <23dBm (5GHz) |
| Dimensions |
112.5 × 66.5 × 16 mm |
| Weight |
0.24kg |
| Certifications |
CE, RoHS |
| SKU |
M7450 |
| Barcode (EAN) |
1210002604147 |
What’s in the Box
- 1 × M7450 Mobile Wi-Fi Hotspot
- 1 × 3000mAh Rechargeable Battery
- 1 × Micro USB Cable
- 1 × Nano-to-Micro SIM Card Adapter
- Quick Installation Guide
Frequently Asked Questions
Does the M7450 work with Australian carriers?
The M7450 supports a broad range of LTE frequency bands including B1, B3, B7, B8, B20 (FDD-LTE) and B38, B40, B41 (TDD-LTE). Coverage on Australian carriers (Telstra, Optus, Vodafone) depends on which bands each carrier uses in your area. We recommend confirming band compatibility with your carrier before purchasing, particularly for regional or rural areas.
What size SIM card does the M7450 use?
The M7450 uses a Micro SIM card. A nano-to-micro SIM adapter is included in the box if your carrier provides a nano SIM.
How long does the battery last?
TP-Link rates the 3000mAh battery for 15+ hours of continuous use. Actual battery life depends on signal strength, number of connected devices, Wi-Fi band in use, and whether the microSD card is active.
Can I use the M7450 while it’s charging?
Yes. The M7450 can be used while connected to a Micro USB power source, making it suitable for use as a semi-permanent hotspot when plugged into a power bank or USB wall adapter.
How do I manage the hotspot settings?
Settings can be managed via the 1.44-inch on-device display and buttons, through a web browser interface, or via the free tpMiFi app on iOS or Android for more detailed configuration and data usage monitoring.
Can I use the microSD slot without an internet connection?
Yes. The microSD card functions as shared network storage accessible to all Wi-Fi connected devices regardless of whether a SIM card is inserted or mobile data is active.
Is the M7450 suitable for connecting IP cameras on a remote site?
Yes. The M7450 can provide 4G internet connectivity to IP cameras, NVRs, or access control systems on temporary or remote sites where fixed broadband is unavailable. Ensure your 4G data plan supports the required upload bandwidth for your camera stream quality and number of cameras.
