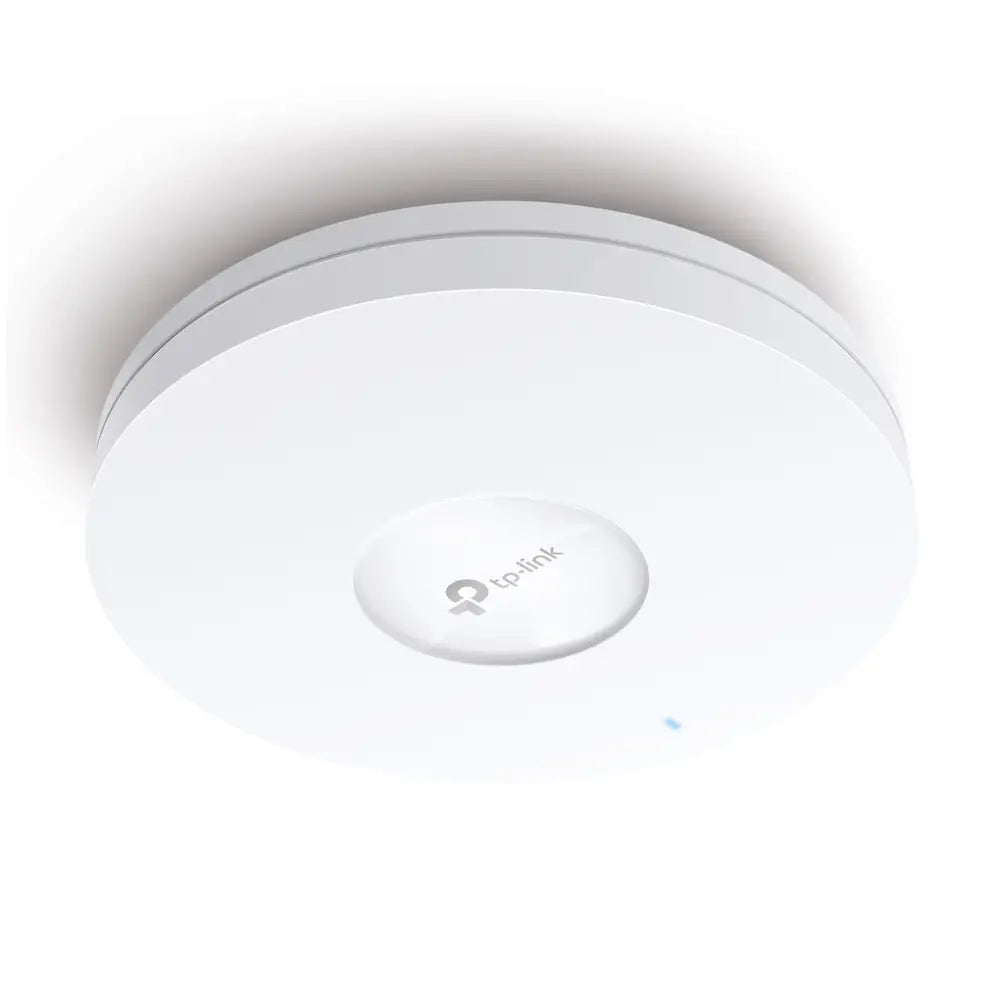

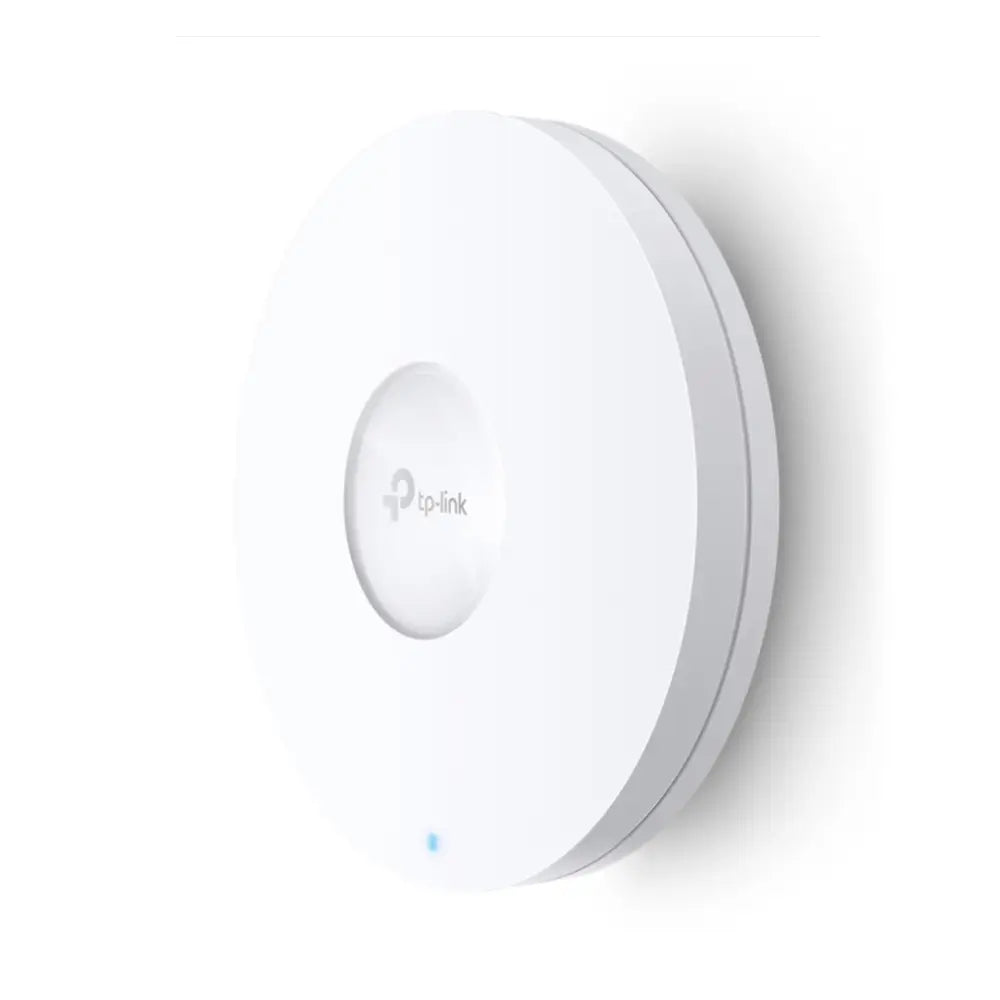

TP-Link EAP620 HD AX1800 Wi-Fi 6 Dual Band Ceiling Mount Access Point
High-Density Wi-Fi 6 for Offices, Schools & Commercial Spaces
The TP-Link EAP620 HD is an AX1800 dual-band Wi-Fi 6 ceiling mount access point designed for high-density commercial environments. With 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, OFDMA, MU-MIMO, and 4× increased client capacity over Wi-Fi 5, it handles large numbers of simultaneous connections without congestion. Powered via PoE+ (802.3at) and fully integrated with the Omada SDN platform, it’s purpose-built for Australian offices, schools, hotels, and retail deployments requiring centralised management and seamless roaming.
Key Features
- AX1800 dual-band Wi-Fi 6 — 1201 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz
- OFDMA & MU-MIMO — 4× increased capacity for simultaneous multi-device connections
- 1024-QAM & 4× longer OFDM symbol — higher throughput and improved range
- Seamless roaming — video streams and voice calls remain uninterrupted as users move between APs
- Band Steering & Load Balancing — automatically distributes clients across bands and APs for optimal performance
- Airtime Fairness — prevents slower clients from degrading performance for faster devices
- Beamforming — focuses signal towards connected clients for improved range and reliability
- Up to 16 SSIDs (8 per band) — segment networks for staff, guests, IoT, and management traffic
- Secure guest network with multiple authentication options — SMS, Facebook Wi-Fi, Voucher, and more
- PoE+ (802.3at) powered — single Ethernet cable for data and power; 12V DC also supported
- Omada SDN integration — Zero-Touch Provisioning (ZTP), centralised cloud management, and intelligent monitoring
- Ceiling or wall mountable — mounting kit included
- Internal omni antennas — 2.4 GHz: 2×4 dBi; 5 GHz: 2×5 dBi
Use Cases
-
Offices & Co-Working Spaces: High-density Wi-Fi 6 handles large numbers of laptops, phones, and IoT devices simultaneously without performance degradation.
-
Schools & Universities: OFDMA and MU-MIMO manage hundreds of student devices per AP; multiple SSIDs segment staff, student, and guest networks.
-
Hotels & Hospitality: Seamless roaming keeps guests connected as they move through the property; voucher and Facebook Wi-Fi authentication simplify guest access.
-
Retail & Shopping Centres: Load balancing and airtime fairness ensure consistent performance across high-traffic areas with mixed device types.
-
Multi-Site Deployments: Omada SDN ZTP and cloud management allow IT teams to deploy and manage multiple sites from a single controller without on-site configuration.
Specifications
| Specification |
Detail |
| Model |
EAP620 HD |
| Wi-Fi Standard |
IEEE 802.11ax/ac/n/g/b/a — AX1800 Dual-Band |
| Wireless Speeds |
1201 Mbps @ 5 GHz + 574 Mbps @ 2.4 GHz |
| Antennas |
Internal omni — 2.4 GHz: 2×4 dBi; 5 GHz: 2×5 dBi |
| Wi-Fi Technologies |
OFDMA, MU-MIMO, 1024-QAM, Beamforming, Band Steering, Airtime Fairness |
| SSIDs |
Up to 16 (8 per band) |

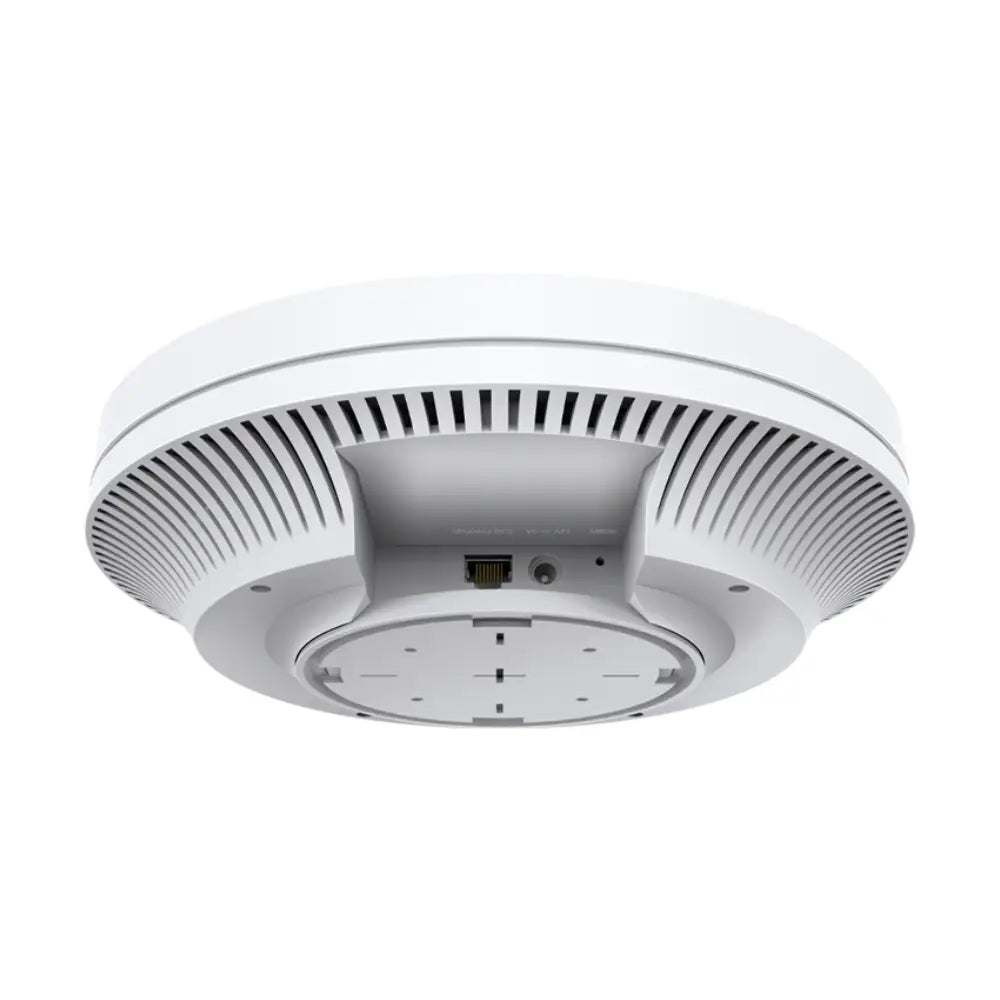

| Ethernet Port |
1 × Gigabit RJ45 (PoE+ input) |
| Power Supply |
802.3at PoE+ or 12V DC |
| Power Consumption |
12 W |
| Mounting |
Ceiling or wall (mounting kit included) |
| Management |
Omada SDN (cloud/hardware/software controller), Omada App, Web UI |
| ZTP |
Zero-Touch Provisioning supported |
| Dimensions (W × D × H) |
243 × 243 × 64 mm |
| Weight |
1.18 kg |
Frequently Asked Questions
Does the EAP620 HD require an Omada Controller to function?
No. The EAP620 HD can operate in standalone mode and be managed via its web UI without any controller. Omada SDN integration — via hardware controller, software controller, or cloud — is optional and enables centralised management of multiple APs, switches, and routers from a single interface.
What PoE standard does the EAP620 HD require?
The EAP620 HD requires 802.3at PoE+ (not standard 802.3af). Ensure your PoE switch or injector supports 802.3at. Compatible TP-Link PoE switches include the TL-SG105PE, TL-SL1311MP, TL-SG2210MP, and TL-SG3210XHP-M2.
How many clients can the EAP620 HD support simultaneously?
The EAP620 HD is designed for high-density environments and supports significantly more simultaneous clients than Wi-Fi 5 APs thanks to OFDMA and MU-MIMO. TP-Link rates it at 4× increased capacity compared to Wi-Fi 5. Practical client capacity depends on application type, bandwidth per client, and RF environment.
What is seamless roaming and how does it work?
Seamless roaming allows a client device to transition between Omada APs on the same network without dropping its connection — even during active video calls or VoIP sessions. The Omada controller coordinates the handoff between APs so the client experiences no interruption as it moves through the coverage area.
Can I set up a separate guest Wi-Fi network on the EAP620 HD?
Yes. The EAP620 HD supports up to 16 SSIDs (8 per band) and includes a dedicated guest network feature with multiple authentication options including SMS, Facebook Wi-Fi, and voucher-based access — ideal for hotels, cafes, and retail environments.
