Description
Long-Range 5GHz Outdoor Wireless for Point-to-Point and Point-to-Multipoint Links
The TP-Link CPE605 is a high-performance 5GHz outdoor Customer Premises Equipment (CPE) designed for long-distance wireless links in demanding outdoor environments. Featuring a 23dBi high-gain directional Cassegrain antenna and TP-Link’s Pharos MAXtream TDMA technology, it delivers reliable, low-latency wireless connectivity for CCTV backhaul, rural internet distribution, and building-to-building links — even in challenging Australian weather conditions.
Key Features
-

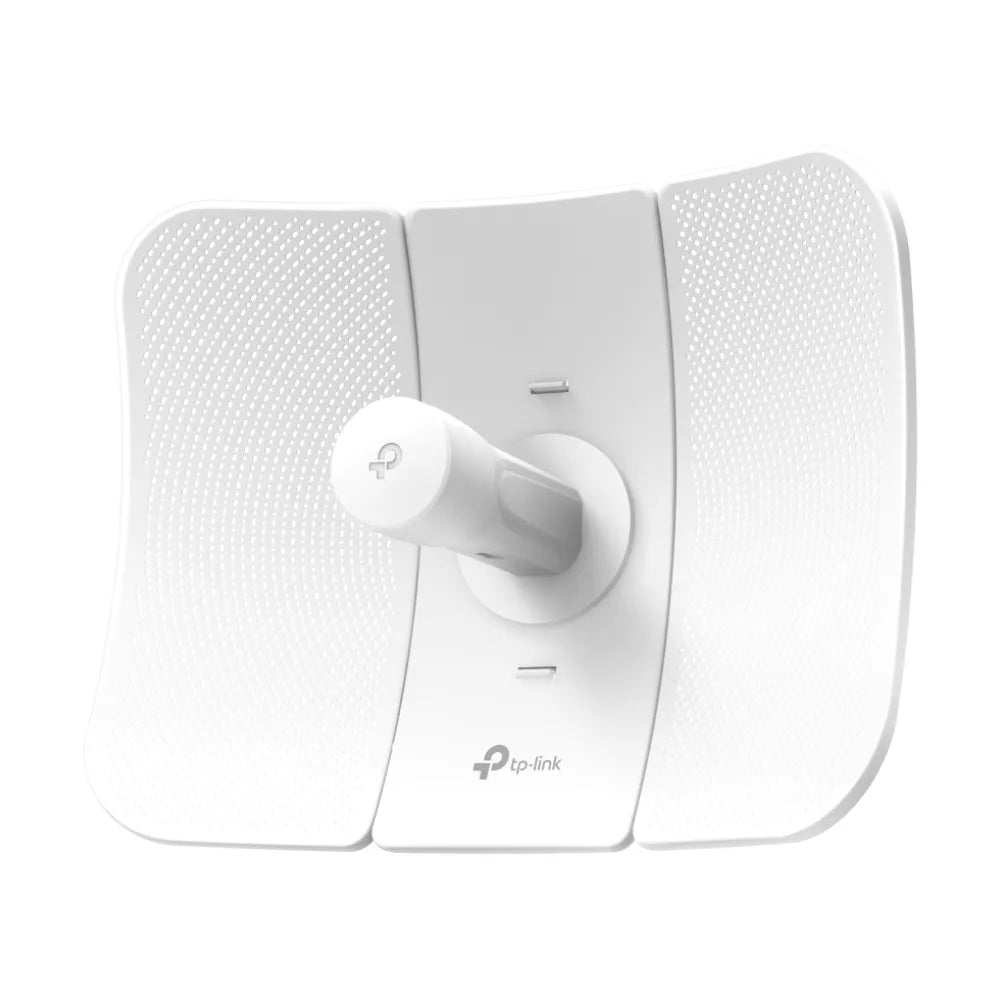

23dBi High-Gain Directional Cassegrain Antenna — excellent beam directivity for long-distance point-to-point and point-to-multipoint links
-
5GHz 150Mbps Wireless — dedicated 5GHz band minimises interference for stable long-range performance
-
Pharos MAXtream TDMA Technology — improves throughput, capacity, and latency in multi-client deployments
-
IP65 Weatherproof Enclosure — dust-tight and water-resistant for permanent outdoor installation in all Australian climates
-
15kV ESD and 6kV Lightning Protection — protects equipment and connected infrastructure from electrical surges
-
Passive PoE Powered — single Ethernet cable carries both data and power for flexible, cable-efficient installation
-

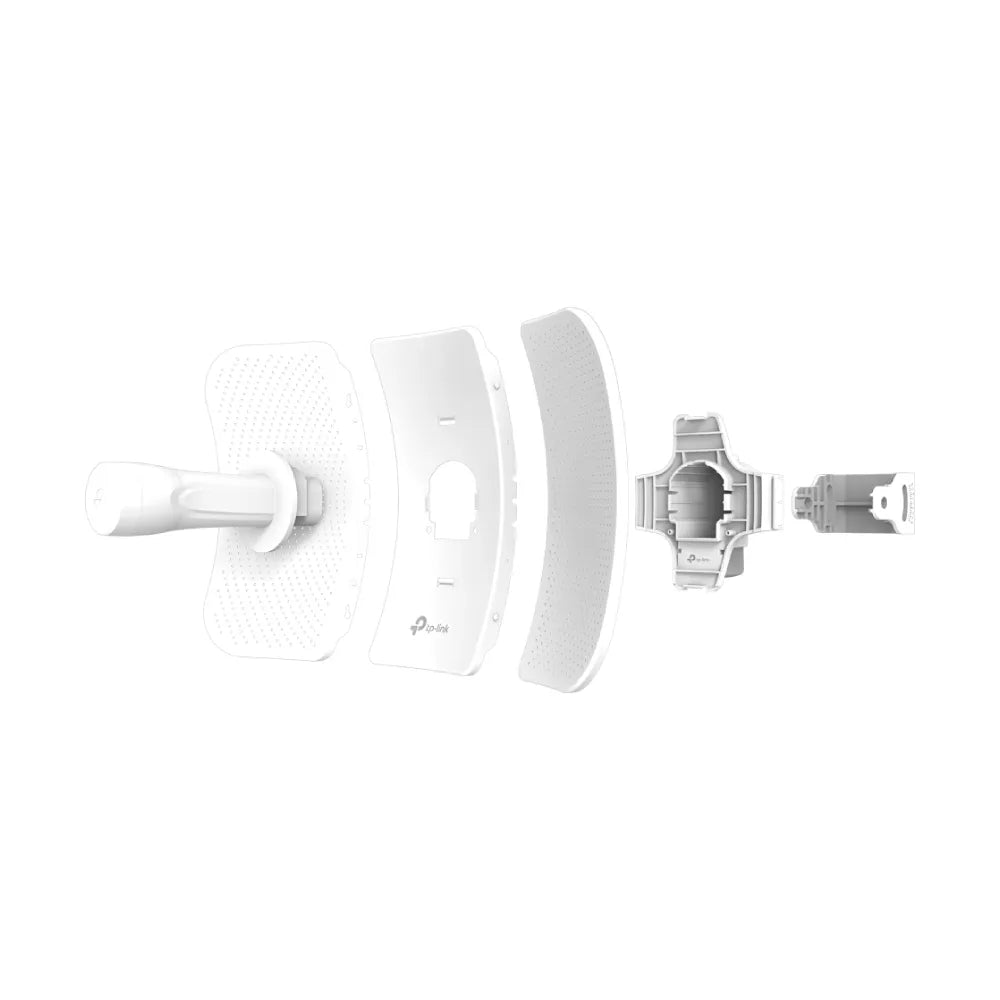

Snap-Lock Assembly — fast, tool-assisted mounting with a sturdy design rated for high-wind environments
-
Pharos Control — free centralised management software for multi-device deployments
-
Multiple Operating Modes — supports AP, Station, Bridge, and WISP modes
Typical Use Cases
- Point-to-point wireless bridge between buildings up to several kilometres apart
- CCTV camera backhaul where cable runs are impractical
- Rural and remote internet distribution (WISP last-mile delivery)
- Farm, mining site, or construction site wireless connectivity
- Extending network coverage to outbuildings, car parks, or perimeter areas
- Point-to-multipoint wireless access for multiple remote client sites
Technical Specifications
| Specification |
Detail |
| Model |
CPE605 |
| Frequency |
5GHz |
| Max Data Rate |
150Mbps |
| Antenna Gain |
23dBi directional Cassegrain |
| Wi-Fi Standard |
IEEE 802.11a/n |
| Operating Modes |
AP, Station, Bridge (WDS), WISP |
| Power Supply |
Passive PoE (24V, included) |
| Ethernet Port |
1× 10/100Mbps RJ45 |
| Weatherproofing |
IP65 |
| Lightning Protection |
6kV (port), 15kV ESD |
| Operating Temperature |
-30–70°C |
| Management |
Web UI, Pharos Control (free) |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years |
Frequently Asked Questions
- What is the maximum range of the CPE605?
- The CPE605 is designed for long-distance links. With its 23dBi directional antenna and clear line-of-sight, it can achieve reliable links of several kilometres. Actual range depends on terrain, obstructions, interference, and local regulatory power limits.
- Does the CPE605 require line-of-sight between units?
- Yes. For optimal performance, a clear line-of-sight between the CPE605 and the remote unit is strongly recommended. Obstructions such as trees, buildings, or hills will significantly reduce range and throughput.
- What power supply does the CPE605 use?
- The CPE605 is powered via passive PoE (24V). A passive PoE injector is included in the box, so no separate PoE switch or injector is required.
- Can I use the CPE605 for CCTV camera backhaul?
- Yes. It is commonly used to wirelessly transmit IP camera footage from remote locations — such as car parks, farm gates, or perimeter fences — back to a central NVR where running cable is not practical.
- What is Pharos MAXtream TDMA technology?
- MAXtream is TP-Link’s proprietary Time Division Multiple Access (TDMA) protocol that improves throughput, reduces latency, and increases the number of clients that can be served simultaneously in point-to-multipoint deployments compared to standard 802.11 protocols.
