Description

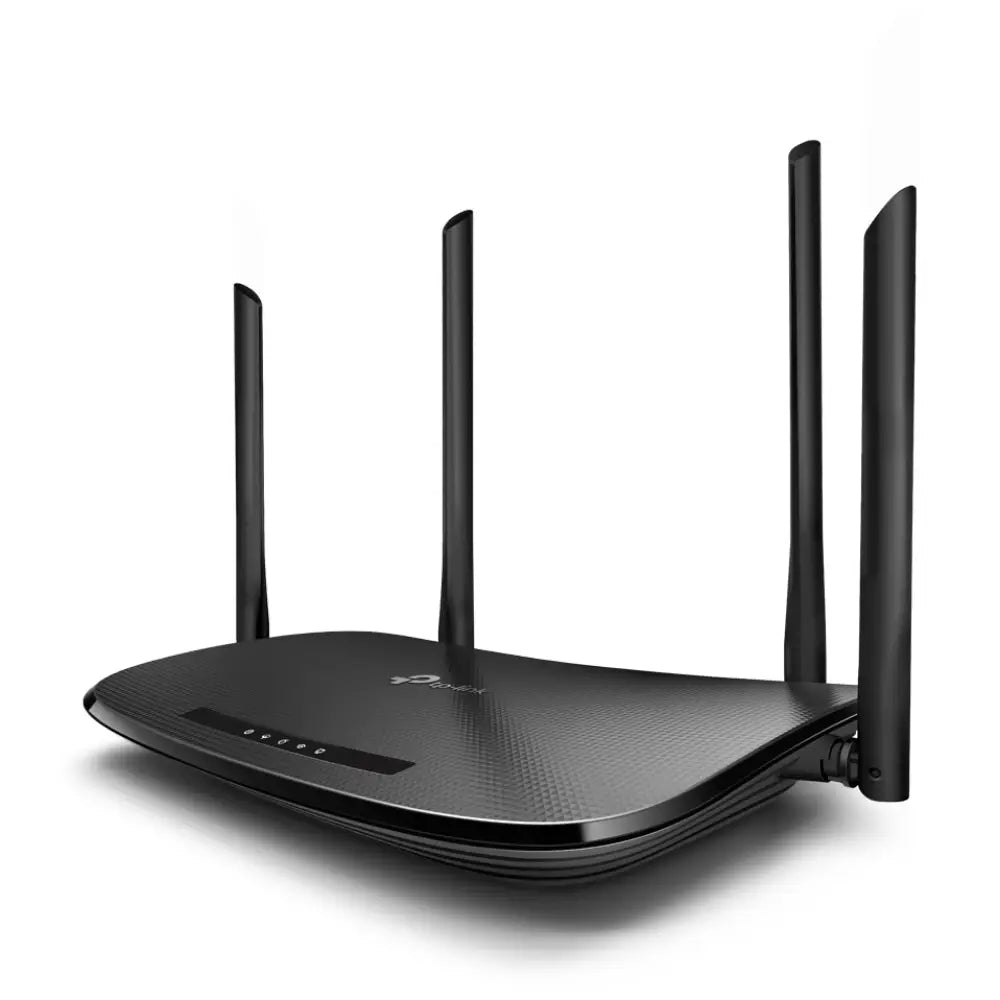

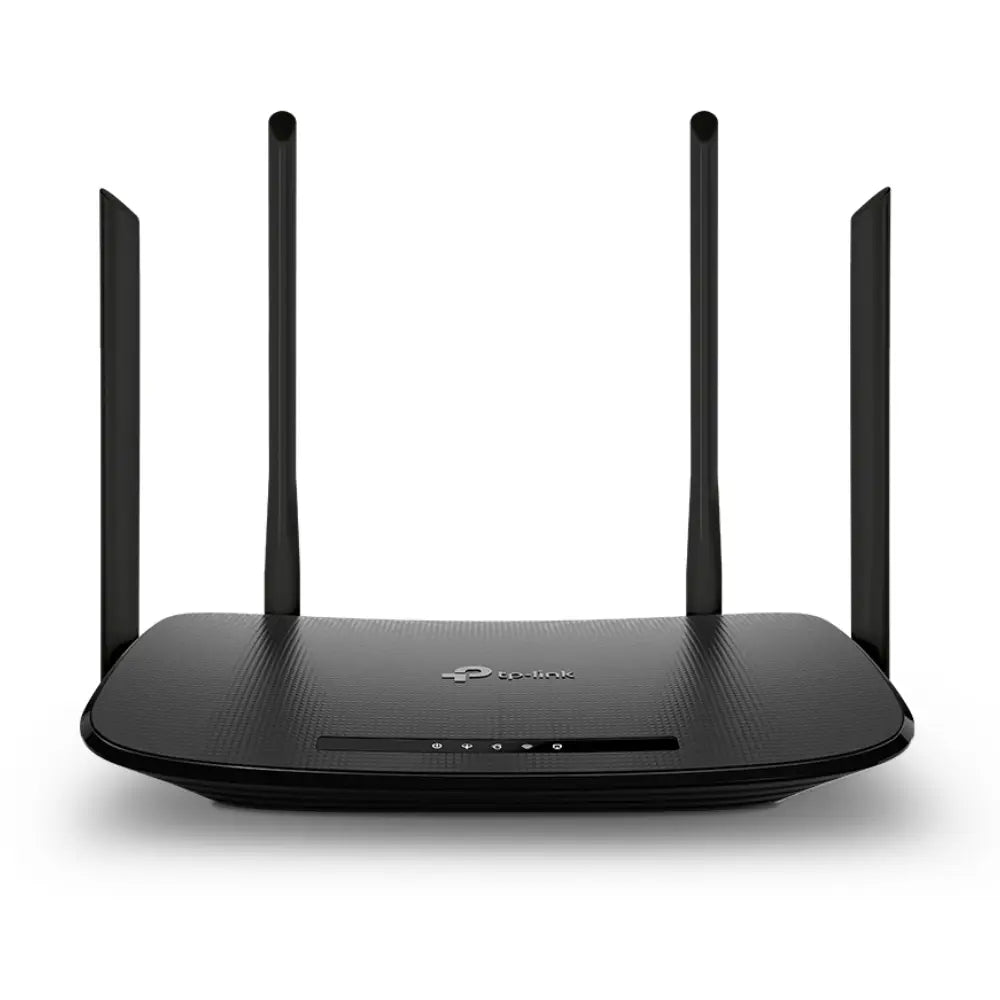

TP-Link Archer VR300 AC1200 VDSL/ADSL Modem Router
NBN-Ready Dual-Band Modem Router for Australian Homes & Offices
The TP-Link Archer VR300 is an AC1200 dual-band VDSL/ADSL modem router designed for reliable broadband performance on NBN FTTN, FTTB, and legacy ADSL/ADSL2+ connections. With combined wireless speeds of up to 1.2 Gbps, built-in security features, and straightforward web-based management, it's a solid all-in-one solution for households and small offices across Australia.
Key Features
- AC1200 dual-band Wi-Fi — 867 Mbps at 5 GHz + 300 Mbps at 2.4 GHz
- Compatible with VDSL2, ADSL, ADSL2, and ADSL2+ — NBN FTTN/FTTB ready
- 4 fixed external antennas for broad, stable wireless coverage
- Parental controls — manage and restrict internet access by device
- Guest network — separate Wi-Fi access for visitors without exposing your main network
- Firewall security — DoS protection, SPI firewall, IP/MAC address binding, and domain filtering
- Quality of Service (QoS) — prioritise bandwidth by device or application
- IPTV support via IGMP Proxy/Snooping with Bridge and Tag VLAN
- IPv6 compatible
- WPS one-touch wireless setup
Use Cases
-
NBN FTTN/FTTB Households: Replace your ISP-supplied modem with a more capable unit that supports VDSL2 up to Profile 17a.
-
ADSL/ADSL2+ Connections: Fully backward-compatible with legacy ADSL services where NBN is not yet available.
-
Family Homes: Use parental controls and guest networking to manage who accesses what on your network.
-
Small Offices: QoS and firewall features ensure business-critical traffic is prioritised and the network stays secure.
-
IPTV Users: IGMP Proxy/Snooping support ensures smooth streaming for IPTV services over your broadband connection.
Specifications
| Specification |
Detail |
| Model |
Archer VR300 |
| Wi-Fi Standard |
IEEE 802.11ac/n/a (5 GHz), IEEE 802.11n/g/b (2.4 GHz) |
| Wireless Speeds |
867 Mbps @ 5 GHz + 300 Mbps @ 2.4 GHz (AC1200) |
| DSL Standards |
VDSL2 (up to Profile 17a), ADSL, ADSL2, ADSL2+ |
| LAN Ports |

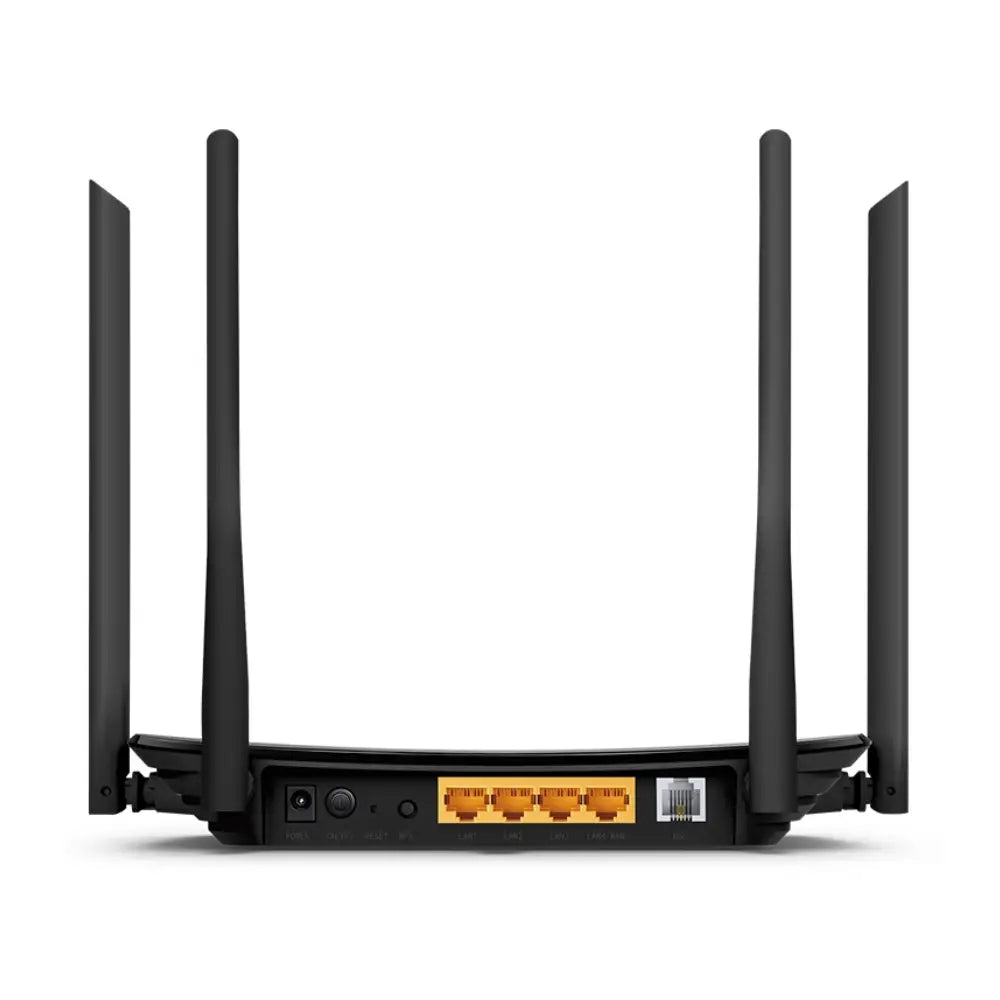

3 × 10/100 Mbps RJ45 + 1 × 10/100 Mbps RJ45 LAN/WAN |
| DSL Port |
1 × RJ11 |
| Antennas |
4 × fixed external antennas |
| Dimensions (W × D × H) |
385 × 290 × 76 mm |
| Power Supply |
12 V / 1 A |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Operating Modes |
VDSL/ADSL Modem Router, Wireless Router |
| Management |
Web UI (HTTP), Remote Management, CLI, TR-069 (SSL), SNMP v1/v2c |
| IPv6 |
Supported |
| Weight |
0.84 kg |
Frequently Asked Questions
Is the Archer VR300 compatible with Australian NBN FTTN/FTTB?
Yes. The VR300 supports VDSL2 up to Profile 17a, which is the standard used by NBN FTTN (Fibre to the Node) and FTTB (Fibre to the Building) connections in Australia. It is compatible with major Australian ISPs including Telstra, Optus, TPG, and Aussie Broadband.
Can I use this router with a standard ADSL2+ connection?
Yes. The VR300 is fully backward-compatible with ADSL, ADSL2, and ADSL2+ services, making it suitable for areas not yet covered by NBN.
Does it support a separate WAN port for fibre or cable connections?
Yes. The fourth LAN port can be configured as a WAN port, allowing the VR300 to operate as a standard wireless router when connected to an external modem or ONT (e.g., NBN FTTP or HFC).
How do I set up parental controls?
Parental controls are configured through the web-based management interface. Log in to the router at 192.168.1.1, navigate to the Parental Controls section, and add devices by MAC address with time and content restrictions.
Does the VR300 support IPTV?
Yes. The router supports IGMP Proxy and IGMP Snooping with Bridge and Tag VLAN configurations, which are required for IPTV services offered by some Australian ISPs.
What is the difference between the 2.4 GHz and 5 GHz bands?
The 2.4 GHz band (300 Mbps) offers longer range and better wall penetration, making it suitable for devices further from the router. The 5 GHz band (867 Mbps) provides faster speeds with less interference, ideal for streaming and gaming on nearby devices.
