Description
Fast, Flexible Wi-Fi for Home and Small Office Networks
The TP-Link Archer C24 is a compact AC750 dual-band Wi-Fi router that delivers reliable wireless connectivity for everyday internet use. With three operating modes — Router, Access Point, and Range Extender — it adapts to a wide range of network setups. Four fixed antennas and beamforming technology help extend coverage throughout the home or small office.
Key Features
-
AC750 Dual-Band Wi-Fi — 300Mbps on 2.4GHz for everyday browsing and 433Mbps on 5GHz for smoother streaming and gaming
-
3-in-1 Multi-Mode — operates as a wireless router, access point, or range extender to suit any network layout
-
4× Fixed Antennas — extended coverage with beamforming technology to focus signal where it’s needed
-

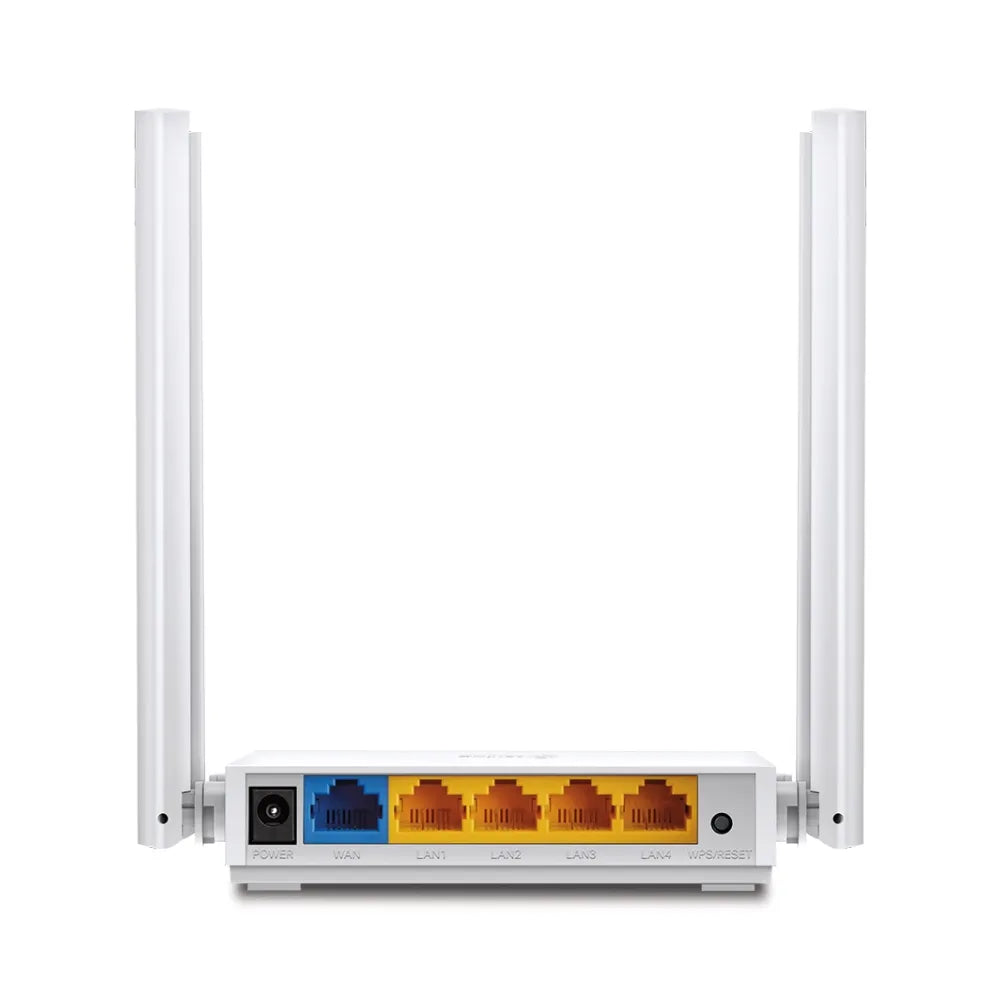

4× LAN + 1× WAN Ports — wired connections for smart TVs, gaming consoles, and desktop PCs
-
Parental Controls — manage internet access times and block inappropriate content by device
-
Guest Network — separate Wi-Fi for visitors without exposing your main network
-
WPS One-Touch Setup — quick and easy wireless connection for compatible devices
-
IPv6 Support — future-ready for next-generation internet connections
-
Wall-Mountable — compact design with mounting options for flexible placement
Typical Use Cases
- Home broadband router for NBN, ADSL, or cable internet connections
- Access point to extend a wired network with wireless coverage
- Range extender to boost Wi-Fi signal in dead zones
- Guest Wi-Fi for Airbnb, small offices, or retail environments
- Secondary router for a separate network zone or IoT devices
Technical Specifications
| Specification |
Detail |
| Model |
Archer C24 |
| Wi-Fi Standard |
IEEE 802.11ac/n/a (5GHz), IEEE 802.11n/b/g (2.4GHz) |
| Wi-Fi Speed |
AC750: 433Mbps (5GHz) + 300Mbps (2.4GHz) |
| Antennas |
4× Fixed External Antennas |
| WAN Port |
1× 10/100 Mbps |
| LAN Ports |
4× 10/100 Mbps |
| Operating Modes |
Router, Access Point, Range Extender |
| Security |
WPA/WPA2/WPA2-Enterprise, SPI Firewall, Guest Network |
| Buttons |
WPS, Power On/Off, Reset |
| Power Supply |
5V / 0.6A |
| Dimensions (W×D×H) |
115 × 106.7 × 24.3 mm |
| IPv6 |
Supported |
| Certifications |
CE, FCC, RoHS |
| Warranty |
3 Years |
Frequently Asked Questions
- Is the Archer C24 compatible with Australian NBN connections?
- Yes. The Archer C24 supports PPPoE, Dynamic IP, and Static IP WAN connection types, covering all common NBN connection methods. Simply connect it to your NBN modem or gateway via the WAN port.
- What is the difference between Router, Access Point, and Range Extender modes?
- In Router mode, the C24 manages your network and connects directly to a modem. In Access Point mode, it connects via Ethernet to an existing router and adds wireless coverage. In Range Extender mode, it wirelessly repeats an existing Wi-Fi signal to extend its reach.
- Can I use the Archer C24 as a second router in my home?
- Yes. In Access Point mode, it can be connected to your main router via Ethernet to provide additional wireless coverage in areas with weak signal.
- Does it support parental controls?
- Yes. The Archer C24 includes built-in parental controls that allow you to restrict internet access by device and set time schedules.
- Does the Archer C24 support WPA3 security?
- No. The Archer C24 supports WPA2 and WPA2-Enterprise as its highest security standard. For WPA3 support, consider a newer Wi-Fi 6 router from the TP-Link range.
