Description

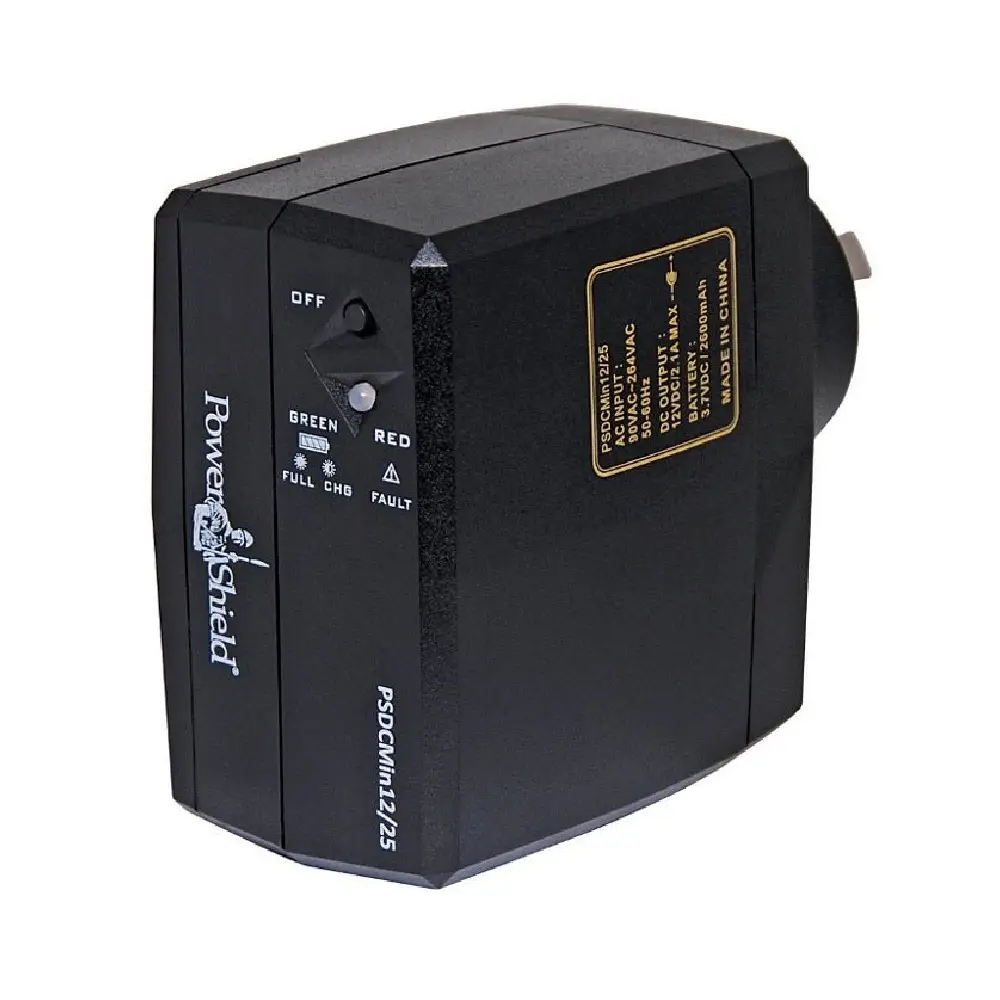

The PowerShield DC Mini designed to provide emerg power backup to all kinds of powered equipment including routers, modems, set top boxes, VOIP phone systems, surveillance equipment, alarm systems and many critical telecommunications devices. DC Mini can economically provide hours of operation during power failure.
Features
Built in user replaceable
Li-ion battery
Auto start when plugged in
Multi-colour indicator
Embedded Micro-controller
Manual power off switch port
AC INPUT
Voltage Range
90 V AC ~ 265 V AC
Frequency
50 Hz or 60 Hz
Surge Protection
125 J @ 4500 A
DC OUTPUT
Voltage
12 V DC ± 5 %
Maximum Power
18 W (1.5 A)
BATTERY
Battery Type
Lithium-ion Battery
Voltage
3.7 V DC
Capacity
2600 mAh
Typical Charging Time
3 hours recover to 90% capacity
PROTECTION
Battery
Deep Discharge, Over-Charge and Short Circuit Protection.
Input / Output
Fuse for Short Circuit and Overload Protection
INDICATORS
Multi-colour LED Display
Full Battery
Green - Solid
Battery Charging
Green - Slow flashing
Battery Discharging
Green - Quick flashing
Fault
Red - Solid
PHYSICAL
Dimensions (D x W x H)
78 x 42 x 74mm
Net Weight
280 g
