Dahua DHI-KTA02M-V2 7" Analogue Video Intercom Kit
The Dahua DHI-KTA02M-V2 is a simple and reliable analogue video intercom kit for Australian homes, townhouses, villas, small offices and entry points that need clear visitor communication without network setup. It includes a 7-inch indoor TFT monitor and a Dahua outdoor door station, allowing you to see visitors, speak with them and unlock a compatible door locally from the monitor.
This is a practical choice for customers who want a straightforward front-door intercom system without app configuration, cloud setup or IP networking. For smartphone answering and DMSS app access, consider upgrading to a Dahua IP intercom kit such as the KTP03 or KTP03W-S2.
Indoor Monitor
7" TFT Screen
Door Station
1.3MP Camera
Night Support
Auto IR · DWDR
Authorised Dahua Reseller
Fast Australia-Wide Shipping

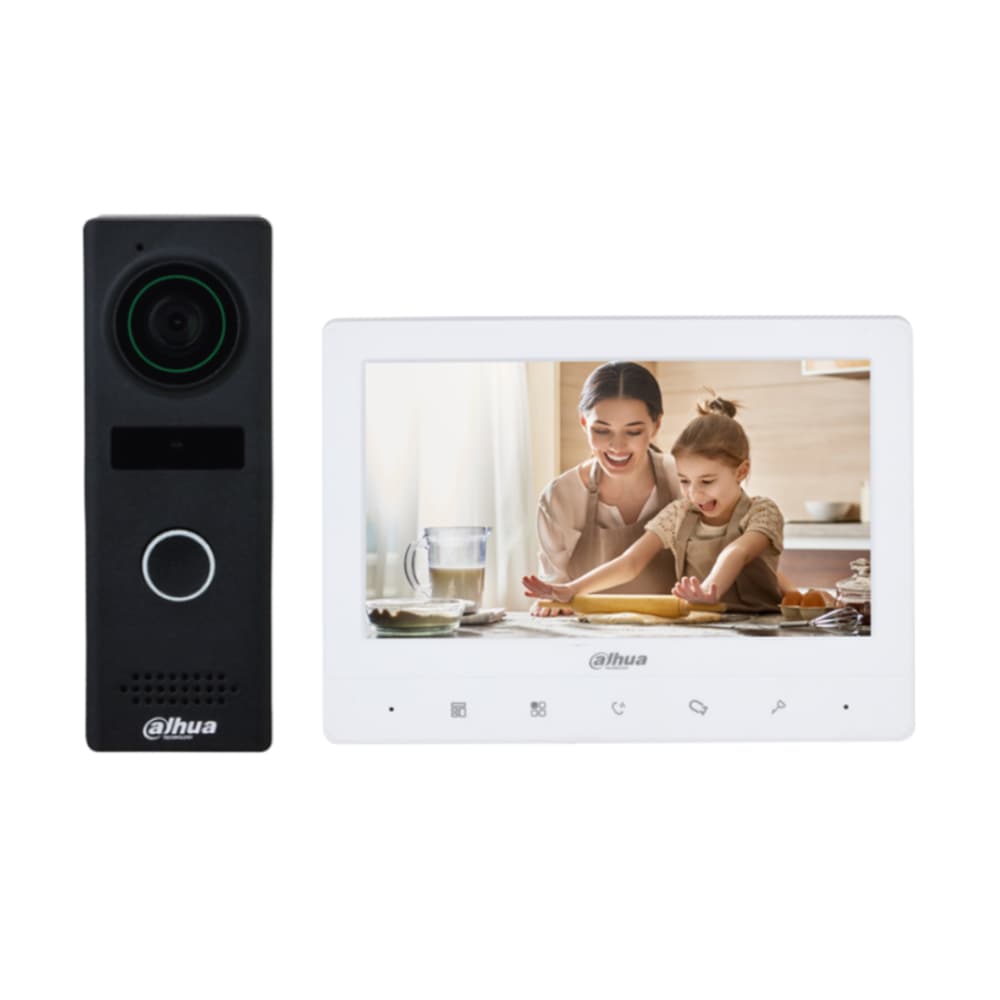

What’s in the Box
1 × Dahua DHI-VTH1020J Indoor Monitor
7.0-inch TFT indoor monitor with 1024 × 600 resolution, touch buttons, analogue communication, doorway monitoring, volume adjustment and surface-mount installation.
1 × Dahua DHI-VTO1000JM Outdoor Station
Outdoor analogue door station with 1.3MP CMOS camera, mechanical call button, DWDR, auto IR illumination, built-in microphone and speaker.
Power Adapter & Cable Included
The kit includes the power adapter, bracket and 5 m cable, giving you the core components required for a simple analogue intercom setup.
Expandable Analogue System
Supports up to 2 door stations and 3 indoor monitors, making it suitable for homes with more than one entry point or multiple indoor answering locations.
Why Choose the Dahua KTA02M-V2?
Simple Front Door Communication
See who is at the door, speak to visitors and release a compatible lock from the indoor monitor without relying on a mobile app or internet connection.
Clear 7" Indoor Display
The 7-inch TFT monitor provides a larger viewing area than compact intercom screens, making it easier to identify visitors and operate the system.
No Network Setup Required
As an analogue intercom kit, the KTA02M-V2 is ideal for customers who want basic visitor communication without IP addressing, WiFi pairing or cloud setup.
Good Budget Alternative to IP Intercoms
If you do not need smartphone notifications or remote answering, this kit gives you a lower-cost Dahua intercom option with reliable local operation.
KTA02M-V2 vs Dahua IP Intercom
DHI-KTA02M-V2
Analogue video intercom kit with 7-inch monitor, local visitor answering and remote unlock from the indoor screen. Best for simple homes, units and offices that do not need smartphone app access.
Dahua KTP03 / KTP03W-S2
IP video intercom kits with DMSS app support, smartphone answering, remote unlocking and better expansion options. Recommended if you want app notifications and remote access from your phone.
Recommended For
Homes & Townhouses
A simple way to view and speak to visitors from inside before unlocking a compatible door or gate.
Units & Villas
Ideal for single-entry properties that need a clear indoor monitor and basic local door control.
Small Offices
Useful for reception entries, staff doors and small business entry points where basic visitor screening is required.
Budget Intercom Upgrades
A cost-effective Dahua option for replacing or upgrading older basic door communication systems.
Technical Specifications
Indoor Monitor — DHI-VTH1020J
| Display |
7.0" TFT |
| Resolution |
1024 × 600 |
| Button Type |
Touch button |
| Communication Method |
Analogue |
| Indicator Light |
1 indicator light; green for power on |
| Power Supply |
DC 12V / 1A |
| Power Adapter |
Included |
| Installation |
Surface mount |
| Accessory |
Bracket included, 5 m cable included |
| Dimensions |
133.90 mm × 182.70 mm × 17.70 mm |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10% RH – 95% RH |
| Power Consumption |
≤ 2W standby, ≤ 5W working |
| Colour |
White |
| Certifications |
CE / FCC |
Outdoor Station — DHI-VTO1000JM
| Camera |
1/4" 1.3MP CMOS |
| Field of View |
Horizontal 70° · Vertical 40° |
| Button Type |
Mechanical |
| WDR |
DWDR |
| Illuminator Type |
Auto IR |
| Day/Night |
ICR auto switch |
| Audio Input |
1 channel to microphone, pickup distance 0.5 m |
| Audio Output |
1 channel to speaker |
| Communication Method |
Analogue |
| Unlock Mode |
Remote unlock |
| Unlock Button |
1 |
| Door Status Detection |
1 |
| Casing |
ADC12 |
| Colour |
Black |
FAQs
Does the Dahua DHI-KTA02M-V2 work with the DMSS mobile app?
No. The DHI-KTA02M-V2 is an analogue video intercom kit and does not support Dahua DMSS app connectivity. Visitor calls are answered from the included indoor monitor only. If you require smartphone notifications, remote answering and app-based unlocking, consider the Dahua KTP03 IP intercom series.
What monitor is included with the KTA02M-V2?
The kit includes the Dahua DHI-VTH1020J 7-inch TFT indoor monitor with 1024 × 600 resolution.
Can I unlock a door from the monitor?
Yes. The system supports remote unlock when connected to a compatible electric lock or door release setup.
Can I add more monitors?
Yes. The system supports up to 3 indoor monitors and 2 door stations, depending on system design and installation.
Is this an IP intercom?
No. This is a 4-wire analogue intercom kit. It is designed for simple local use, not IP networking or app-based remote access.
Who should choose this kit instead of the KTP03?
Choose the KTA02M-V2 if you want a simple, affordable intercom with local monitor operation. Choose the KTP03 or KTP03W-S2 if you want DMSS app support and smartphone answering.
