Dahua · DH-PFS3006-4ET-60 · 6-Port Unmanaged · 60W
4-PoE Switch

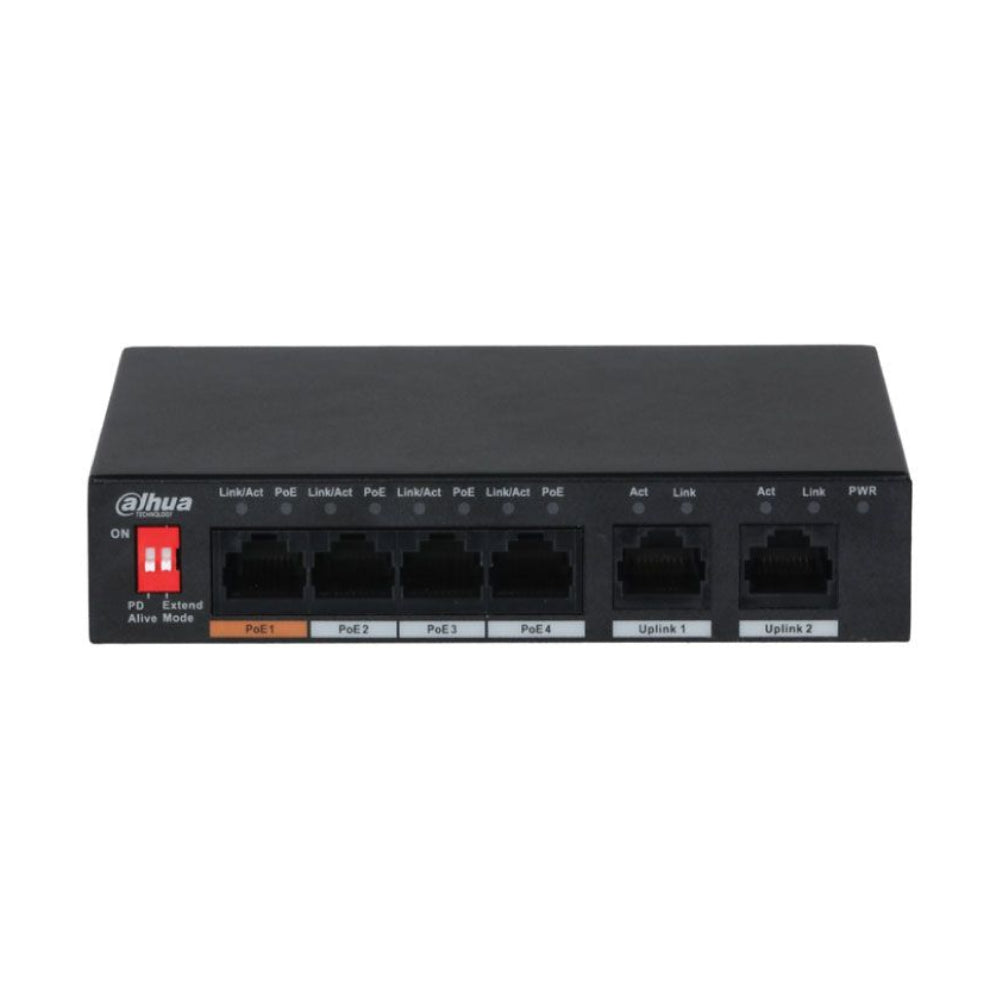

Dahua DH-PFS3006-4ET-60 6-Port Unmanaged PoE Switch
The Dahua DH-PFS3006-4ET-60 is a plug-and-play unmanaged switch with 4 PoE ports, a 60W budget and 2 uplink ports. It powers Dahua and standard IP PoE cameras — Port 1 supplies up to 60W Hi-PoE — with 250m long-distance PoE and a PoE watchdog. Wall-mountable with mechanical anti-theft for small installs.
Plug & Play
No configuration needed — connect cameras and uplink and it just works, ideal for fast small-site installs.
Hi-PoE on Port 1
Port 1 supplies up to 60W Hi-PoE for a higher-draw camera, while every PoE port supports up to 30W PoE+.
250m Long-Distance PoE
Extended-reach PoE pushes power and data up to 250m for cameras beyond the standard 100m limit.
PoE Watchdog
Automatically restarts a frozen camera port to restore the stream without a manual reset.
Specifications — DH-PFS3006-4ET-60
| Model / SKU |
DH-PFS3006-4ET-60 |
| PoE Ports |
4 × 10/100 PoE |
| Optical Ports |
Not supported |
| Uplink Ports |
2 |
| PoE Standards |
IEEE 802.3af / 802.3at, Hi-PoE |
| PoE Budget |
Port 1 ≤ 60W (Hi-PoE); Ports 2–4 ≤ 30W; Total ≤ 60W |
| Long-Distance PoE |
Up to 250m |
| Layer |
Layer 2 |
| Management |
Unmanaged (plug & play) |
| PoE Watchdog |
Yes |
| Mounting |
Desktop / wall (anti-theft) |
| Warranty (Australia) |
3 years · CCTV Guru Australia |
Downloads & Resources
Does it need configuration?
No — it's fully unmanaged and plug-and-play. Connect your cameras and uplink and it works straight away.
How many cameras can it power?
Up to four PoE cameras within the shared 60W budget. Port 1 delivers up to 60W Hi-PoE for a higher-draw camera.
Can it run cameras over 100m?
Yes — long-distance PoE mode extends power and data up to 250m on quality cable.
