NDAA Compliant • Network Ceiling SpeakerAXIS C1211-E (02323-001) — Small All-in-One Discreet Ceiling Speaker, Australian Stock & 5-Year Warranty
The AXIS C1211-E Network Ceiling Speaker is a compact, all-in-one network audio system that makes voice announcements smart and easy. Ideal for smaller or acoustically sensitive indoor spaces, it recesses discreetly into the ceiling and runs on a single network cable for both power and connectivity over PoE. A preconfigured DSP and built-in 4" driver with a 7 W Class D amplifier deliver clear, intelligible voice every time. NDAA (Section 889) and TAA compliant, it integrates with your VMS, SIP/VoIP telephony and analytics out of the box.
Smart Voice Announcements, Simply Installed
The C1211-E is a self-contained IP speaker — no amplifiers, mixers or audio cabling needed. Run one Cat6 cable to a PoE switch and the speaker is ready to play. Its plenum-rated backbox suits demanding building codes, and AXIS Audio Manager Edge comes built in for zone management, scheduling and content control.
Compact 4" Driver
A broadband 4" dynamic cone driver with a built-in 7 W Class D amplifier and 130° coverage delivers clear, intelligible voice in smaller rooms and tight ceiling spaces.
Built-in DSP & Talk-back Mic
A preconfigured DSP optimises sound automatically, while the built-in microphone enables remote health testing and two-way talk-back paging for live conversations.
SIP & VMS Ready
Native SIP/VoIP telephony and open APIs let the speaker integrate with your phone system, video management software and analytics for live and scheduled audio.
Discreet & Plenum-Rated

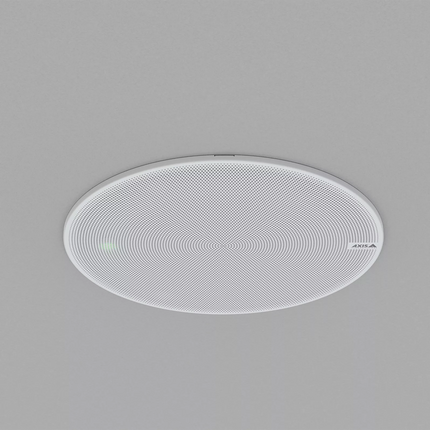

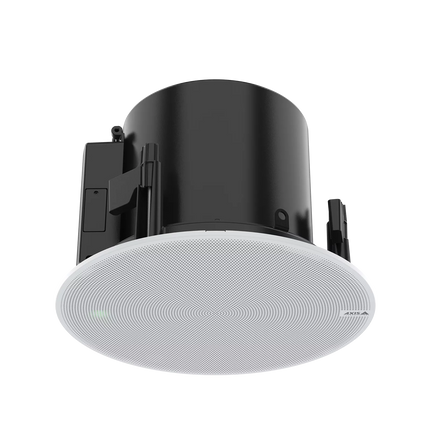

Designed for flush recessed ceiling installation with a plenum-rated backbox; ideal indoors and usable in protected outdoor areas such as under eaves.
Technical Specifications
Audio
| Driver |
4" broadband dynamic cone |
| Amplifier |
Built-in 7 W Class D |
| Coverage Angle |
130° |
| Microphone |
Built-in talk-back microphone (two-way audio) |
| DSP |
Preconfigured digital signal processor |
Network & Audio Management
| Connector |
RJ45 Ethernet |
| Power |
Power over Ethernet (PoE) |
| Audio Streaming |
SIP / VoIP telephony, two-way talk-back |
| Management |
AXIS Audio Manager Edge built-in — zones, scheduling, content control |
| Integration |
VMS, SIP server, analytics, open API (VAPIX) |
Installation
| Mounting |
Discreet recessed in-ceiling; plenum-rated backbox |
| Environment |
Indoor; protected outdoor (e.g. under eaves) |
Compliance
| NDAA |
Section 889 compliant |
| TAA |
Compliant |
| Part Number |
02323-001 |
Downloads
Frequently Asked Questions
Is the AXIS C1211-E NDAA compliant?Yes. Axis network audio products, including the C1211-E, are NDAA (Section 889) and TAA compliant, suitable for government and enterprise projects.
How is the speaker powered?A single network cable provides both power and connectivity via Power over Ethernet (PoE) — no separate amplifier or power supply required.
What is the difference between the C1211-E and C1210-E?The C1211-E is the smaller model with a 4" driver for compact spaces, while the C1210-E is the larger model with a 6.5" coaxial driver for larger areas.
Does it support voice paging?Yes. A preconfigured DSP and built-in 7 W Class D amplifier deliver clear, intelligible voice announcements across 130° coverage.
Does it support SIP / VoIP?Yes. The C1211-E supports SIP/VoIP telephony so it can be called from a phone system for live announcements, plus VMS and analytics integration.
Can it do two-way talk-back?Yes. The built-in microphone enables two-way audio talk-back and remote health testing of the speaker.
Is it suitable for plenum ceilings?Yes. The C1211-E features a backbox that meets plenum requirements, suiting demanding building and fire codes.
Can it be used outdoors?It is designed for indoor environments but can also be used in protected outdoor areas such as under eaves.
What warranty applies in Australia?This Axis speaker is covered by a 5-Year Australian warranty when purchased through CCTV Guru.
