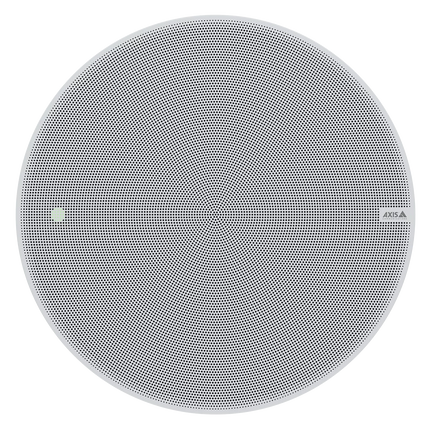

NDAA Compliant • Network Ceiling SpeakerAXIS C1210-E (02324-001) — Large Discreet Ceiling Speaker, Australian Stock & 5-Year Warranty
The AXIS C1210-E Network Ceiling Speaker is a complete, all-in-one network audio system built for discreet in-ceiling installation across larger indoor spaces — retail, offices, transport hubs, schools and hospitality. A single network cable carries both power and connectivity over PoE, while a preconfigured digital signal processor (DSP) and a powerful 6.5" coaxial driver deliver clear, intelligible voice and background music every time. NDAA (Section 889) and TAA compliant, it integrates directly with your VMS, SIP/VoIP telephony and analytics.
One Cable, Complete Audio
The C1210-E removes the need for amplifiers, mixers and dedicated audio cabling. Because it is a self-contained IP speaker, you simply run a single Cat6 cable, plug it into a PoE switch, and the speaker powers up ready to play. AXIS Audio Manager Edge is built in, giving you zone management, scheduling and content control directly from the device.
6.5" Coaxial Driver
A sealed-enclosure 6.5" coaxial dynamic cone driver with a built-in 7 W Class D amplifier delivers clear voice and music up to 96 dB SPL across a 40 Hz–20 kHz range.
Built-in DSP & Microphone

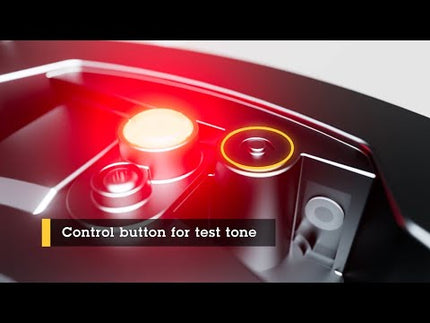

A preconfigured DSP tunes the sound automatically, while the built-in microphone (which can be disabled) enables remote health testing and two-way talk-back paging.
SIP & VMS Ready
Native SIP/VoIP telephony, multicast and open APIs let the speaker integrate with your phone system, video management software and analytics for live and scheduled announcements.

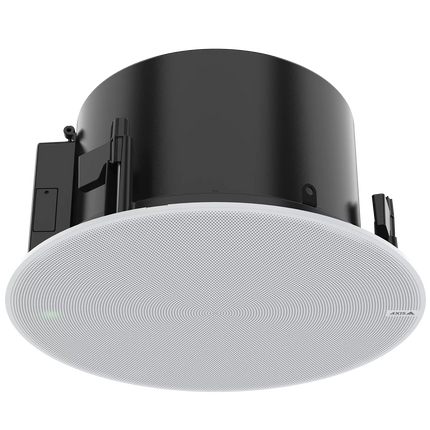

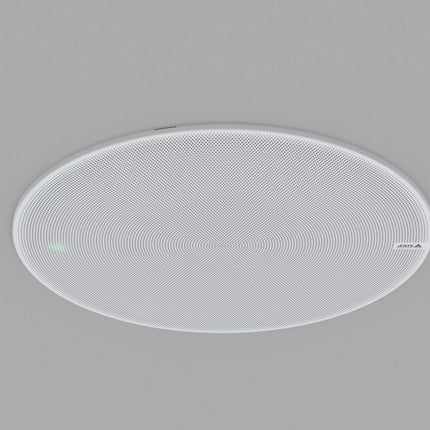

Discreet Ceiling Fit
Designed to recess flush into the ceiling with a Ø 261 mm cut-out, it suits indoor spaces and protected outdoor areas such as under eaves.
Technical Specifications
Audio
| Driver |
6.5" coaxial dynamic cone, sealed enclosure |
| Amplifier |
Built-in 7 W Class D |
| Max SPL |
96 dB |
| Frequency Range |
40 Hz – 20 kHz |
| Coverage Angle |
130° coaxial |
| Microphone |
Built-in (can be disabled); external mic input & line-in |
| DSP |
Preconfigured digital signal processor |
Network & Audio Management
| Connector |
RJ45 Ethernet |
| Power |
Power over Ethernet (PoE) IEEE 802.3af, Type 1, Class 3 |
| Audio Streaming |
SIP / VoIP telephony, multicast, two-way talk-back |
| Management |
AXIS Audio Manager Edge built-in — zones, scheduling, content control |
| Integration |
VMS, SIP server, analytics, open API (VAPIX) |
Installation
| Mounting |
Discreet recessed in-ceiling |
| Cut-out |
Ø 261 mm ± 2 mm (10.3") |
| Environment |
Indoor; protected outdoor (e.g. under eaves) |
Compliance
| NDAA |
Section 889 compliant |
| TAA |
Compliant |
| Part Number |
02324-001 |
Downloads
Frequently Asked Questions
Is the AXIS C1210-E NDAA compliant?Yes. Axis network audio products, including the C1210-E, are NDAA (Section 889) and TAA compliant, making them suitable for government and enterprise projects.
How is the speaker powered?A single network cable provides both power and connectivity via Power over Ethernet (PoE, IEEE 802.3af Type 1 Class 3) — no separate amplifier or power supply required.
What size driver does it use?It has a 6.5" coaxial dynamic cone driver in a sealed enclosure with a built-in 7 W Class D amplifier, reaching up to 96 dB SPL.
Can it handle voice paging and background music?Yes. With a 40 Hz–20 kHz frequency range and a preconfigured DSP, it delivers clear voice announcements and quality background music.
Does it support SIP / VoIP?Yes. The C1210-E supports SIP/VoIP telephony so it can be called directly from a phone system for live announcements, plus VMS and analytics integration.
Is there a microphone?Yes, a built-in microphone enables remote health testing and two-way talk-back paging. It can be disabled if not required.
What is the cut-out size for installation?The ceiling cut-out is Ø 261 mm ± 2 mm (10.3"), allowing the speaker to recess discreetly into the ceiling.
Can it be used outdoors?It is designed for indoor environments but can also be used in protected outdoor areas such as under eaves.
What warranty applies in Australia?This Axis speaker is covered by a 5-Year Australian warranty when purchased through CCTV Guru.
