Secure & Professional Wall Mount for Dahua Cameras The Dahua PFB2204W is a neat, durable wall mount bracket designed to give your CCTV installation a cleaner and more professional finish. Built from aluminium alloy and SGCC material, it is a reliable mounting option for a wide range of compatible Dahua cameras. Whether you are replacing an existing bracket or building a new surveillance system, the PFB2204W helps position your camera securely while keeping the installation looking tidy. Its white finish suits most modern residential and commercial sites, making it a popular choice for professional-looking wall-mounted camera setups. This bracket is ideal for installers and end users who want a simple, solid mounting solution without overcomplicating the job. It is compact, strong, and designed for practical everyday CCTV use. Key Features Official Dahua wall mount bracket Made from aluminium alloy and SGCC material Elegant design suitable for a variety of cameras White finish for a clean installation appearance Wall-mount design for compatible CCTV cameras 1.0kg load bearing capacity Why Choose the Dahua PFB2204W? If you want your CCTV installation to look clean and professional, the mounting accessories matter just as much as the camera. The PFB2204W helps create a more secure and polished install by providing a purpose-built mounting solution from Dahua rather than relying on generic brackets. It is a good option for installers, business owners and homeowners who want a dependable bracket that matches compatible Dahua cameras and keeps the overall installation neat. Ideal For Residential CCTV installations Commercial camera mounting projects Replacing damaged or mismatched brackets Creating a cleaner and more professional camera finish Specifications Model: PFB2204W Product type: Wall Mount Bracket Casing material: SGCC; Aluminum alloy Colour: White Installation: Wall mount Load bearing: 1.0 kg Product dimensions: 162.0 mm × 129.4 mm × 80.0 mm Packaging dimensions: 172.0 mm × 137.0 mm × 86.0 mm Net weight: 0.49 kg Gross weight: 0.57 kg Operating temperature: -40 °C to +60 °C Operating humidity: < 90% RH Storage temperature: -40 °C to +60 °C Storage humidity: 10%–90% RH Anti-corrosion level: Basic Protection Applicable model: Please see Dahua Camera Accessories Selection guide What’s in the Box 1 x Dahua PFB2204W Wall Mount Bracket Frequently Asked Questions What is the Dahua PFB2204W used for? It is a wall mount bracket used to securely install compatible Dahua CCTV cameras on a wall. What colour is the PFB2204W? This model comes in a white finish, making it suitable for clean and discreet installations. Is this a genuine Dahua accessory? Yes, the PFB2204W is an official Dahua camera mounting accessory. How much weight can it support? The bracket has a load bearing capacity of 1.0 kg. Will it work with every Dahua camera? Not every camera. Compatibility depends on the specific camera model. Check the Dahua Camera Accessories Selection guide or contact us to confirm the right bracket for your camera. More Information For official documentation, you can add the following download links to this section: PFB2204W Datasheet Camera Accessories Selection Guide Need help choosing the right mount? Contact CCTV Guru Australia for help matching the correct Dahua bracket to your camera model and installation location.

Read more less

The Dahua PFB2203W is a professional-grade wall mount bracket designed to provide a secure and aesthetically pleasing mounting solution for Dahua dome cameras. Constructed from high-quality aluminum, this bracket is built to withstand harsh environments while ensuring your surveillance equipment remains stable and correctly positioned. Key Performance Features High-Quality Material: Manufactured from durable aluminum alloy, providing excellent structural integrity and corrosion resistance. Weatherproof Design: With an IP66 rating, this bracket is ideal for both indoor and outdoor installations, protecting connections from dust and water. Integrated Junction Box: Features a hollow center design that allows for clean cable management, hiding connectors and wires from view and protecting them from tampering. High Load Capacity: Engineered to support up to 1.0kg (2.2lb), ensuring compatibility with a wide range of Dahua mini-dome and turret cameras. Why Use the PFB2203W Bracket? Professional Finish: Provides a clean, "factory" look for residential and commercial security installations. Easy Installation: The bracket features pre-drilled holes for standard wall mounting and simple camera attachment points. Optimized Viewing: Extends the camera away from the wall to reduce reflections and provide a better angle of the monitored area. The Dahua PFB2203W wall mount bracket is highly versatile, designed primarily for dome and eyeball (turret)cameras. Based on Dahua’s technical compatibility data, it is compatible with a wide range of series. Compatible Camera Series & Models The PFB2203W is typically used for cameras with a base diameter that matches its mounting plate (approx. 122mm to 129mm). Key compatible series include: WizMind & WizSense Series: IPC-HDW5X59 Series: (e.g., IPC-HDW5859H-ZE-PV-PRO, IPC-HDW5459TM-ASE-IL) IPC-HDBW5X41 Series: (e.g., IPC-HDBW5441R-ASE) IPC-HDW3X49 Series: (e.g., IPC-HDW3849QM-S-IL TiOC models) IPC-HDBW3X41/3X49 Series: (e.g., IPC-HDBW3849E-AS-IL) IPC-HDW2X49 Series: (e.g., IPC-HDW2549T-S-IL) HDCVI (Analog) Series: HAC-HDW1249 Series: (e.g., HAC-HDW1249X-A-PRO) HAC-HDBW Series: Most standard size vandal-proof domes. Specialty Models: IPC-PDW3849-A180-AS-PV: 180° Duo Splicing cameras. How to Confirm Compatibility Because Dahua frequently updates their camera housings, the most accurate way to confirm is to check the Camera Accessory Selection guide or the specific camera's datasheet under the "Accessories" section. General Compatibility Rule: If your camera is compatible with the PFA137 or PFA130-E junction boxes, it is almost certainly compatible with the PFB2203W wall mount, as they share the same mounting hole patterns. Key Specs for Installation: Load Bearing: Supports up to 1.0 kg (2.2 lb). Material: Aluminum alloy & SGCC (provides high durability and corrosion resistance). Dimensions: 162.0 mm × 129.4 mm × 80.0 mm. Technical Specifications Feature Specification Model PFB2203W Material Aluminum Alloy Dimensions 160.0mm x 122.0mm x 76.0mm Pipe Thread G1/2" Load Bearing 1.0kg (2.2lb) Weight 0.49kg (1.08lb) Color White Operating Temp. -40ºC to +60ºC (-40ºF to +140ºF) Protection Rating IP66 Guru Tip: To ensure a fully waterproof seal for outdoor use, always use the included G1/2” pipe thread or applicable conduit and apply waterproof tape to the cable entry points.

Read more less

The Dahua DH-PFA156 is a professional-grade, heavy-duty pole mount bracket designed for the secure installation of security cameras and outdoor intercom stations. Constructed from high-quality SECC steel, this bracket provides a stable mounting platform for devices in both residential and commercial environments, ensuring long-lasting performance in outdoor conditions. Key Features Heavy-Duty Construction: Manufactured from SECC (Steel Electro-galvanized Cold-rolled Coil) for superior strength and corrosion resistance. High Load Capacity: Engineered to support a structural load of up to 10.0 kg (22.05 lb), making it suitable for larger cameras and heavy outdoor stations. Versatile Pole Compatibility: Designed to fit a wide range of pole diameters, from 80mm to 150mm (3.15" to 5.91"), using adjustable stainless steel hoops. All-Weather Reliability: Built to operate in extreme temperature ranges from -40 °C to +60 °C (-40 °F to +140 °F) with up to 90% relative humidity. Seamless Integration: Features a clean, aesthetic design in Dahua White that matches professional security hardware. Technical Specifications Material SECC Steel Dimensions 130.4 mm x 170.0 mm x 45.0 mm Pole Diameter Φ80 mm to Φ150 mm Load Bearing 10.0 kg (22.05 lb) Color Dahua White Operating Temp -40 °C to +60 °C More Information For detailed dimensions and compatibility charts for Dahua cameras and brackets, please refer to the official documentation: Download Technical Data Sheet

Read more less

The Dahua PFB5310C is a reliable in-ceiling mount bracket designed to provide a clean and secure mounting solution for compatible network and PTZ cameras. The bracket supports a variety of recessed ceiling installations, offering a neat finish with minimal intrusion into the camera’s field of view. Built with rugged materials and an anti-drop safety rope, it ensures secure, safe installation even in commercial environments.  Installation is quick and simple, and the bracket design allows easy disassembly and maintenance when needed — making it ideal for offices, retail spaces, warehouses, schools, and other professional CCTV installations. Key Features Designed for in-ceiling mounting of compatible Dahua cameras Screws embedded in the frame — clean installation with full visual range Includes anti-drop rope for added safety Works with standard recessed ceiling types Durable SECC & PC construction for long-lasting reliability White finish blends with most ceilings Easy to install and maintain Specifications Specification Details Model / SKU PFB5310C Mount Type In-ceiling mount bracket Material SECC and PC (polycarbonate) Colour White Product Dimensions Ø 238.0 mm × 78.0 mm (Ø 9.37″ × 3.07″) Net Weight 0.35 kg (0.77 lb) Gross Weight 0.62 kg (1.37 lb) Load Bearing Capacity Up to 3.0 kg (6.61 lb) Installation In-ceiling mount for recessed ceilings Operating Temp. –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity < 90 % RH Storage Temp. –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity 10 %–90 % RH Anti-corrosion Level Basic Protection

Read more less

Dahua DH-PFA112 Extension Pole 200mm Suits Box/ Fisheye/ Dome/ Speed Dome PTZ/ Mini PTZ/ UFO White Aluminium 7kg Max. Load 0.51kg The Dahua DH-PFA112 Extension Pole is a 200mm aluminum mounting solution designed for various camera types including box, fisheye, dome, speed dome PTZ, mini PTZ, and UFO models. Its sleek white finish and aesthetic design integrate seamlessly with ceiling setups. Constructed from durable aluminum, it supports a maximum load of 0.51kg, providing reliable stability. Ideal for secure ceiling mounting, this extension pole enhances camera positioning flexibility while maintaining a professional appearance. Features Aesthetic design Material: aluminum Ceiling mount bracket

Read more less

Dahua Pendant Mount Bracket Suits Speed Dome PTZ White Aluminium Alloy 10 KG Max Load 0.21 KG The Dahua Pendant Mount Bracket is designed for secure ceiling installation of Speed Dome PTZ cameras. Constructed from durable white aluminium alloy, it supports up to 10 kg, ensuring robust performance. This bracket features a clean, elegant design with integrated wiring for a neat setup. It includes an 8-inch ball joint and requires a mount adapter for compatibility. Ideal for professional surveillance installations, it offers convenient installation and reliability. Features Aluminium alloy. Convenient Installation. Simple and elegant design. Wires in the bracket. 8-inch ball, need to be used with mount adapter.

Read more less

Dahua DH-PFH101 Rack Mount Tray The Dahua DH-PFH101 Rack Mount Tray is made of durable SPCC material and is highly compatible with standard storage devices. Designed to fit into a 19'' rack, this tray provides convenient and organized storage for your equipment. Streamline your setup with this reliable and versatile rack mount tray. Features Material: SPCC High compatibility for standard storage device 19'' standard rack mount tray Downloads DH-AC-PFH101 Datasheet

Read more less

Dahua PFA101 Mount Adapter Features Aesthetic design Material: aluminum  Mount adapter Specifications Dahua Camera Bracket Type Mount adapter Material Aluminum Colour White Dimension 159mmx159mmx35mm (6.26''x6.26''x1.38'') Downloads DH-AC-PFA101 Datasheet

Read more less

Dahua HAP320-V Hi-fidelity Pickup Dahua Hi-fidelity Pickup, metal shell, plating processing surface, high sensitivity waterproof and dust-proof microphone head, IP66, Ambient noise cancellation (ANC) technology Features Use metal shell, surface is through plating processing; Use high sensitivity waterproof and dust-proof microphone head, pickup clear sound; Ambient noise cancellation（ANC）technology; Waterproof and dust-proof level are IP66. Downloads DH-HAP320-V Datasheet

Read more less

Dahua Water-Proof Junction Box DH-AC-PFA5300R Features Built of aluminum alloy Suitable for a variety of cameras and is elegant IP66 junction box Specifications CAMERA BRACKETS TYPE Junction Box MATERIAL Aluminum alloy COLOUR White DIMENSION 123.4 mm x 123.4 mm x 44.9 mm (4.86'' x 4.86'' x 1.77'') Downloads PFA5300R_datasheet_20221020

Read more less

Dahua Surface Mounted Box with Rain Cover DH-AC-VTM57R The Dahua Surface Mounted Box with Rain Cover DH-AC-VTM57R is designed specifically for the DHI-VTO6521K video intercom. Constructed from lightweight AL5052 aluminum with an anti-rust finish, it ensures durability and protection against harsh weather. Measuring 410.4 mm x 147.4 mm x 107 mm, this silver rain cover safeguards your device from moisture while maintaining a sleek, professional appearance. Ideal for reliable outdoor installation, it enhances the longevity and performance of your security system. Features Suitable for DHI-VTO6521K; VTO6521K Light material Anti-rust design Specification Dahua Security Camera Bracket TYPE Rain Cover MATERIAL AL5052 COLOUR Silver DIMENSION 410.4 mm x 147.4 mm x 107 mm (16.16'' x 5.80'' x 4.21'') Downloads VTM57R_datasheet_20211028

Read more less

Dahua Mount Adapter DH-PFA108 Aesthetic design Material: aluminum Special adapter plate for 4*2MP IR dome camera Specifications   CAMERA BRACKETS TYPE Mount Adapter MATERIAL Aluminum COLOUR White DIMENSION 140mmx39.5mm (5.51''x1.56'') Downloads DH-PFA108 Datasheet 20181109

Read more less

Dahua Ceiling Mount Bracket Aesthetic design Wall mount bracket Material: stainless steel Specifications CAMERA BRACKETS TYPE Wall Mount Bracket MATERIAL Stainless Steel COLOUR White DIMENSION 133.6mmx235.5mm (5.26''x16.54'') Downloads PFB710C_datasheet

Read more less

Dahua Mini Dome and Turret Mount Adapter Aluminum alloy material Matched with particular cameras, beautiful and elegant designed Specifications CAMERA BRACKETS TYPE Mount Adapter MATERIAL Aluminum alloy COLOUR White DIMENSION 134.1 mmx134.1 mmx83.5 mm (5.28''x5.28''x3.29'') Downloads DH-PFA109 Datasheet

Read more less

Dahua Ceiling Mount Bracket DH-PFA117 Ceiling mount bracket, extend the overall length Material: aluminium Specifications CAMERA BRACKETS TYPE Ceiling Mount MATERIAL Aluminum COLOUR White DIMENSION 42mmx780mm Downloads DH-PFA117 Datasheet

Read more less

Dahua Wall Mount Bracket with IP66 Junction Box DH-PFB302S Neat & Integrated design Material: Aluminum Wall mount bracket with IP66 junction box Specifications CAMERA BRACKETS TYPE Wall Mount Bracket with IP66 Junction Box MATERIAL Aluminum COLOUR White DIMENSION 134.0mmx133.5mmx187.5mm (5.28''x5.25''x7.38'') Downloads DH-PFB302S Datasheet

Read more less

Dahua Mount Adapter Neat & Integrated design Material: Aluminum Specifications CAMERA BRACKETS TYPE Adapter Plate of PT Network Camera MATERIAL Aluminum COLOUR White DIMENSION 134.1mmx83.5mm(5.28''x3.29'') Downloads DH-PFA107_datasheet

Read more less

Dahua Wall Mount Bracket Aesthetic design Wall mount bracket Material: aluminum Specifications CAMERA BRACKETS TYPE Water-proof Wall Mount Bracket MATERIAL Aluminum COLOUR White DIMENSION 115mmx160mmx255mm (4.53''x6.3''x10.04'') Downloads DH-PFB303W Datasheet

Read more less

Parapet Mount Bracket of PTZ Camera Parapet/plane mount and hidden line design Material: Aluminum 10kg high load-bearing capacity Reserved the anti-drop structure, secure and reliable Specifications CAMERA BRACKETS TYPE Parapet Mount Bracket of PTZ Camera MATERIAL Aluminum COLOUR White DIMENSION 343.6mmx121.9mmx700.0mm (15.53''x4.8''x27.56'') Downloads DH-PFB301S-E Datasheet

Read more less

Dahua PoE Switch for IP System with Dahua Network Protocol, Connect up to 6 Indoor Monitor Features Decent appearance Protocol network power supply switch Connect max 6 indoor monitors with the Cat 5e cable, transfer the signal and power together Specifications PoE SWITCH ETHERNET PORT 6 OPTICAL PORT Not support UPLINK PORT 2 POE BUDGET Max 45W LAYER Layer 2 TYPE Unmanaged Downloads Datasheet of DHI-VTNS1060A-A User Manual

Read more less

Dahua PFA136 · Waterproof Junction Box · White & Black Dahua DH-PFA136 Waterproof Junction Box — White (PFA136) & Black (PFA136-B) The Dahua DH-PFA136 is the factory waterproof junction box engineered for Dahua's eyeball turret, mini-dome and selected fisheye cameras — the back-of-camera disc Australian installers reach for whenever a cable needs to terminate cleanly behind the camera body, conceal an RJ45 join, and pass through a wall in a sealed, weather-tight finish. Available in both White (DH-PFA136) and Black (DH-PFA136-B) to colour-match the camera body, the PFA136 is a single-piece aluminium housing with an M20 (G½") water-tight cable gland, a rubber gasket, and a three-screw bolt-circle that fits the standard Dahua HDW / HDBW base. Dimensions are a compact Φ110.0 × 34.0 mm, the assembly weighs just 0.19 kg, and the load rating of 1.0 kg covers every Dahua turret and mini-dome currently sold in Australia (most weigh 350–700 g). The operating window of −40 °C to +60 °C with humidity up to 90% RH means it handles every Australian climate — Hobart winters, Brisbane summers, Karratha cyclones and Tasmanian alpine — without warping, cracking or pitting. Each box ships ready to install: three M4×10 camera screws, three ST4×25 self-tappers, three plastic anchors, one water-joint gland and the hex wrench, all included. DH-PFA136 — WhiteMatches Dahua white-housing turrets & mini-domes (HDW3849H, HDBW3441E, HDW2231R-ZS-S2, etc.) DH-PFA136-B — BlackMatches the BLK / Black-body Dahua TiOC turrets, dark render, charcoal Colorbond or stained timber facades. Material Aluminium Alloy Dimensions Φ110 × 34 mm Load Bearing 1.0 kg (2.2 lb) Cable Entry M20 (G½") Water-Tight Colour Options White & Black Operating Temp −40 °C to +60 °C 3-Year Australian Warranty Fast Australia-Wide Shipping Australian Tech Support Why Choose the Dahua DH-PFA136 for Your Eyeball or Dome Camera Mounting a turret or mini-dome straight onto a wall or soffit with the bare base looks rough, leaves the RJ45 join exposed inside the wall cavity, and almost always leaks water down the cable run during heavy rain. The PFA136 is the cleaner, weather-tight answer — it sits behind the camera as a 110 mm disc, hides the RJ45 connector and pigtail inside its sealed cavity, takes the cable in through a proper M20 gland, and lets the camera bolt onto the disc with the same three M4 screws as a direct mount. For Australian installers, it's the small accessory that turns a quick fit-off into a job that won't come back as a leak callout six months later. Genuine Dahua Engineering — Exact Bolt-Circle Fitment The three M4×10 mounting holes match the Dahua HDW eyeball turret and HDBW mini-dome base exactly. The box ships with the correct M4 screws for the camera, the correct ST4 self-tappers for the wall, plastic anchors and the hex wrench — no rummaging in the van for the right thread pitch. White or Black to Match the Camera Body The White PFA136 matches every Dahua white-housing turret and mini-dome. The Black PFA136-B colour-matches the BLK variants of the TiOC range (e.g. HDW3849H-AS-PV-ANZ-S2 Black) and disappears against dark render, charcoal Colorbond, stained timber or black-painted feature walls. M20 (G½") Water-Tight Cable Gland The supplied water-joint gland threads into the side of the box at M20, sealing the cable entry against wind-driven rain — the same gland Dahua uses on its IP66/IP67 cameras. The internal cavity gives you space to dress the RJ45 join, the power tail and any audio/alarm leads cleanly behind the camera. Single-Piece Aluminium — Built for Australian Conditions One-piece cast aluminium with a powder-coat finish — won't rust, won't crack under UV, won't warp in roof-cavity summer heat. The Australian coastal salt-air tolerance is the same as Dahua's IP67 camera housings (which use the same alloy). Compact Φ110 mm Profile Just 110 mm in diameter and 34 mm deep — the box sits flush behind the camera with almost no visible offset. From the ground, the camera looks like it's mounted directly to the wall — except now you have a proper sealed cable termination behind it. Load-Rated for the Full Dahua Turret & Dome Range 1 kg load rating covers every Dahua eyeball turret, every mini-dome and most compact fisheye cameras (350–700 g typical). Not for full-size PTZs, thermal cameras or anything over 1 kg — those need a heavier bracket like the PFB203W or PFB710W. White PFA136 vs Black PFA136-B — Which Should You Choose? Mechanically the two variants are identical — same Dahua aluminium casting, same load rating, same M20 thread, same screw kit, same datasheet. The only difference is the powder-coat finish colour. Use the table below to choose the right SKU for the camera and wall colour combination. DH-PFA136 (White) vs DH-PFA136-B (Black) Feature DH-PFA136 (White) DH-PFA136-B (Black) Colour / Finish White powder-coat Black powder-coat Best Matched Camera Body White Dahua HDW / HDBW turrets & mini-domes (default colour) BLK / Black-body Dahua TiOC turrets & mini-domes (e.g. HDW3849H-AS-PV-ANZ-S2 Black) Best Matched Surface White render, light brick, painted weatherboard, fibre cement, white soffit Dark render, charcoal Colorbond, stained timber, dark face brick, black soffit, black-painted ceiling Material Aluminium alloy Aluminium alloy Dimensions (Ø × H) Φ110.0 × 34.0 mm Φ110.0 × 34.0 mm Net Weight 0.19 kg (0.42 lb) 0.19 kg (0.42 lb) Maximum Load 1.0 kg (2.2 lb) 1.0 kg (2.2 lb) Cable Gland M20 (G½") · water-tight · rubber gasket M20 (G½") · water-tight · rubber gasket Operating Temperature −40 °C to +60 °C −40 °C to +60 °C Humidity Tolerance 0–90% RH (non-condensing) 0–90% RH (non-condensing) Hardware Included 3 × M4×10 machine screws · 3 × ST4×25 self-tappers · 3 × plastic anchors · 1 × M20 water-joint gland · 1 × hex wrench 3 × M4×10 machine screws · 3 × ST4×25 self-tappers · 3 × plastic anchors · 1 × M20 water-joint gland · 1 × hex wrench Compatible Cameras Same list — see compatibility section below Same list — see compatibility section below Best For Default choice for the bulk of installs — white camera on light-coloured wall or soffit. Premium aesthetic install — keeps the dark camera and the dark wall as one visual element rather than a white "patch" floating on the façade. Installer tip: always pair the junction-box colour to the camera body, not the wall. A white camera on a black junction box on a dark wall reads as visually broken; a black camera on a black box on the same wall disappears. The wall colour drives the camera choice; the camera colour drives the junction-box choice. PFA136 Junction Box vs PFB203W Wall-Mount Bracket — Which Do I Need? These two are the most-confused Dahua accessories. They look similar in the catalogue, fit the same cameras, and both come in White and Black — but they solve different problems. Use the PFA136 when the camera is going on a flat wall or soffit and you just need a sealed cable termination behind it. Use the PFB203W when the camera needs to angle outward from a vertical wall, like a horizontal turret mounted on an external wall looking along the driveway. PFA136 Junction Box vs PFB203W Wall-Mount Bracket Use Case PFA136 (Junction Box) PFB203W (Wall-Mount Bracket) Form Factor Flat round disc (Φ110 × 34 mm) Wall-arm bracket (160 × 122 × 76 mm) Best Mounting Surface Soffit, eave, ceiling, flat wall (camera flush) Vertical wall (camera projecting outward, horizontal aim) Camera Orientation Standard — camera looks down or straight out Side-on — camera angled along the wall surface Cable Concealment Internal cavity · M20 gland for sealed wall entry Internal cable channel through the arm Visual Footprint Minimal — looks almost like a direct mount Visible arm — adds depth and aim flexibility Typical Install Eaves looking down, front door, ceiling-mounted internal turret Driveway camera on side wall, perimeter turret on fence-line, gable end Load Rating 1.0 kg 1.0 kg Colour Options White & Black White & Black Need both? On many sites the answer is "one of each" — a PFA136 on the eave for the front-door turret, and a PFB203W on the side wall for the driveway turret. View the PFB203W combined product page → Compatible Dahua Cameras The PFA136 is the official rear-cavity junction box for the bulk of Dahua's eyeball turret and mini-dome (HDBW) range sold in Australia. The list below is drawn directly from the Dahua Camera Accessories Selection guide. If your camera isn't shown but appears as an HDW/HDBW model with a circular base ~110 mm in diameter, it's almost certainly supported. (If in doubt, message our Australian team with the model number — we'll confirm before you order.) Dahua PFA136 · Camera Compatibility (Australian Market Models) TiOC 3.0 Eyeball Turrets (Active Deterrence) DH-IPC-HDW3849H-AS-PV-ANZ-S2 (8MP) · DH-IPC-HDW3649H-AS-PV-ANZ-S2 (6MP) · DH-IPC-HDW3549H-AS-PV (5MP) · DH-IPC-HDW3449H-AS-PV (4MP) · DH-IPC-HDW3249H-AS-PV (2MP) · DH-IPC-HDW3849H-AS-PV-PRO-ANZ (TiOC PRO 8MP) · DH-IPC-HDW3649H-AS-PV-PRO-ANZ (TiOC PRO 6MP) · DH-IPC-HDW3849/3549/3449H-AS-PV-S3 WizSense Motorised-Zoom Eyeball Turrets DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 · DH-IPC-HDW3649H-ZAS-PV-ANZ-S2 · DH-IPC-HDW3841T-ZAS · DH-IPC-HDW3441T-ZAS · DH-IPC-HDW3541T-ZAS · DH-IPC-HDW3241T-ZAS WizSense Fixed-Lens Eyeball Turrets DH-IPC-HDW3841TM-AS · DH-IPC-HDW3441TM-AS · DH-IPC-HDW3541TM-AS · DH-IPC-HDW3241TM-AS · DH-IPC-HDW3849TM-AS-LED · DH-IPC-HDW3549TM-AS-LED · DH-IPC-HDW3449TM-AS-LED · DH-IPC-HDW3249TM-AS-NI · DH-IPC-HDW3449TM-AS-NI Lite 2-Series Eyeball Turrets DH-IPC-HDW2831T-AS-S2 · DH-IPC-HDW2531T-AS-S2 · DH-IPC-HDW2431T-AS-S2 · DH-IPC-HDW2231T-AS-S2 · DH-IPC-HDW2439T-AS-LED-S2 · DH-IPC-HDW2239T-AS-LED-S2 · DH-IPC-HDW2831R-ZS-S2 · DH-IPC-HDW2531R-ZS-S2 · DH-IPC-HDW2431R-ZS-S2 · DH-IPC-HDW2231R-ZS-S2 5-Series Pro AI Eyeball Turrets DH-IPC-HDW5541T-ZE · DH-IPC-HDW5241T-ZE · DH-IPC-HDW5442T-ZE · DH-IPC-HDW5541H-ASE-PV · DH-IPC-HDW5241H-ASE-PV · DH-IPC-HDW5842T-ZE-S2 · DH-IPC-HDW5242T-ZE-MF · DH-IPC-HDW5449H-ASE-D2 WizSense Mini-Domes (HDBW) DH-IPC-HDBW3841E-AS · DH-IPC-HDBW3441E-AS · DH-IPC-HDBW3541E-AS · DH-IPC-HDBW3241E-AS · DH-IPC-HDBW3449E-AS-NI · DH-IPC-HDBW3249E-AS-NI · DH-IPC-HDBW3841R-ZAS · DH-IPC-HDBW3441R-ZAS · DH-IPC-HDBW3541R-ZAS · DH-IPC-HDBW3241R-ZAS Lite 2-Series Mini-Domes DH-IPC-HDBW2831E-S-S2 · DH-IPC-HDBW2531E-S-S2 · DH-IPC-HDBW2431E-S-S2 · DH-IPC-HDBW2231E-S-S2 · DH-IPC-HDBW2231R-ZS-S2 · DH-IPC-HDBW2431R-ZS-S2 · DH-IPC-HDBW2531R-ZS-S2 · DH-IPC-HDBW2831R-ZS-S2 Cooper / Entry-Level Mini-Domes DH-IPC-HDBW1531E-S · DH-IPC-HDBW1431E-S · DH-IPC-HDBW1230E · DH-IPC-HDBW1420E · DH-IPC-HDBW1120E · DH-IPC-HDBW1531E · DH-IPC-HDBW1431E 5-Series Pro AI Mini-Domes DH-IPC-HDBW5541R-ASE · DH-IPC-HDBW5241R-ASE · DH-IPC-HDBW5442R-ASE · DH-IPC-HDBW5441R-ASE · DH-IPC-HDBW5842R-ASE-S2 · DH-IPC-HDBW5242R-ASE-MF · DH-IPC-HDBW5449R-ASE-LED HDCVI Turret Cameras HAC-HDW2802T-A-I8 · HAC-HDW2249T-A-LED · HAC-HDW2241T-A · HAC-HDW1500T-A · HAC-HDW1239T-A-LED · HAC-HDW1209T-A-LED · HAC-HDW2402T-A · HAC-HDW2801T-A · HAC-HDW1500EM-A HDCVI Mini-Domes HAC-HDBW2802R · HAC-HDBW2402R · HAC-HDBW2241R-Z · HAC-HDBW2231R-Z · HAC-HDBW1500R · HAC-HDBW1400R · HAC-HDBW1230R · HAC-HDBW1209R · HAC-HDBW1100R NOT Compatible — use a different accessory Dahua bullet cameras (HFW series — use PFA135 / PFA130-E junction box) · Full-size PTZ cameras · Thermal cameras · Cameras over 1 kg load · Camera bases over 110 mm diameter · Cameras with non-circular bases Need a quick decision? If you're mounting an eyeball turret or a mini-dome flat onto a wall, soffit or ceiling, and the camera weighs under 1 kg with a circular base around 110 mm, the PFA136 is the correct junction box. Pair the colour to the camera body, not the wall. Technical Specifications DH-PFA136 · Full Specifications (White & Black) Model — White DH-PFA136 Model — Black DH-PFA136-B Product Type Waterproof rear-cavity junction box for dome & turret cameras Material Aluminium alloy · powder-coated Finish — White Powder-coat · Dahua RAL White Finish — Black Powder-coat · Dahua RAL Black Dimensions (Ø × H) Φ110.0 × 34.0 mm (Φ4.33 × 1.34 in) Net Weight 0.19 kg (0.42 lb) Maximum Load Bearing 1.0 kg (2.2 lb) Cable Gland M20 (G½") water-tight · supplied with rubber gasket / water-joint Mounting Pattern Dahua HDW / HDBW circular base (3 × M4 machine screws) Operating Temperature −40 °C to +60 °C Humidity 0–90% RH (non-condensing) Package Contents 1 × Junction box · 3 × M4×10 machine screws · 3 × ST4×25 self-tappers · 3 × plastic anchors · 1 × M20 water-joint gland · 1 × hex wrench · installation sheet Compatible Camera Bases Most Dahua IPC-HDW (eyeball turret) · IPC-HDBW (mini-dome) · HAC-HDW · HAC-HDBW (see compatibility table) Applicable Surfaces Render · brick · weatherboard · fibre cement · Colorbond · plasterboard soffits (with appropriate fixings) Country of Origin China · Genuine Dahua factory accessory Australian Warranty 3-Year Australian Warranty (back-to-base) Installation Overview — From Box to Powered Up The PFA136 is one of the fastest Dahua accessories to fit — most installers have it on the wall and the camera powered up inside 10 minutes. The high-level sequence is below. 1. Mark the Three-Hole Pattern Use the PFA136's base as a drilling template. Three ST4×25 self-tappers (supplied) into plastic anchors (also supplied) hold it on render, brick or fibre cement. For Colorbond or timber soffits, drive the self-tappers direct into the substrate — no anchor needed. 2. Drill the Cable Entry Hole Drill the wall behind the box for the cable run-through. Thread the camera tail-cable through the wall and into the back of the box, then through the M20 gland on the side (or out the back if the install is internal/dry). 3. Bolt the Box to the Wall Tighten the three ST4 screws. The aluminium body is rigid — test that the box doesn't flex against the wall before adding the camera. 4. Make the Cable Connections Inside the Cavity Crimp or pre-terminate the RJ45 inside the cavity (the box is large enough for a coupler join, or for a pre-made tail join). The internal cavity also fits the supplied 12 V power lead or audio/alarm pigtails on cameras that include them. 5. Mount the Camera with 3 × M4 Screws Line up the camera's circular base on the PFA136, drive the three M4×10 machine screws (supplied) with the included hex wrench. The wrench is small — clip it to your tool tray, it's the only tool that fits the recess. 6. Power Up & Aim Connect the RJ45 to the PoE switch or injector; the camera boots in under 30 seconds. Aim the gimbal with the camera live (using DMSS on your phone or a test monitor) before locking the camera head. Optional: silicone-bead the perimeter of the box-to-wall join for a belt-and-braces seal on exposed outdoor installs. Frequently Asked Questions What's the difference between the PFA136 and the PFB203W? The PFA136 is a flat round junction box (Φ110 × 34 mm) that sits behind the camera as a sealed cable termination — used when the camera mounts flat against a wall, eave or soffit. The PFB203W is a wall-mount bracket with a projecting arm — used when the camera needs to angle outward from a vertical wall to look along a driveway or perimeter. They fit the same cameras but solve different installation geometries. Is the PFA136 actually waterproof, and to what rating? The box itself is not assigned an IP code (it's a passive enclosure, not a sealed electronics product), but the M20 cable gland and supplied rubber gasket seal the cable entry against wind-driven rain — the same gland Dahua uses on its IP66/IP67 cameras. With the gland fitted correctly and a silicone bead around the perimeter on exposed outdoor installs, you have a fully water-tight termination. Is the white box the same as the black box — just painted? Yes. Same Dahua aluminium casting, same M20 thread, same load rating, same mounting pattern, same datasheet, same screw kit. The only difference is the powder-coat colour. Choose by camera body colour, not by spec. What's the maximum camera weight I can mount on the PFA136? 1.0 kg (2.2 lb). That comfortably covers every Dahua eyeball turret, every mini-dome, and most compact fisheye cameras (350–700 g typical). Don't use it for PTZs, thermal cameras, or anything over 1 kg — those need a heavier accessory. Does this fit Dahua bullet cameras (HFW series)? No. Bullet cameras use a different junction box — the PFA135 (no gasket, internal use) or PFA130-E (outdoor, waterproof). The PFA136 is shaped for the round base of HDW turrets and HDBW mini-domes. Will it fit a Hikvision turret or mini-dome? Mechanically, no. The PFA136's three-screw bolt-circle is sized for the Dahua HDW / HDBW base. Hikvision use a different bolt pattern. For a Hikvision turret junction box, use the Hikvision DS-1280ZJ-DM18 or equivalent. Can I use it on a soffit or ceiling, not just a wall? Yes — and that's one of its most common uses in Australia. Eave-mounted front-door turrets and ceiling-mounted internal dome installs both use the PFA136 to hide the cable join behind the camera. Same three-screw fitment, same M20 gland. Does it ship with screws, anchors and the gland? Yes. Each PFA136 ships with 3 × M4×10 machine screws for the camera, 3 × ST4×25 self-tappers + 3 × plastic anchors for the wall, the M20 water-joint gland, and a hex wrench for the M4 screws. Nothing extra to order — open the box and install. Is it compatible with the Black BLK variants of the Dahua TiOC range? Yes — and that's exactly when you'd specify the Black PFA136-B. The black junction box colour-matches the BLK / Black-body TiOC turrets (HDW3849H-AS-PV-ANZ-S2 Black, for example) for a seamless installed look against dark walls and ceilings. Will it handle Australian sun and salt-air? Yes. The aluminium body doesn't rust, and the powder-coat finish is UV-stable. Operating temperature is rated to +60 °C, comfortably above any roof-mounted Australian summer day. For coastal sites (within 1 km of the surf), we still recommend an annual freshwater rinse to extend the powder-coat life — same advice as for the camera itself. What is the warranty and where is it serviced? The box ships with a 3-year Australian warranty against material and finish defects, serviced back-to-base through CCTV Guru. Damage from over-tightening, drop, or installation error is excluded — standard for any mechanical accessory. Do you ship Australia-wide and is stock genuine? Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We dispatch the same business day for orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and every regional address in between. Downloads & Resources DH-PFA136 Datasheet Dahua Junction Box Quick Start Guide Dahua Junction Box User Manual Order the Dahua DH-PFA136 from CCTV Guru CCTV Guru is an authorised Australian reseller of Dahua network cameras and genuine factory accessories. Order the PFA136 Waterproof Junction Box today in White or Black for fast Australia-wide dispatch, real Dahua factory parts (not generic copies) and Australian-based technical support if you need help choosing between junction-box and wall-bracket options for a multi-camera project. Buying ten or more for a commercial rollout? Request a project quote or contact our Australian team — we'll match the right junction-box colour to your camera SKUs across the whole job.

Read more less

Dahua Wall Mount Bracket DH-PFA132-E Aesthetic design Material: aluminum Water-proof junction box Specifications CAMERA BRACKETS TYPE Junction Box MATERIAL Aluminum COLOUR White DIMENSION 156mmx39.8mm (6.14''x1.57'') Downloads DH-PFA132-E Datasheet

Read more less

Dahua Mount Adapter DH-PFA102 Aesthetic design Material: aluminum Mount adapter Specifications CAMERA BRACKETS TYPE Mount Adapter MATERIAL Aluminum COLOUR White DIMENSION 169mmx37mm (6.65''x1.46'') Downloads DH-PFA102 Datasheet

Read more less

Dahua Corner Mount Bracket Material: SECC Corner mount bracket Aesthetic design Specifications CAMERA BRACKETS TYPE Corner Mount Bracket MATERIAL SECC COLOUR White DIMENSION 243mmx170mmx138mm (9.57''x6.69''x5.43'') Downloads DH-PFA151_datasheet

Read more less

Dahua Waterproof Junction Box White Neat & Integrated design Material: Aluminum IP66 junction box Specifications CAMERA BRACKETS TYPE Water-proof Junction Box MATERIAL Aluminum COLOUR White DIMENSION 124mmx41mm(4.88''x1.61'') Downloads DH-PFA130-E_datasheet

Read more less

Dahua UTC Controller for Switching Different Formats (HDCVI/AHD/HDTVI/CVBS) of Video Signal Support different formats (HDCVI/AHD/HDTVI/CVBS) switch, which is to satisfy the requirements of different storage device environments for clients. Various format indicator lights, which makes it convenient for users to check the current format status and prompt if the format switch is successful. Support OSD control and the electric zoom function control in CVBS mode. Downloads PFM820_datasheet UTC Controller_User's Manual_V1.0.3

Read more less

Dahua Waterproof Junction Box Aesthetic design Material: aluminum Junction box Specifications CAMERA BRACKETS TYPE Junction Box MATERIAL Aluminum COLOUR White DIMENSION 115.0mmx160.0mmx38.8mm (4.53''x6.30''x1.53'') Downloads DH-PFA120_datasheet

Read more less

Dahua Waterproof Wall Mount Bracket Black Aesthetic design Wall mount bracket Material: aluminum & SECC Specifications CAMERA BRACKETS TYPE Wall Mount Bracket MATERIAL Aluminum & SECC COLOUR Black DIMENSION 160mmx122mmx76mm (6.30''x4.80''x2.99'') Downloads DH-PFB204W_datasheet

Read more less

Dahua In-ceiling Mount Bracket Aesthetic design In-ceiling mount bracket Material: SECC & PC Specifications CAMERA BRACKETS TYPE In-ceiling Mount MATERIAL SECC & PC COLOUR White DIMENSION 166mm x 75.8mm Downloads DH-PFB200C DatasheetCamera Accessories Selection

Read more less

Dahua Wall Mount Bracket Aesthetic design Wall mount bracket Material: stainless steel Specifications CAMERA BRACKETS TYPE Wall Mount Bracket MATERIAL Stainless Steel COLOUR White DIMENSION 386.8mmx161.5mmx116.5mm (15.23''x6.36''x4.59'') Downloads PFB710W_datasheet

Read more less

Dahua In-ceiling Mount Bracket Dahua In-ceiling Mount Bracket DH-AC-PFB201C Seamlessly integrate your Dahua camera into ceiling installations with this purpose-built mounting bracket. Engineered from durable SECC steel and polycarbonate construction, it delivers robust support while maintaining a clean, unobtrusive aesthetic. The in-ceiling design keeps wiring concealed and sight lines clear, ideal for professional surveillance setups where discretion matters. Compatible with Dahua camera mount series, this bracket simplifies installation and ensures secure, stable positioning for long-term reliability. Features Aesthetic design In-ceilingMountBracket Material: SECC & PC Downloads Camera Mount Series | DH-PFB201C

Read more less

The Dahua PFA137 is an essential accessory for any professional security installation. This waterproof junction box provides a secure, weatherproof enclosure for camera pigtails and connectors, ensuring long-term reliability by preventing water ingress and cable corrosion. Now available in both Classic White and Midnight Black to perfectly match your camera housing and building aesthetics. Key Performance Features Rugged Construction: Built from high-quality aluminum alloy, providing excellent structural strength and durability. IP66 Waterproof Rating: Engineered for harsh outdoor environments, keeping your electrical connections bone-dry in heavy rain and dust. Seamless Integration: Designed specifically for Dahua dome and turret cameras, ensuring a perfect physical fit and easy alignment. Color Options: Choose White for standard residential installs or Black (PFA137-B) for modern architectural finishes or dark soffits. Technical Specifications Model DH-PFA137 (White) / DH-PFA137-B (Black) Material Aluminum Alloy Dimensions Φ122.0mm x 34.0mm (4.80” x 1.34”) Pipe Thread G1/2" Load Bearing 1.0kg (2.2lb) Ingress Protection IP66 Rated Operating Temp. -40ºC to +60ºC Why Use a PFA137 Junction Box? Cable Protection: Protects your RJ45 and power connectors from tampering and environmental damage. Clean Aesthetics: Hides messy cables behind the camera for a tidy, professional look. Serviceability: Provides a convenient access point for future maintenance without needing to re-run cables. Downloads DH-PFA137_datasheet Installation Tip: For high-exposure outdoor areas, we recommend using the included waterproof gasket and applying a small amount of silicone sealant to the screw holes for maximum protection.

Read more less

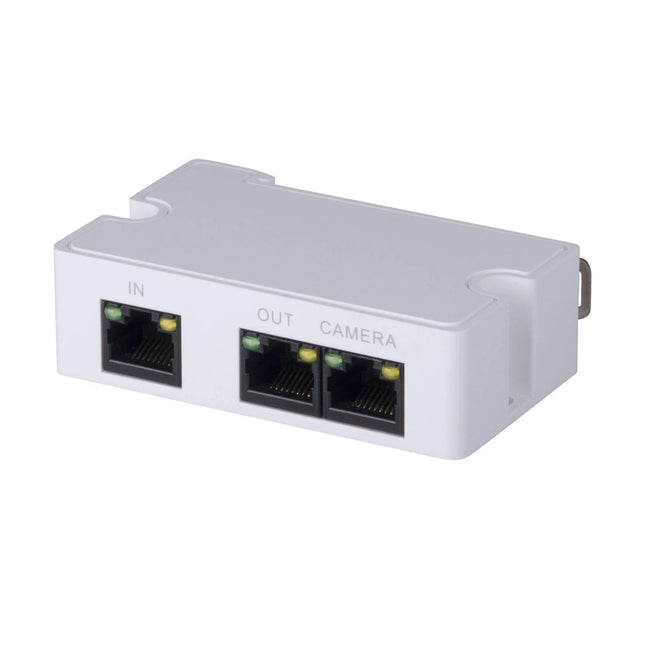

Dahua PoE Extender Passive work with PFT1200, connect up to 3x IPC Support passive PoE cascade power supply and Ethernet data exchange Support IEEE 802.3af/at standard power supply IP Camera Cooperate with High PoE Midspan PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (total power consumption <=25W), max transmission distance 300m 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender Installation mode: junction box internal mounting, DIN rail mounting Downloads PFT1300_datasheetPoE Extender_User's Manual_V1.0.3

Read more less

Dahua DH-PFB204W Waterproof Wall Mount Bracket for CCTV Cameras The Dahua DH-PFB204W is a durable waterproof wall mount bracket designed specifically for CCTV cameras. Crafted from high-quality aluminum and SECC materials, it ensures robust support and long-lasting performance. Its sleek white finish and compact dimensions (160mm x 122mm x 76mm) provide an unobtrusive, professional installation. Ideal for secure outdoor mounting, this bracket combines aesthetic design with reliable protection against the elements, making it a trusted choice for expert surveillance setups. Features Aesthetic design Wall mount bracket Material: aluminum & SECC Specifications Dahua Security Camera Bracket TYPE Wall Mount Bracket MATERIAL Aluminum & SECC COLOUR White DIMENSION 160mmx122mmx76mm (6.30''x4.80''x2.99'') Downloads DH-PFB204W Datasheet

Read more less

Dahua Pole Mount Bracket Material: SECC & SUS304 Pole mount bracket Aesthetic design Specifications CAMERA BRACKETS TYPE Pole Mount Bracket MATERIAL SECC & SUS304 COLOUR White DIMENSION 130.4mmx170mmx45mm (5.13''x6.69''x1.77'') Downloads DH-PFA150_datasheet

Read more less

Dahua Ceiling Mount Bracket Aesthetic design Material: aluminium & PC Ceiling mount bracket Specifications CAMERA BRACKETS TYPE Ceiling Mount Bracket MATERIAL Aluminum & PC COLOUR White DIMENSION 133.6mm x 235.5mm (5.26''x16.54'') Downloads DH-PFB300C_datasheet

Read more less

Dahua Mini Dome and Turret Mount Adapter Neat & Integrated design Material: Aluminum Specifications CAMERA BRACKETS TYPE Adapter Plate of Mini Dome & Eyeball Camera MATERIAL Aluminum COLOUR White DIMENSION 134.1mm x 83.5mm (5.28''x3.29'') Downloads DH-PFA106 Datasheet

Read more less

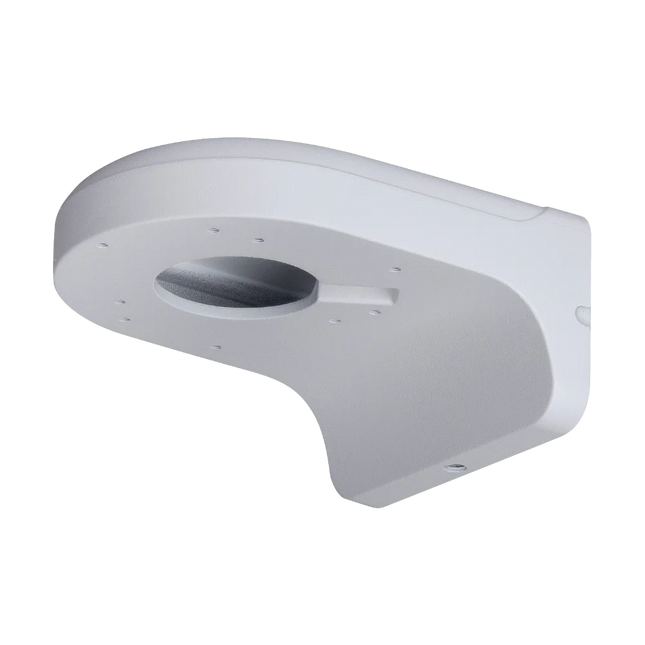

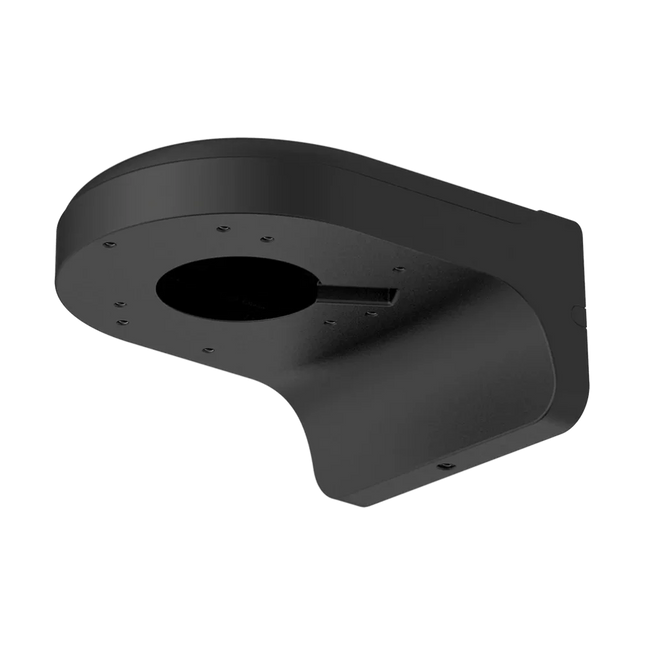

Dahua PFB203W · Waterproof Wall Bracket · White & Black Dahua DH-AC-PFB203W Waterproof Wall Mount Bracket — White (PFB203W) & Black (PFB203W-B) The Dahua DH-AC-PFB203W is the factory waterproof wall mount bracket engineered for Dahua's dome, turret and eyeball cameras — the bracket Australian installers reach for whenever an IPC-HDW or IPC-HDBW camera needs to be wall-mounted on render, brick, weatherboard, fibre cement or Colorbond instead of soffit-mounted to a ceiling. Available in both White (DH-AC-PFB203W) and Black (DH-AC-PFB203W-B) to colour-match the camera body, the bracket is built from a single-piece aluminium & SECC steel housing with an internal cable channel, a rubber gasket entry seal and a powder-coat finish rated for Australian sun and salt-air exposure. Dimensions are 160 × 122 × 76 mm, net weight is just 0.5 kg, the assembly is load-rated to 1 kg (2.2 lb) of camera mass — comfortably covering every Dahua turret and dome in the WizSense and Lite line-ups — and the operating temperature window of −40 °C to +60 °C handles every Australian climate from a Hobart winter to a Karratha summer. Each bracket ships with three M4 machine screws, four ST4 self-tappers, four plastic anchors and a hex wrench, ready for fitment on the first ladder trip. DH-AC-PFB203W — WhiteMatches Dahua white turrets & domes (HDW3849H, HDBW3441E, HDW2231R-ZS-S2, etc.) DH-AC-PFB203W-B — BlackMatches the BLK / Black-body Dahua TiOC turrets and dark-render or Colorbond facades. Material Aluminium & SECC Steel Dimensions 160 × 122 × 76 mm Load Bearing 1 kg (2.2 lb) Protection Waterproof Cable Entry Colour Options White & Black Operating Temp −40 °C to +60 °C 3-Year Australian Warranty Fast Australia-Wide Shipping Australian Tech Support Why Choose the Dahua DH-AC-PFB203W for Your Wall-Mounted Camera Mounting a dome or turret straight onto a wall with the factory ceiling base looks rough, leaves the cable exposed, and almost always leaks water. The PFB203W is the cleaner, weather-tight answer — it lifts the camera off the wall, gives the lens an unobstructed downward view, hides the cable inside an internal channel and seals the entry hole with a rubber gasket. For Australian installers, this is the bracket that turns a quick fit-off into a job you'd be happy to photograph for your portfolio — and one that won't come back as a warranty call after the first Sydney southerly. Genuine Dahua Engineering — Not a Generic Knock-Off The mounting hole pattern matches the Dahua HDW & HDBW dome/turret base exactly. The bracket ships with the correct M4 machine screws for the camera, the correct ST4 self-tappers for the wall, and an Allen wrench — no rummaging in the van for the right thread pitch. White or Black to Match the Camera The standard White PFB203W matches every Dahua white-housing turret and dome. The Black PFB203W-B colour-matches the BLK variants of the TiOC range (e.g. HDW3849H-AS-PV-ANZ-S2 Black) and disappears against dark-render walls, charcoal Colorbond or stained timber. Internal Cable Channel & Rubber Gasket The camera tail-cable runs cleanly through the bracket arm and out the wall entry — no exposed RJ45 loop, no UV cracking, and the rubber gasket at the wall-entry hole keeps wind-driven rain out of your wall cavity. Aluminium & SECC Steel — Built for the Australian Climate The arm is cast aluminium (light, won't rust) and the base-plate is SECC galvanised steel (rigid, hard-wearing). The powder-coat finish handles UV, salt-air and the daily expansion/contraction cycle on a north-facing brick wall in Perth or Brisbane. Compact 160 × 122 × 76 mm Footprint Just over six inches deep — close enough to the wall to look discreet, far enough off the surface that the camera's IR doesn't bounce off the render at night and wash out the image. Load-Rated for the Full Dahua Dome/Turret Range 1 kg load rating covers every Dahua eyeball, turret, mini-dome and small box camera (most weigh 350–700 g). Don't use it for full-size PTZs or thermal cameras — those need a heavier bracket. Official Dahua Installation Tutorial Dahua's factory installation walk-through for the PFB203W — covers the wall-mount sequence, cable entry, gasket fitment and the three-screw camera attachment using the included wrench. Worth a 4-minute watch before the first install. White PFB203W vs Black PFB203W-B — Which Should You Choose? Mechanically and electrically, the two variants are identical — same bracket, same load rating, same screws in the box, same datasheet. The only difference is the finish colour. Use the table below to choose the right SKU for the wall and the camera you're mounting. DH-AC-PFB203W (White) vs DH-AC-PFB203W-B (Black) Feature DH-AC-PFB203W (White) DH-AC-PFB203W-B (Black) Colour / Finish White powder-coat Black powder-coat Best Matched Camera Body White Dahua HDW / HDBW turrets & domes (default colour) BLK / Black-body Dahua TiOC turrets & domes (e.g. HDW3849H-AS-PV-ANZ-S2 Black) Best Matched Wall Surface White render, light brick, painted weatherboard, fibre cement, soffit linings Dark render, charcoal Colorbond, stained timber, dark face brick, black-painted feature walls Material Aluminium & SECC galvanised steel Aluminium & SECC galvanised steel Dimensions (W × H × D) 160 × 122 × 76 mm 160 × 122 × 76 mm Net Weight 0.5 kg (1.1 lb) 0.5 kg (1.1 lb) Maximum Load 1 kg (2.2 lb) 1 kg (2.2 lb) Cable Management Internal channel · rubber gasket wall entry Internal channel · rubber gasket wall entry Operating Temperature −40 °C to +60 °C −40 °C to +60 °C Humidity < 90% RH < 90% RH Hardware Included 3 × M4 machine screws · 4 × ST4 self-tappers · 4 × plastic anchors · 1 × hex wrench 3 × M4 machine screws · 4 × ST4 self-tappers · 4 × plastic anchors · 1 × hex wrench Compatible Cameras Same list — see compatibility section below Same list — see compatibility section below Best For Default choice for the bulk of installs — white camera on light-coloured wall. Premium aesthetic install — keeps the dark camera and the dark wall as one visual element rather than a white "patch" floating on the façade. Installer tip: always pair the bracket colour to the camera body, not the wall. A white camera in a black bracket on a dark wall reads as visually broken; a black camera in a black bracket on the same wall disappears. The wall colour drives the camera choice; the camera colour drives the bracket choice. Compatible Dahua Cameras The PFB203W is the official wall-mount accessory for the bulk of Dahua's eyeball turret, mini-dome (HDBW), and selected compact box camera ranges sold in Australia. The list below is drawn directly from the Dahua Camera Accessories Selection guide; if your camera isn't shown but appears as an HDW/HDBW model with a circular base ~122 mm diameter, it's almost certainly supported. (If in doubt, message our Australian team with the model number — we'll confirm before you order.) Dahua PFB203W · Camera Compatibility (Australian Market Models) TiOC 3.0 Turrets (Active Deterrence) DH-IPC-HDW3849H-AS-PV-ANZ-S2 (8MP) · DH-IPC-HDW3649H-AS-PV-ANZ-S2 (6MP) · DH-IPC-HDW3549H-AS-PV (5MP) · DH-IPC-HDW3449H-AS-PV (4MP) · DH-IPC-HDW3249H-AS-PV (2MP) · DH-IPC-HDW3849H-AS-PV-PRO-ANZ (TiOC PRO 8MP) · DH-IPC-HDW3649H-AS-PV-PRO-ANZ (TiOC PRO 6MP) WizSense Motorised-Zoom Turrets DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 · DH-IPC-HDW3649H-ZAS-PV-ANZ-S2 · DH-IPC-HDW3841T-ZAS · DH-IPC-HDW3441T-ZAS · DH-IPC-HDW3541T-ZAS · DH-IPC-HDW3241T-ZAS WizSense Fixed-Lens Turrets DH-IPC-HDW3841TM-AS · DH-IPC-HDW3441TM-AS · DH-IPC-HDW3541TM-AS · DH-IPC-HDW3241TM-AS · DH-IPC-HDW3849TM-AS-LED · DH-IPC-HDW3549TM-AS-LED · DH-IPC-HDW3449TM-AS-LED · DH-IPC-HDW3249TM-AS-NI · DH-IPC-HDW3449TM-AS-NI Lite 2-Series Turrets DH-IPC-HDW2831T-AS-S2 · DH-IPC-HDW2531T-AS-S2 · DH-IPC-HDW2431T-AS-S2 · DH-IPC-HDW2231T-AS-S2 · DH-IPC-HDW2439T-AS-LED-S2 · DH-IPC-HDW2239T-AS-LED-S2 · DH-IPC-HDW2831R-ZS-S2 · DH-IPC-HDW2531R-ZS-S2 5-Series Pro AI Turrets DH-IPC-HDW5541T-ZE · DH-IPC-HDW5241T-ZE · DH-IPC-HDW5442T-ZE · DH-IPC-HDW5541H-ASE-PV · DH-IPC-HDW5241H-ASE-PV · DH-IPC-HDW5842T-ZE-S2 · DH-IPC-HDW5242T-ZE-MF · DH-IPC-HDW5449H-ASE-D2 WizSense Mini-Domes (HDBW Eyeball-Style) DH-IPC-HDBW3841E-AS · DH-IPC-HDBW3441E-AS · DH-IPC-HDBW3541E-AS · DH-IPC-HDBW3241E-AS · DH-IPC-HDBW3449E-AS-NI · DH-IPC-HDBW3249E-AS-NI · DH-IPC-HDBW3841R-ZAS · DH-IPC-HDBW3441R-ZAS · DH-IPC-HDBW3541R-ZAS · DH-IPC-HDBW3241R-ZAS Lite 2-Series Mini-Domes DH-IPC-HDBW2831E-S-S2 · DH-IPC-HDBW2531E-S-S2 · DH-IPC-HDBW2431E-S-S2 · DH-IPC-HDBW2231E-S-S2 · DH-IPC-HDBW2231R-ZS-S2 · DH-IPC-HDBW2431R-ZS-S2 · DH-IPC-HDBW2531R-ZS-S2 · DH-IPC-HDBW2831R-ZS-S2 Cooper / Entry-Level Mini-Domes DH-IPC-HDBW1531E-S · DH-IPC-HDBW1431E-S · DH-IPC-HDBW1230E · DH-IPC-HDBW1420E · DH-IPC-HDBW1120E · DH-IPC-HDBW1531E · DH-IPC-HDBW1431E · DH-IPC-HDBW1230E-W (Wi-Fi) 5-Series Pro AI Mini-Domes DH-IPC-HDBW5541R-ASE · DH-IPC-HDBW5241R-ASE · DH-IPC-HDBW5442R-ASE · DH-IPC-HDBW5441R-ASE · DH-IPC-HDBW5842R-ASE-S2 · DH-IPC-HDBW5242R-ASE-MF · DH-IPC-HDBW5449R-ASE-LED HDCVI Turret Cameras HAC-HDW2802T-A-I8 · HAC-HDW2249T-A-LED · HAC-HDW2241T-A · HAC-HDW1500T-A · HAC-HDW1239T-A-LED · HAC-HDW1209T-A-LED · HAC-HDW2402T-A · HAC-HDW2801T-A · HAC-HDW1500EM-A HDCVI Mini-Domes HAC-HDBW2802R · HAC-HDBW2402R · HAC-HDBW2241R-Z · HAC-HDBW2231R-Z · HAC-HDBW1500R · HAC-HDBW1400R · HAC-HDBW1230R · HAC-HDBW1209R · HAC-HDBW1100R Compact Box / Cube Cameras DH-IPC-EB5541-AS · DH-IPC-EBW81242-AS-S2 (panoramic 12MP fisheye) · IPC-HDB4231C-AS · IPC-HDB4431C-AS NOT Compatible — use a different bracket Dahua bullet cameras (HFW series — use PFA152-E pole / PFA130-E junction) · Full-size PTZ cameras · Thermal cameras · Cameras over 1 kg load · Camera bases over 122 mm diameter Need a quick decision? If you're mounting an eyeball turret or a mini-dome on a vertical wall (not a soffit), and the camera weighs under 1 kg with a circular base around 110–122 mm, the PFB203W is the correct bracket. Pair the colour to the camera body, not the wall. Technical Specifications DH-AC-PFB203W · Full Specifications (White & Black) Model — White DH-AC-PFB203W Model — Black DH-AC-PFB203W-B Product Type Waterproof wall mount bracket for dome & turret cameras Material Aluminium body & SECC galvanised-steel base plate Finish — White Powder-coat · Dahua RAL White Finish — Black Powder-coat · Dahua RAL Black Dimensions (W × H × D) 160 × 122 × 76 mm (6.30 × 4.80 × 2.99 in) Net Weight 0.5 kg (1.1 lb) Maximum Load Bearing 1 kg (2.2 lb) Cable Management Internal cable channel with rubber gasket wall-entry seal Mounting Pattern Dahua HDW / HDBW circular base (3 × M4 machine screws) Operating Temperature −40 °C to +60 °C Humidity < 90% RH (non-condensing) Package Contents 1 × Wall-mount bracket · 3 × M4 machine screws · 4 × ST4 self-tappers · 4 × plastic anchors · 1 × hex wrench · installation sheet Compatible Camera Bases Most Dahua IPC-HDW (turret) · IPC-HDBW (mini-dome) · HAC-HDW · HAC-HDBW · selected IPC-EB / EBW box cameras (see compatibility table) Applicable Walls Brick · render · weatherboard · fibre cement · Colorbond · plasterboard (with appropriate fixings) Country of Origin China · Genuine Dahua factory accessory Australian Warranty 3-Year Australian Warranty (back-to-base) Installation Overview — From Box to Powered Up The PFB203W is one of the fastest brackets in the Dahua catalogue to fit — most installers have it on the wall and the camera powered up inside 10 minutes. The high-level sequence is below; the official video at the top of this page walks the exact procedure. 1. Mark & Drill the Wall Pattern Use the bracket's base-plate as the drilling template. Three or four ST4 self-tappers (supplied) into plastic anchors (also supplied) hold it on render, brick or fibre cement. For Colorbond or timber, drive the self-tappers direct into the substrate — no anchor needed. 2. Run the Cable Through the Arm Push the camera tail (RJ45 head + power if used) up through the bracket arm before bolting the base-plate to the wall — easier than threading after. The rubber gasket seats around the cable as it enters the wall hole, keeping wind-driven rain out of the cavity. 3. Bolt the Bracket to the Wall Tighten the four ST4 screws. Test the bracket is rigid before mounting the camera — a flex now means a flex with a camera on it. 4. Attach the Camera with 3 × M4 Screws Line up the camera's circular base on the bracket head, drive the three M4 machine screws (supplied) with the included hex wrench. The wrench is small — clip it to your tool tray, it's the only tool that fits the recess. 5. Plug In & Power Up Connect the RJ45 to the PoE switch or injector, the camera boots inside 30 seconds. Aim the gimbal with the camera live (using your phone or test monitor) before locking the bracket head. 6. Final Aesthetic Pass Silicone-bead the perimeter of the base-plate against the wall on outdoor installs — it's belt-and-braces over the gasket and gives a clean, water-tight finish that survives the next 10 years of weather. Frequently Asked Questions Is the PFB203W actually waterproof, and to what rating? The bracket itself is not assigned an IP code (it's a passive mounting accessory, not a sealed enclosure), but the cable-entry hole is fitted with a rubber gasket that seals the wall penetration against wind-driven rain — the same gasket Dahua uses on its IP66/IP67 cameras. With the gasket fitted correctly and a silicone bead around the base-plate, you have a fully water-tight outdoor install. Is the white bracket the same as the black bracket — just painted? Yes. Same casting, same load rating, same mounting pattern, same datasheet, same screw kit. The only difference is the powder-coat colour. Choose by camera body colour, not by spec. What's the maximum camera weight I can mount? 1 kg (2.2 lb). That comfortably covers every Dahua eyeball turret, every mini-dome, and most compact box cameras (350–700 g). Don't use it for PTZs, thermal cameras, or anything over 1 kg — those need a heavier bracket like the PFB220C or PFA152-E. Does this fit Dahua bullet cameras (HFW series)? No. Bullets have an integrated arm and don't use a separate wall-mount bracket — they bolt directly to the wall or to a junction box like the PFA130-E. The PFB203W is for cameras with a round base (HDW turrets, HDBW mini-domes). Will it fit a Hikvision turret or eyeball camera? Mechanically, no. The PFB203W's three-screw mounting pattern is sized for the Dahua HDW / HDBW base. Hikvision use a different bolt circle. For a Hikvision turret on a wall, use the Hikvision DS-1273ZJ-130-TRL or equivalent. Can I mount it on a fence post or pole? The PFB203W is designed for flat walls only. For pole, gutter or corner mounting, pair the PFB203W with a Dahua PFA152-E pole adapter, or use a dedicated pole-mount accessory. Will the cable be hidden, or does it run on the outside? Hidden. The arm is hollow with an internal channel — the camera tail-cable runs up through the arm and out the wall entry, with no exposed cable run. Does it ship with screws and anchors? Yes. Each PFB203W ships with 3 × M4 machine screws for the camera, 4 × ST4 self-tappers + 4 × plastic anchors for the wall, and a hex wrench for the M4 screws. You won't need anything extra unless the wall substrate calls for masonry anchors of a different size. Is it compatible with the Black BLK variants of the Dahua TiOC range? Yes — and that's exactly when you'd specify the Black PFB203W-B. The black bracket colour-matches the BLK / Black-body TiOC turrets (HDW3849H-AS-PV-ANZ-S2 Black, for example) for a seamless installed look against dark walls. Will it handle Australian sun and salt-air? Yes. The aluminium arm doesn't rust, the SECC steel base-plate is galvanised, and the powder-coat finish is UV-stable. The operating temperature is rated to +60 °C, well above any roof-mounted Australian summer day. For coastal sites (within 1 km of the surf), we still recommend an annual freshwater rinse to extend the powder-coat life — same advice we give for the camera itself. What is the warranty and where is it serviced? The bracket ships with a 3-year Australian warranty against material and finish defects, serviced back-to-base through CCTV Guru. Damage from over-tightening, drop, or installation error is excluded — standard for any mechanical accessory. Do you ship Australia-wide and is stock genuine? Yes — Australian stock from authorised Dahua Australia channels (not parallel imports). We dispatch the same business day for orders placed before 2 pm AEST to Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra, Darwin and every regional address in between. Downloads & Resources DH-AC-PFB203W Datasheet Order the Dahua DH-AC-PFB203W from CCTV Guru CCTV Guru is an authorised Australian reseller of Dahua network cameras and genuine factory accessories. Order the PFB203W Waterproof Wall Mount Bracket today in White or Black for fast Australia-wide dispatch, real Dahua factory parts (not generic copies) and Australian-based technical support if you need help choosing between bracket variants for a multi-camera project. Buying ten or more for a commercial rollout? Request a project quote or contact our Australian team — we'll match the right bracket colour to your camera SKUs across the whole job.

Read more less

Dahua Genuine Accessory Dahua DH-PFA139 — Waterproof Junction Box for CCTV Turret Cameras A clean, professional CCTV installation starts with the right accessories. The Dahua DH-PFA139 is a purpose-built waterproof junction box designed to conceal and protect cable entry points behind turret and eyeball cameras. Crafted from durable aluminium with an aesthetic low-profile design, it keeps your installation looking sharp while shielding wiring from moisture, dust, and UV exposure — indoors or out. Protection Waterproof Material Aluminium Dimensions 108 × 28.5 mm Colours White & Black Why Use the Dahua DH-PFA139 Junction Box? Weatherproof Cable Protection Seals the cable entry point behind your camera, preventing water ingress, dust, and insects from reaching your wiring — essential for any outdoor installation. Aesthetic Low-Profile Design The slim, flush-mount profile blends seamlessly with your camera and wall surface, giving installations a clean, professional finish that clients notice. Durable Aluminium Construction Aluminium resists corrosion, UV degradation, and physical impact — outlasting plastic alternatives in harsh Australian outdoor environments. Genuine Dahua Compatibility Engineered specifically for Dahua turret and eyeball cameras. Ensures a perfect fit with no gaps, no improvised adapters, and no compromised weatherproofing. Available in White & Black Choose White (DH-AC-PFA139) to match light-coloured soffits and walls, or Black (DH-AC-PFA139-B) for dark surfaces, feature walls, and discreet installations. Easy Wall or Ceiling Mount Compact 108 × 28.5 mm footprint mounts directly to standard wall or ceiling surfaces. Straightforward installation saves time on every job. Technical Specifications Model DH-PFA139 / DH-AC-PFA139 Type Waterproof Junction Box Material Aluminium Dimensions 108.0 × 28.5 mm (4.25" × 1.12") Available Colours White (DH-AC-PFA139) / Black (DH-AC-PFA139-B) Mounting Wall or ceiling surface mount Compatibility Dahua turret / eyeball cameras SKU – White DH-AC-PFA139 SKU – Black DH-AC-PFA139-B Frequently Asked Questions Which Dahua cameras is this compatible with? The DH-PFA139 is designed for Dahua turret (eyeball) cameras. It fits the standard Dahua camera base footprint — check your camera's datasheet to confirm compatibility. Is it suitable for outdoor use? Yes. The aluminium construction and waterproof design make it ideal for outdoor installations, protecting cable entry points from rain, moisture, and dust. What is the difference between White and Black versions? They are identical in function and dimensions — only the colour differs. White (DH-AC-PFA139) suits light walls and soffits; Black (DH-AC-PFA139-B) suits dark surfaces and discreet installs. Do I need this junction box for every camera? It's not mandatory, but strongly recommended for any outdoor camera or anywhere cable entry needs to be weatherproofed and neatly concealed for a professional result. Downloads Download Datasheet Fast AU Shipping Genuine Dahua Stock Expert AU Support

Read more less

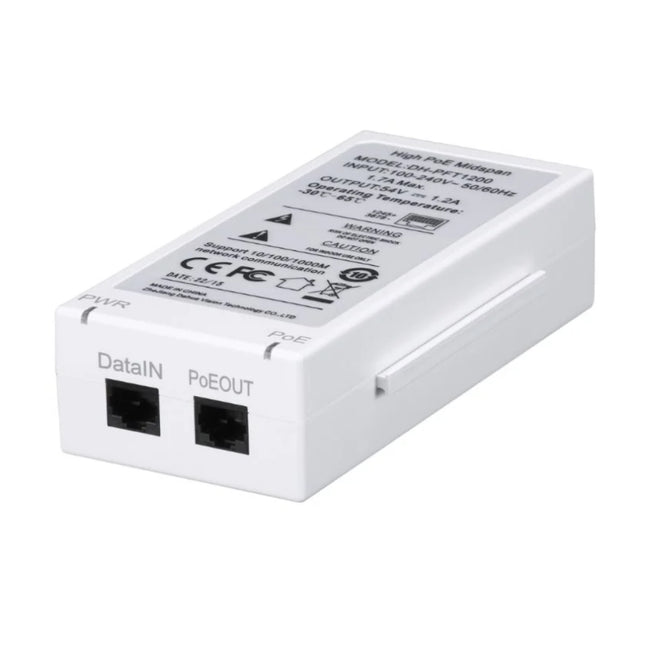

Dahua Hi-PoE Midspan, Support PoE for Hi-PoE 60W high power consumption speed dome Support PoE for Hi-PoE 60W high power consumption speed dome Indicator status: power (normal power on), PoE (normal power supply) Cooperate with PoE Extender (PFT1300), able to cascade level 2 PoE Extender, connect to 3 IPC (power consumption Installation mode: wall mount Downloads PFT1200_Datasheet_20170728PFT1200_User Manual

Read more less

Dahua Wall Mount Bracket Aesthetic design Wall mount bracket Material: aluminum Specifications CAMERA BRACKETS TYPE Wall Mount Bracket MATERIAL Aluminum COLOUR White DIMENSION 58mmx88mmx190.5mm (2.28''x3.46''x7.50'') Downloads DH-PFB121W Datasheet

Read more less

Dahua HDMI Extender The Dahua HDMI Extender DH-PFM700-E enables real-time transmission of HDMI video signals up to 50 meters using a single CAT6 cable, ensuring minimal delay and strong anti-interference performance. Designed for HDMI 1.3 compatibility, it supports local loop output and EDID management. The device also includes one-way infrared remote control signal transmission and offers robust protection against thunder, static, and interference without needing driver installation or network configuration. Powered by DC5V, it is optimized for reliable and straightforward HDMI extension in professional setups. Features Power supply: Input voltage DC5V, only supply for transmitter. Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference. Transmission distance: HDMI transmission distance 50m (max.164ft), with CAT6 of pure copper cable(DC impedance is less than 9.5 ohm for every 100 meters(328ft)). Infrared function: support to transmit one-way infrared remote control signal. Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID. Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities. Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install. Downloads PFM700-E Datasheet_20190906

Read more less

Dahua Waterproof Junction Box White DH-PFA121 Aesthetic design Material: aluminum IP66 junction box Specifications CAMERA BRACKETS TYPE Water-proof Junction Box MATERIAL Aluminum COLOUR White DIMENSION 134.0mmx133.5mmx56.0mm (5.28''x5.25''x2.20'') Downloads DH-PFA121 Datasheet

Read more less

Dahua Mount Adapter Aesthetic design Material: aluminum Mount adapter Specifications CAMERA BRACKETS TYPE Mount Adapter MATERIAL Aluminum COLOUR White DIMENSION 60mmx49mm (2.36''x1.93'') Downloads DH-PFA111_datasheet

Read more less

Dahua Ceiling Mount Bracket Neat & Integrated design Ceiling mount bracket Material: Aluminum Specifications CAMERA BRACKETS TYPE Ceiling Mount Bracket of Mini Dome & Eyeball Camera MATERIAL Aluminum COLOUR White DIMENSION 128.8mmx767.0mm(5.07''x30.2'') Downloads DH-PFB220C_datasheet

Read more less

Dahua Waterproof Wall Mount Bracket White The Dahua Waterproof Wall Mount Bracket White DH-PFB205W-E is crafted from durable aluminum alloy, offering a cost-effective and sturdy solution for mounting specific Dahua cameras. Its sleek, white design complements any installation environment while providing reliable protection against the elements. Measuring 161.6 mm x 125.6 mm x 76.0 mm, this bracket ensures a secure and precise fit, enhancing both the functionality and aesthetics of your surveillance setup. Ideal for professional installations requiring both durability and style. Features Aluminium alloy material, cost-effective Dedicated for particular cameras, beautiful and elegant designed Specifications CAMERA BRACKETS TYPE Wall Mount Bracket MATERIAL Aluminum COLOUR White DIMENSION 161.6 mmx125.6 mmx76.0 mm (6.36''x4.94''x2.99'') Downloads DH-PFB205W_datasheet

Read more less

Dahua Mount Adapter Aesthetic design Material: aluminum Mount adapter Specifications CAMERA BRACKETS TYPE Mount Adapter MATERIAL Aluminum COLOUR White DIMENSION 59mmx53mm (2.32''x2.09'') Downloads DH-PFA110_datasheet

Read more less
