Description

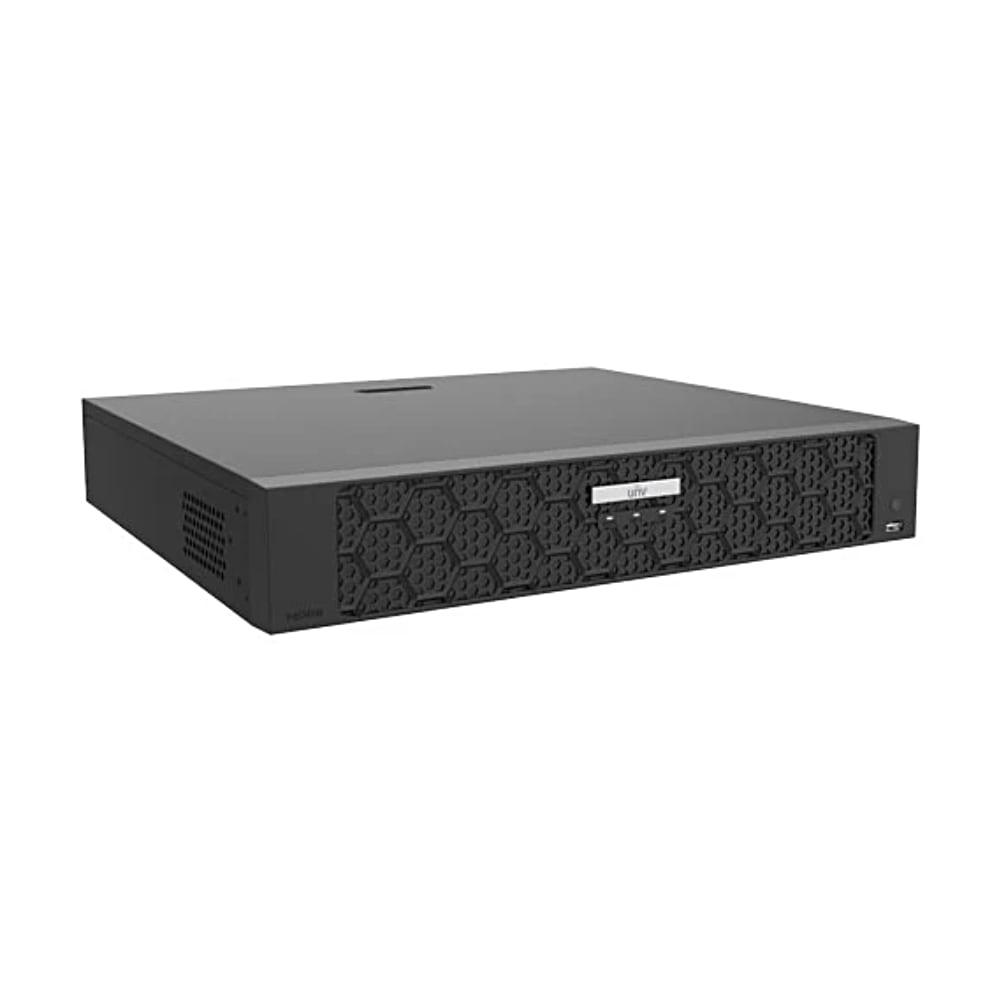

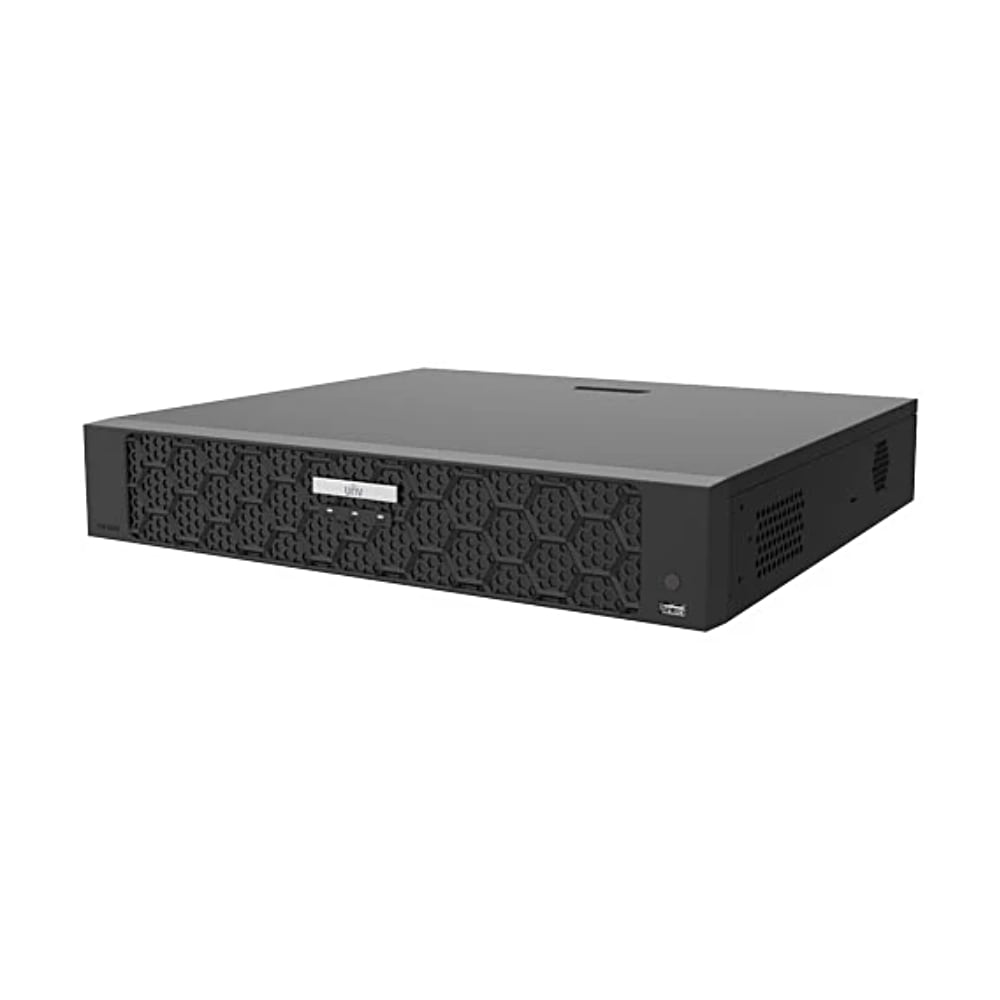

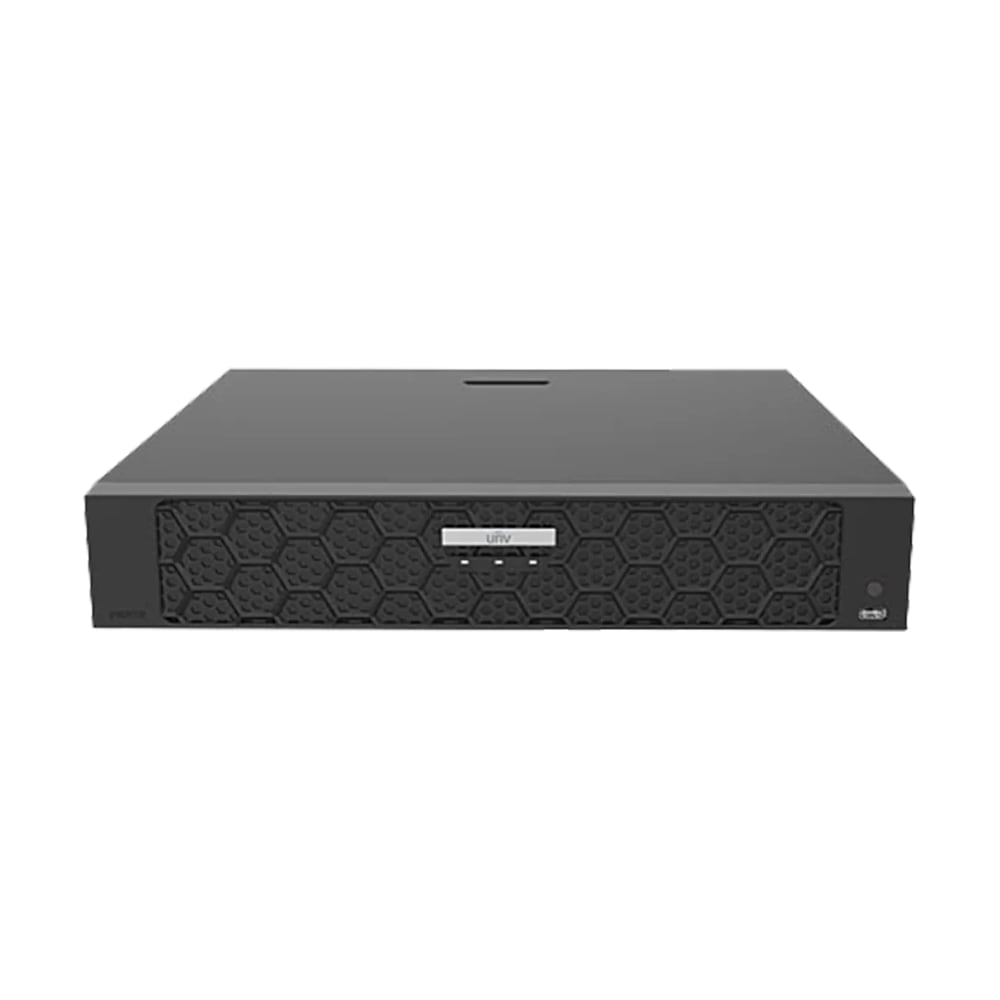

Uniview UNV NVR504-32B-P16 32-Channel PoE NVR
The NVR504-32B-P16 delivers high-capacity recording for up to 32 IP cameras with 16 independent PoE ports (IEEE 802.3af/at, up to 30 W/port, 150 W total). It supports Ultra 265/H.265/H.264, HDMI up to 4K with independent VGA, 320 Mbps incoming / 160 Mbps outgoing bandwidth, and up to 16 MP recording—backed by 4×SATA bays, RAID 1/5, and ANR for resilience.
Key Features
-
Channels / PoE: 32-ch IP input; 16× PoE (independent)
-
Codecs: Ultra 265 / H.265 / H.264
-
Video Outputs: HDMI up to 4K (3840×2160) + VGA; independent
-
Throughput: 320 Mbps incoming / 160 Mbps outgoing
-
Recording: Up to 16 MP per channel; rich multi-view layouts (1–32)
-
AI/VCA: Face, vehicle, SIP/UMD, people counting (IPC-dependent); powerful VCA search & reports
-
Storage: 4×SATA (up to 16 TB each); RAID 1/5; redundant storage; ANR
-
I/O & Ports: 1×GbE, USB2.0 (front) + USB3.0 (rear), Audio 1-in/1-out (RCA), Alarm 16-in/4-out, RS-485
-
Build: 400×368×74 mm 1.5U chassis; ≤20 W (w/o HDD); −10~55 °C; CE/FCC/UL/RoHS/WEEE
Specifications per Uniview datasheet (NVR504-B-P series).
Technical Specifications
| Brand / Model (SKU) |
Uniview UNV / NVR504-32B-P16 |
| IP Inputs |
32 channels |
| PoE Interfaces |
16 × RJ45 (10/100M) independent PoE; IEEE 802.3af/at |
| PoE Power |
Max 30 W/port; 150 W total |
| Video Formats |
Ultra 265 / H.265 / H.264 |
| Max Recording |
Up to 16 MP |
| Local Outputs |
1 × HDMI (up to 3840×2160@30), 1 × VGA (independent) |
| Bandwidth |
Incoming 320 Mbps; Outgoing 160 Mbps |
| Synchronous Playback |
Up to 16-channel local playback |
| Audio / Alarm I/O |
Audio 1-in / 1-out (RCA); Alarm 16-in / 4-out; RS-485 |
| Storage / RAID |
4 × SATA; up to 16 TB per HDD; RAID 1/5; redundant storage; Disk groups |
| USB |
Front 1 × USB2.0; Rear 1 × USB3.0 |
| Network / Protocols |
1 × RJ45 10/100/1000M; TCP/IP, HTTPS, RTSP, IPv4/IPv6, ONVIF S/G/T |
| Environment |
−10 ~ +55 °C; ≤90% RH (non-cond.) |
| Power / Size |
AC 100–240 V; ≤20 W (w/o HDD); 400 × 368 × 74 mm; ≤4 kg (w/o HDD) |
| Certifications |
CE, FCC, UL, RoHS, WEEE |
What’s Included
- Uniview UNV NVR504-32B-P16 32-ch PoE NVR
- Power cord, mouse, rack ears (where supplied), quick guide
Customer Requirements
- Surveillance-grade HDDs (up to 4 × 16 TB) for recording
- RJ45 Cat6 cabling to cameras; PoE budget planning (30 W/port, 150 W total)
- HDMI/VGA cable for local display (optional)
More Information
< Uniview UNV NVR504-32B-P16 Datasheet /p>
