Description

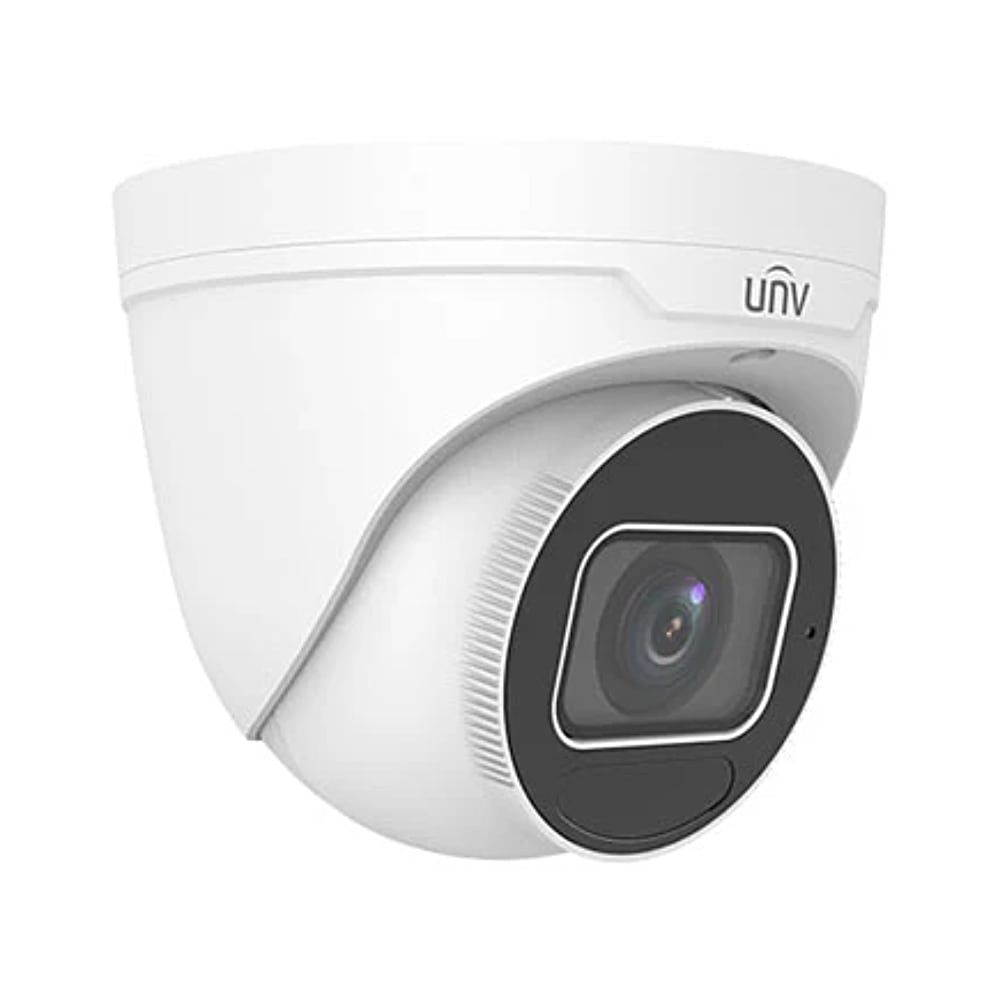

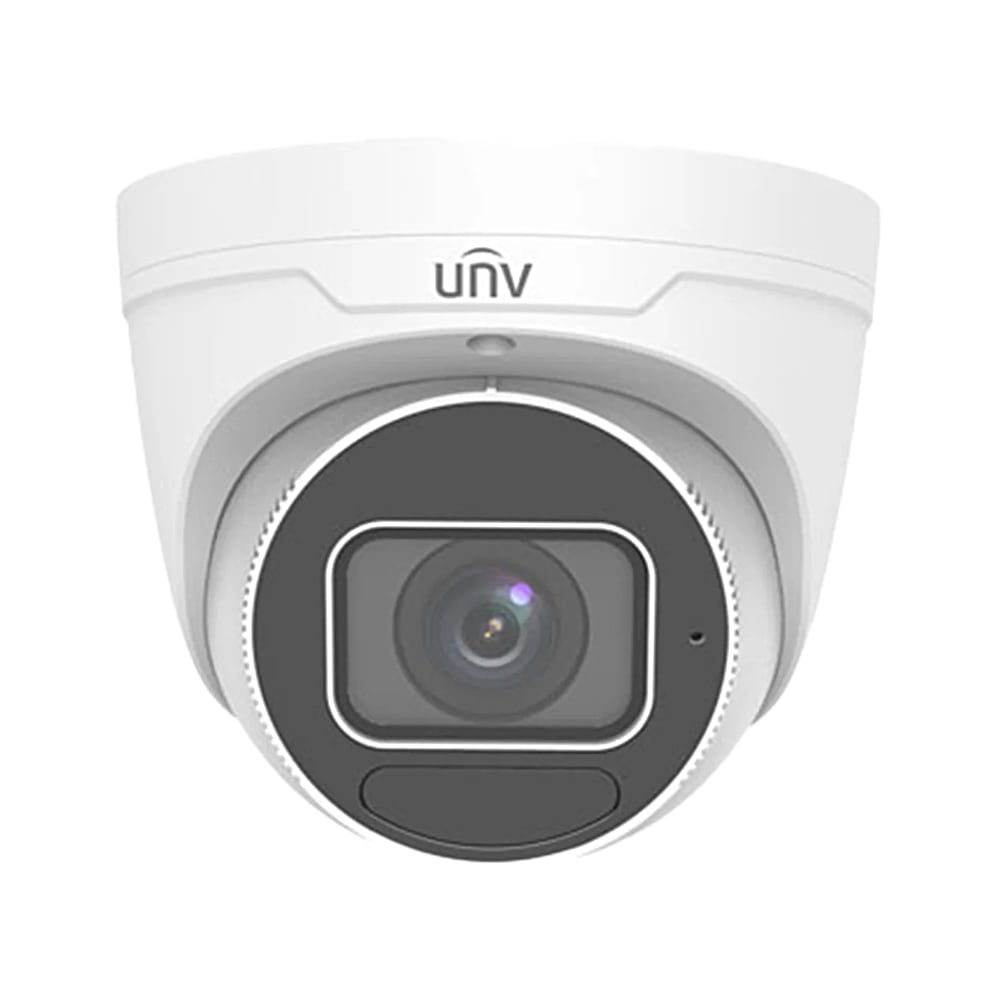

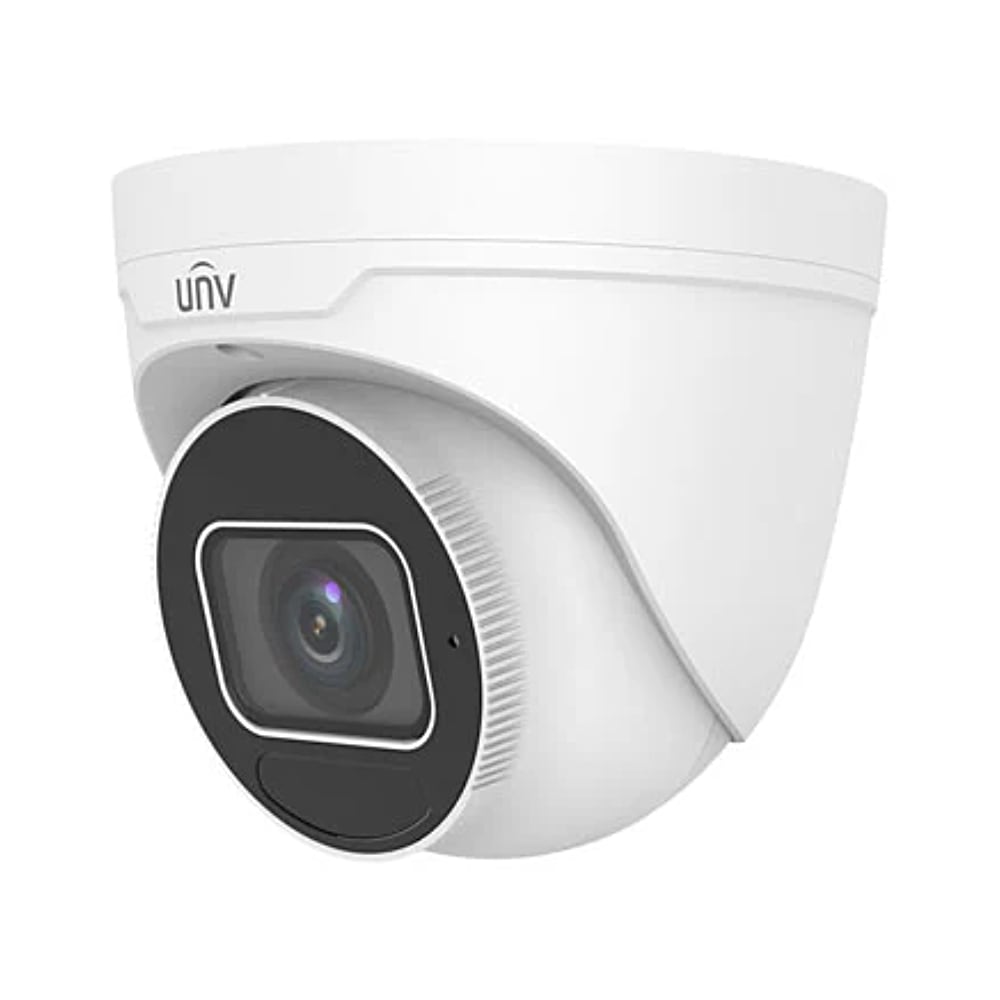

Uniview UNV IPC3635SB-ADZK-I0 5MP LightHunter Motorized Varifocal Turret
The IPC3635SB-ADZK-I0 delivers sharp 5 MP video with
LightHunter low-light imaging, 120 dB true WDR, and a
2.7–13.5 mm motorized varifocal lens (≈5×) for flexible framing.
Smart IR provides night vision up to 40 m, while a
built-in microphone, IK10 vandal resistance, IP67 weather rating,
and microSD up to 512 GB make it a robust all-rounder for indoor/outdoor deployments.
Key Features
- 5 MP 1/2.7″ CMOS; up to 2880×1620 @ 30/25 fps
-
Motorized VF lens 2.7–13.5 mm (≈5× optical)
-
LightHunter & 120 dB WDR for challenging light scenes
-
Smart IR up to 40 m; 9:16 corridor mode
- Built-in mic; Ultra 265 / H.265 / H.264 / MJPEG
- Intelligent intrusion prevention (human/vehicle filtering), people flow & crowd density
- Edge storage: microSD up to 512 GB
-
IK10 vandal resistance; IP67 weather protection
Technical Specifications
| Brand / Model (SKU) |
Uniview UNV / IPC3635SB-ADZK-I0 |
| Image Sensor / Max Res |
1/2.7″ CMOS / 5 MP (2880×1620 @ 30/25 fps) |
| Other Resolutions |
4 MP 2560×1440; 3 MP 2304×1296; 1080p 1920×1080 @ 30/25 fps |
| Lens |
Motorized 2.7–13.5 mm, AF (≈5× optical) |
| Low-light / WDR |
LightHunter; 120 dB true WDR |
| IR / Night |
Smart IR up to 40 m; ICR day/night |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Audio |
Built-in microphone |
| Analytics |
Perimeter protection (line, intrusion, enter/leave), human/vehicle classification; people flow & crowd density |
| Edge Storage |
microSD up to 512 GB |
| Ingress / Impact |
IP67; IK10 |
| Power |
DC 12 V or PoE (802.3af) |
What’s Included
- Uniview UNV IPC3635SB-ADZK-I0 camera
- Mounting hardware & quick guide
More Information
Uniview UNV IPC3635SB-ADZK-I0 Datasheet
Uniview UNV IPC3635SB-ADZK-I0 Product Page
