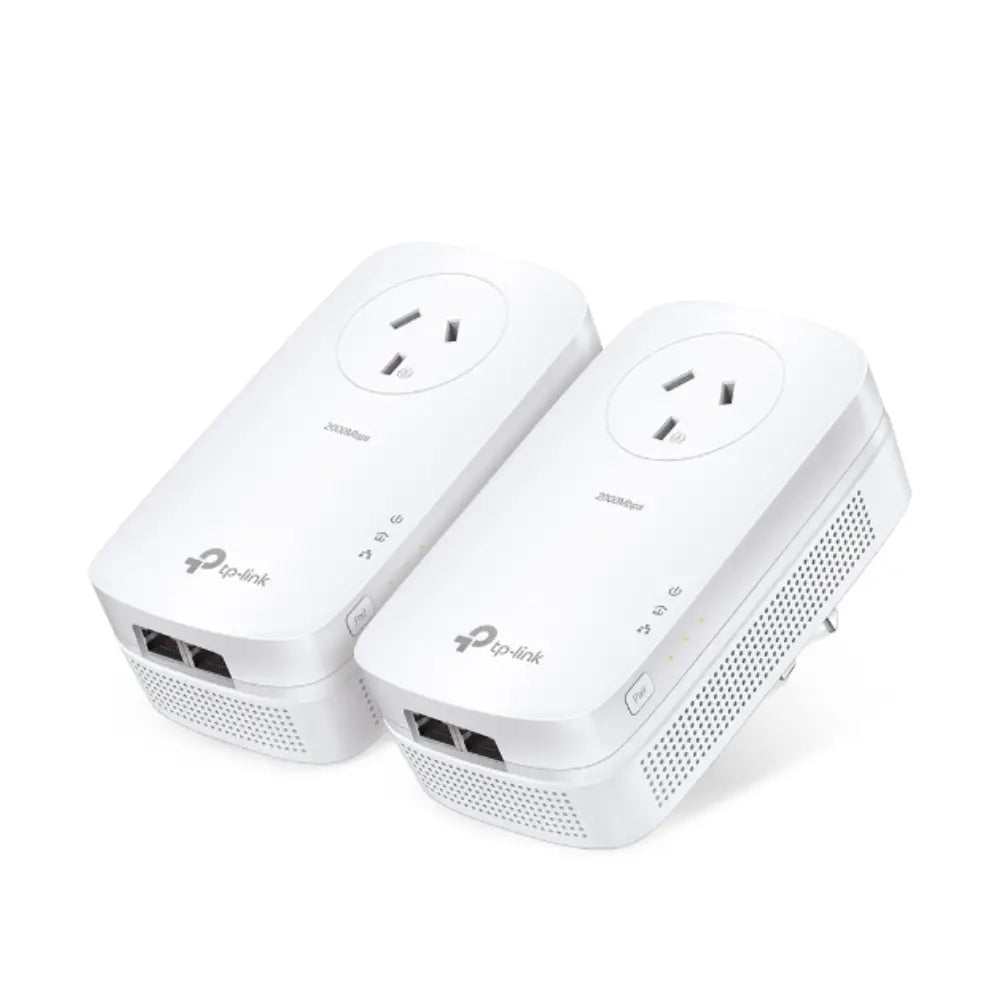

TP-Link PA9020P – AV2000 Gigabit Powerline Adapter Starter Kit with AC Pass Through
The TP-Link PA9020P is TP-Link’s flagship powerline adapter kit, delivering up to 2000Mbps over your existing electrical wiring using the latest HomePlug AV2 standard. With two Gigabit Ethernet ports per adapter, 2×2 MIMO with Beamforming, and an integrated AC pass-through socket, it’s engineered for households and small businesses that demand the fastest, most stable wired connection possible — without running new cable.
Key Features
-
AV2000 HomePlug AV2 Speed: Up to 2000Mbps powerline throughput — the fastest HomePlug AV2 standard available — for 4K streaming, large file transfers, and low-latency gaming.
-
2×2 MIMO with Beamforming: Multiple simultaneous data streams with intelligent signal focusing deliver higher speeds and greater stability compared to single-stream powerline adapters.
-

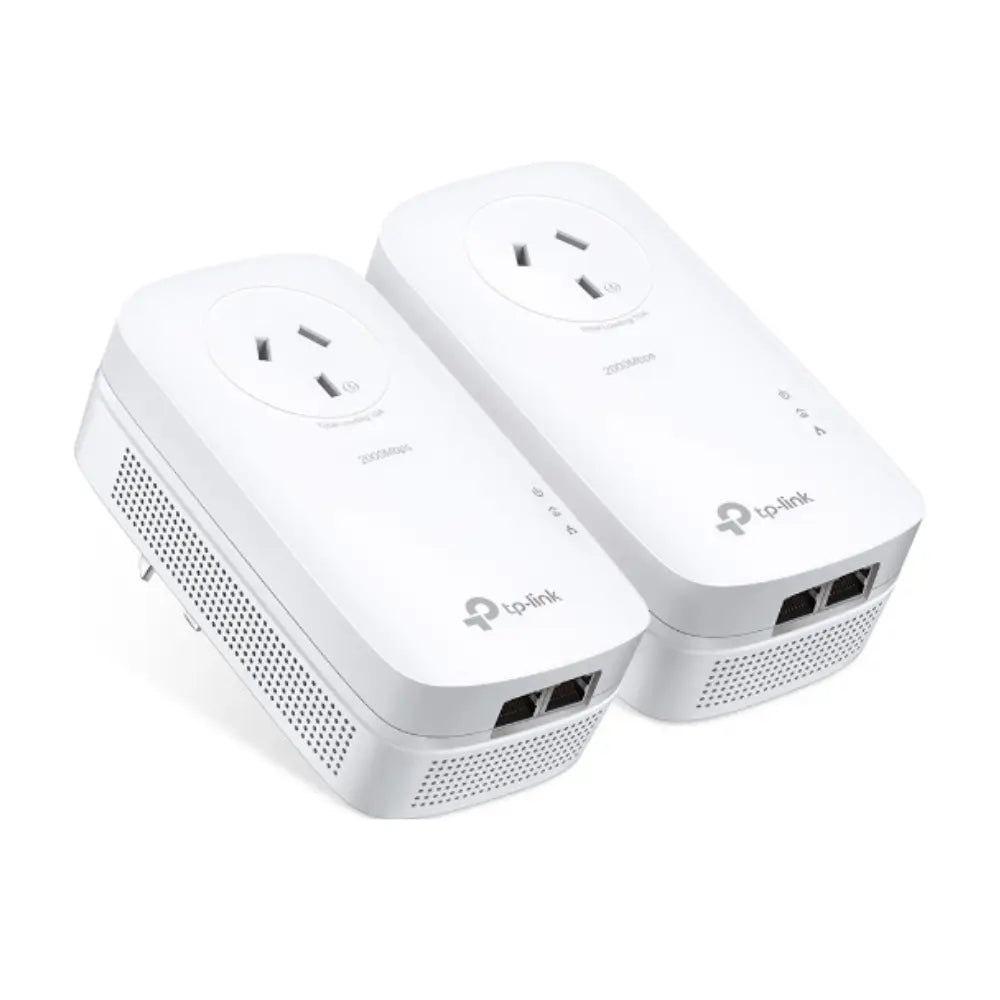

2 × Gigabit Ethernet Ports: Connect two wired devices per adapter — ideal for a smart TV and a gaming console, or a NVR and a network switch — at full Gigabit speeds.
-
AC Pass-Through Power Socket: Integrated power outlet on each adapter means you don’t sacrifice a wall socket to gain two network ports.
-
300-Metre Range: Covers up to 300 metres of electrical wiring, suitable for most Australian homes and small commercial premises.
-
Plug and Play: No configuration required — plug in and press the Pair button to create an encrypted, secure network connection instantly.
-
128-bit AES Encryption: Push-button pairing creates a private, encrypted powerline network automatically.
-
QoS Support: Up to 4-level Type of Service (ToS) QoS and 8-level VLAN priority for prioritising latency-sensitive traffic such as video and VoIP.
-
Power-Saving Mode: Automatically reduces power consumption by up to 85% when no data is being transmitted.
-
Broad Compatibility: Works with AV2000, AV1200, AV1000, AV600, AV500, and AV200 powerline adapters for mixed-network flexibility.
-
Australian Plug Type: Supplied with AU-standard plugs for direct compatibility with Australian power outlets.
Ideal Use Cases
- Delivering Gigabit wired connectivity to smart TVs, NAS drives, and gaming consoles in rooms with poor Wi-Fi coverage.
- Connecting IP cameras, NVRs, or network switches to a router across multiple floors without running new Ethernet cable.
- High-bandwidth home office setups requiring stable, low-latency wired internet access away from the router.
- Multi-device entertainment setups where both a media player and a console need wired connections from a single adapter.
- Rental properties, heritage buildings, or commercial tenancies where cable runs are impractical or prohibited.
- Upgrading an existing AV600 or AV1000 powerline network to AV2000 speeds while retaining backward compatibility.
Technical Specifications
| Specification |
Detail |
| Model |
TL-PA9020P KIT (2 × PA9020P) |
| Powerline Standard |
HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Powerline Speed |
Up to 2000Mbps |
| MIMO |
2×2 with Beamforming |
| Gigabit Ethernet Ports |
2 × 10/100/1000Mbps (RJ45) per adapter |
| AC Pass-Through Socket |
Yes (integrated power outlet) |
| Plug Type |
AU (Australian standard) |
| Range |
Up to 300 metres (electrical wiring) |
| Encryption |
128-bit AES (push-button pairing) |
| Modulation |
OFDM |
| QoS |
Up to 4-level ToS; up to 8-level VLAN priority |
| Power Consumption (Max) |
5.8W @ 230V/50Hz |
| Power Consumption (Standby) |
0.5W @ 230V/50Hz |
| Power Saving |
Up to 85% reduction in idle mode |
| Compatibility |
AV2000 / AV1200 / AV1000 / AV600 / AV500 / AV200 powerline adapters |
| LED Indicators |
Power, Powerline, Ethernet |
| Dimensions |
131 × 72 × 42 mm |
| Weight |
0.74kg (kit) |
| SKU |
TL-PA9020P KIT |
| Barcode (EAN) |
6935364097356 |
What’s in the Box
- 2 × PA9020P AV2000 Gigabit Powerline Adapter with AC Pass Through
- 2 × RJ45 Ethernet Cables
- Quick Installation Guide
Frequently Asked Questions
What makes the PA9020P different from the TL-PA4010PKIT?
The PA9020P uses the newer HomePlug AV2 standard with 2×2 MIMO and Beamforming, delivering up to 2000Mbps — more than three times the 600Mbps of the TL-PA4010PKIT. It also includes two Gigabit Ethernet ports per adapter (versus one Fast Ethernet port), making it significantly better suited for 4K streaming, NAS access, and multi-device setups.
Can I connect two devices to each adapter?
Yes. Each PA9020P adapter has two Gigabit Ethernet ports, allowing you to connect two wired devices — such as a smart TV and a gaming console, or an NVR and a network switch — from a single wall outlet.
Will the PA9020P work with my existing AV600 or AV1000 powerline adapters?
Yes. The PA9020P is backward compatible with AV2000, AV1200, AV1000, AV600, AV500, and AV200 HomePlug adapters. Mixed-standard networks will operate at the speed of the slower adapter on each link.
Does the AC pass-through socket affect powerline performance?
The integrated socket includes filtering to minimise electrical noise from plugged-in devices, helping maintain consistent powerline speeds. For best performance, avoid plugging power strips or devices with large motors (such as vacuum cleaners) into the pass-through socket.
Is this kit compatible with Australian power outlets?
Yes. The PA9020P KIT is supplied with Australian-standard (Type I) plugs and is rated for 230V/50Hz operation, making it fully compatible with Australian power points.
Do I need to configure anything to get it working?
No. Plug one adapter into a power point near your router and connect it via Ethernet, then plug the second adapter wherever you need connectivity. Press the Pair buttons on both adapters within two minutes to create an encrypted connection — no software or web interface required.
Can I add more PA9020P adapters to expand the network?
Yes. Additional HomePlug AV2-compatible adapters can be added to extend coverage to more rooms. Each adapter added to the network must be paired using the Pair button process.
