Description

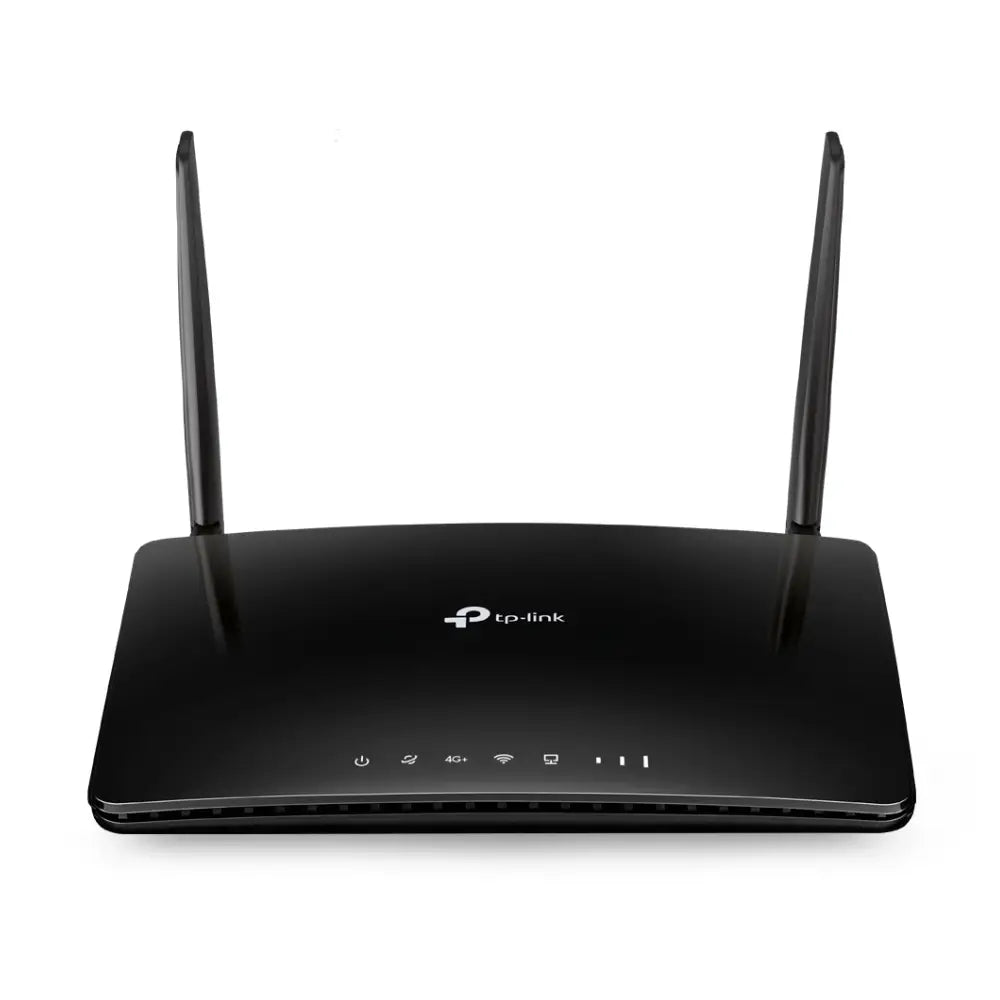

TP-Link Archer MR600 4G+ Cat6 AC1200 Dual Band Gigabit Router with OneMesh
4G+ Cat6 Broadband with Dual-Band Wi-Fi — Australian Carrier Ready
The TP-Link Archer MR600 is a 4G+ Cat6 AC1200 dual-band Gigabit router that delivers fast, flexible broadband by simply inserting a SIM card. With Cat6 LTE speeds, full Gigabit wired ports, dual-band 802.11ac Wi-Fi, and compatibility with Telstra, Optus, and Vodafone’s Australian 4G networks, it’s an ideal primary or backup internet solution for homes, small offices, and remote sites. OneMesh support allows you to extend coverage by pairing it with compatible TP-Link range extenders.
Key Features
- 4G+ Cat6 LTE — download speeds up to 300 Mbps over 4G (carrier and signal dependent)
- Australian carrier compatible — 4G FDD-LTE B5 (850 MHz) / B28 (700 MHz); 3G B5 (850 MHz) — works with Telstra, Optus, and Vodafone
- AC1200 dual-band Wi-Fi — 300 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz

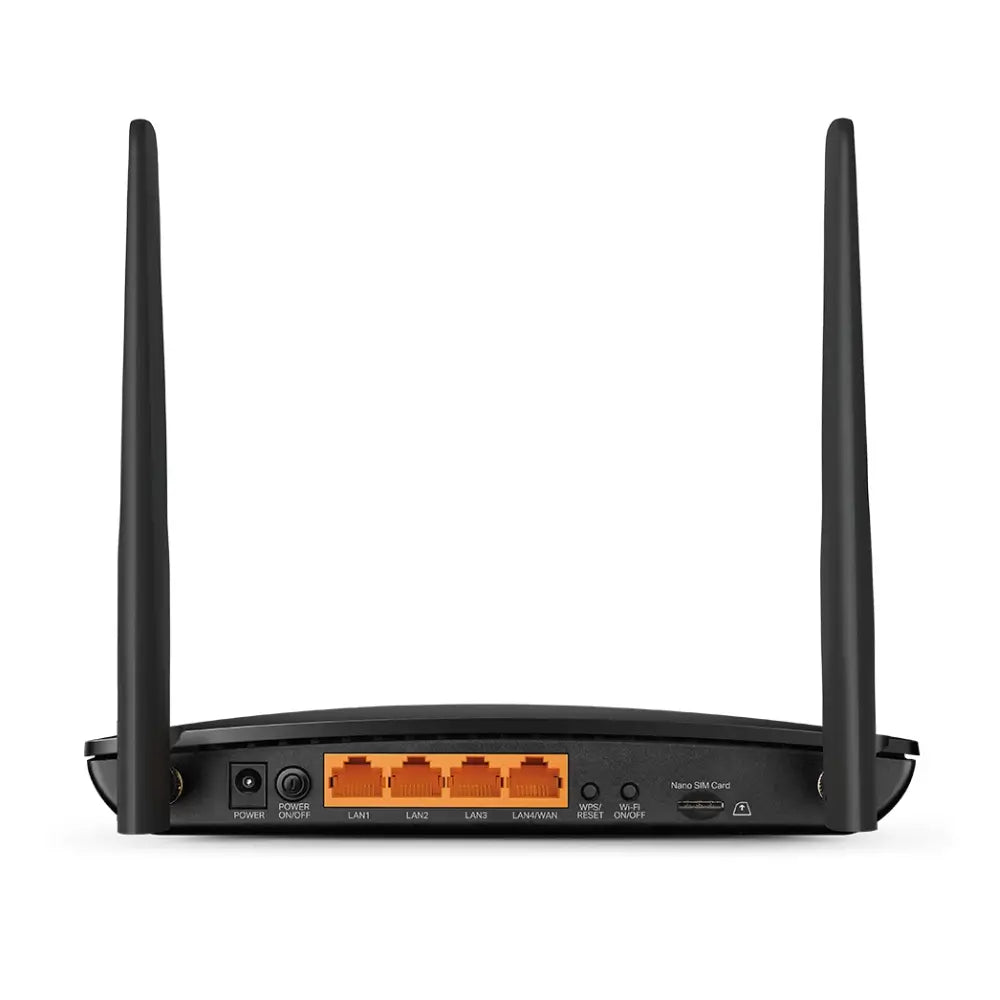

- 4 × Gigabit ports — 1 × LAN/WAN + 3 × LAN for reliable wired connections to smart TVs, gaming consoles, and NVRs
- Micro SIM card slot — plug in and connect, no configuration required
- 2 × detachable external LTE antennas — replaceable with high-gain antennas for improved signal in weak coverage areas
- Wi-Fi router mode with VLAN tagging — use the LAN/WAN port as a fixed-line backup when 4G is unavailable
- TP-Link OneMesh compatible — pair with OneMesh range extenders to create a seamless whole-home mesh network
- WPS, wireless schedule, and WMM support
Use Cases
-
Primary 4G Broadband: Use a 4G SIM as your main internet connection where NBN or fixed-line broadband is unavailable or unreliable.
-
Business Backup Internet: Configure the LAN/WAN port for fixed-line primary and 4G SIM as automatic failover — keeping your business online when the fixed line drops.
-
Remote & Rural Properties: Deliver broadband to farms, rural homes, and remote work sites using Telstra or Optus 4G coverage.
-
Temporary Sites: Pop-up offices, construction sites, and events benefit from instant 4G connectivity without fixed-line contracts.
-
Whole-Home Wi-Fi: Pair with TP-Link OneMesh range extenders to eliminate dead zones across larger homes without a separate mesh system.
Specifications
| Specification |
Detail |
| Model |
Archer MR600 |
| 4G Standard |
4G+ LTE Cat6 — FDD-LTE B5 (850 MHz) / B28 (700 MHz) |
| 3G Standard |
HSPA+ B5 (850 MHz) |
| SIM Card |
Micro SIM |
| Wi-Fi Standard |
IEEE 802.11a/n/ac (5 GHz), IEEE 802.11b/g/n (2.4 GHz) |
| Wi-Fi Speed |
300 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz (AC1200) |
| LAN Ports |
3 × 10/100/1000 Mbps Gigabit RJ45 |
| LAN/WAN Port |
1 × 10/100/1000 Mbps Gigabit RJ45 (fixed-line backup) |
| LTE Antennas |
2 × detachable external (TS-9 connector) |
| OneMesh |
Supported |
| Wireless Security |
WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128-bit WEP |
| Power Supply |
100–240 V AC, 50/60 Hz — 12 V DC / 1.5 A output |
| Dimensions (W × D × H) |
229 × 160 × 37 mm |
| Weight |
0.8 kg |
Frequently Asked Questions
Is the Archer MR600 compatible with Australian 4G networks?
Yes. The MR600 supports FDD-LTE Band 5 (850 MHz) and Band 28 (700 MHz) — the primary 4G bands used by Telstra, Optus, and Vodafone in Australia. It also supports 3G on Band 5 (850 MHz) as a fallback in areas with limited 4G coverage.
What type of SIM card does the MR600 use?
The MR600 uses a Micro SIM card. If your carrier provides a nano-SIM, you will need a nano-to-micro SIM adapter. Data-only SIM plans are recommended for router use.
Can I use the MR600 as a backup internet connection?
Yes. The LAN/WAN port can be connected to a fixed-line modem (NBN, ADSL, or cable) as the primary connection, with the 4G SIM automatically taking over if the fixed line fails. This provides seamless failover for homes and businesses.
What is Cat6 LTE and how fast is it?
Cat6 LTE (Category 6) supports theoretical download speeds of up to 300 Mbps using carrier aggregation — combining two LTE bands simultaneously. Real-world speeds depend on your carrier, signal strength, and network congestion, but Cat6 typically delivers significantly faster speeds than Cat4 (150 Mbps) routers in good coverage areas.
Can I improve 4G signal reception?
Yes. The two detachable LTE antennas use TS-9 connectors, allowing you to replace them with optional high-gain external antennas or connect to a roof-mounted directional antenna for improved signal in weak coverage areas.
What is OneMesh and how does it work with the MR600?
OneMesh is TP-Link’s mesh networking technology that allows compatible routers and range extenders to form a single unified network with one SSID. Pair the MR600 with a compatible TP-Link OneMesh range extender to extend Wi-Fi coverage throughout your home without a separate mesh system.
