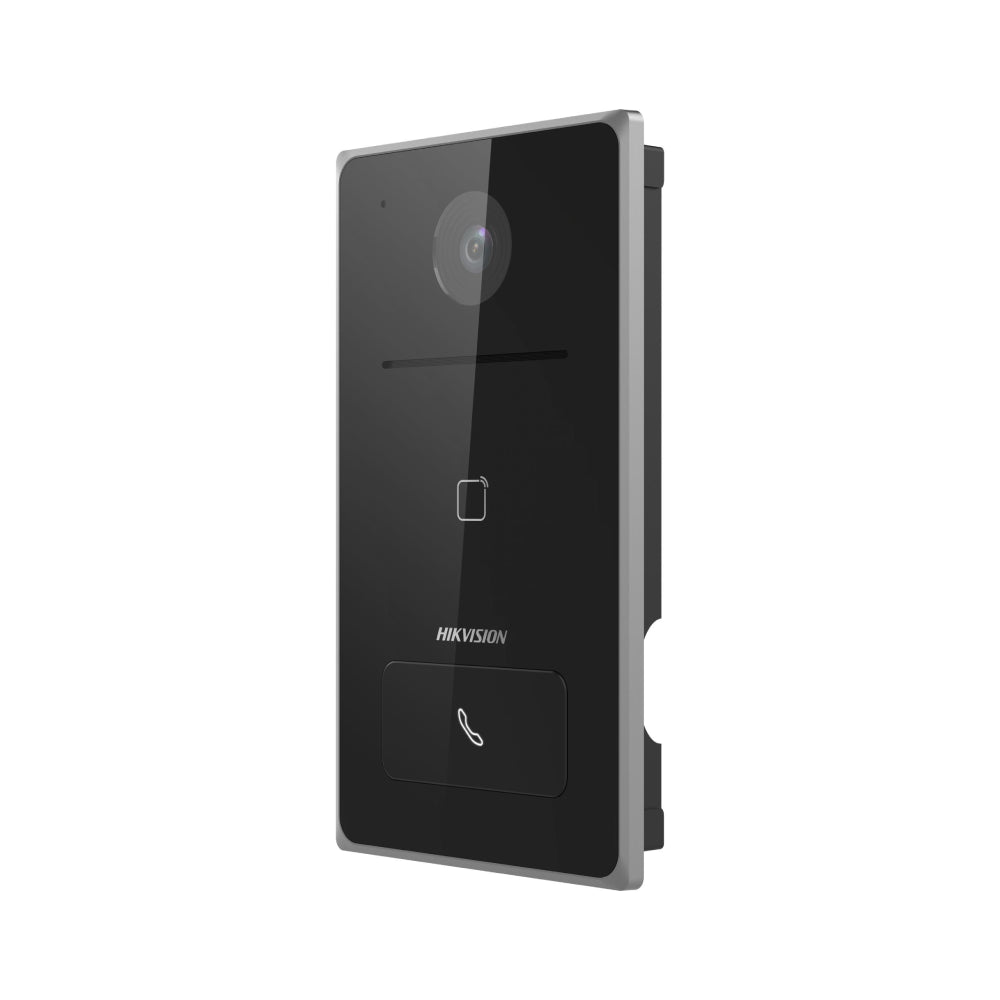

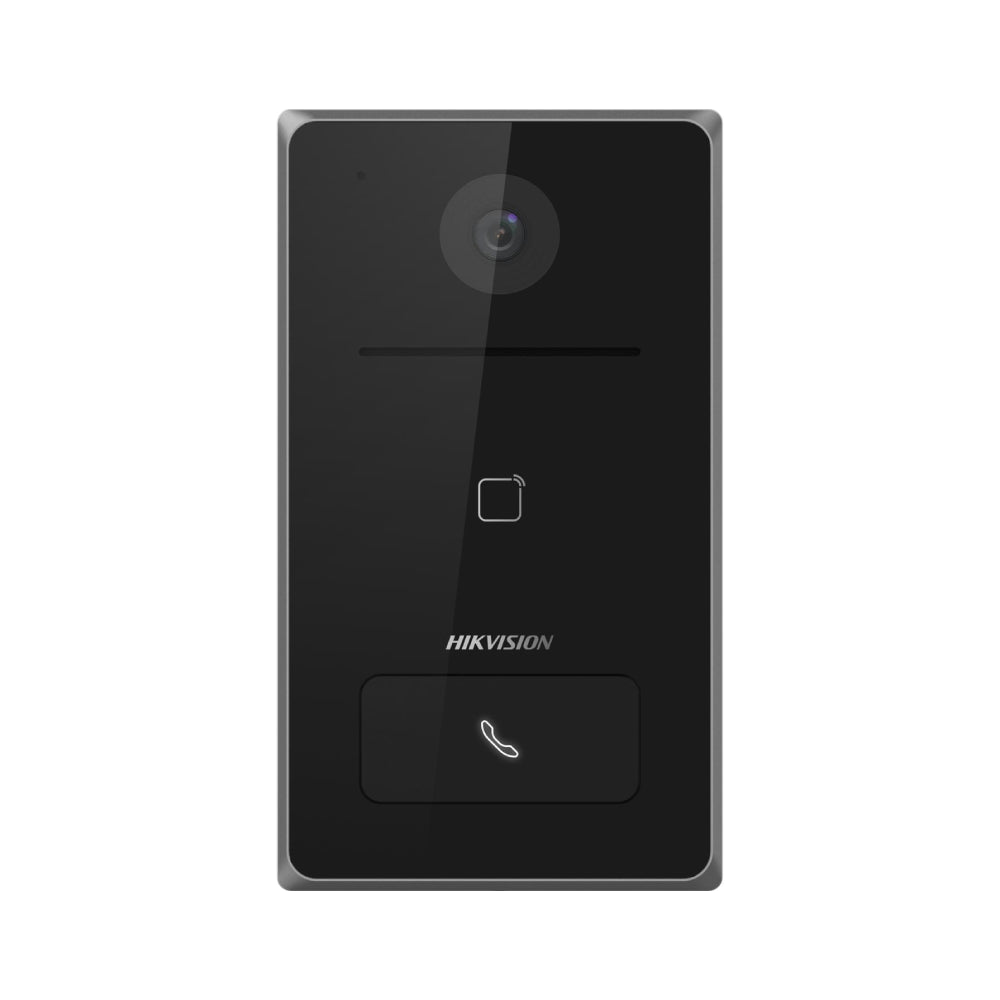

Hikvision DS-KV6133-WME1-FLUSH 2MP IP Villa Door Station

Description

Hikvision Pro Series · IP Video Intercom

Seamless Entrance Security with Direct Mobile Calling & RFID Access

The Hikvision DS-KV6133-WME1-FLUSH is a high-performance 2 MP IP villa door station designed to elevate residential entryways, office suites, and gated commercial properties. Engineered for versatile deployment, this sleek unit integrates a full HD 1080p camera with a super-wide 129° viewing angle, ensuring crystal-clear coverage of visiting guests. Equipped with a built-in Mifare card reader and native support for the Hik-Connect mobile app, it allows property owners to receive video calls, converse with visitors, and unlock doors remotely directly from their smartphones—even without a dedicated indoor monitor unit.

Resolution / FOV
2MP HD / 129° Horizontal
Access Control
Mifare RFID Reader (13.56 MHz)
Connectivity
Standard PoE & 2.4GHz Wi-Fi
Protection Rating
IP65 Weather Resistant

Advanced Audio-Visual Processing & Standalone Smart Integration

The Hikvision DS-KV6133-WME1-FLUSH features built-in noise suppression and echo cancellation technology to deliver clear two-way audio communications. Equipped with true 120 dB WDR and a 2.5-meter IR night vision illuminator, the camera preserves sharp facial details even under heavy backlight or pitch-black darkness. Designed with flexible network support, installer teams can power the unit via standard IEEE 802.3af PoE or a 12 VDC supply. With built-in 2.4 GHz Wi-Fi connectivity, the station connects effortlessly to local networks, allowing for quick cloud onboarding via the Hik-Connect system.

Standalone App Notification

Receive immediate push notifications directly to the Hik-Connect smartphone app when guests press the single-call button, enabling video verification and remote door unlocking from anywhere.

Integrated Access Control

Features an onboard Mifare (13.56 MHz) card reader with capacity for up to 10,000 cards and 2,000 users, allowing effortless, secure keyless entry for employees or residents.

Technical Specification Matrix
Camera Model DS-KV6133-WME1-FLUSH
Resolution Main Stream: 1920 × 1080p / 1280 × 720p
Camera Field of View Horizontal: 129°, Vertical: 75°
Night Vision Light IR Supplement up to 2.5 m
Audio Processing Built-in Omnidirectional Mic & Speaker (Noise & Echo Cancellation)
Access Control Capacity Up to 2,000 Users, 10,000 Mifare Cards (13.56 MHz)
Wi-Fi Protocol Wi-Fi 2.4GHz (IEEE802.11b/g/n)
I/O Interfaces 1 Relay Lock Control, 4 Alarm Inputs, 1 RS-485, 1 Tamper Switch
Ingress Protection IP65 Weatherproof Casing
Power Supply Options 12 VDC, 1.5 A / IEEE 802.3af Standard PoE (< 10 W)

Frequently Asked Questions

Can the DS-KV6133-WME1 work without an indoor screen?

Yes, it supports direct connection to the Hik-Connect app, allowing users to answer video calls and open doors directly on their smartphones without requiring a physical indoor monitor.

How is the door station powered?

It can be powered either using Standard Power over Ethernet (PoE 802.3af) via a network cable or with a local 12 VDC power adapter.

What mounting options are available for this model?

This door station model supports both surface mounting and flush mounting depending on your installation requirements and wall preparation.

How many access cards can be programmed into the unit?

The integrated RFID card module supports up to 10,000 Mifare (13.56 MHz) cards across 2,000 users.

Technical Datasheet Quick Start Guide
Official Hikvision Stock
Commercial Warranty
Aust-Wide Delivery

Hikvision DS-KV6133-WME1-FLUSH 2MP IP Villa Door Station

Product form

SKU: DS-KV6133-WME1-FLUSH

$339.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    • Warranty: 24 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
