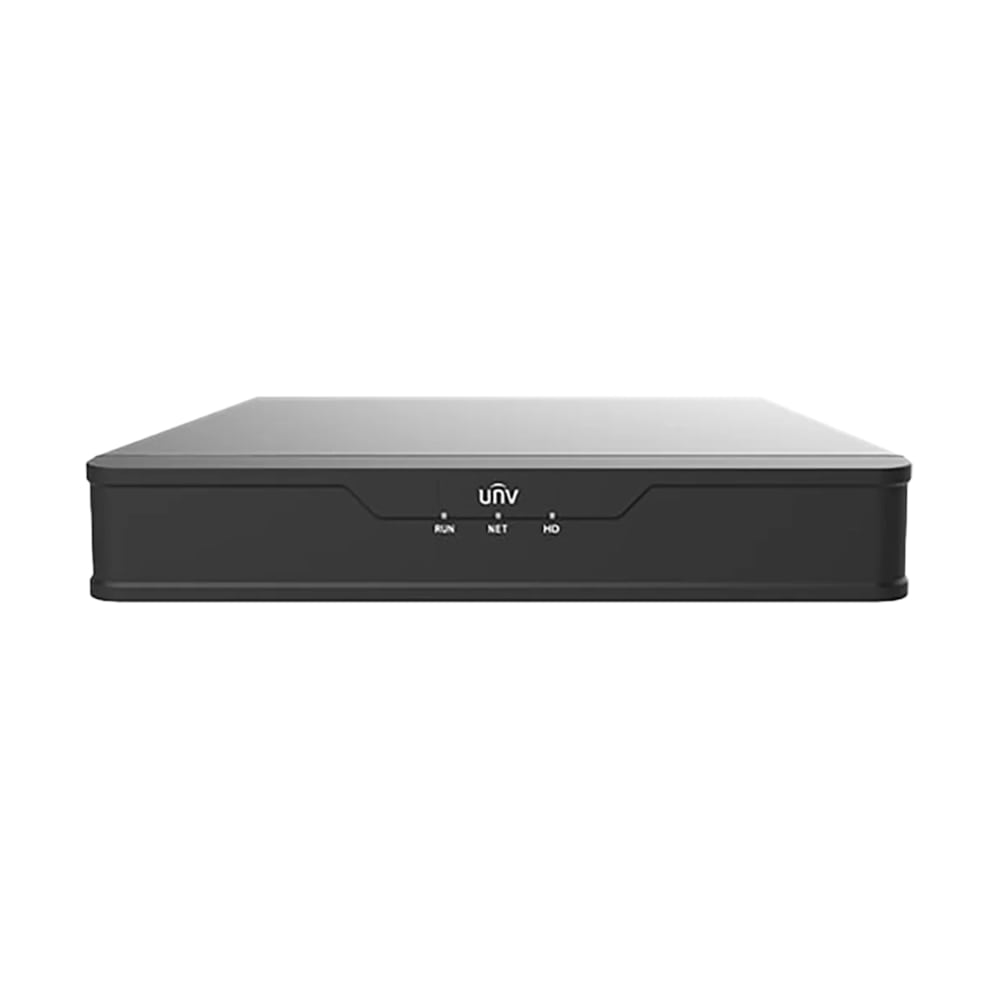

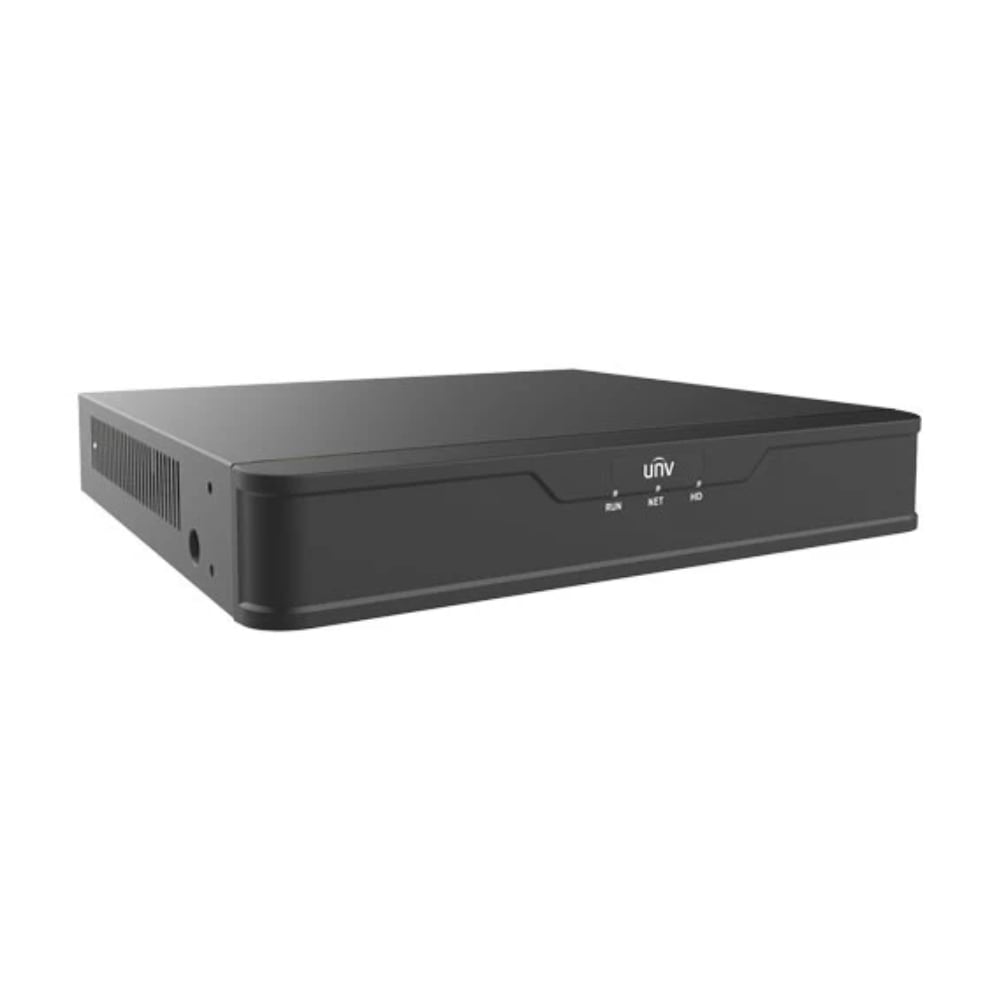

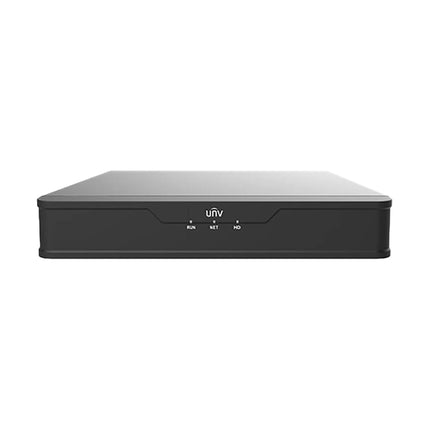

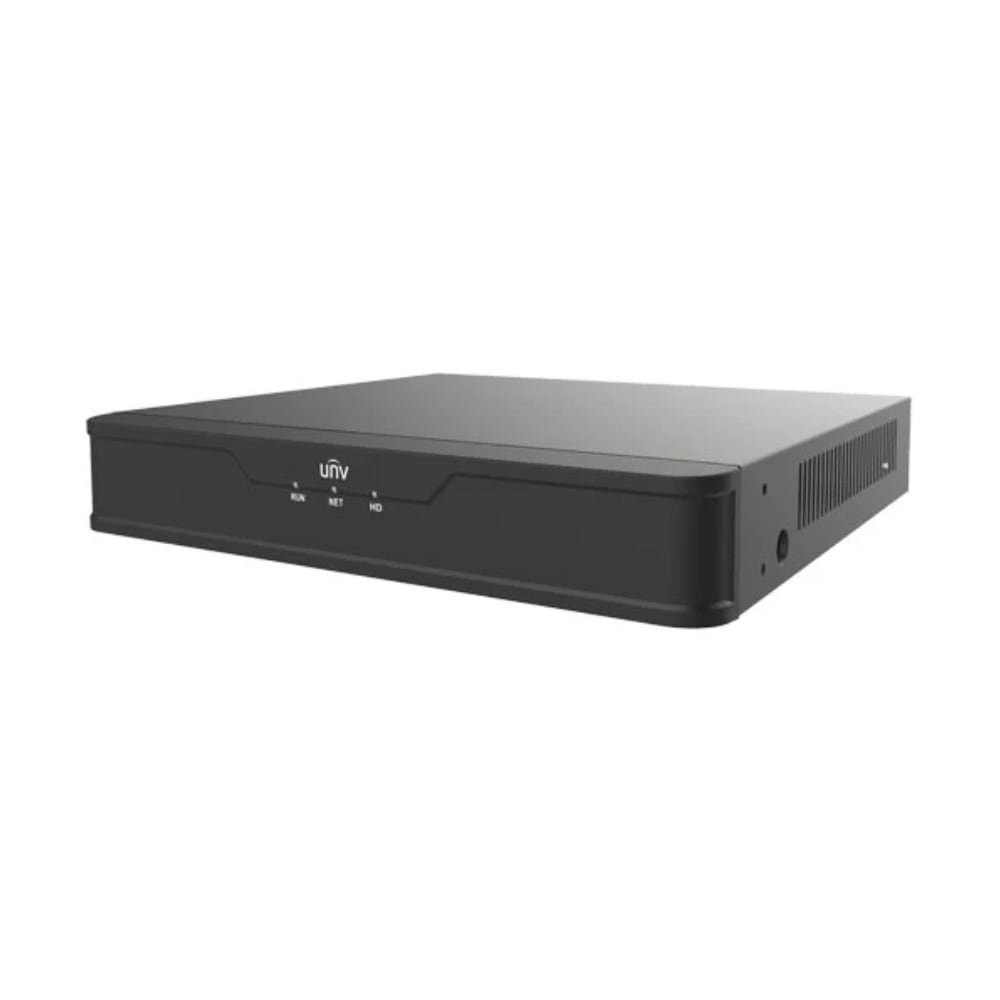

Uniview UNV NVR501-08B-P8 8 Channel 4K PoE NVR — 8 PoE, 1-Bay, NDAA

Description

NDAA-Compliant 8-Channel PoE NVR

Uniview UNV NVR501-08B-P8 8-Channel 8-PoE NVR — Australian Stock & 3-Year Warranty

The Uniview UNV NVR501-08B-P8 is an 8-channel, single-bay network video recorder with 8 built-in PoE ports, so you can plug your cameras straight into the back of the unit — no separate switch, no extra cabling. It records up to 16MP resolution in Ultra 265, takes a single SATA drive up to 16TB for weeks of continuous footage, and powers a full eight-camera system from one box. Plug & Play setup, 4K HDMI output and onboard smart detection make it the ideal all-in-one recorder for homes, retail and small business sites.

Camera Inputs8 Channels
PoE Ports8 × PoE (75W)
Max Recording16MP / 4K
Storage1 × 16TB SATA

Plug & Play — your whole system from one box

8 Independent PoE Ports

Connect and power up to eight IP cameras directly from the recorder. Each port delivers up to 30W (75W total) over 802.3at/af, so even varifocal and IR cameras run from a single cable.

True Plug & Play

Cameras are detected and added automatically when you plug them in — no manual IP addressing or network setup. You're recording within minutes of powering on.

Up to 16MP Recording

Records every channel in Ultra 265, H.265 or H.264 at up to 16MP, so it's ready for today's high-resolution 4K and 8MP Uniview cameras without re-compressing detail away.

4K HDMI + VGA Output

Drive a crisp 4K display over HDMI and a second monitor over VGA at the same time — ideal for a live wall in the office plus a screen at the front counter.

Smart detection and reliable recording

Smart by IPC

Run Face Detection, Smart Intrusion Prevention (SIP) and Ultra Motion Detection on all 8 channels with compatible Uniview cameras for fewer false alarms and faster review.

VCA Smart Search

Find footage faster with Human Body, Motor and Non-Motor Vehicle search, General Search, People Counting reports and Heat Map — no frame-by-frame scrubbing.

ANR Anti-Dropout

If the network drops, ANR keeps recording to the camera's onboard SD card and backfills the NVR once the link returns — so you don't lose footage during an outage.

P2P Cloud & Mobile

Watch live and recorded video from anywhere through the Uniview app and EZCloud P2P — no port forwarding or static IP required.

Specifications

Recording & Decoding
Video Compression Ultra 265, H.265, H.264
Recording Resolution Up to 16MP — 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P
Decoding Capability 2 × 16MP@30 / 4 × 4K@30 / 6 × 5MP@30 / 8 × 4MP@30
Incoming / Outgoing Bandwidth 80 Mbps / 64 Mbps
Live View 1 / 4 / 6 / 8 / 9 split (incl. corridor mode)
Channels & Connectivity
IP Camera Input 8-ch
PoE Ports 8 × RJ45 10/100M — Plug & Play, 802.3at/af
PoE Power Budget Max 30W per port, 75W total
Network Interface 1 × RJ45 10/100M self-adaptive Ethernet
Video Output 1 × HDMI (4K), 1 × VGA — simultaneous output
USB 1 × USB 2.0, 1 × USB 3.0 (rear)
Audio 1-ch RCA in / out, two-way audio
Smart & Search Functions
Smart by IPC Face Detection, SIP (Intrusion, Cross Line, Enter/Leave Area), Ultra Motion Detection — up to 8-ch
VCA Search Human Body, Motor & Non-Motor Vehicle, General Search, People Counting Report, Heat Map
People Counting People Flow Counting, Crowd Density Monitoring
ANR Supported (edge recording backfill)
ONVIF Profile S, Profile G, Profile T
Storage, Power & Build
HDD Bay 1 × SATA, up to 16TB
Power Supply DC 52V / 1.8A
Power Consumption ≤ 10W (without HDD)
Dimensions 260 × 222 × 47 mm, ≤ 1.1 kg
Operating Temperature -10°C to 55°C, ≤ 90% RH
Certification CE, FCC, UL, RoHS, WEEE — NDAA Compliant

How much footage can it hold?

Recording time depends on how many cameras you run, their resolution and frame rate, and whether you record continuously or on motion. The estimates below assume 8 cameras at 4MP, H.265, ~4 Mbps continuous — a typical real-world load. Smart/motion-only recording, lower resolution or fewer cameras will extend retention significantly. This recorder takes a single SATA drive up to 16TB.

Approximate Recording Retention (8 × 4MP, H.265)
2 TB ~6 days continuous · ~14 days motion-based
4 TB ~12 days continuous · ~28 days motion-based
8 TB ~24 days continuous · ~55 days motion-based
16 TB (max) ~48 days continuous · ~110 days motion-based

Figures are estimates for guidance only and will vary with scene activity, bitrate and camera settings.

Downloads

NVR501-08B-P8 Datasheet Uniview UNV NVR Quick Start Guide Uniview UNV NVR User Manual

Frequently Asked Questions

Does this NVR have built-in PoE ports?

Yes — eight of them. The NVR501-08B-P8 has 8 independent PoE ports, so you plug your cameras straight into the recorder and they're powered and added automatically. No separate PoE switch needed.

How much PoE power does it supply?

Each port delivers up to 30W, with a 75W total budget across all eight ports (IEEE 802.3at/af). That's plenty for standard dome, bullet and varifocal IP cameras.

How many cameras can it record?

Up to 8 IP channels with 80 Mbps of incoming bandwidth — enough for a full set of high-megapixel cameras.

What's the maximum storage?

It has a single SATA bay that takes one hard drive up to 16TB. Surveillance-rated drives are recommended for 24/7 recording (sold separately).

What resolution can it record?

Up to 16MP per channel in Ultra 265, H.265 or H.264, so it's ready for 4K and 8MP Uniview cameras.

What smart features does it have?

With compatible Uniview cameras it runs Face Detection, Smart Intrusion Prevention and Ultra Motion Detection on all channels, plus VCA search tools like Human Body and Vehicle search, People Counting and Heat Map to find footage fast.

Is it NDAA compliant?

Yes. The NVR501-08B-P8 is NDAA compliant, making it suitable for government, education and enterprise projects with procurement requirements.

Does it work with third-party cameras?

Yes, via ONVIF Profile S, G and T, along with RTSP. For full Plug & Play and smart detection, Uniview cameras are recommended.

Can I view it remotely?

Yes. P2P cloud access through the Uniview app and EZCloud lets you watch live and recorded footage from your phone or computer anywhere — no port forwarding required.

What's in the box and what warranty applies?

The recorder ships with its power adapter and accessories (drive sold separately) and is backed by a 3-year Australian warranty with local CCTV Guru support.

3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Uniview UNV NVR501-08B-P8 8 Channel 4K PoE NVR — 8 PoE, 1-Bay, NDAA

Product form
2.3
Rated 2.3 out of 5 stars
3 Reviews

SKU: NVR501-08B-P8

NDAA-Compliant 8-Channel PoE NVR Uniview UNV NVR501-08B-P8 8-Channel 8-PoE NVR — Australian Stock & 3-Year Warranty The Uniview UNV NVR501-08B-P8... Read more

$329.00  $295.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Dispatch today? Order within: Jun 24, 2026 14:00:00 +1000
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180
    2.3
    Rated 2.3 out of 5 stars
    Based on 3 reviews
    Total 5 star reviews: 0 Total 4 star reviews: 1 Total 3 star reviews: 0 Total 2 star reviews: 1 Total 1 star reviews: 1
    33%would recommend this product
    Slide 1 selected
    Write a Review (Opens in a new window)
    3 reviews
    • MK
      Muataz K.
      Verified Buyer
      I recommend this product
      Rated 4 out of 5 stars
      5 days ago
      Very good

      Very good

      Was this helpful?
    • SF
      Shannon F.
      Verified Buyer
      I do not recommend this product
      Rated 1 out of 5 stars
      1 month ago
      Very displeased

      If I could give negative stars I would. I purchased the UNV box to replace an old system attached to a newly purchased property on the advice of the UNV team. The old one was connected to the previous owners. However I have still been unable to connect - UNVs system is trash and they have been of very little assistance. An absolute waste of money and couldn’t not recommend less.

      Was this helpful?
    • WS
      Willfred S.
      Verified Buyer
      I do not recommend this product
      Rated 2 out of 5 stars
      2 months ago
      Disappointment

      Very disappointed with the product ...... unfortunately. The hardware linstallation ( UNV Easystar camera's, cabling, monitor etc.) is easy and the HDD was pre-installed in the recorder. The disappointment came thereafter. Too many links for all different manuals and instructions to go through to find the correct one and in the end find out that the available apps are all only Android based. No matter how long and where ever I searched on the internet about the products compatibility with windows, the result is the same and thus not compatible with Windows. I can check the camera's away from home through my Android phone but it makes it all much more complicated to setup the security on my ethernet home network. Also maybe a link for a short version manual with just the bare necessities would make it a bit easier to start the whole installation before digging in deeper to explore all the capabilities of the program.

      Conclusion: the total UNV product of camera's with recorder to me could have been 3.5 to 4 stars but the mentioned issues above brought it back to 2 stars hence my "Disappointment".

      Was this helpful?
