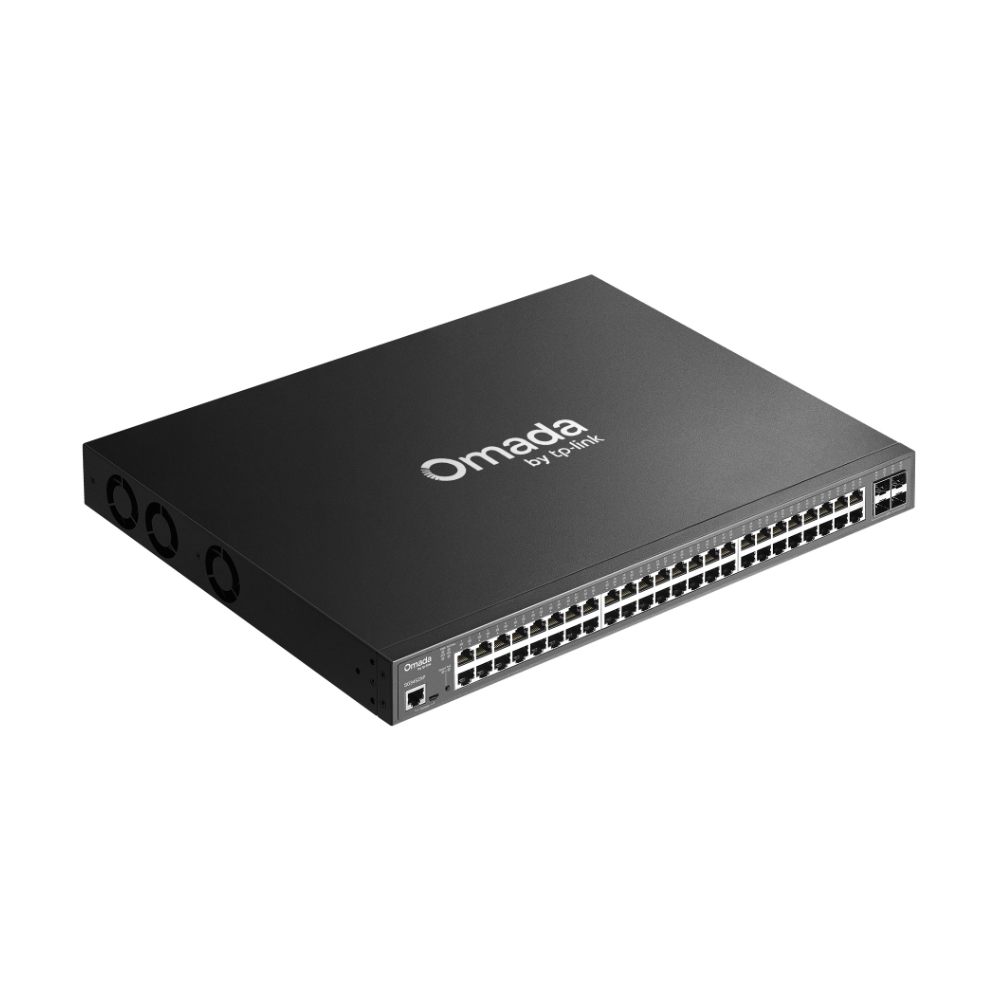

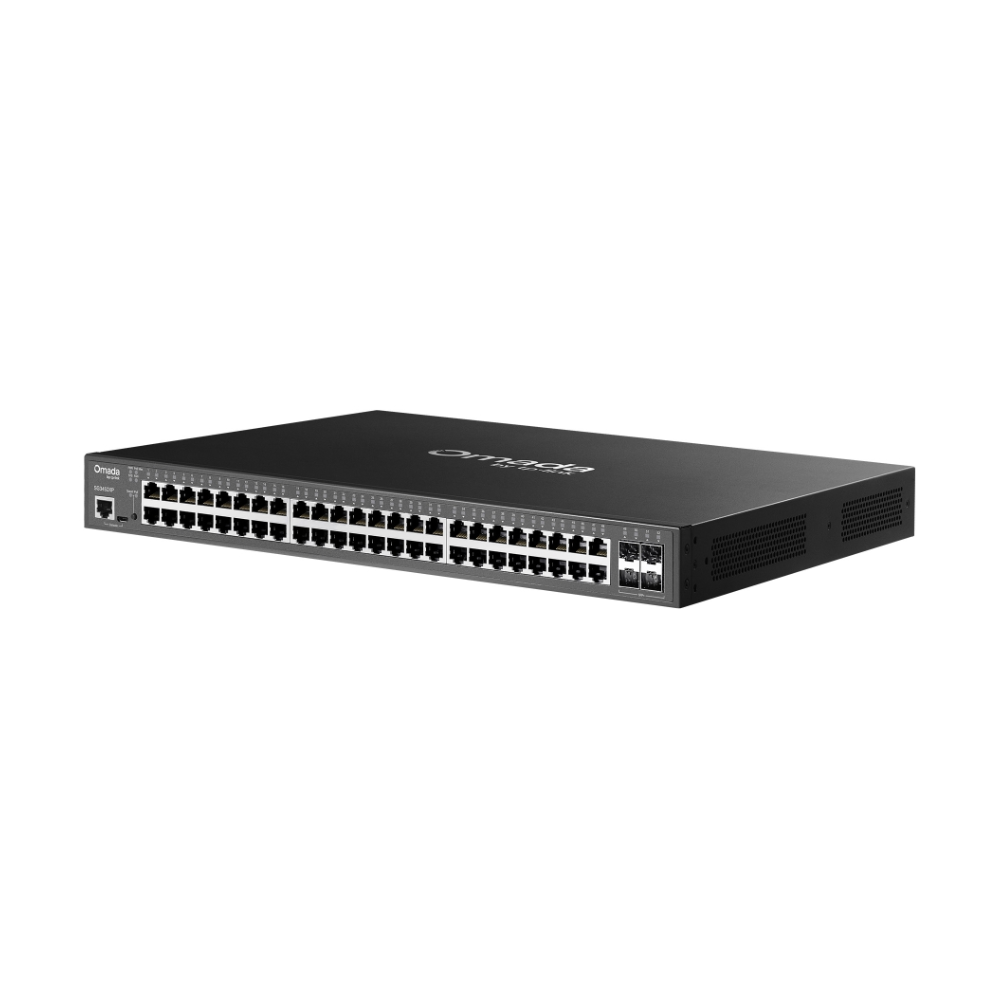

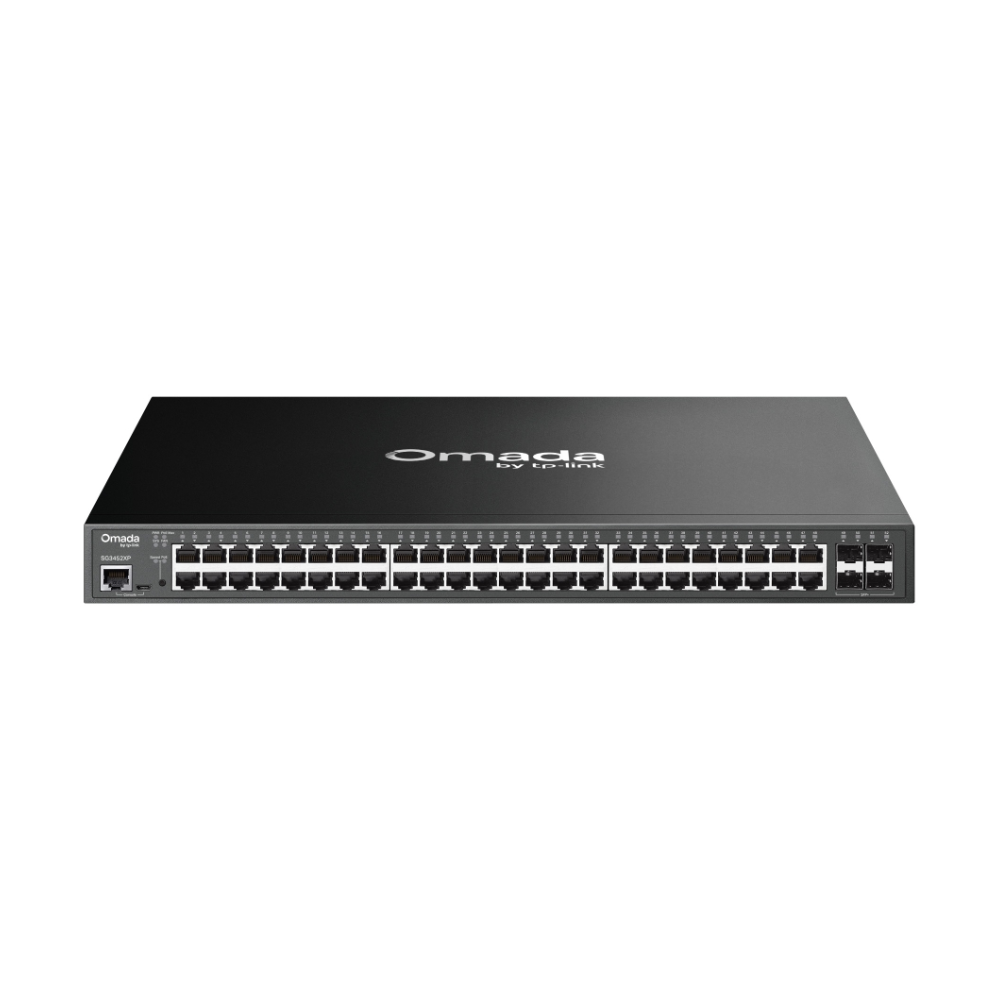

TP-Link TL-SG3452XP JetStream 48-Port Gigabit PoE+ L2+ Managed Switch with 4-Port 10GE SFP+
The TP-Link TL-SG3452XP is a professional 48-port Gigabit PoE+ L2+ managed switch designed for enterprise, campus, and large commercial deployments across Australia. With 48 × IEEE 802.3af/at PoE+ Gigabit ports delivering a 500W total power budget, four 10GE SFP+ uplink slots for non-blocking high-speed connectivity to core switches and servers, and full Omada SDN integration, it provides the scale, power, and management capability required for large-scale Wi-Fi, IP camera, and VoIP deployments from a single 1U rackmount appliance.
Key Features
-
48 × Gigabit PoE+ Ports — IEEE 802.3af/at PoE+ on all 48 RJ45 ports with a 500W total power budget — powers access points, IP cameras, VoIP phones, and other PoE devices at scale without separate power infrastructure.
-
4 × 10GE SFP+ Uplink Slots — Non-blocking 10G fibre or DAC uplinks to core switches and servers for ultra-low latency and maximum throughput under full load.
-
L2+ Feature Set — Comprehensive L2 and L2+ features including Static Routing, 802.1Q VLAN, RSTP/MSTP, LACP Link Aggregation, Port Mirroring, and IGMP Snooping.
-
Enterprise QoS — Prioritise voice, video, and critical traffic by IP address, MAC address, TCP/UDP port, and VLAN ID for consistent performance across all 48 ports under load.
-
Robust Security — IP-MAC-Port-VID Binding, 802.1X authentication (RADIUS/TACACS+), ACL (L2–L4), DHCP Snooping, Port Security, Storm Control, and DoS prevention.
-
Omada SDN Integration — Centrally manage the switch alongside Omada APs and routers from the Omada Controller, cloud portal, or Omada app for 100% centralised network management.
-
Standalone Management — Web UI, CLI (Console, Telnet, SSH), SNMP, RMON, and Dual Image for full enterprise-grade standalone management without a controller.
-
ISP Features — sFlow, QinQ, L2PT, PPPoE ID Insertion, IGMP authentication, 802.3ah OAM, and DLDP for service provider and carrier-grade deployments.
-
IPv6 Ready — Full IPv6 support including Dual Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, and IPv6 Neighbour Discovery.
-
1U Rackmount Form Factor — Standard 19-inch 1U rack design for clean data centre and comms room installation.
Use Cases
- Large enterprise and campus networks requiring a single 48-port PoE+ access layer switch for Wi-Fi 6 APs, IP cameras, and VoIP phones
- Hotels, resorts, and conference centres deploying per-room or per-floor Wi-Fi 6 access points at scale from a centralised switch
- Education facilities — schools, TAFEs, and universities — requiring high-density PoE switching for classroom APs and IP cameras
- Healthcare facilities and aged care campuses needing reliable PoE switching for nurse call, VoIP, and wireless infrastructure
- Omada SDN deployments requiring a large-scale managed PoE+ access switch integrated into centralised cloud management
- ISP and service provider aggregation networks requiring QinQ, sFlow, and OAM features at the access layer
Technical Specifications
| Specification |
Detail |
| Model |
TL-SG3452XP |
| RJ45 Ports |
48 × 10/100/1000Mbps Gigabit PoE+ |
| SFP+ Uplinks |
4 × 10GE SFP+ |
| PoE Standard |
IEEE 802.3af (PoE) / 802.3at (PoE+) |
| Total PoE Budget |
500W |
| Switch Type |
L2+ Managed (JetStream) |
| L2+ Features |
Static Routing, 802.1Q VLAN, RSTP/MSTP, LACP, Port Mirroring, IGMP Snooping, QoS |
| Security |
802.1X (RADIUS/TACACS+), ACL (L2–L4), DHCP Snooping, IP-MAC-Port-VID Binding, Storm Control, DoS Prevention |
| Management |
Web UI, CLI (Console/Telnet/SSH), SNMP, RMON, Dual Image; Omada SDN (cloud & on-premises) |
| ISP Features |
sFlow, QinQ, L2PT, PPPoE ID Insertion, IGMP Auth, 802.3ah OAM, DLDP |
| IPv6 |
Dual Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 ND |
| Form Factor |
1U Rackmount (19-inch) |
| Weight |
6.48 kg |
| Warranty |
2 Years |
Recommended Accessories
-
TP-Link Omada ER7212PC 3-in-1 VPN Router — Pair as the core router and Omada controller in a complete Omada SDN deployment, with the TL-SG3452XP as the access layer switch.
-
TP-Link EAP655-Wall AX3000 Wi-Fi 6 Wall Plate AP — Connect up to 48 wall plate APs directly to the TL-SG3452XP’s PoE+ ports for large-scale per-room hotel or office Wi-Fi 6 deployments.
-
10GE SFP+ DAC Cable or Fibre Module — For connecting the TL-SG3452XP to a core switch or server via the SFP+ uplink slots at full 10G speed.
-
Cat6 Ethernet Cable — For reliable Gigabit and PoE+ delivery to all 48 connected devices; Cat6A recommended for runs over 55m.
-
TP-Link VIGI C440 4MP Full-Colour Turret Camera — Connect PoE-powered VIGI cameras directly to the TL-SG3452XP’s PoE+ ports for large-scale IP surveillance deployments.
Downloads
Frequently Asked Questions
How many PoE devices can the TL-SG3452XP power simultaneously?
All 48 RJ45 ports support PoE+, but the combined power draw of all connected PoE devices must not exceed the 500W total budget. For example, 48 × 10W PoE cameras would draw 480W — within budget. 48 × 15W Wi-Fi 6 APs would draw 720W — exceeding the budget. Plan your PoE device power requirements carefully and prioritise higher-wattage devices across ports if needed.
What is the maximum PoE wattage per port?
Each port supports up to 30W (IEEE 802.3at PoE+). The total across all 48 ports is capped at 500W. If you need more than 30W per port for high-power devices such as Wi-Fi 6E APs or PTZ cameras, consider the TL-SX3206HPP which supports up to 60W per port (IEEE 802.3bt PoE++).
Does the TL-SG3452XP require an Omada Controller?
No. The TL-SG3452XP supports full standalone management via web UI, CLI (Console, Telnet, SSH), SNMP, and RMON without any controller. Omada SDN integration is optional and adds centralised multi-device management, cloud access, and the Omada app interface — recommended for large deployments with multiple switches and APs.
What SFP+ modules or cables are compatible with the uplink slots?
The four SFP+ slots support standard 10GE SFP+ modules including TP-Link’s own SFP+ transceivers (single-mode and multi-mode fibre) and DAC (Direct Attach Copper) cables. Check TP-Link’s compatibility list for third-party SFP+ module support.
Can this switch be used as a standalone access layer switch without a core switch?
Yes. The TL-SG3452XP can operate as a standalone access layer switch connected directly to a router or modem via one of its SFP+ uplink ports. The Static Routing feature allows basic inter-VLAN routing without a dedicated Layer 3 core switch, making it suitable for medium-sized deployments that don’t require a full three-tier network architecture.
Is the TL-SG3452XP suitable for outdoor IP camera deployments?
The switch itself is designed for indoor rack installation. It can power outdoor-rated PoE IP cameras via indoor-to-outdoor cabling runs of up to 100 metres. Ensure the cable is rated for outdoor use and the camera carries an appropriate IP weather rating for its installation location.
